DC5V-36V 3-фазный BLDC Бесщеточный Регулятор скорости вращения двигателя постоянного тока практичный реверсивный переключатель
- Категория: Motor Controllers >>>
- Поставщик: Shenzhen,Dawangtai,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 11.50 $* | 11.23 $* |
| Jul-16-2025 | 9.79 $* | 9.48 $* |
| Jun-16-2025 | 11.98 $* | 11.75 $* |
| May-16-2025 | 11.81 $* | 11.20 $* |
| Apr-16-2025 | 9.91 $* | 9.57 $* |
| Mar-16-2025 | 11.13 $* | 11.49 $* |
| Feb-16-2025 | 11.5 $* | 11.76 $* |
| Jan-16-2025 | 11.29 $* | 11.69 $* |
Характеристики

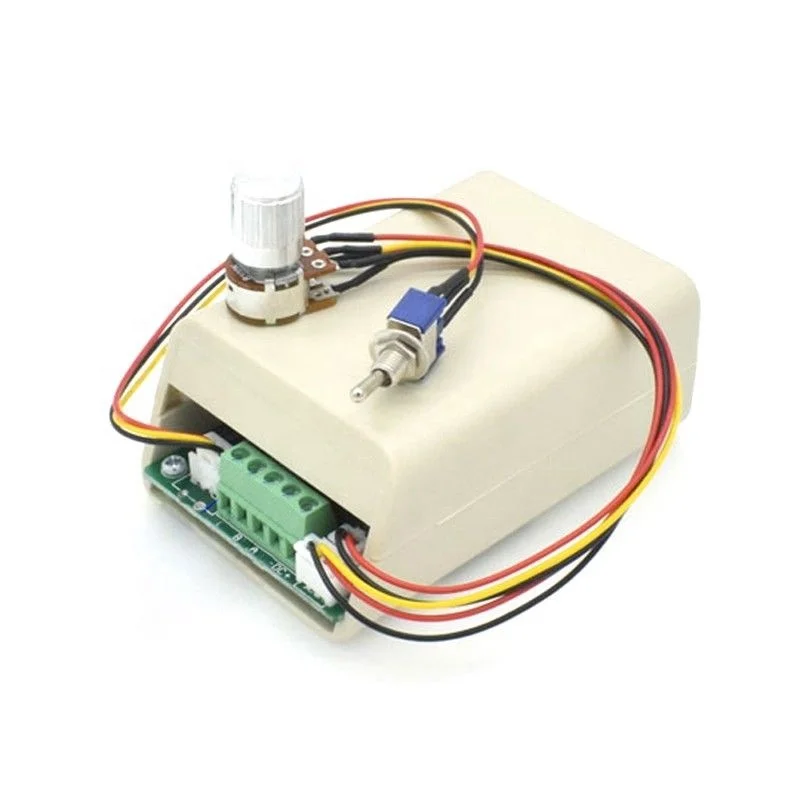

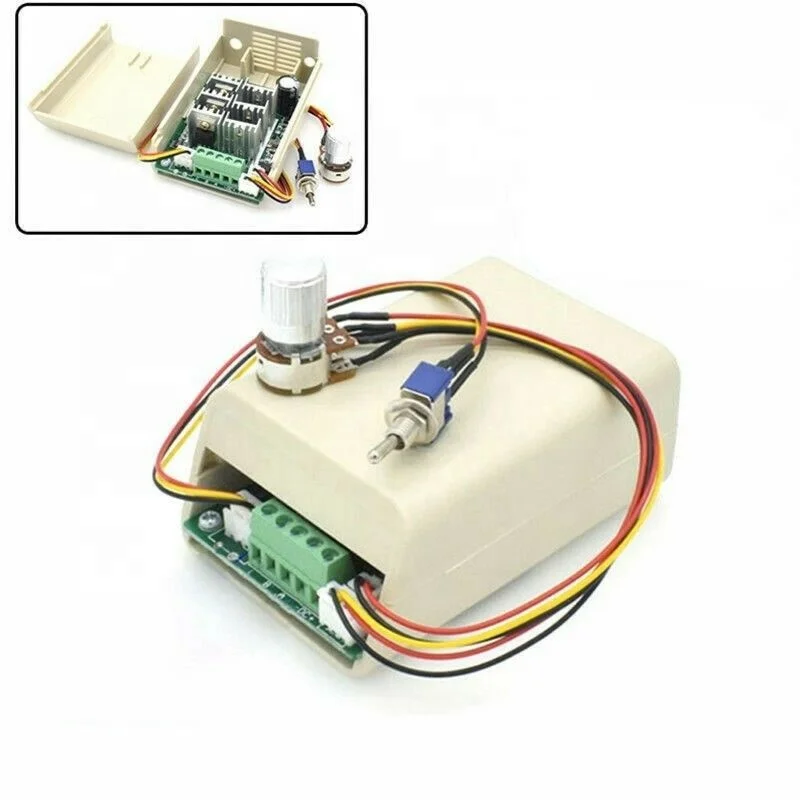

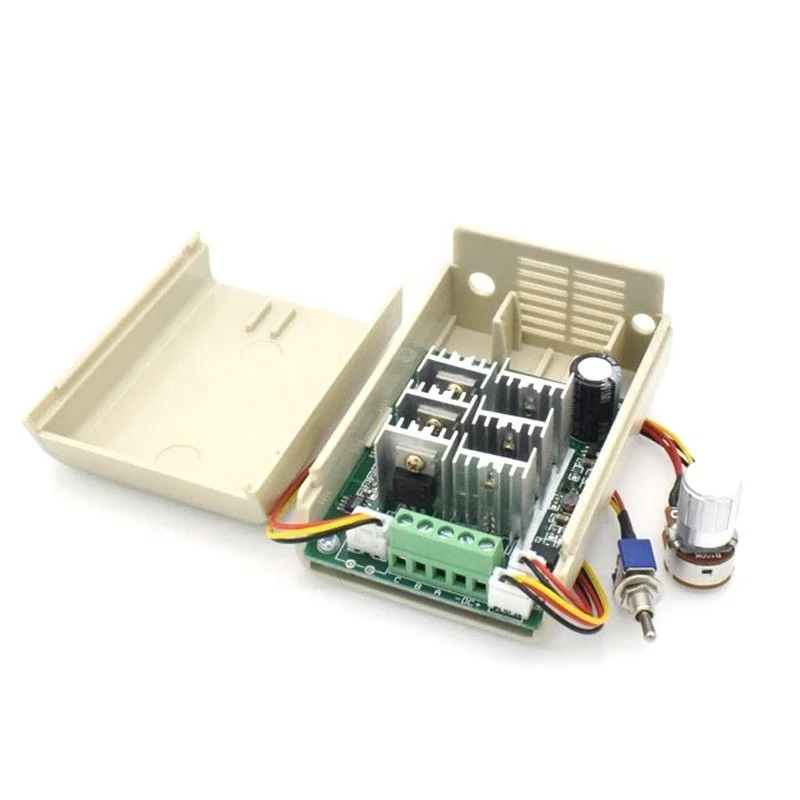

DC5V-36V 3-Phase BLDC Brushless DC Motor Speed Controller Practical Reversible Switch Driver
Product Description

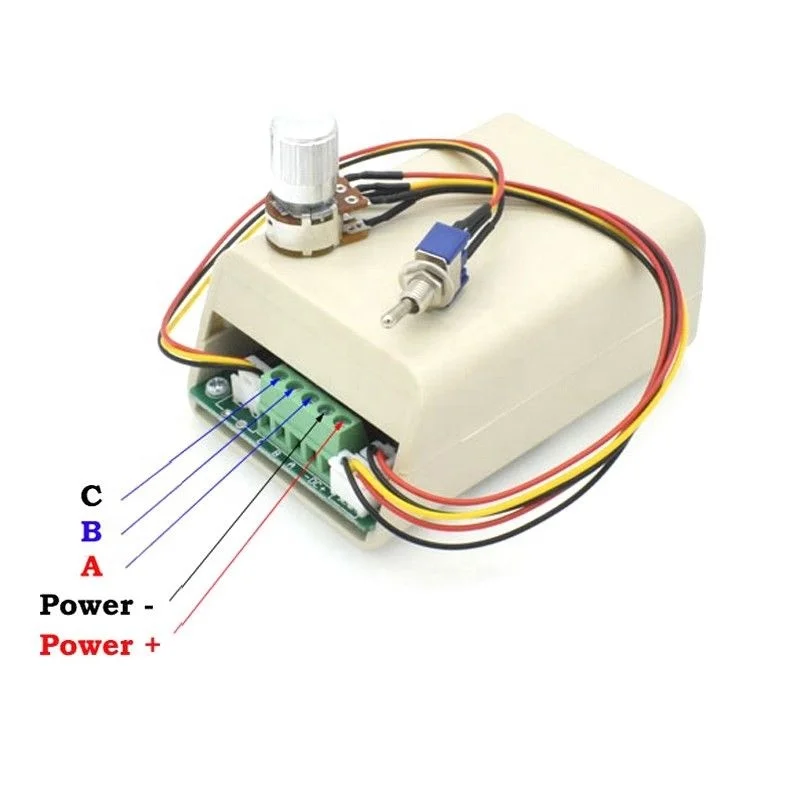

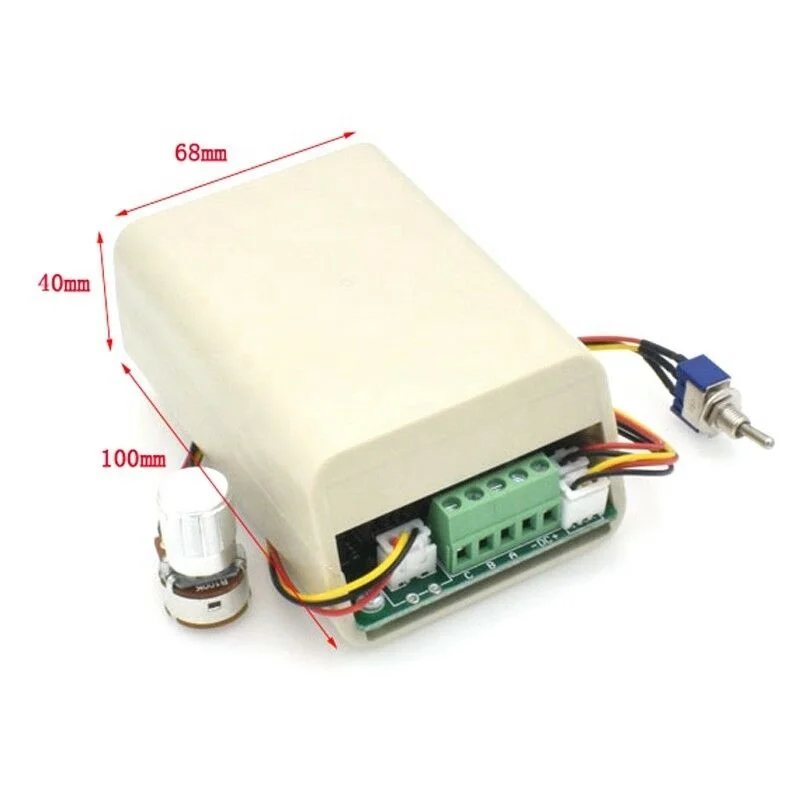

3-Phase Brushless Motor Speed Controller DC 5V 12V 24V CW CCW Reversible Switch Made of high quality material, durable and practical to use 100% brand new and high quality Input voltage: DC 5V-36V Output current: within 15A Reversible: CW/CCW Protection current: 15A Input current: Over the working current of motor Speed regulation mode: Potentiometer (270 degrees linear) Speed range: 0-100% Knob size: 100K(with switch) Support motor: DC brushless motor Module size: 100*68*40mm(L*W*H)/3.94''2.68''x1.57'' Note: The input voltage must be divided `into positive and negative Can not input AC 220V, or it will burn the module The input voltage is equal to the rated voltage of the motor (DC5V-36V) Motor line A,B,C is in no order
|
