Двойная плата драйвера щеточного двигателя постоянного тока H-Bridge контроллер 16 А 5-48 В 12 24 48 управление двигателем высокой

Parameters:
Model: ZS-H1B
Output channel: 2-way
Working voltage: 5-36V
2-Channel rated current: 16A Max.
1-Channel rated current: 8A Max.
Each channel output rated power: (12V power supply)96W; (36V power supply)288W
Control signal voltage: 3-5V
Each channel control signal current: 2-10MA
Support PWM frequency range: 2-20K
Support PWM duty ratio range: 0-99%
Min. PWM effective pulse width: 10US
Working temperature:-10°C-80°C

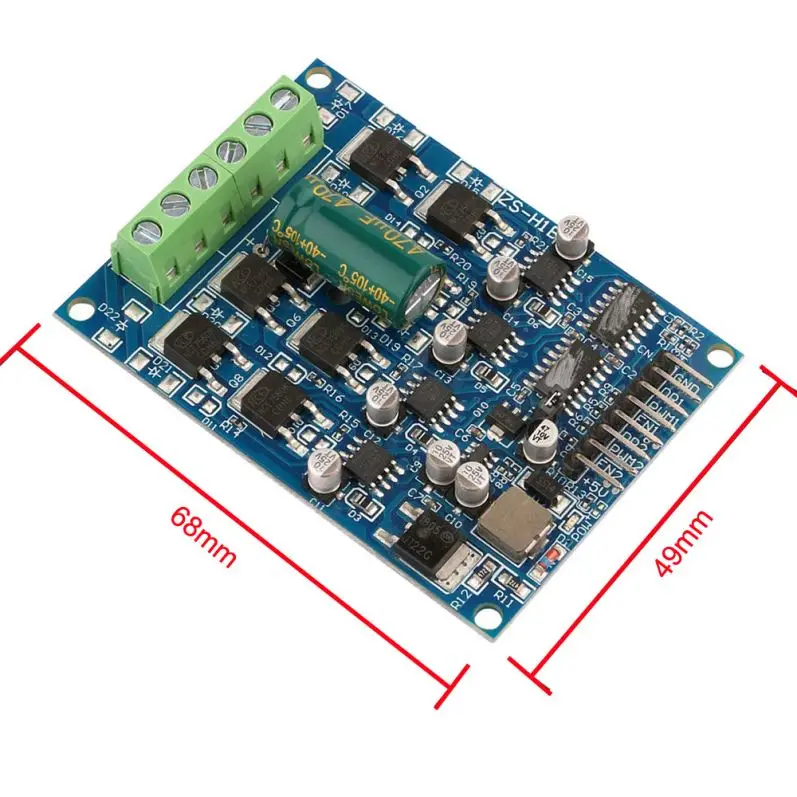

Size: 69*50*15mm
Weight: 26g

Notes:
1. We recommend adding the fuses, as without fuses on the power supply circuit of the motherboard. The reversed connection will cause some of the chip permanent damage.
2. In the normal operation, the motor output has no over-current protection. Please do not man-made short-circuit, because the module power current is large. Once short-circuit, has the possibility of burning circuit and tube. Please use low current low-voltage testing in the first wiring test; then connect the larger current and voltage. Due to the bare board module sold, please attention wiring thread insulation and prohibited strong voltage touch onboard parts.
3. Do not connect the drive motor which has obviously inconsistent voltage, current, power, to avoid the unreasonable damage.
4. When switching between positive and negative rotation, it is better to save buffer time on software control, so as to avoid the impact of powerful reverse electromotive force on the MOS tube on the board and reduce the risk of damage.

Package Includes:
1 x DC Brush Motor Controller
