DC 6-60V 12V 24V 36V 48V 30A PWM Brush DC Motor Speed Controller Start Stop Switch
Product Description
Specifications:

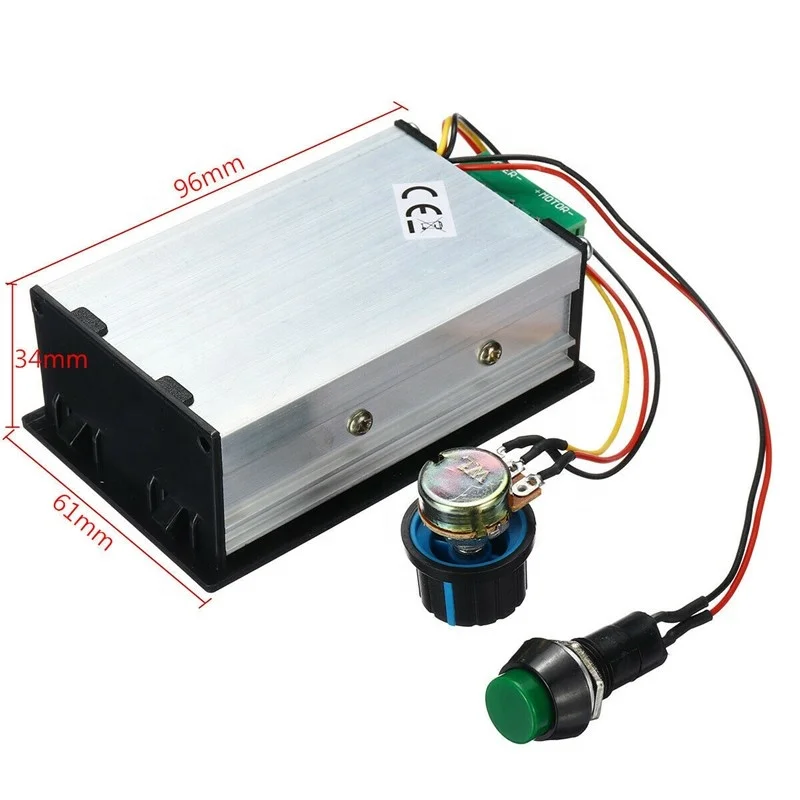

- Size: Approx. 96 x 61 x 34mm/3.78 x 2.40 x 1.34''
- Input Voltage Range: DC6V-60V
- Output Voltage: Linear with load
- Output Current: 0A-30A
- Continuous Current: 20A
- Speed Range: 0% to 100%
- Regulation Method: Potentiometer
- Regulation Type: Regulating Current
- Control Frequency: 15KHz

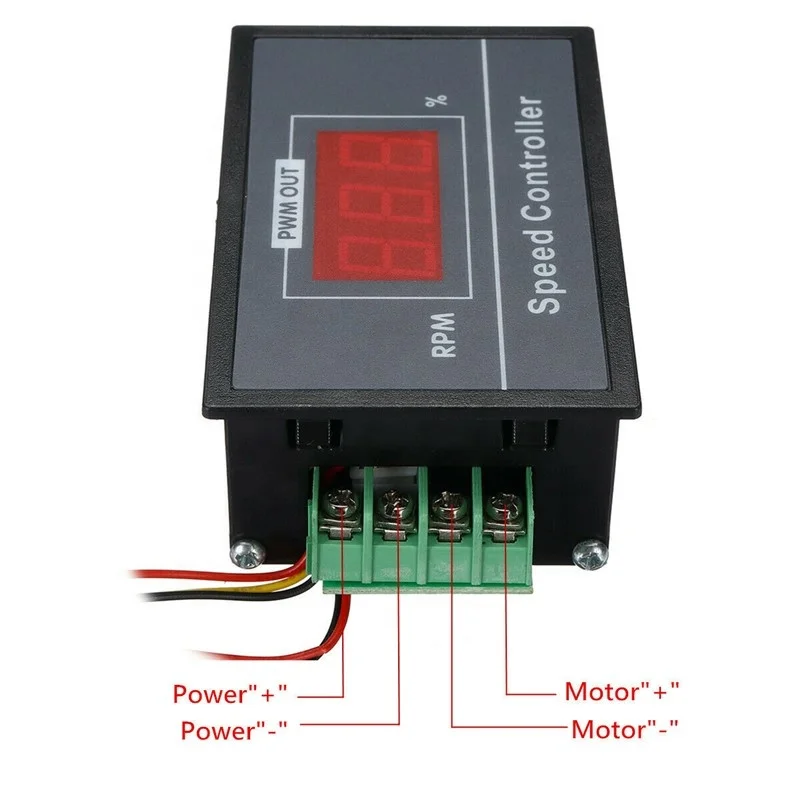

- Wiring Type: Screw terminal
Features:
- Speed controller is made with high quality circuit board which ensures a longer service life.
- This simple and easy-to-use DC motor speed controller has an stable performance.
- Designed with a digital display that shows the rate in percentage of actual speed to maximum speed.
- This motor speed controller uses screw terminals for convenient and quick wiring.
- Comes with a momentary start/stop switch and a speed control potentiometer.
Package Included:
- 1 x Speed Controller
