Цзинань 1325 деревообрабатывающий фрезерный станок с ЧПУ/Китай 3-осевой ЧПУ для
- Категория: Деревообрабатывающее оборудование >>>
- Поставщик: Jinan,AccTek,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4641.13 $* | 4873.44 $* |
| Aug-16-2025 | 4602.86 $* | 4832.14 $* |
| Jul-16-2025 | 3861.23 $* | 4054.55 $* |
| Jun-16-2025 | 4524.18 $* | 4750.38 $* |
| May-16-2025 | 3939.43 $* | 4136.96 $* |
| Apr-16-2025 | 4446.13 $* | 4668.20 $* |
| Mar-16-2025 | 4407.80 $* | 4627.18 $* |
| Feb-16-2025 | 4368.52 $* | 4586.30 $* |
| Jan-16-2025 | 4329.19 $* | 4545.85 $* |
Характеристики
Jinan 1325 wood working cnc router/China 3axis cnc milling machine for doors
Working area 1500*3000mm 2000*3000mm 2000*4000mm is optional
Product Description

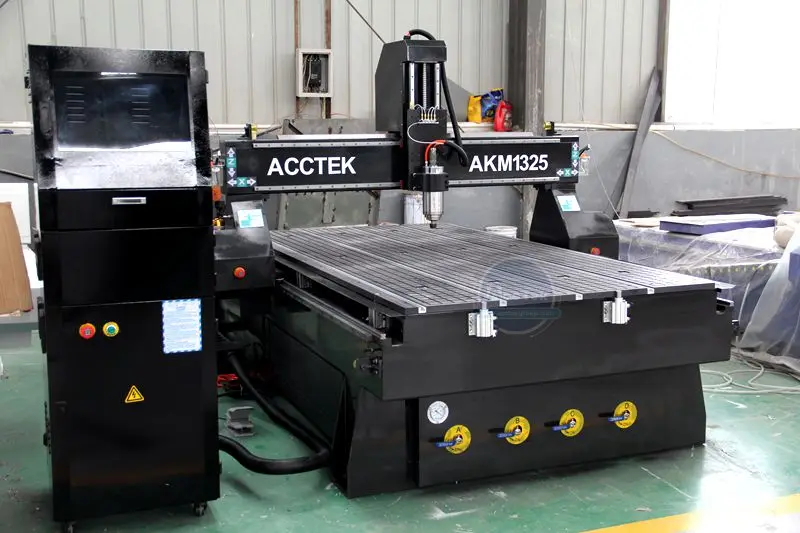

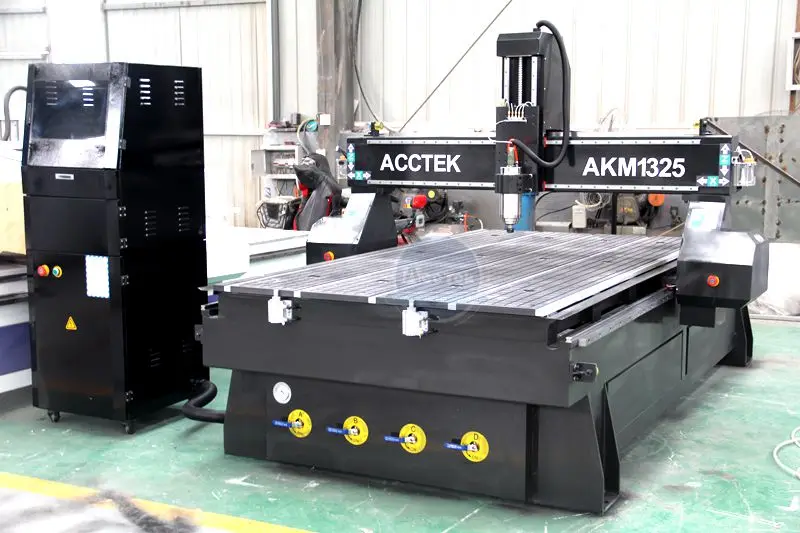

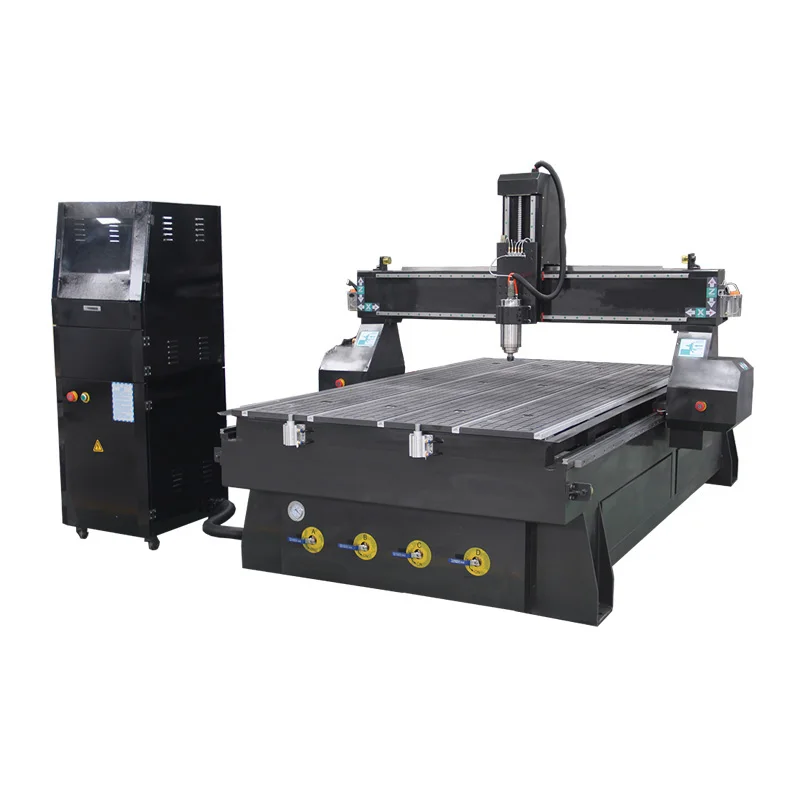

AKM1325 CNC ROUTER FOR WOODWORKING
* 3.2KW water cooling spindle
* 3.2KW water cooling spindle
*working area 1300*2500*200mm
* Heavy duty body (After Quenching process, no deformation, 8-10 bed, very stable )
* Cast gear box (stronger stability , high precision and long life ) woodworking machine
* Xinyue helical rack ( Low noise and high precision )
* Schneider electric ( Low tension ) wood carving machine cnc
* Fuling inverter ( High efficiency )
* X Y axis gear transmission
* Z axis Taiwan TBI ball screw transmission
* Taiwan Hiwin 20 rails
* Mach 3 control system
* stepper motor NEMA 34 and Leadshine M860 drivers
* Filter
* Tool sensor
* Heavy duty body (After Quenching process, no deformation, 8-10 bed, very stable )
* Cast gear box (stronger stability , high precision and long life ) woodworking machine
* Xinyue helical rack ( Low noise and high precision )
* Schneider electric ( Low tension ) wood carving machine cnc
* Fuling inverter ( High efficiency )
* X Y axis gear transmission
* Z axis Taiwan TBI ball screw transmission
* Taiwan Hiwin 20 rails
* Mach 3 control system
* stepper motor NEMA 34 and Leadshine M860 drivers
* Filter
* Tool sensor
Technical parameter
Working Area | 1300*2500*200mm |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Table | T-slot Table |
Frame | Welded Structure |
X, Y axis | helical rack 1.25M, Hiwin 20# Rail Linear Bearing |
Z axis | Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3.0kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Leadshine easy servo motor |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Mach3 Control System |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER20 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9/Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Details Images
Main Features:
1. High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.
2.Y axis with double Leadshine stepper motor and driver, moving stably.
3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.
4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work
5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
6.Good software compatibility, with machine ,we provider Artcam ,Aspire ,Powermill etc .
7. Professional factory with Mach 3 control system,can provider good after sales service and technology support .
8. Vacuum table using high-density material with great suction strength, comfortably all sizes of work piece.
9.With rack and gear transmission ,it can have faster speed than ball screw machines .
1. High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.
2.Y axis with double Leadshine stepper motor and driver, moving stably.
3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.
4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work
5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
6.Good software compatibility, with machine ,we provider Artcam ,Aspire ,Powermill etc .
7. Professional factory with Mach 3 control system,can provider good after sales service and technology support .
8. Vacuum table using high-density material with great suction strength, comfortably all sizes of work piece.
9.With rack and gear transmission ,it can have faster speed than ball screw machines .

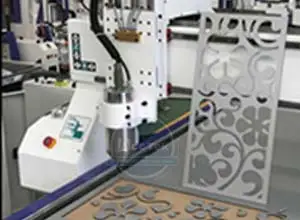

Application industry
Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard
doors, interior doors, sofa legs, headboards and so on.
Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting,
PVC pipe, wooden planjs and other non-metallic mold.
Relief sculpture and 3D engraving.
Cylindrical object.
doors, interior doors, sofa legs, headboards and so on.
Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting,
PVC pipe, wooden planjs and other non-metallic mold.
Relief sculpture and 3D engraving.
Cylindrical object.
About the delivery.
Its need about 15-20 working days to produce the machine after get your deposit.
all thing is tested well,then we arrange the delivery.
About payment:
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the
testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
Its need about 15-20 working days to produce the machine after get your deposit.
all thing is tested well,then we arrange the delivery.
About payment:
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the
testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
Packing & Delivery
Company Profile
1.1year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any
problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant. 4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support. 6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant. 4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support. 6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
