YIHAO 5um resolution linear scale encoder and digital readout DRO

Описание и отзывы

Трекер стоимости

Характеристики



Description of Yihao Linear scale DRO:



YIHAO linear grating ruler gauge / YIHAO -YE linear encoder

Stroke (size): 50-1000mm

Total length (total): stroke length + 142mm
Plug: DB9
Resolution: 5U/1um/10um
Input voltage: 5V
Pitch: 0.02mm (50 LP / min)
Cable length: 3 meters (about 9 feet)
Normal size: about 34.5 * 25
Movement speed: normal rule 60m / min, normal rule 60m / min
Power supply: + 5V + 5%, 80mA
Working temperature: -10 ° ~ 45 °

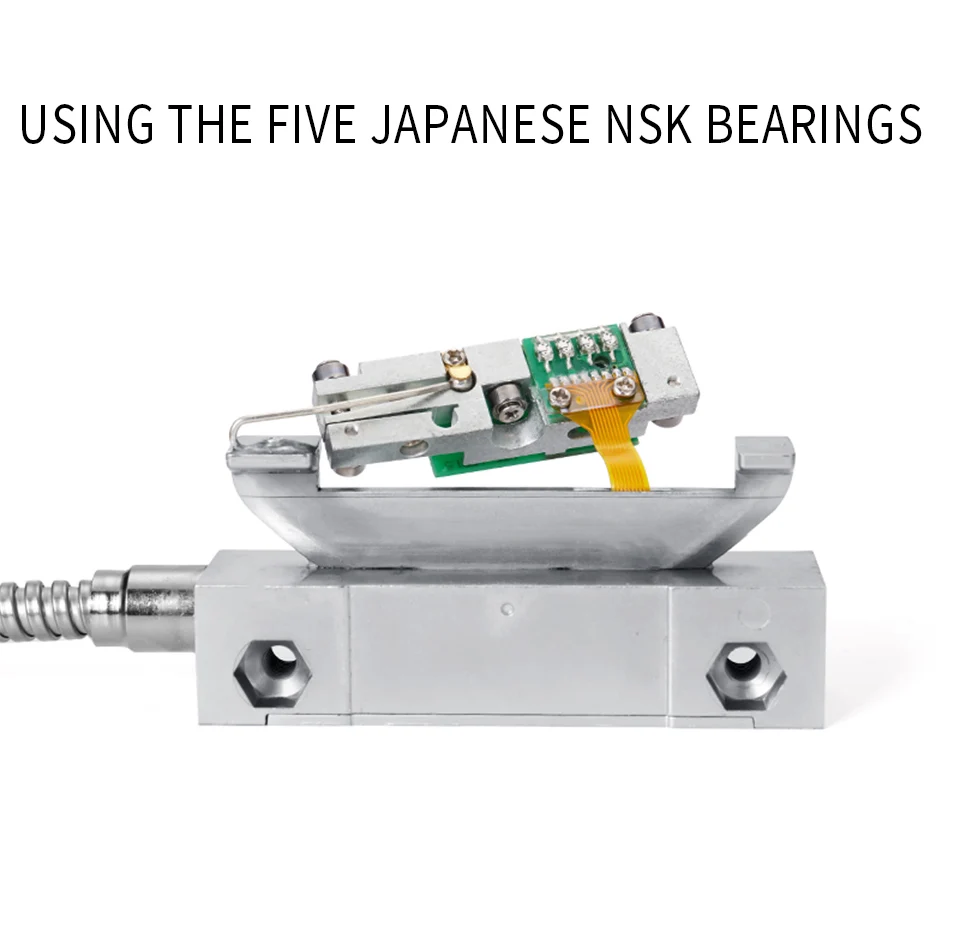

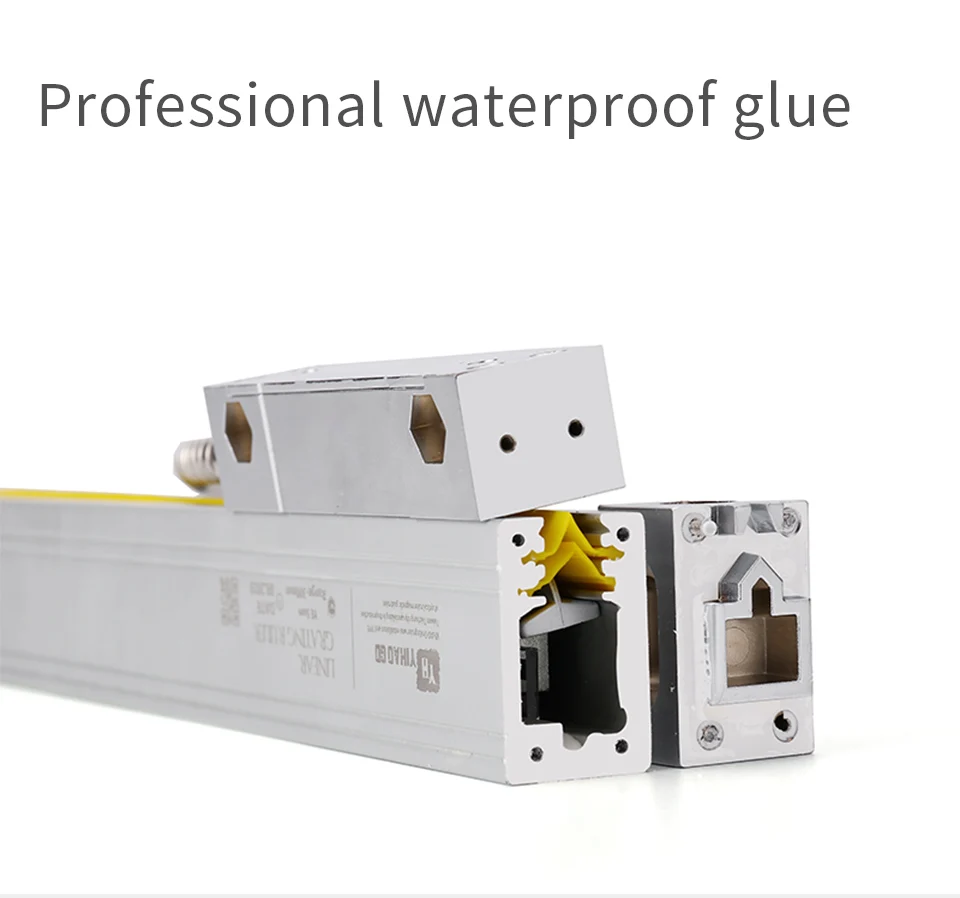

Linear Scale Pictures:

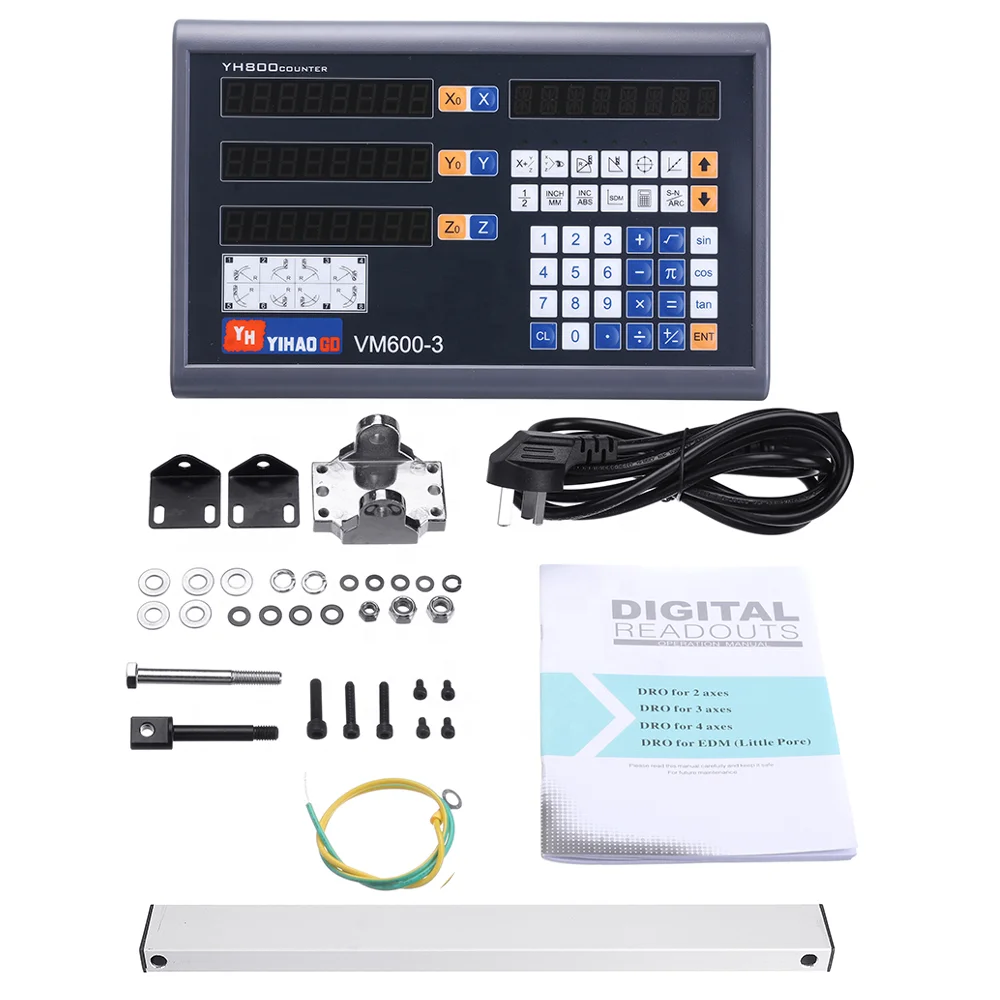

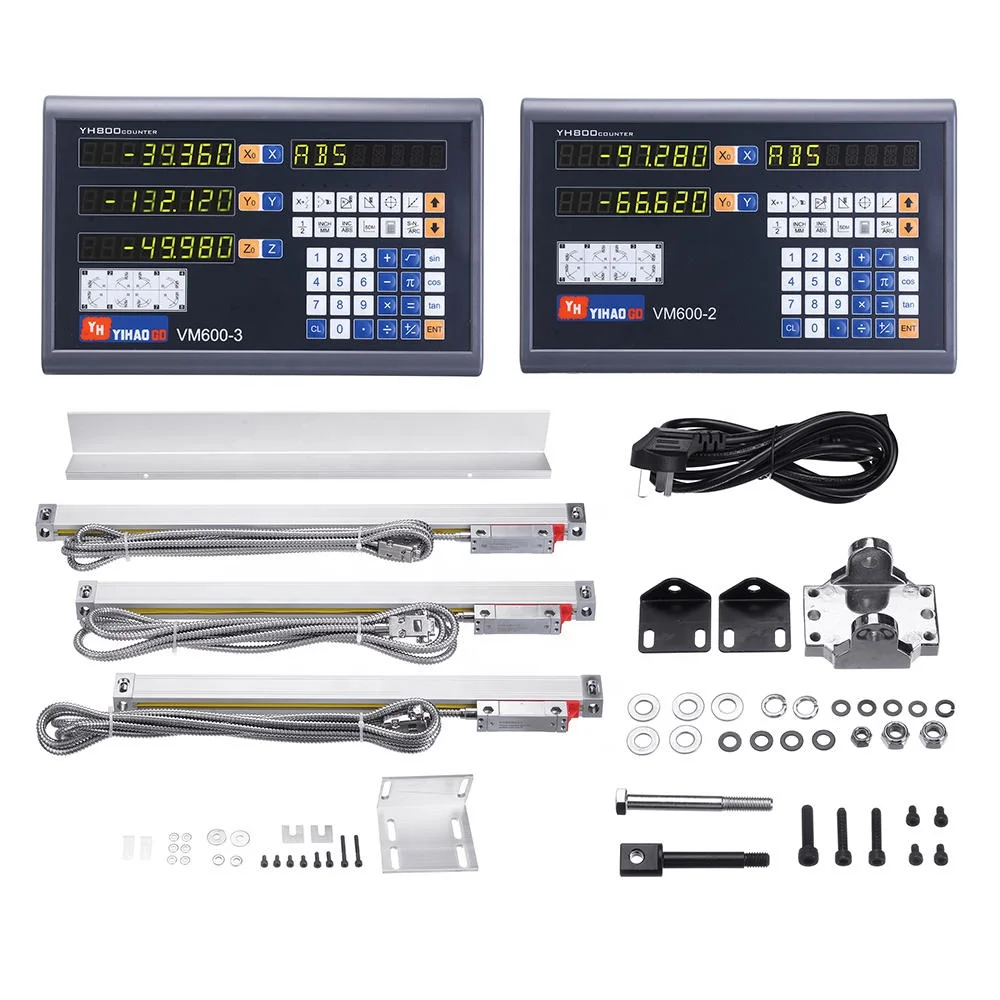

Yihao Digital Readout DRO VM600

VM600-2V:  Full-function digital readout be used for all 2 axis machines (milling machine; boring machine; lathe machine; grinding machine.)

VM600-3V:  Full-function digital readout be used for all 3 axis machines (milling machine; boring machine; lathe machine; grinding machine; electronic spark machine; EDM cutting machine)

Yihehua DRO VM600 is a 2 axis and 3 axis multi-function DRO digital readout which is used for different machines by setting the parameters. It has a lot of graphics processing capabilities. For example: including special function only for milling machine (R arc function, parts round function, slope processing function, slash drilling function, progressive cavity processing), special function only for EDM machine, special function only for lathe machine (tool library function, taper measurement function and so on). With the help of these functions, it can greatly reduce the difficulty of processing graphics.

Yihehua LED DRO VM600 Functions:

Basic function:

Processing function:

1) 200 points auxiliary zero; 2) Function calculator(only for milling machine); 3) Power-down memory; 4) Linear error compensation and Non-linear error compensation; 5) 1/2 function; 6) Mm/inch mode.

1) PCD function (for milling machine and EDM cutting machine); 2) Linear drilling (for milling machine); 3) Progressive cavity processing(for milling machine); 4) Display filter (for grinding machine); 5) Machining of oblique plane (for milling machine); 6) R arc function (for milling machine); 7) N3 function (for milling machine); 8) 200 sets tool base (for lathe machine); 9) Taper function (for lathe machine); 10) RS-232 communication (order separately)

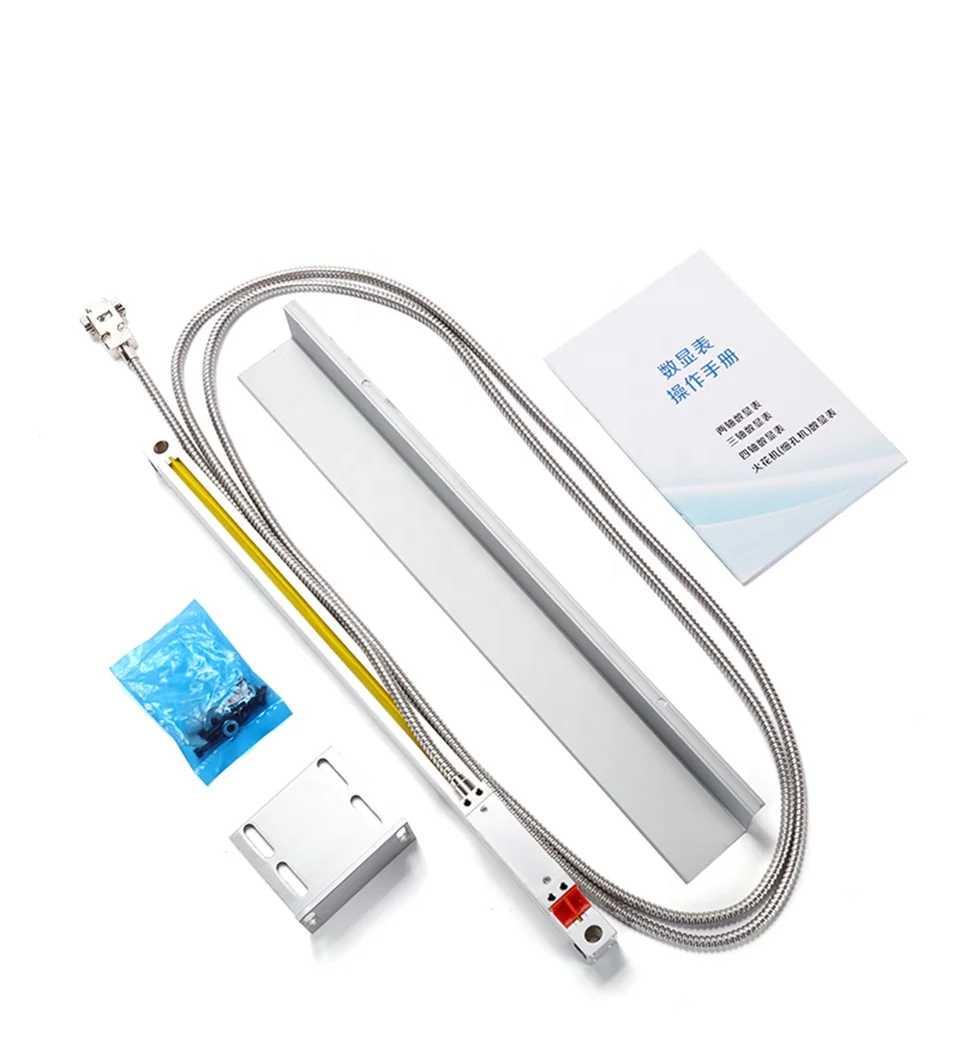

Packing and Shipping:

Company Information:

Dongguan Yihao Precision Optoelectric Co., Ltd is a professional company to develop and produce various kinds of Precision Digital Readouts, Linear Scale, Magnetic Scale in Dongguan China. From The beginning, Yihao ultimate objective was to provide the best Products and services to satisfy requirement of its customers. In order to provide its customers with products of the highest quality, Yihao Precision is committed to the continuous improvement of its products , manufacturing processes, working environment and the skills of its people . all its tests are based on internationally accepted quality standards .And the accuracy of Linear Scale is controlled by laser technology . You can trust that you will be satisfied when you use Yihao Digital Readout, Linear Scale, Magnetic scale, and industrial automation products for increasing the productivity and value of your products.Since we started to produce linear scale, magnetic scale and digital readout since 2008, our products have been exported to more than 50 countries.

FAQ

Q1. How can i make payment here ?

You can place here via Alibaba security and pay by credit card and T/T.

 Q2.Do you have 0.001mm resolution scale ?

Yes it has. It cost extra $10 per piece basic on 0.005mm scale.

 Q3.I do not know how to install the Readout & Linear scale, what shall i do ?

We send the English manual together with the products and Russian,France,Korean and Portuguese manual are available to send by Email.

 Q4.Do you have special linear scale ?

Yes we have 24V scale for PLC, high precision 0.5um resolution scale and 1VPP output signal scale.

 Q5.Do you have 4 axis & 5 axis readout ?

Yes of course.

 Q6.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us by +8615818638517

Q7.Are your samples free or need cost?
Actually it depends on the products. For low value products, we will provide free spls, freight collect. But for some high value spls, it need spl cost and freight collect. Pls informed that all spls cost and freight cost can be returned back to you after order placed. You’re welcomed to email us for checking.
Q8.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
Q9.Can you do the designs for us?
Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can manufacture the products as per your requirements.
Q10.How long can I expect to get the sample?
It will be ready for delivery in 7-15 days. The samples will be sent to you by express. You can use your own express account or prepay us if you do not have an account.
Q11.What about the lead time for mass production?
Frankly speaking, it depends on the order quantity and the season you place the order. Generally, we suggest that you start inquiry 60 days before the date you would like to get the products at your country.
Q12 .How to make sure we are a good supplier?
1)You could check our alibaba website we are the gold supplier , Assessed Suppliers and Trade assurance supplier.
2)We have the WCA Certificate.
Q13. If the inquiry quantity is less than the MOQ ?
No matter what is the quantity we can accept.
Frankly speaking, the less quantity the higher cost will be in manufacture ,package,material purchasing . We suggest the inquiry quantity to be 3000pcs,the price would be more competitive.
