Мостовой кран 10 тонн от китайского производителя

Категория: Мостовые краны >>>
Поставщик: Chongqing,Shanyan,Crane,Machinery,Co.,Ltd.

Цена:559 206,84 ₽ - 570 171,68 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	665455.86 $*	698728.69 $*
Aug-16-2025	659863.38 $*	692856.4 $*
Jul-16-2025	553614.75 $*	581295.52 $*
Jun-16-2025	648679.21 $*	681113.6 $*
May-16-2025	564798.95 $*	593038.93 $*
Apr-16-2025	637495.14 $*	669370.19 $*
Mar-16-2025	631903.14 $*	663498.81 $*
Feb-16-2025	626311.10 $*	657627.28 $*
Jan-16-2025	620719.1 $*	651755.62 $*

Характеристики

Product Description

Product Application

1.Component Unit: The crane is simply constructed by girder, end carriages, hoisting unit and elecrical control. The design is based on the principle of maximum functions with minimum component units and free maintenance.

2.The electric hoist trolley adopt CD/MD type steel wire rope electric hoist trolley, the standard traveling speed of crane is 0-20m/min, standard traveling speed of trolley is 0-20m/min. As for lifting speed, frequency control makes it has optional speed besides the standard speed to meet customers different requirement.

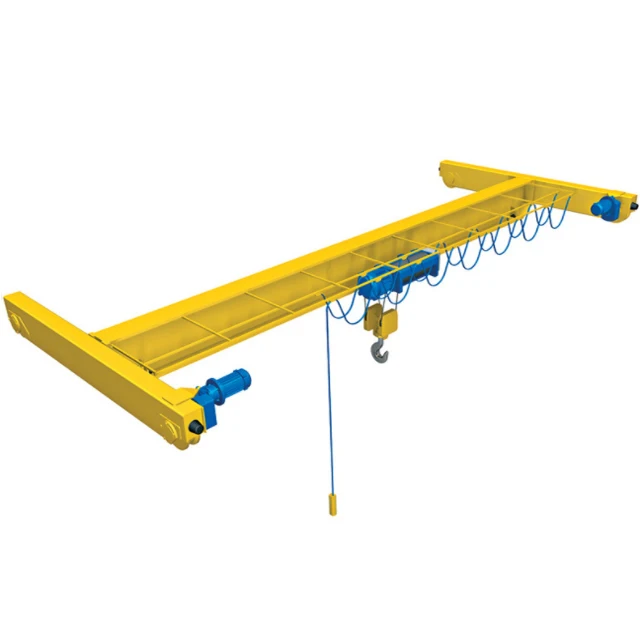

10TON OVERHEAD CRANE

SPECIFICATIONS FOR ELECTRIC CRANE USING END CARRIAGE

Capacity(t)	1.6/2	3.2	5/6.3	10/12.5	16
Lifting speed(m/min)	0.8/5	1/6.3	0.8/5	0.6/4	0.6/4
Span(m)	7.5-22.5
Trolley wheel Dia.(mm)	150
End carriage wheel dustance(mm)	1200-3300
End carriage running	5-30
End carriage wheel dia.(mm)	90	125	160	200	250

1. Main girder

Main girders are fabricated,plate box in construction or standrad I-beam rolled steel sections bolted to end carriages

2. End carriage

END Carriage with two main beam webs, rigid connection with the main beam. When calibration crane, placed on the main beam webs, after adjustment good crane span, the main beam can be completed securely connecting plate welding. Main beam can be calibrated separately with end carriage transport, installation, just the main beam webs and end beams are bolted to complete the installation.

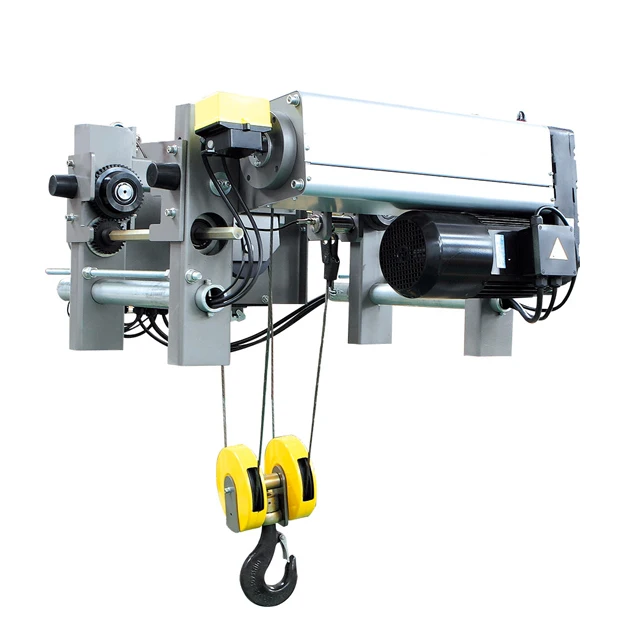

3. Electric wire rope hoist

Electric wire rope hoist has high lifting speed for faster handing; high efficiency due to 20% longer service life.

4. Electric box

Modular design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.

Main Features

1. Effective and optimization design minimize the self-weight and ensures safety, stability and intensity.
2. European optimized design, low gravity, small wheel pressure, space saving and lifting weight upto 80t.
3. Flexible driving, extensive adaption, excellent frequency conversion control, stable operation, low maintenance and easy replacement.
4. Steel material standard is Fe37 or Fe52, web by the whole 40m CNC cutting to ensure curve smooth and precision molding.
5. Safety power conductor system and configuration phase protection function, with IP55 protection class.
6. First class lifting unites and free maintenance.
7. Convenient wireless remote control and easy ground control, additional driver is unnecessary. Pendant control: IP65, 500,000 times life.
8. High strength, good rigidity, light weight and excellent material ensure stability and convenient operation.
9. All parts are highly cost effective, highly standardized, with high accuracy, reliable quality and stable performance, also easy to install and freely combine.
10. Excellent performance, frequency control, easy and smooth operation meet various usages of all users.

Motor

Hook

Wheel

C-Track

Double wire rope hoist
