1 ton 2 ton 3 ton 5ton 10ton 15 ton 20 ton workshop warehouse bridge crane monorail electric single girder puente grua



Single girder top running cranes  utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.

The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.

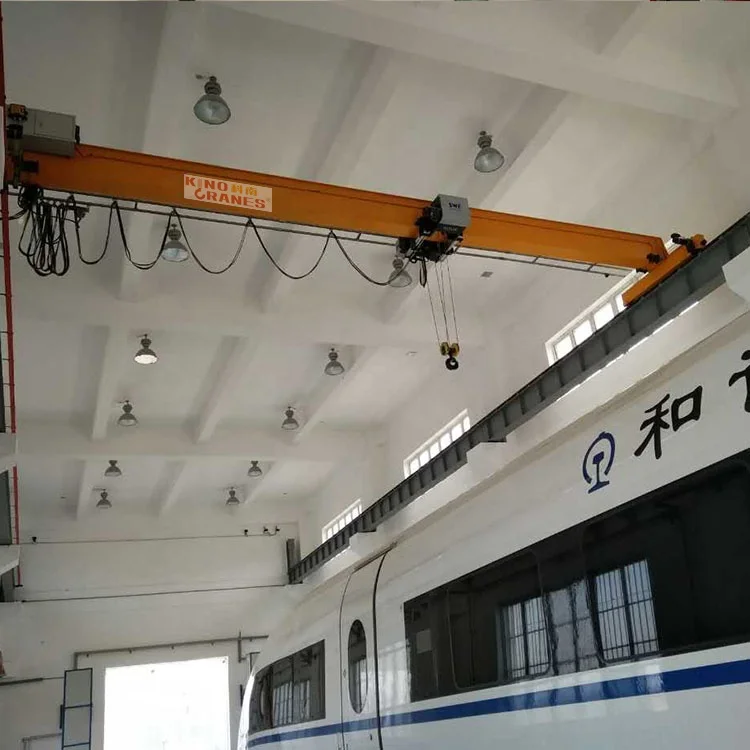

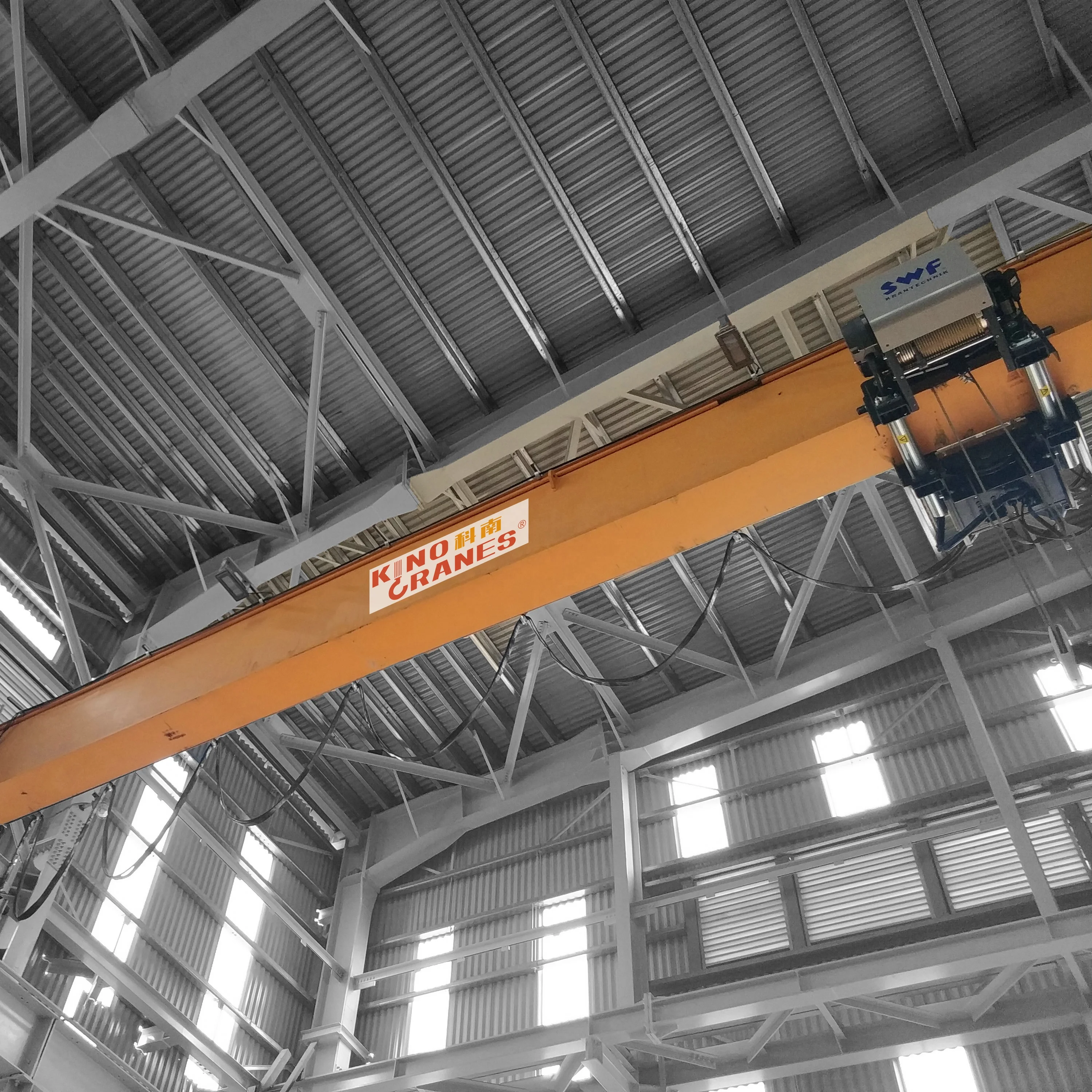

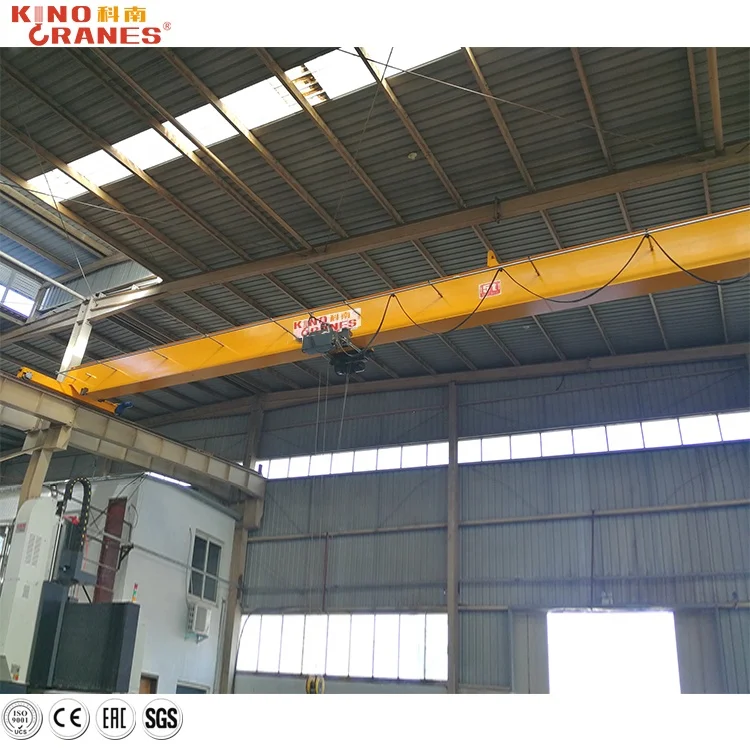

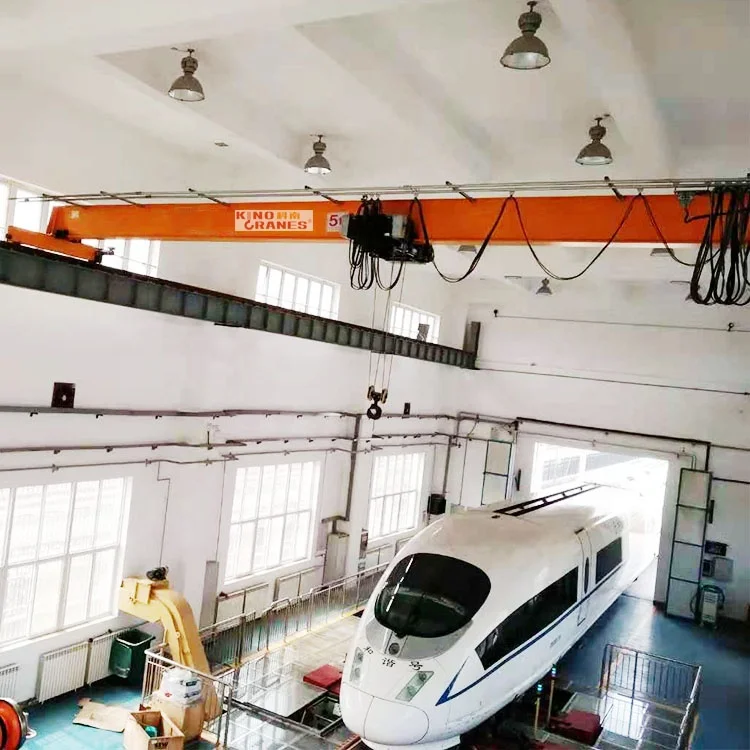

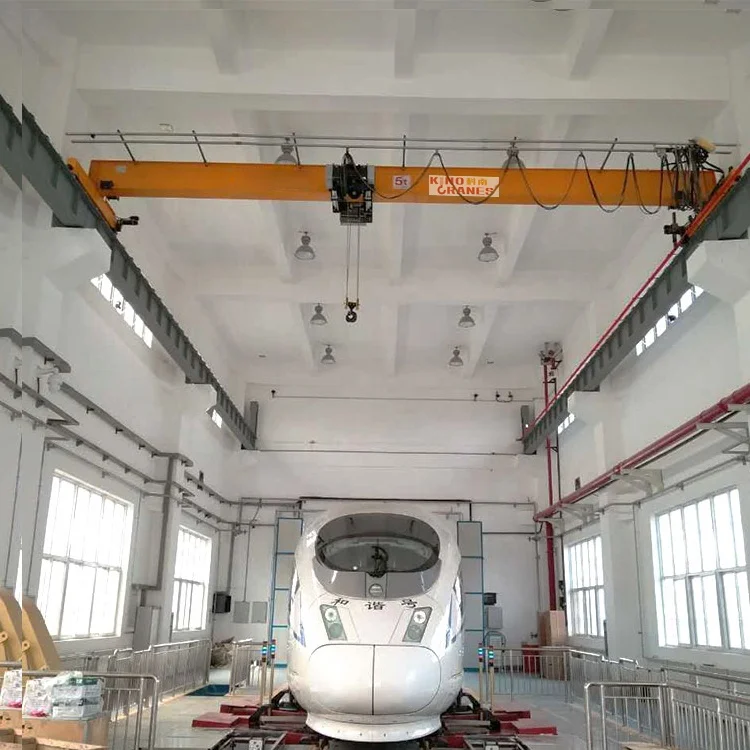

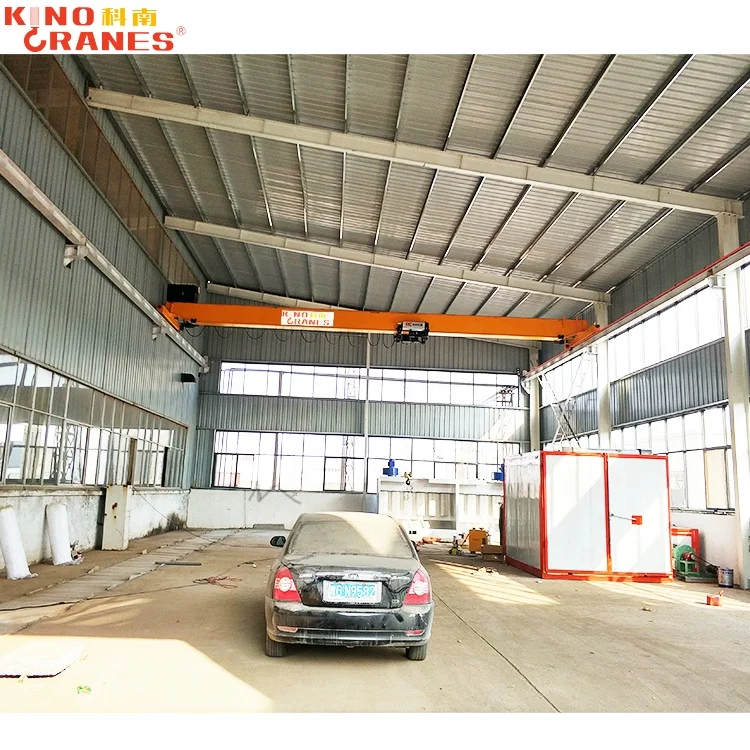

Electric single girder overhead crane is composed of girder weld by steel plate andI-beam ,end girder, electric hoist and travelling mechanism. The electric hoist runs along the lower flange of the I-beam of the girder to accomplish article hoisting. It features light structure and easy installation and maintenance.



Lifting capacity: 0.5ton--20ton

Lifting height: 3m--35m

Crane span: 3m--35m

Working duty: A3--A5

Temperature condition: -20---45°

Control mothed: pendant control +wireless control

Main Features of HD Model Crane:

1). Single welding box girder

2). DIN/FEM standard deflection

3). Whole length CNC cutting for complete web plate, high deflection accuracy

4). High quality automatic welding and NDT inspection

5). Shot-blasting Sa2.5 for complete girder after welding, stress release

6). High tension bolts mounting between girder and legs, life time safety connection

7). Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55

8). High protection class IP55, F class, 40% ED

9). Excellent driving properties, stepless control, smoothly moving

10). All hoist and crane movements are independent and can be run simultaneously.
