Характеристики

Professional Manufacturer construction dry mix anti-explosion gunite for Koweit

Product Description

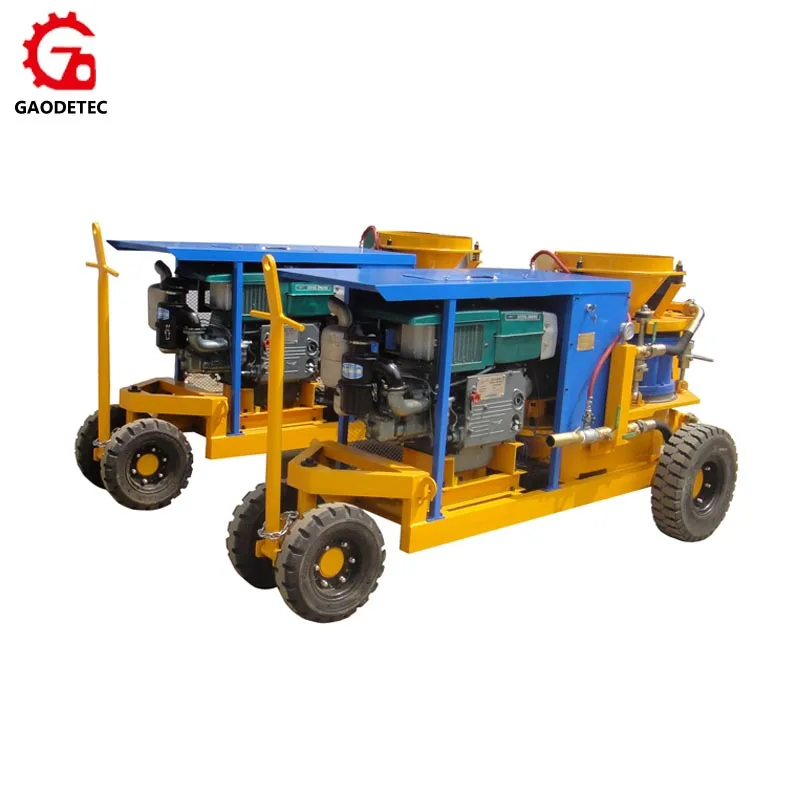

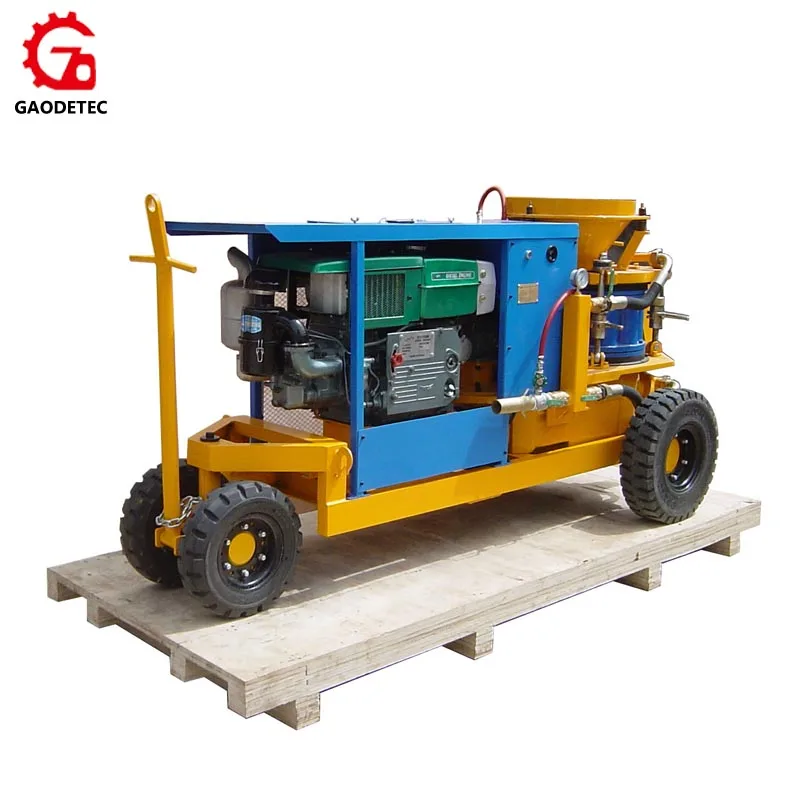

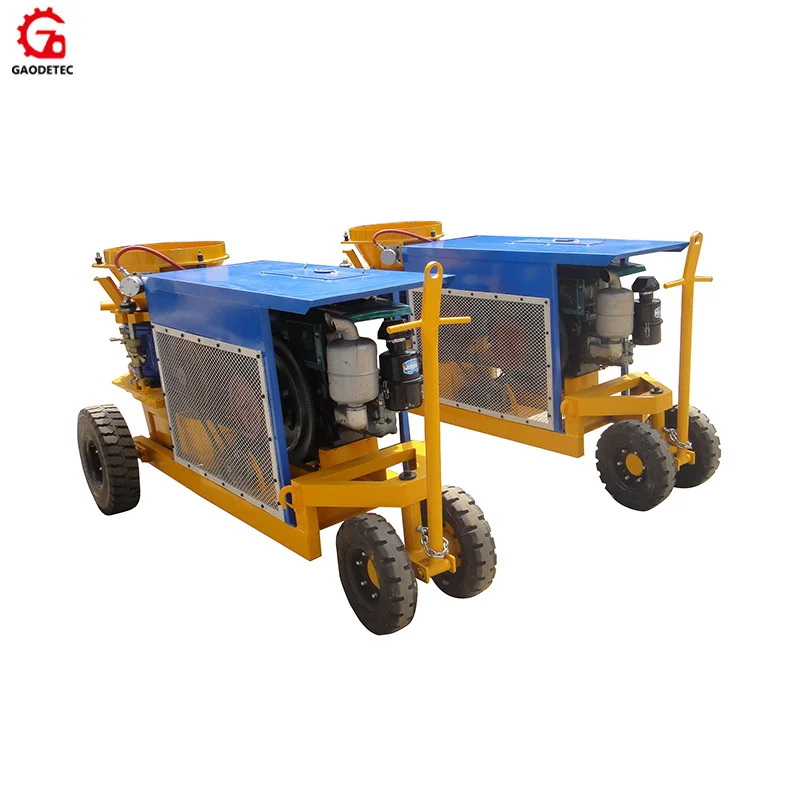

GZ-9D is diesel large-sized shotcrete machine for the spraying process.

GZ-9D shotcrete machine can be used for large-section tunnel building, mine, etc.
GZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.

construction dry mix anti-explosion gunite

Technology Parameter

Output Capacity	6-9m3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5
Max. Aggregate Size	Dia.20 mm
Conveying Hose Inner Diameter	Dia.64 mm
Conveying Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	10~12m3/min(357-430CFM)
Material Charging Height	1.1m
Rotor Speed	7.5-11r/min
Diesel Engine	20hp, 2200rpm, Radiator Cooling
Diesel Engine Starting	Electric start
Clutch Type in Diesel Engine	Automatic Clutch
Air Vibrator	OR100, Oli
Overall Dimension(length×width×height)	2.66×1.11×1.50m
Net Weight	950kg

Accessories

construction dry mix anti-explosion gunite

A complete set of GZ-9 shotcrete machine
No.	Description	Quantity	Unit	Remarks
1	GZ-9 Main Machine	1	set
2	Nozzle Assy	1	set
3	Conveying Hose, ID64mm, 50ft.Length	1	piece
4	Water hose with hose hoop	1	piece
5	Rubber Hose Joint	3	piece	Fitting
6	Quick Coupling	3	piece
7	Upper Sealing Plate	1	piece
8	Lower Sealing Plate	1	piece

Application

GZ-9D shotcrete gunning machine application

1. Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface. construction dry mix anti-explosion gunite
