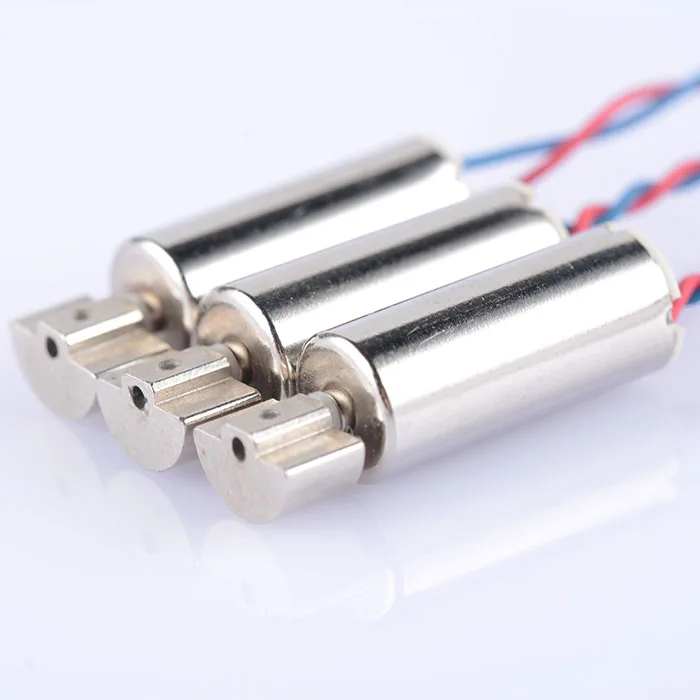

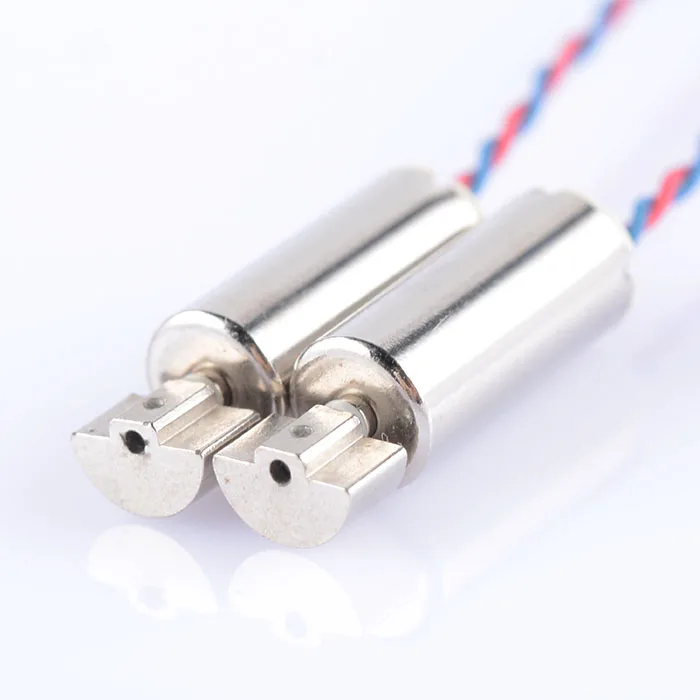

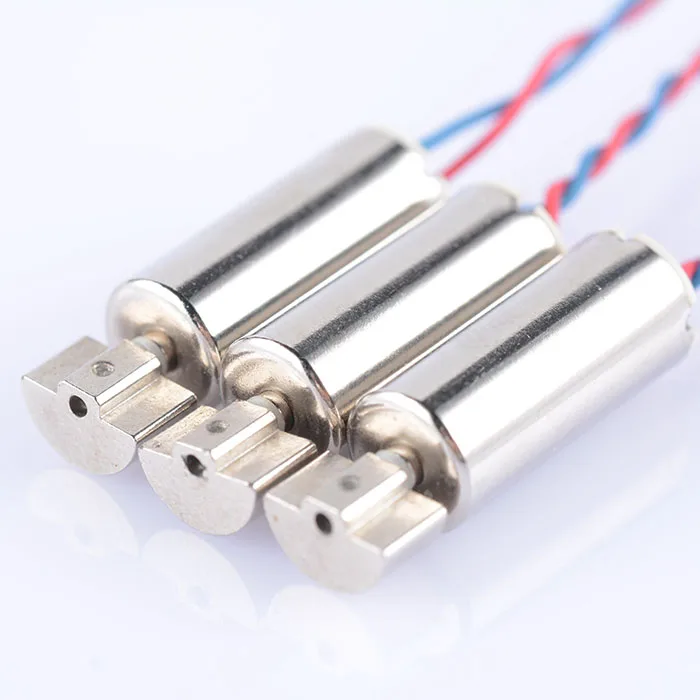

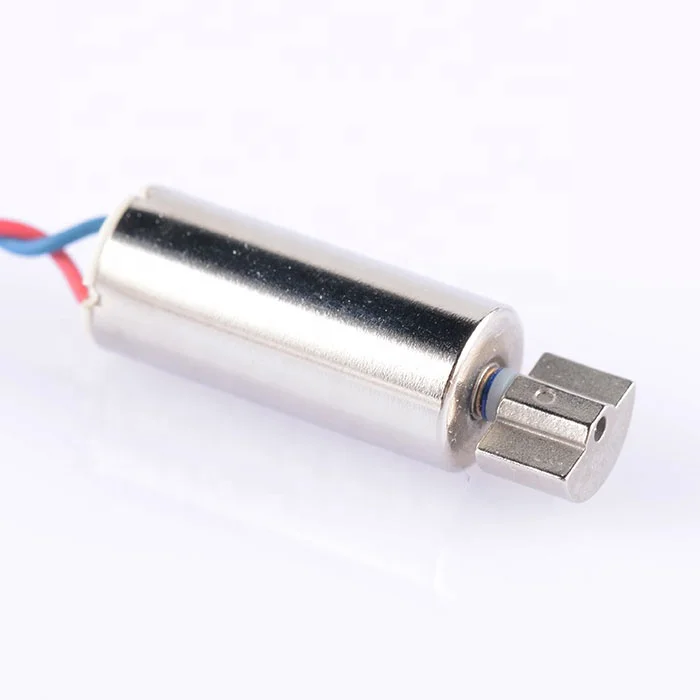

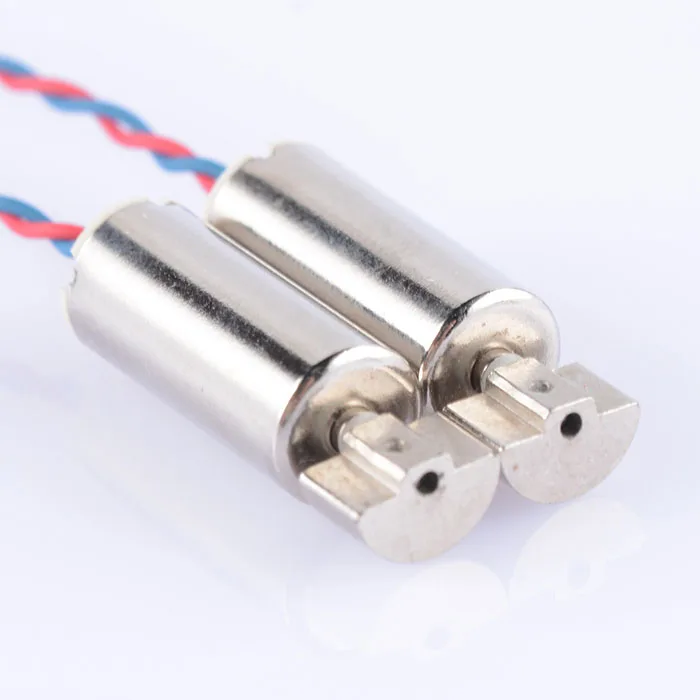

716 диаметр 7 мм вибрирующий и высокооборотный двигатель постоянного тока без сердечника
- Категория: Двигатель постоянного тока >>>
- Поставщик: Yichang,Wingfong,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.34 $* | 0.51 $* |
| Aug-19-2025 | 0.41 $* | 0.95 $* |
| Jul-19-2025 | 0.93 $* | 0.46 $* |
| Jun-19-2025 | 0.15 $* | 0.62 $* |
| May-19-2025 | 0.60 $* | 0.89 $* |
| Apr-19-2025 | 0.1 $* | 0.48 $* |
| Mar-19-2025 | 0.47 $* | 0.3 $* |
| Feb-19-2025 | 0.54 $* | 0.83 $* |
| Jan-19-2025 | 0.72 $* | 0.35 $* |
Характеристики
Product Description
10000rpm 3.7v coreless motor micro massager small vibrating motor lead wires CW CCW 0716
Rated Voltage | 3.7 v DC |
Operating Voltage | 1.5~3.7V DC |
Rotation Direction | CW/CCW |
Operating Conditions | -10℃~60℃≤60%RH |
Rated Current | 105mA Max |
Stall Current | 237mA |
Insulation Resistance | 10MΩ |
Starting Voltage | 1.0v DC |
Terminal Resistance | 15.8±5%Ω |
Insulation Resistance | 10MΩ |
Appearance | No any damage |
Motor Weight | About 4g |
1.Rotation direction (CW/CCW); 2.Counter-Weight size(R2.5*L2.4)
3.Lead wire length(2-170.0±2.0) 4.Lead wire material(UL3302-30#PE)
5.Rated Speed,Current,Torque and so on
Certifications
Our Advantages
Product Uses
Shipping & Packing
Packaging Details:
Polystyrene / Hard paper box / water proof layer
Company Profile
Yichang Wingfong Industry & Trade Co.,Ltd
Our company is located in Yichang District, China (Hubei) Free Trade Zone. Our factory is in Zigui county which is near the Three Gorges Dam. Our company provides reliable micro motors and other electric products. These motors are widely used in various electirc tools, massergers,adult and robotic products.The company gets rapid development and be familiar with the market needs. Our mission is to provide high quality products and efficient services.
FAQ
Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor's parameter can be customized. We can modify the rotation diection, motor's working voltage, lead wire length, lead wire matrial, rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
Q: How to order?
A:Please send us your purchase order by Email or call me, then make quotation according to your order, after confirm, we can make you Performa invoice under your request.
Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's expected lifetime ? etc. Then we can a make full assessment according to that.
Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from different places). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
