Литиевый аккумулятор большой емкости для вилочного погрузчика 48 В 60 в 72
- Категория: On Board Chargers >>>
- Поставщик: Shijiazhuang,Dilong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.35 $* |
| Aug-19-2025 | 0.47 $* | 0.82 $* |
| Jul-19-2025 | 0.55 $* | 0.26 $* |
| Jun-19-2025 | 0.8 $* | 0.49 $* |
| May-19-2025 | 0.83 $* | 0.89 $* |
| Apr-19-2025 | 0.81 $* | 0.10 $* |
| Mar-19-2025 | 0.84 $* | 0.56 $* |
| Feb-19-2025 | 0.47 $* | 0.63 $* |
| Jan-19-2025 | 0.81 $* | 0.3 $* |
Характеристики
48v 60v 72v 96v Lithium battery pack large capacity for forklift battery charger
PRODUCT CATEGORIES
Place of Origin: Hebei, China (Mainland)
Brand: Dilong
Model Number: DA3K3M17E-50C
ACDC EV Onboard charger
Specification
| Technical Specifications | |||
Mains Input | Rated Voltage | Vac | 220 |
Voltage Range | Vac | 85~264 (The output from 85-176 is automatically reduced to 1.2 KW) | |
FREQ RANGE | HZ | 47~63 | |
Efficiency(max) | % | ≥95 | |
Power Factor |
| ≥0.99@220Vac,rated power | |
Current(MAX) | A | ||
Mains output | Rated Output Voltage | Vdc | 48 |
Constant voltage output range | Vdc | 30v-55v | |
| A | 35 | |
Constant power output | W | 1900 | |
Output voltage accuracy | V | ≤±1%Vo input 176Vac-264Vac,output 10%-100% load | |
Line regulation | % | ≤±0.2%Vo input 176Vac-264Vac,output 100% load | |
Load regulation | % | ≤±0.5%Vo input 220Vac,output 10%-100% load | |
Ripple and noise | mV | ≤±4%Vo 20M oscilloscope,Twisted-pair cable test. | |
Auxiliary supply | Rated output voltage | Vdc | 12 |
Rated output power | W | 2 (Activate BMS) | |
Property
| Input over-voltage protection | Vac | ≥275 CAN directive warning protection |
Input under-voltage protection | Vac | ≤75 CAN directive warning protection | |
Output Over-current protection | A | Io≥120% CAN directive warning protection | |
Output under-voltage protection | Vdc | ≤25 CAN directive warning protection | |
Output over-voltage protection | Vdc | ≥65 CAN directive warning protection | |
Over-temperature protection | ℃ | 85±5 CAN directive warning protection | |
Output short circuit protection |
| yes | |
Reverse polarity protection |
| yes | |
Dynamic response | us | ≤200 | |
CAN communication | Communication interrupt, timeout of 20 seconds intelligent shutdown, communication normal recovery. | ||
Work environment | Operating temperature |
| -30℃~+85℃(Intelligent derating shell temperature above 70 ℃) |
Operating humidity | %RH | 20-90(No condensation) | |
Storage humidity | %RH | 10-95(No condensation) | |
Vibration |
| QC/T413-2002(Other parts required) | |

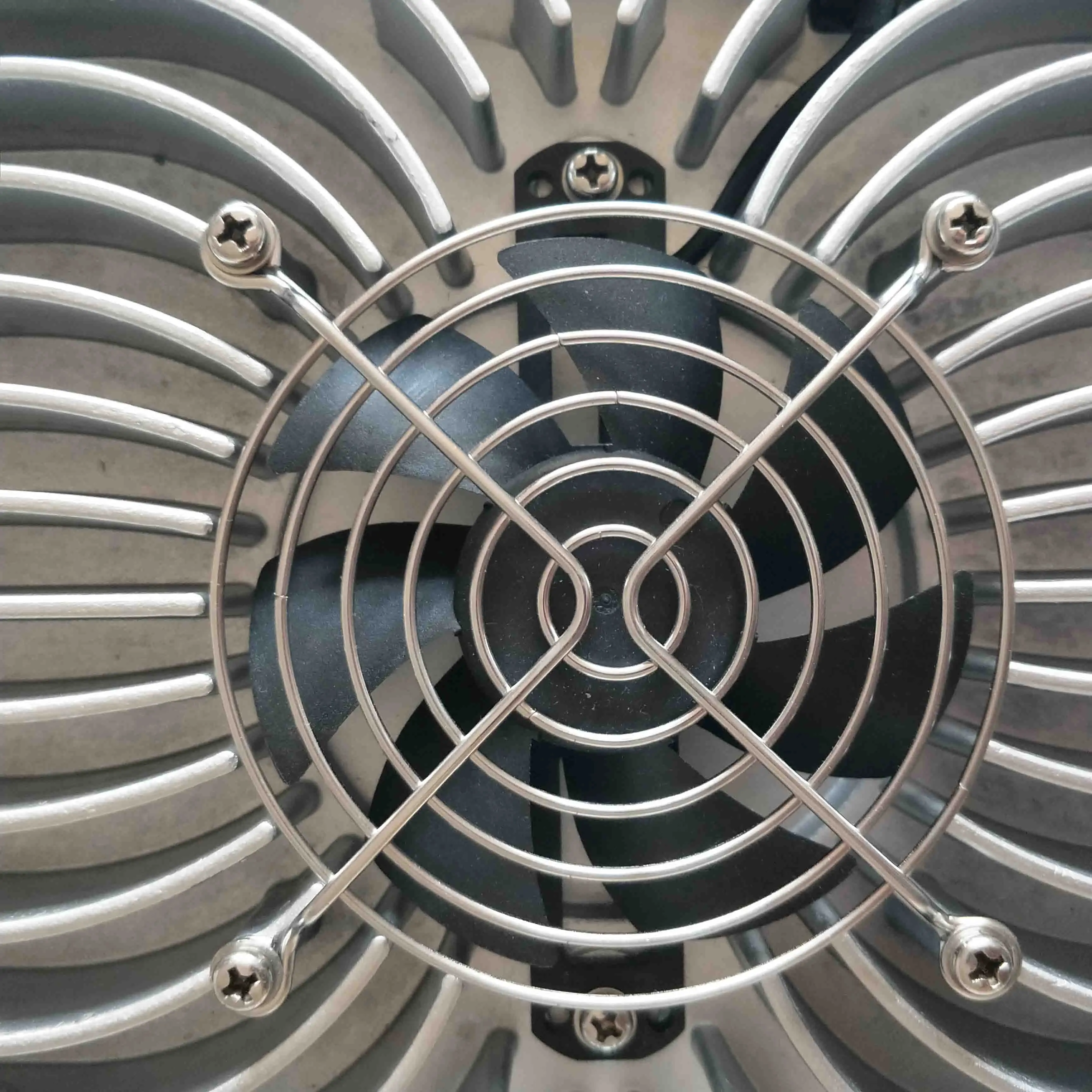

Cooling mode |
| Air cooling | |
Safeguard | Isolation Voltage | shell←input→output:2.8KVdc; Output→shell:2KVdc; Auxiliary Output→shell:700Vdc | |
Insulation resistance | MΩ | input—output—shell>10 (25℃,70%RH) | |
IP Grade |
| IP67 | |
Structure

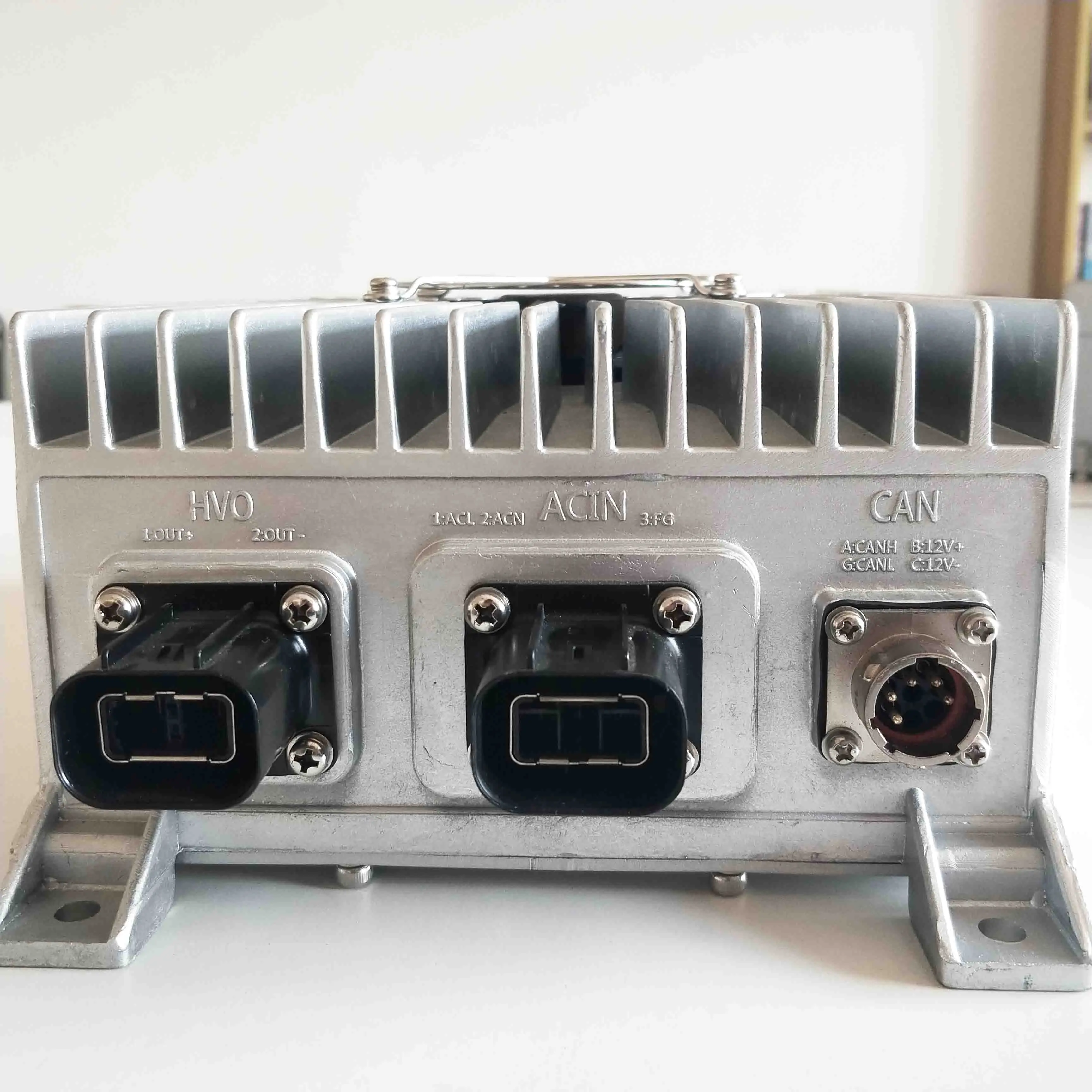

| mode of connection |
| Waterproof aviation connector |
weight | Kg | 5 | |
Size | mm | 316*194.5*108.5 | |
Advanced testing
Welcome remote video for factory tour and business cooperation.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.
Q4: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q5: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have another question, pls feel free to contact us as below:
