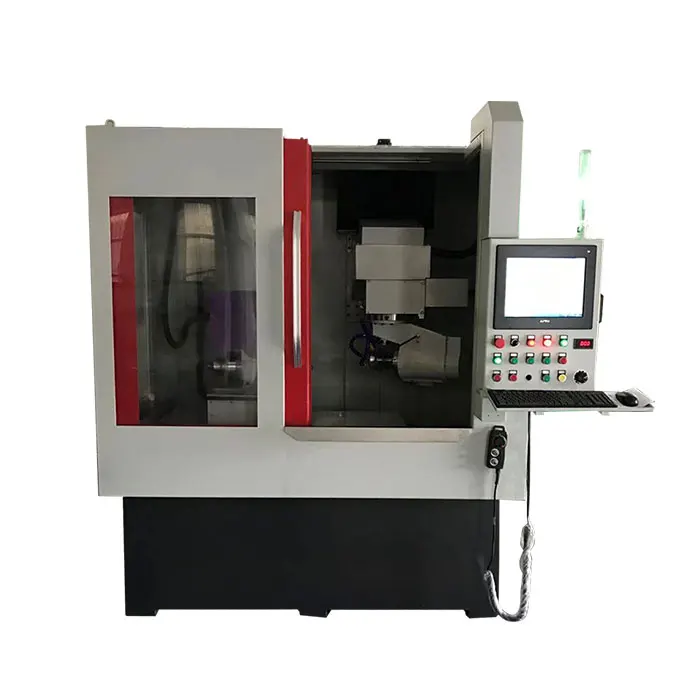

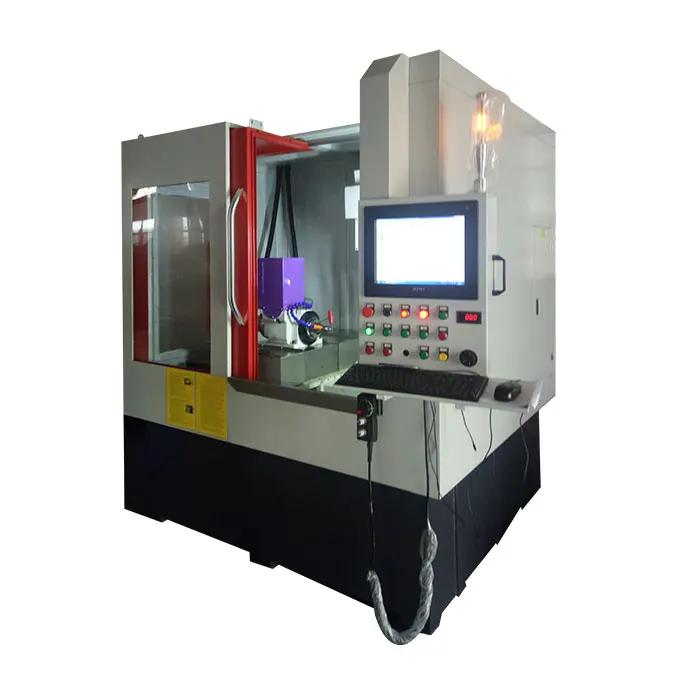

CNC 5-осевой инструмент шлифовальный станок с высокой скоростью точности токарный

Описание и отзывы

Трекер стоимости

Характеристики

1.Features and Application:

The machine according to user requirements for the design of practical use,reasonable

structure,reliable,strong rigidity,high precision.The unique modular design makes more

convenient debugging tool,strong operation.Selection of foreign high-end systems and

software,Widely used in ball cutter,milling cutter,reamer,drill,Department of orthopedics,

types of medical equipment,precision gear and all kinds of precision machinery parts

and components.



2.Specification:

Grinding range
Max length of tools	200mm
Collect Size	4-20mm
Grinding wheel spindle and motor
Spindle speed	1000-12000rpm
Spindle motor	9kw
Grinding wheel shaft diameter	φ20mm
Grinding wheel diameter	φ150mm
Workpiece spindle
Spindle inner cone	BT50
Pneumatic clamping Load/The mini.Pressure	6kg/cm²/80psi
Mini.Dividing Precision	0.001°
X/Y/Z axis travel
working stroke(X.Y.Z)	400x300x300mm
Positioning accuracy	0.006mm
Re-Positioning accuracy	0.005mm
Raoid feed speed	6m/min
Rotation angle of C-axis	270°
Rotation angle of A-axis	360°
Servo for axis
Servo motor(X/Y/Z axis)	1.3kw
Servo motor(A/C axis)	0.85kw
Machine
Machine weight	5000kg
Packing size	2400x2400x2500mm



3.

Standard Accessories:	Optional Accessories:
Air conditioner	Reverse-washing filter
Working light	Oil mist collector(eletrostatic)
The central control automatic oil lubrication device	Grinder oil temperature freezer
Grinding wheel flange
Basic block and level adjustment screw
Standard tools and tool box
Pneumatic clamping cutter holder
Collect chuck
