Грузовик-цистерна для перевозки сжиженного нефтяного газа полуприцеп с тремя осями на продажу
- Категория: Truck Trailers >>>
- Поставщик: Jingmen,Hongtu,Special,Aircraft,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 33320.14 $* | 34986.93 $* |
| Aug-19-2025 | 33040.52 $* | 34692.15 $* |
| Jul-19-2025 | 27720.64 $* | 29106.55 $* |
| Jun-19-2025 | 32480.80 $* | 34104.48 $* |
| May-19-2025 | 28280.62 $* | 29694.91 $* |
| Apr-19-2025 | 31920.81 $* | 33516.46 $* |
| Mar-19-2025 | 31640.94 $* | 33222.67 $* |
| Feb-19-2025 | 31360.93 $* | 32928.98 $* |
| Jan-19-2025 | 31080.40 $* | 32634.83 $* |
Характеристики
Products Description

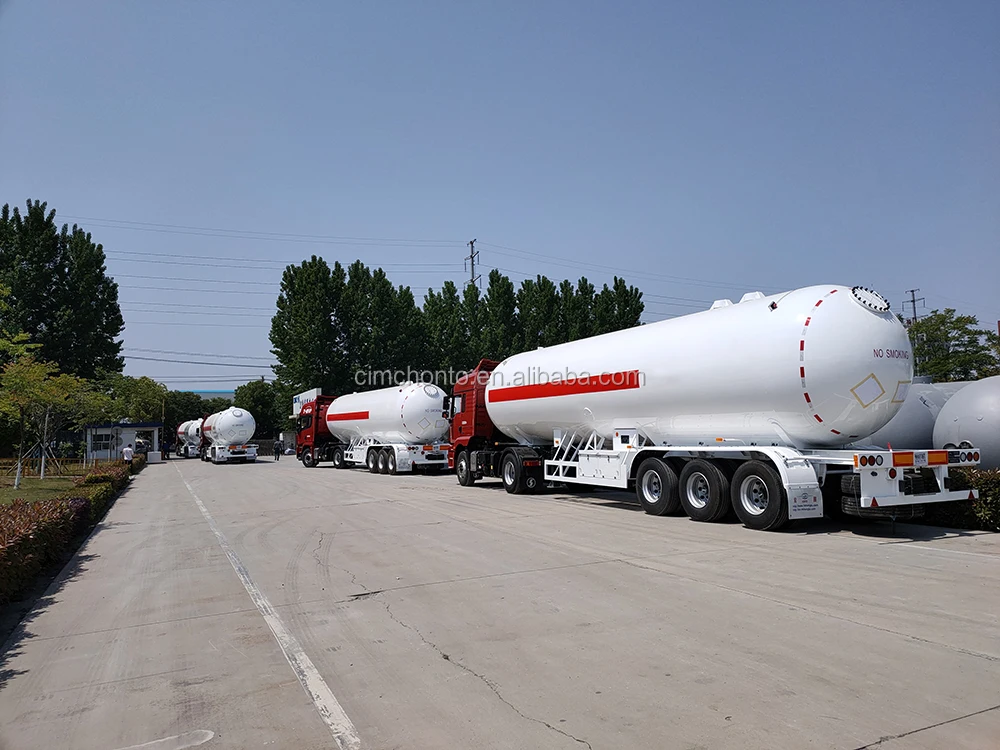

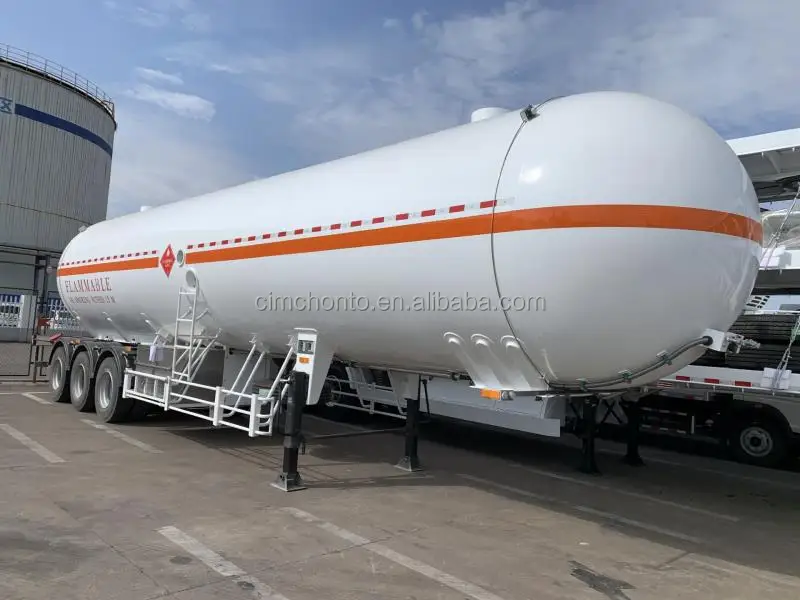

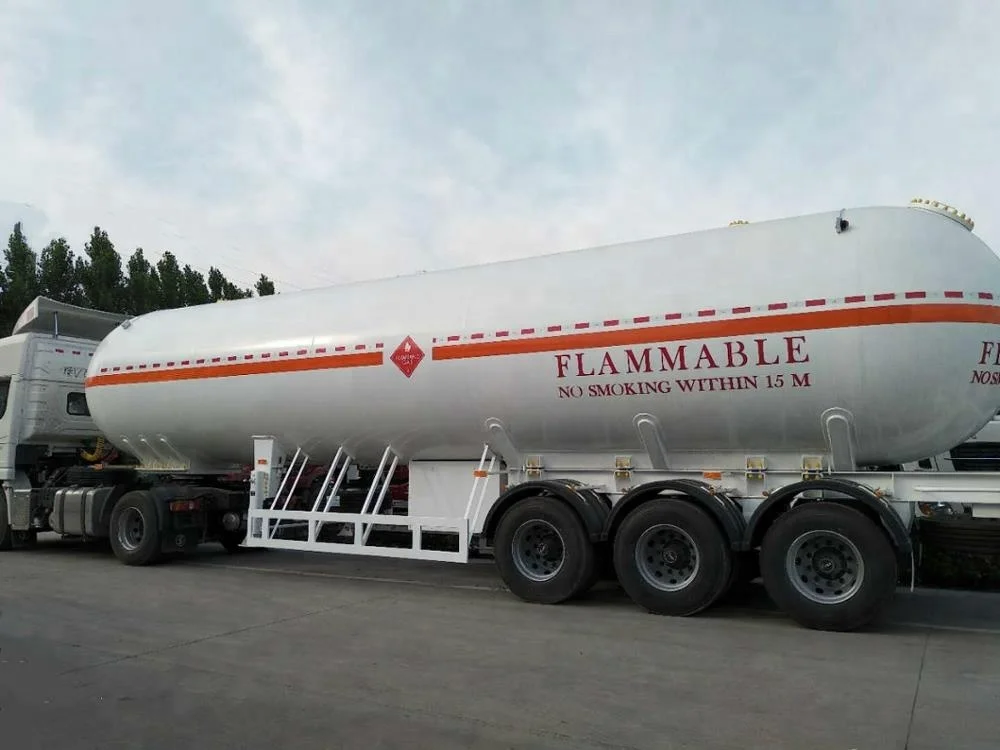

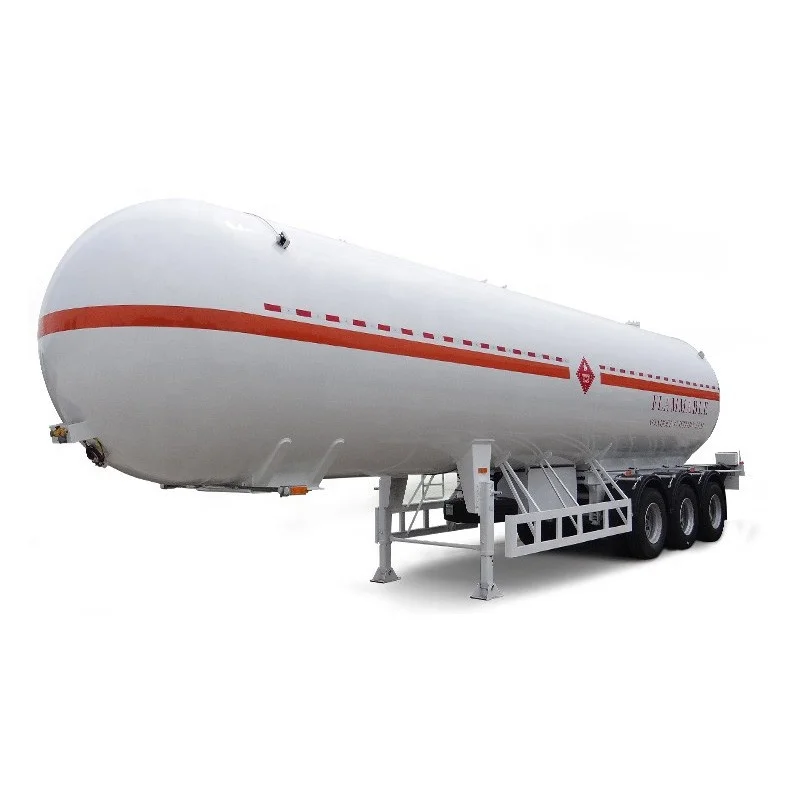

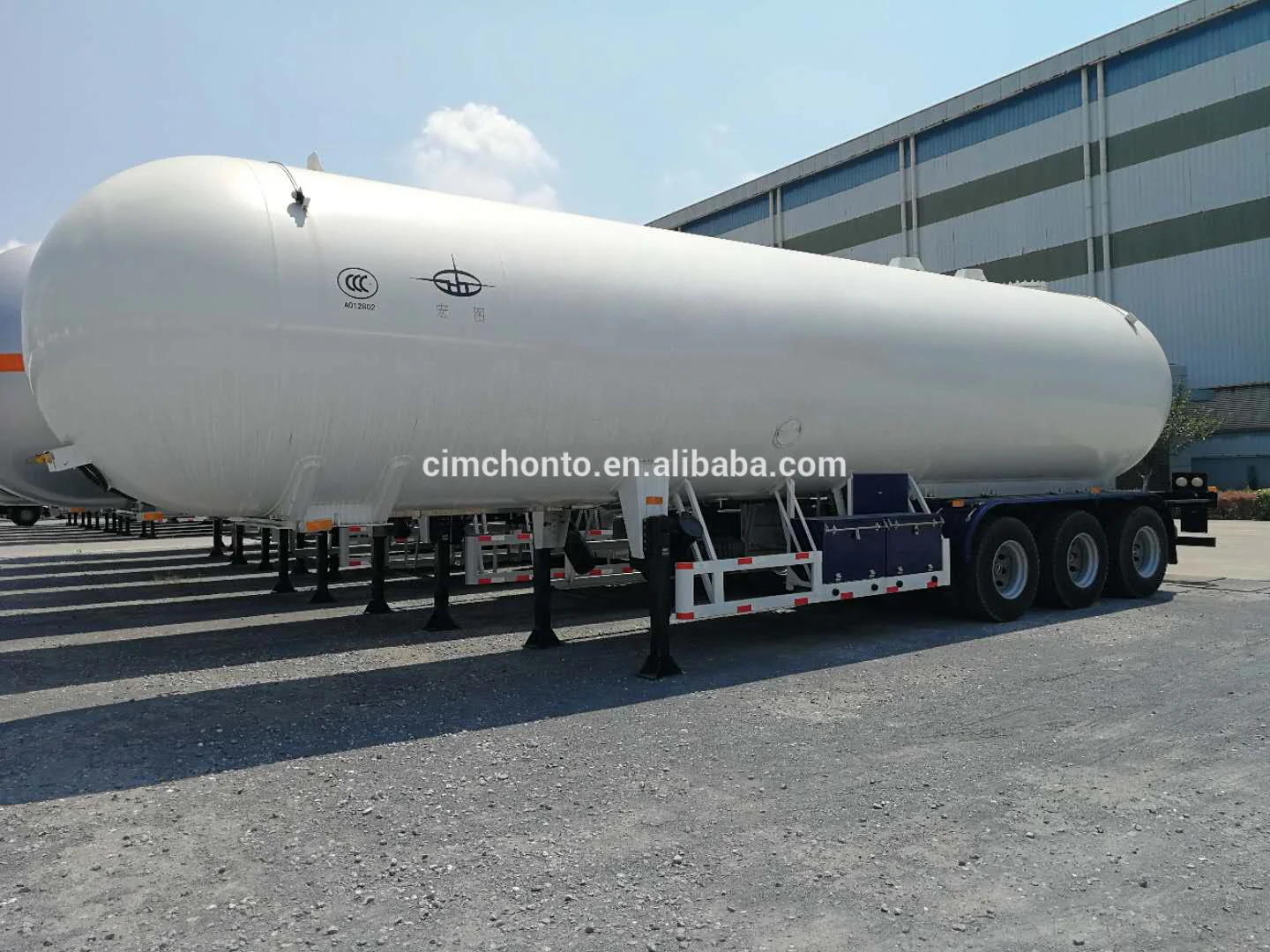

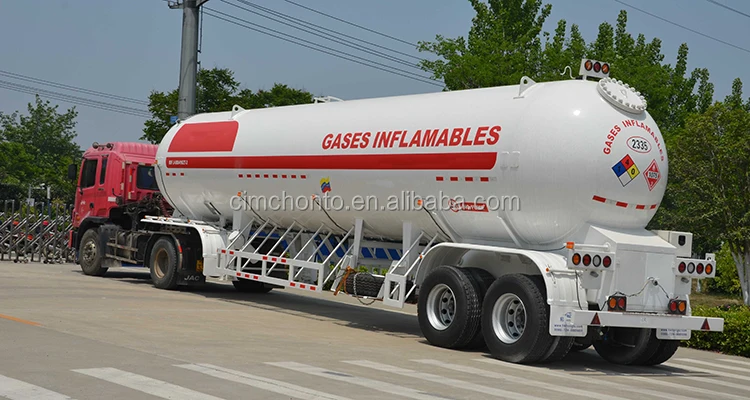

LPG Semi-trailer
HONGTU has 30-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, HONGTU can supply various semi-trailers as per Chinese standard, international standards, and tailered design register, etc. HONGTU has cooperated with the international reputed sulliers of valves, instruments and other accessories, such as REGO, FISHER, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirements..
Technical speccification
Design code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB4732
Volume: 30m³~70m³
Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Vehicle type:
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
Chinese standard pressure vessel material plus international brands of valves and safety accessories
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
Chinese standard pressure vessel material plus international brands of valves and safety accessories
Note:
The information of CIMC HONTO LPG semi-trailers listed as below are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.SPECIFICATIONS
I. ASME Code | ||||||||||||
Capacity | 38.3m³ | 46m³ (with pump) ** | 47.5m³ | 55m³ | 58m³ | 60m³ (with pump) ** | ||||||
*Max. Payload | 18000kg (19.15 t) | 21300kg (23 t) | 23000kg (23.75 t) | 25710kg (27.5 t) | 26130kg (29 t) | 25500kg (30 t) | ||||||
Kerb Weight | 11900kg | 16900kg | 14000kg | 16790kg | 17300kg | 22150kg | ||||||
Gross Vehicle Weight | 29900kg | 38200kg | 37000kg | 42500kg | 43430kg | 47650kg | ||||||
Outline Dimension | L:10470mm W:2550mm H:3920mm | L:13152mm W:2500mm H:3850mm | L:13137mm W:2500mm H:3850mm | L:14297mm W:2500mm H:4000mm | L:13238mm W:2640mm H:4050mm | L:13052mm W:2550mm H:4000mm | ||||||
Design Pressure | 1.724 MPa | 2.26 MPa | 1.724MPa | 1.724MPa | 1.724MPa | 2.5MPa | ||||||
MAWP | 1.724 MPa at 51.7℃ | 2.26 MPa at 70℃ | 1.724MPa | - | 1.724MPa | 2.5MPa | ||||||
Design Temperature | 51.7℃ | 70℃ | -23.3/51.7℃ | 50℃ | -23.3/51.7℃ | -40/+70℃ | ||||||
Corrosion Allowance | 0mm | 2mm | 0mm | 0mm | 0mm | 1mm | ||||||
Material of Shell | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 | ||||||
Material of Head | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 | ||||||
Thickness of Shell | 12.5mm | 15mm | 12mm | 12.5mm | 14mm | 16mm | ||||||
Thickness of Head | 8mm | 10mm | 8mm | 8mm | 8mm | 16mm | ||||||
Test Pressure (Hydraulic Horizontal) | 2.25MPa | 3.4MPa | 2.24MPa | 2.25MPa | 2.25MPa | 3.58MPa | ||||||
Air Test Pressure | 1.724MPa | 2.26MPa | 1.724MPa | 1.724MPa | 1.724MPa | - | ||||||
*Please note that different medium component will cause different density and different payload. ** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter. ***Please contact for more different kinds of capacity and standard tanks. | ||||||||||||
II. China GB Standard | ||||||||||
Volume | 36m³ | 46m³ | 52m³ | 58.1m³ | 61.9m³ | |||||
*Max. Payload | 15120kg (18 t) | 19320kg (23 t) | 25506kg (26 t) | 26915kg (29.05 t) | 26000kg (30.05 t) | |||||
Kerb Weight | 11880kg | 14680kg | 13374kg | 15000kg | 14000kg | |||||
Gross Vehicle Weight | 27000kg | 34000kg | 38800kg | 41915kg | 40000kg | |||||
Outline Dimension | L:9400mm W:2500mm H:3900mm | L:10360mm W:2500mm H:3990mm | L:12000mm W:2500mm H:3990mm | L:13150mm W:2500mm H:4100mm | L:13590mm W:2550mm H:4000mm | |||||
Design Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72/-0.1MPa | 1.61/-0.04MPa | |||||
Design Temperature | -20/50℃ | -20/50℃ | -20/50℃ | -20/50℃ | -40/50℃ | |||||
Corrosion Allowance | 1mm | 1mm | 1mm | 1mm | 1mm | |||||
Material of Shell | Q370R(N) | Q370R(N) | Q420R (WH590D) | Q370R(N) | WH590E(N) | |||||
Material of Head | Q370R(N) | Q370R(N) | Q420R (WH590D) | Q370R(N) | 16MnDR(N) | |||||
Thickness of Shell | 12mm | 13mm | 11mm | 12mm | 10mm | |||||
Thickness of Head | 11mm | 12mm | 10mm | 8mm | 8mm | |||||
Test Pressure (Hydraulic Horizontal) | 2.1MPa | 2.1MPa | 2.7MPa | 2.24MPa | 2.1MPa | |||||
Air Test Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72MPa | 1.61MPa | |||||
*Please note that different medium component will cause different density and different payload. ** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter. ***Please contact for more different kinds of capacity and standard tanks. | ||||||||||
III. European Standard ADR | ||
Design Code | EN12493:2013+A1:2014 | |
Volume | 60m³ | |
Max. Payload | 25200kg | |
Kerb Weight | 14800kg | |
Gross Vehicle Weight | 40000kg | |
Outline Dimension LengthxWidthxHeight | 13115x2550x4000 mm | |
Wheel Base | 7900+1320+1320 | |
Design Pressure | 2.1/-0.04 MPa | |
Maxiumum Working Pressure | 1.62 MPa | |
Design Temperature | -20/+50℃ | |
Material of Shell | P460NL1 | |
Nominal Thickness | 10(Shell)/13(End) mm | |
Hydrostatic Pressure Test | 2.10 MPa | |
Valves & Instruments
Pressure Relief Valve
Emergency Shut-off Valve
Discharging & Loading System
Liquid Level Gauge
Pressure Gauge
Thermometer
LPG Semi-trailer with Pump, Flowmeter, Hose Reel
CIMC Hongtu is also able to design and manufacutre LPG semi-trailers with Pump, Flowmeter, Hose Reel and the corresponding Valve Accessories.
Configurations
Axles
Famous brands like BPW, FUWA are available.
2 axles, 3 axles, drum series, disc-brake type, 10 tons, 13tons, etc are configured according to technical requirements
Suspension
Air suspension, leaf-spring suspension are available.
CIMC Hongtu will provide design according to the road condition in customer's country to ensure the highest safety and reliability of operating semi-trailer.
Braking Solutions
Famous brands like WABCO, KORMEE, etc. are available.
ABS, EBS will be provided according to customer's demand.
King Pin
Safe connection is all that matters
Landing Gear
Premium model, static load capacity 80t, lift capacity 28t
Title
Famous international brands such as Bridgestone, Michelin, Dunlop, Firelli, Goodyear can be supplied. Also Chinese famous brands such as Double Coin, LINGLONG, Triangle, etc. can be chosen.
Materials and brand of baffle, valve box, tool box, mudguard,Rim can be customized according to customers' demand and requirements.
Certifications
ASME U Certificate
ASME U2 Certificate
Certificate of Authorization to Register NB
Container Factory Approval Certificate
BVCT 1681762/S
ADR 2017
GB/T28001-2011/OHSAS18001:2007
OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE
GB/T19001-2016/ISO9001:2015
QUALITY MANAGEMENT SYSTEM CERTIFICATE
GB/T24001-2016/ISO14001:2015
ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE
SY/T6276-2014, Q/SY1002.1-2003, Q/SHS0001.1-2001
HSE MANAGEMENT SYSTEM CERTIFICATE
Manufacture License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Pipe
Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd.
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.
The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.
The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.
The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &
transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.
"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.
The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.
The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.
The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &
transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.
"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
Our Advantages
01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou
University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International ervices and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International ervices and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
