Топ бренд 37Ton MQH37A 20ft 40ft Sidelifter грузовик прицеп контейнер боковой подъемник с Полуприцеп
- Категория: Truck Trailers >>>
- Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 77350.73 $* | 81218.1 $* |
| Aug-15-2025 | 76700.5 $* | 80535.75 $* |
| Jul-15-2025 | 64350.12 $* | 67568.43 $* |
| Jun-15-2025 | 75400.92 $* | 79170.37 $* |
| May-15-2025 | 65650.15 $* | 68933.86 $* |
| Apr-15-2025 | 74100.94 $* | 77805.3 $* |
| Mar-15-2025 | 73450.87 $* | 77123.19 $* |
| Feb-15-2025 | 72800.93 $* | 76440.75 $* |
| Jan-15-2025 | 72150.59 $* | 75758.17 $* |
Характеристики
Contact
Phone/Skype/Whatsapp: +8617852035877
Wechat: +86 18874360427
QQ: 1368540742
Facebook: https://www.facebook.com/0324Judy
Linkedin: https://www.linkedin.com/in/judy-zhang/
Ins: https://www.instagram.com/0324judy
Our Website:www.maxizm.com
MAXIZM Construction Machinery Co.,Ltd
Top Brand 37Ton MQH37A 20ft 40ft Container Sidelifter Truck Trailer Container Side Lifter
Products Description

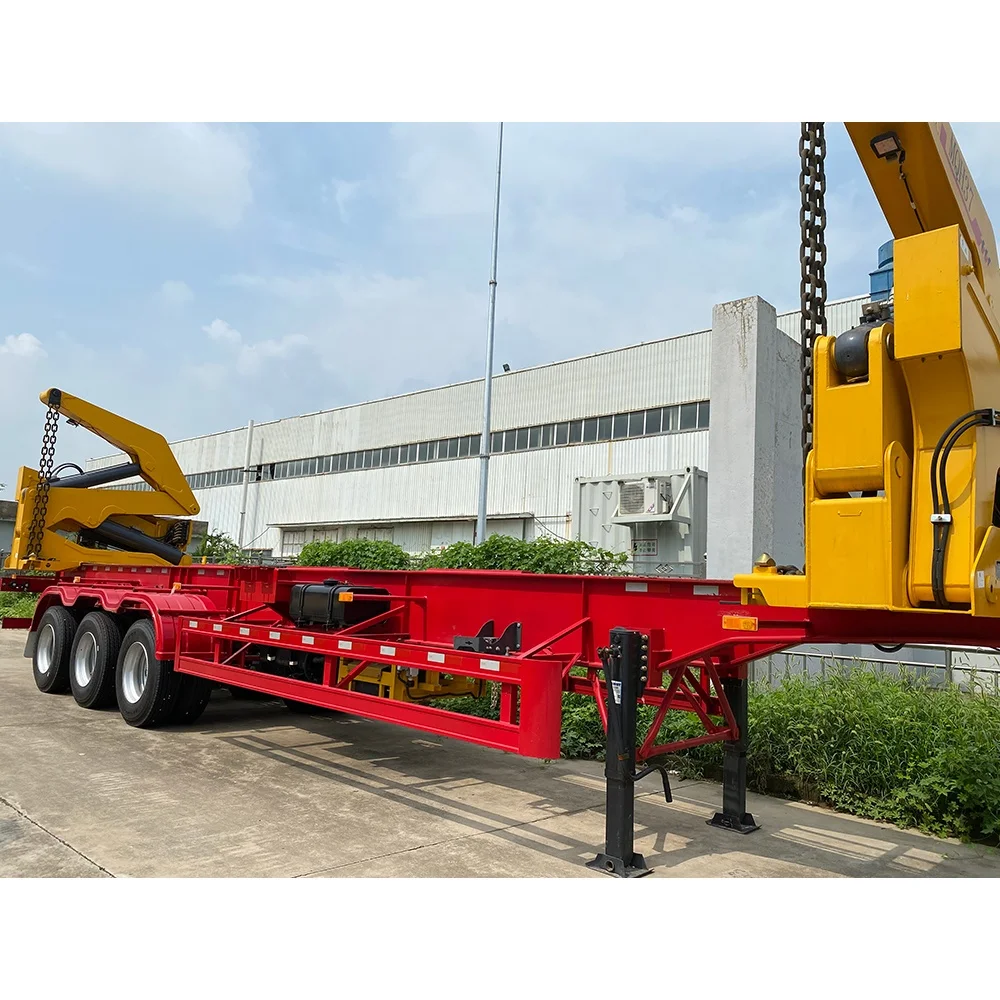

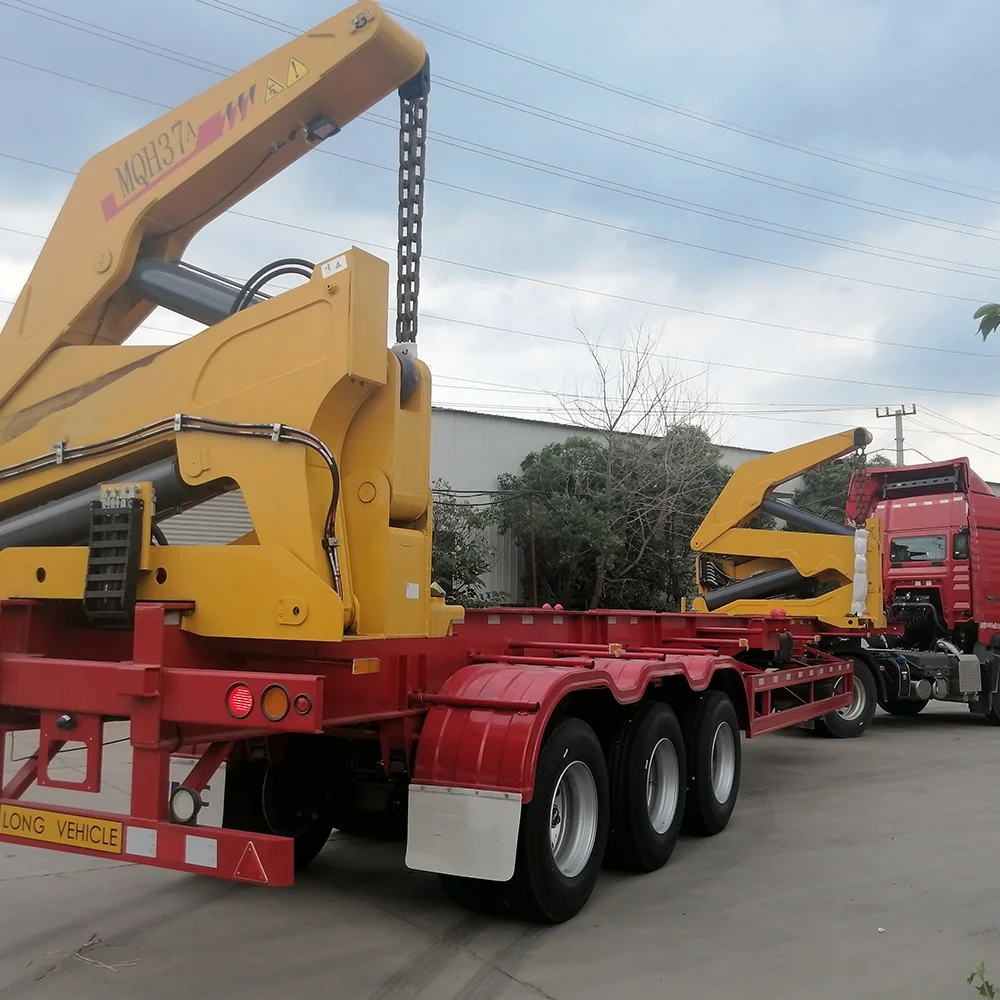

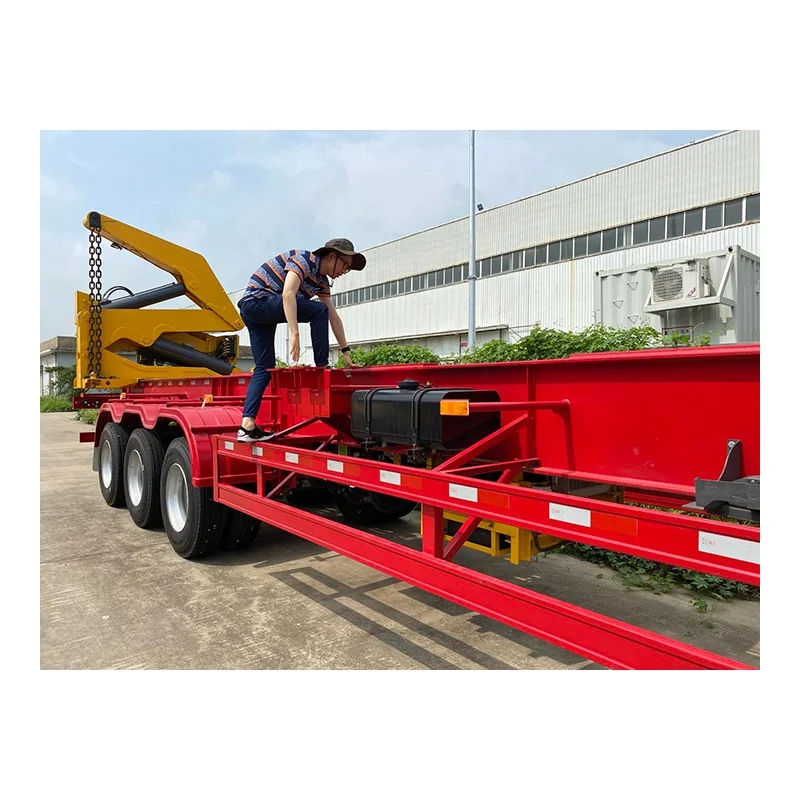

Mqh37A Truck Container Side Lifter
Side loader MQH37A have several advanced core technologies and a number of patents,it can transfer containers to other trailers,
trucks, or on to the ground. Its characters including big lifting capacity, large working range, wide application range, good
versatility and strong guarantee ability, meet the demands of lifting container anywhere. It is widely for shipping, port,
railway, storage and custom etc.Its characteristics of "rapid, vivid, efficiency, convenience" get more and more understanding and
approbations.
Advantages and highlights:
* Power take off(PTO) or diesel APU;
* Sideloader can slide to fit 20ft-40ft containers.
* Wireless remote contrcl/ manual operating.
* Engine throttle size and engine speed can be control, improving working efficiency.
* The front and rear crane can work together and separate, adjusting container conveniently.
* Safety control with stop button.
* Elegant appearance, reliable performance,
* Convenient operation, facilitate manufanture and maintenance.
trucks, or on to the ground. Its characters including big lifting capacity, large working range, wide application range, good
versatility and strong guarantee ability, meet the demands of lifting container anywhere. It is widely for shipping, port,
railway, storage and custom etc.Its characteristics of "rapid, vivid, efficiency, convenience" get more and more understanding and
approbations.
Advantages and highlights:
* Power take off(PTO) or diesel APU;
* Sideloader can slide to fit 20ft-40ft containers.
* Wireless remote contrcl/ manual operating.
* Engine throttle size and engine speed can be control, improving working efficiency.
* The front and rear crane can work together and separate, adjusting container conveniently.
* Safety control with stop button.
* Elegant appearance, reliable performance,
* Convenient operation, facilitate manufanture and maintenance.
Product Paramenters
Item | Item | Unit | Parameters |
Lifting Performance | Max. lifting capacity | kg | 37000 |
Max. working range | mm | 4000 | |
Max. stabilizer outreach | mm | 3200 | |
Weight | Curb mass | kg | 14500 |
Mass of sidelifter | kg | 7250 | |
Maximum gross mass | kg | 40000 | |
Dimension | Outline dimension of semi-trailer(L×W×H) | mm | 14100×2500×4000 |
Outline dimension of sidelifter(L×W×H) | mm | 1020×2500×2490 | |
Wheel base | mm | 8000+1350+1350 | |
Track(front axle/rear axle) | mm | 1820/1820/1820 | |
Front overhang / Rear overhang | mm | -/2370 | |
Approach angle/Departure angle | ° | -/13 | |
（Option） Engine | Model | —— | Ku-bota V2403-M-DI-E3B-CSL-1 |
Power/rotation speed | kW/r/min | 36.5/2600 | |
Emission standard | —— | Off-road, Euro III |
Details Images
Company Profile
