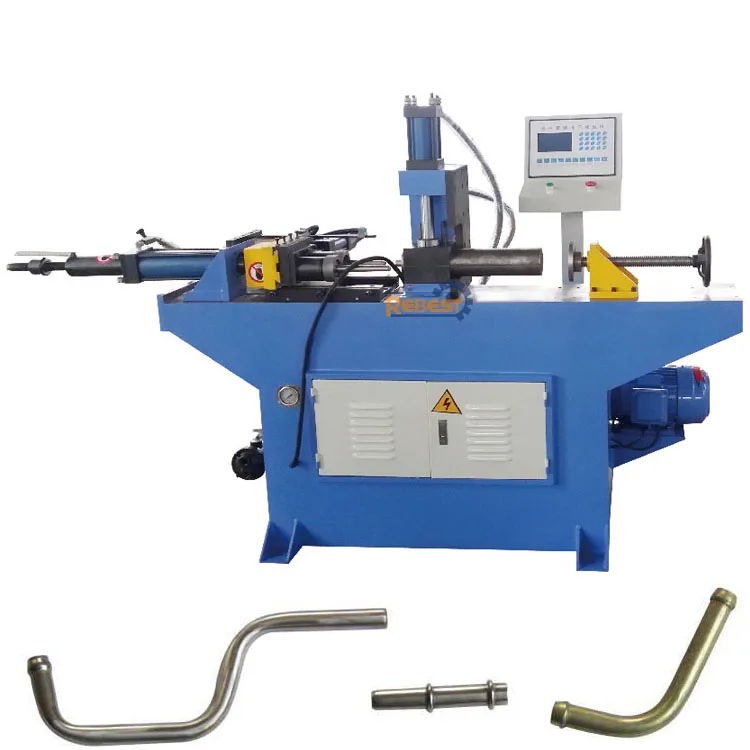

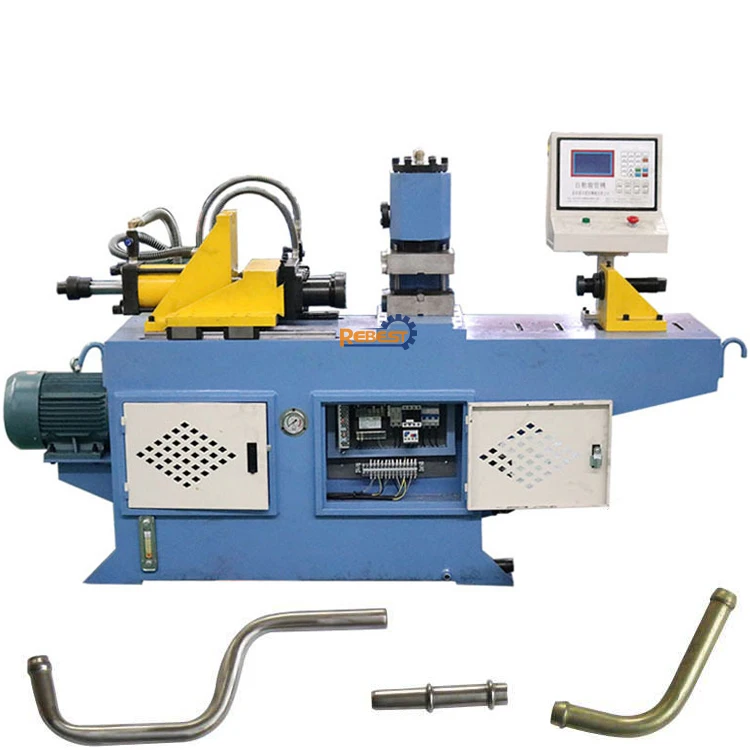

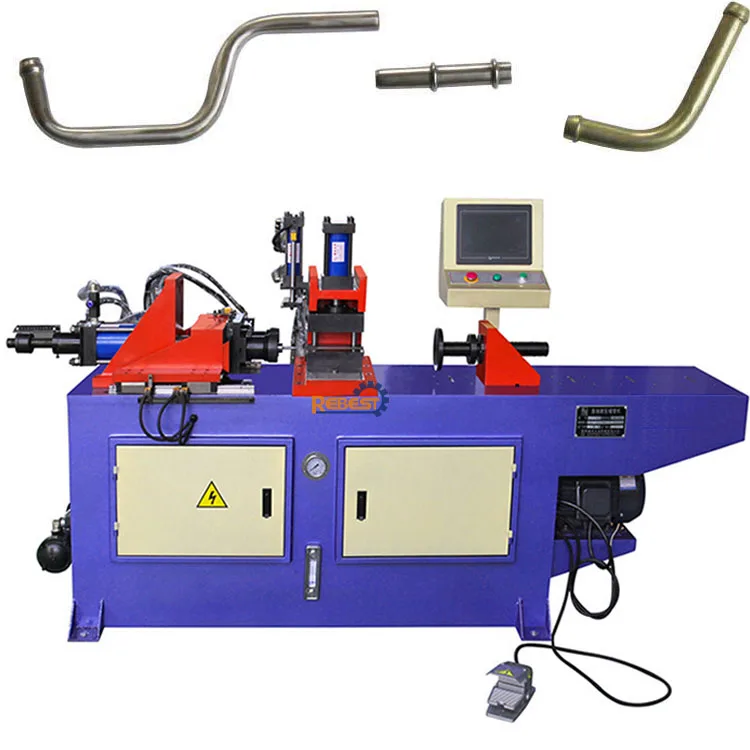

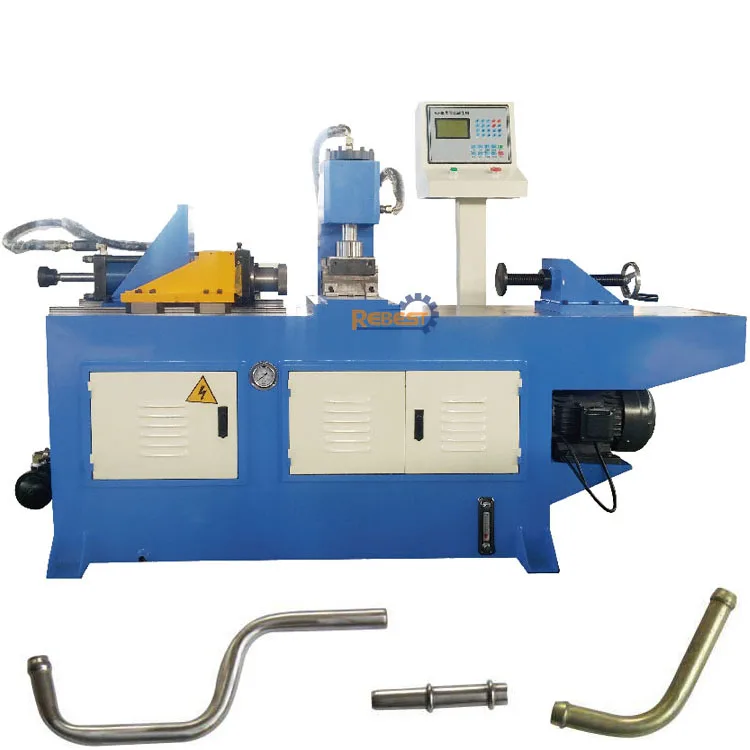

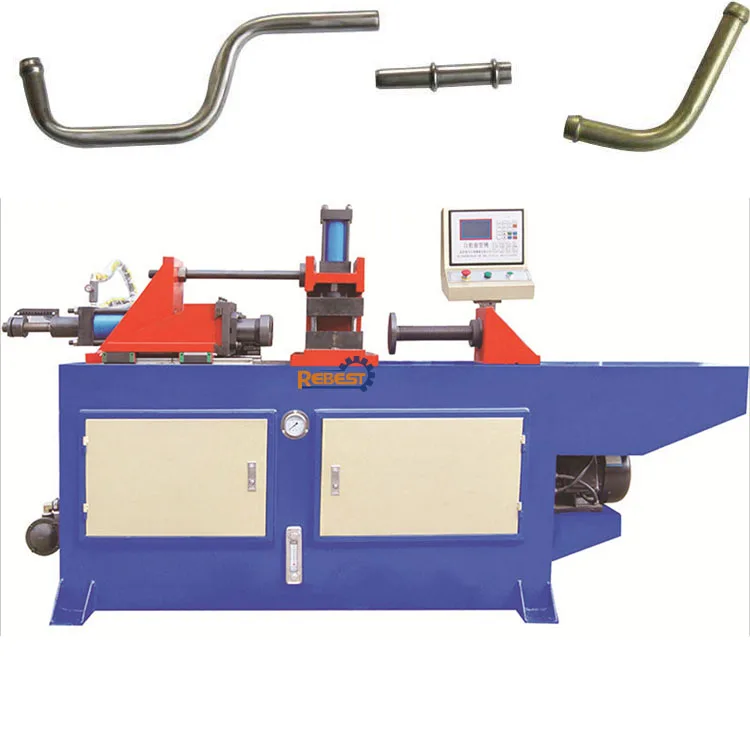

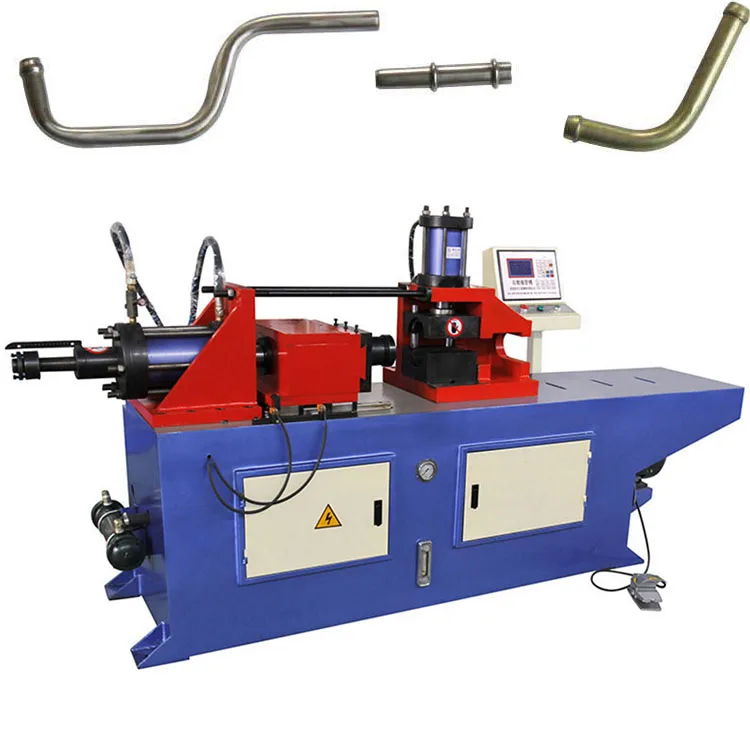

Automatic New Design SG60 Pipe Tube End Forming Machine

Pipe end forming machine, with the straight line guide raild as the carrier, to run without abrasion, good repeatability of products applicable to the pipee end processing of iron ipe, furniture, automobile air conditioner fuel.

Automatic New Design SG60 Pipe Tube End Forming Machine

Main Specification	SG-40	SG-60	SG-80	SG-100	SG-120
Max. fitting (mm)	φ40xT2	φ60xT2	φ80xT2	φ100xT2	φ120xT2
Max. working stroke (mm)	100	130	150	150	150
Oil pressure output (MPA)	4.5	12	12	14	14
Machine sizes (mm)	2000x550x1300	2000x600x1400	2900x700x1400	3000x750x1500	3500x900x1800
Machine weight (kg)	1100	1250	1600	1800	2500

 SG60 Pipe Tube End Forming Machine Features

• The product is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.

• With double-station arrangement, pipe end forming machine can shrink the tube for two times simultaneously. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.
• Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.

• The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)

• Single-end clamping or double-end clamping can be carried out according to length of the tube.

• The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry



REBEST-GROUP is professional Metal Forming Machine enterprise integrated with design, R&D, manufacturing, sales and service. Our main products: 1). Press Brake Machine 2). Plate Rolling Machine 3). Shearing Machine 4). Pipe Bending Machine 5). Section Bending Machine 6). Notching Machine 7). Hydraulic Press Machine 8). CNC Plasma Cutting Machine 9). Ironworker Machine 10). Roll Forming Machine etc.

Our machines exported to Canada, Russia, Vietnam, Colombia, Indonesia, Qatar, Peru, Malaysia, Brazil, Uganda, Thailand, Germany, Poland, Panama and etc. meanwhile, we have got very good feedback from our customer. We look the quality and customer’s approval as root of company and we shall continue to try our best to meet customer’s full satisfaction.

We introduce both modern management system and operation system into each work links of enterprise, combining the abroad MBA management mode with actual state of Chinese enterprise, and then makes a full set of proper management methods.

The company advances with times, keeps innovating and establishes business relations with friends from all over the world to realize the win-win.

REBEST-GROUP: Best-Quality, Best-Service, Best-Offer.

1. WHY CHOOSE US - REBEST GROUP?

Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
2. Guarantee
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.

3. Are you factory or trading company?
We are factory in an industrial town near Nanjing city.
4. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached. It's very simple, we have telephone and Email support at 24hours per day.
5. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be accepted after we both sides' discussion and agreement.
