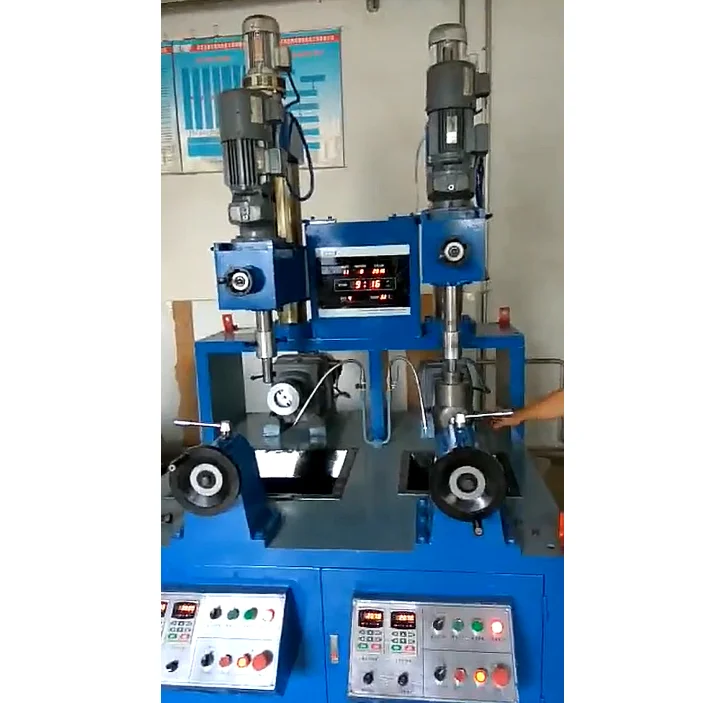

Single head and double head ball valve lapping machine



From Shanghai NANSEN-SUB Machinery Manufacturing Co.,Ltd  Provide Sphere grinding machine.  :



GM Valve Grinding machine  is among the fastest and most accurate valve grinding machines now available on the market, We are provide issuing  its technical machine solutions  as customer of valve ball. The centerless grinding system - that makes the valve rotate on its stem - ensures the perfect concentricity between the head and the stem and can operate a wide range of valve stem diameters  without the need for replacing any collet or spindle.

The valve drive system is performed by three motorized rollers. The top roller is tilted to automatically drive the valve on an adjustable control switch. This guarantees to accurately control each valve's lenght and to avoid to manually feed the valve towards the grinding wheel.



•  Grinding the ball the largest diameter (outside) mm  φ200-Sφ600
•  Grinding ball through hole diameter mm DN150-DN400
•  Grinding ball through hole diameter (≈) 6 "-16"
•  Working maximum load Kg 350 Electric
•  Total power KW 4.4
•  Main grinding head speed (frequency control) Rpm 10 a 125
•  Spherical electric power KW 1.5 Head frame spindle speed (frequency control) Rpm 0,02 a 0,5
•  Surface roughness Ra 0.2- 0.4
•  Ball roundness mm 0.005-0.015
•  Dimensions (length X width X height) 4100x1500x1250
•  Machine net weight about 4000.KG



















--->installation YFJ-OT Sphere Grinding Machine   workplace, voltage and electric current
Working voltage 380V Control current 220V





--->Compressed air supply ..?
This machine does not need compressed air, only hydraulic oil, this equipment provides the hydraulic supply system.



--->Electric supply ..?
Three-phase four-wire power supply system, power 380V three-phase power, 220V control circuit for two-phase power.



Our Advantage :



Service 1).While we factory manufacture finishing GM Grinding machine. ...You are able to sent rough ball some sample to testing it ...we are submit surface smoothly finished ball.

Service 2).We machine Maintenance of the machine is at least : 1 Years..

Serivce 3). If during over maintaince time, We engineer can direclty to your address for keep checking it & maintenance....your company only responsible air ticket costing fee .
