Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
Шлифовальная полировальная машина для поверхности из нержавеющей стали и
- Категория: Metal Polishing Machine >>>
- Поставщик: Foshan,YXH,Tube,Mill,&,Mould,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 57715.20 $* | 60601.23 $* |
| Aug-15-2025 | 57230.36 $* | 60092.53 $* |
| Jul-15-2025 | 48015.79 $* | 50416.75 $* |
| Jun-15-2025 | 56260.49 $* | 59073.34 $* |
| May-15-2025 | 48985.74 $* | 51434.6 $* |
| Apr-15-2025 | 55290.21 $* | 58055.37 $* |
| Mar-15-2025 | 54805.48 $* | 57545.32 $* |
| Feb-15-2025 | 54320.56 $* | 57036.1 $* |
| Jan-15-2025 | 53835.45 $* | 56527.33 $* |
Характеристики

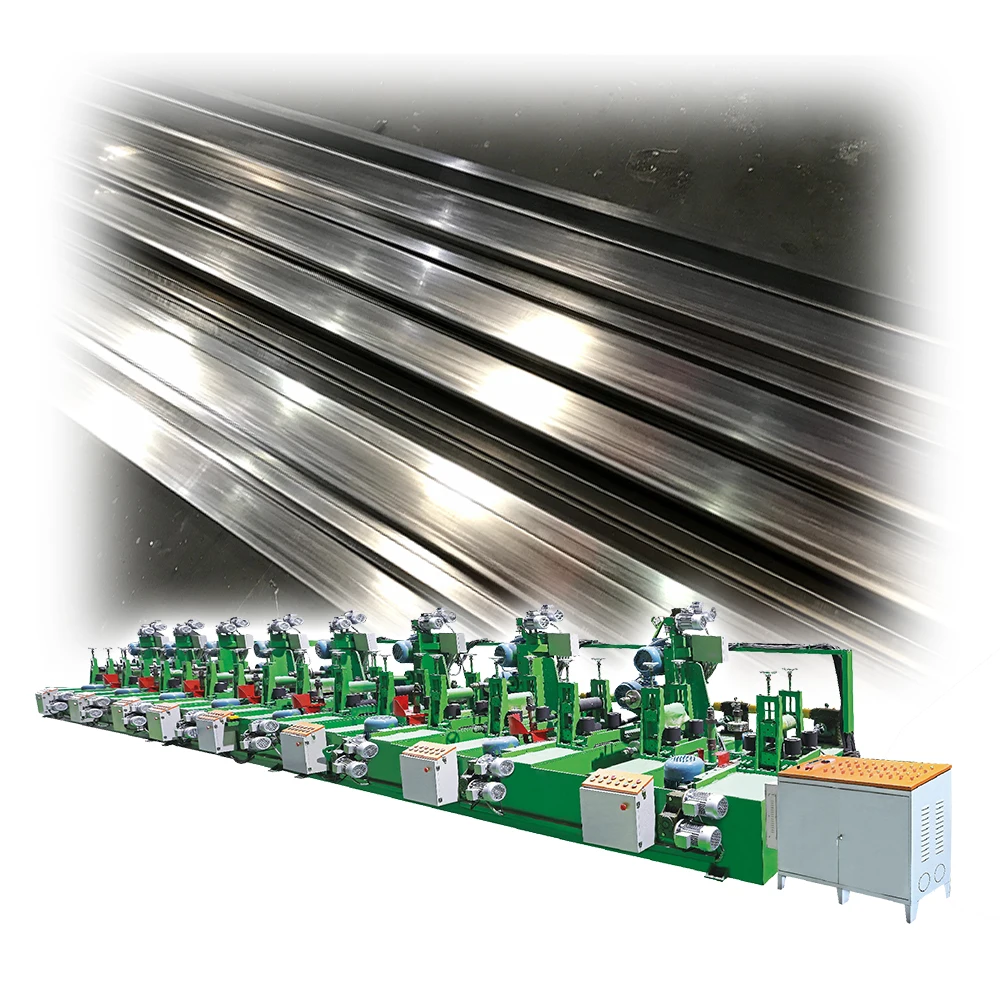

Steel Square Pipe Polishing Machine for Aluminum tube
Polish available pipe size range：13x13-100x100mm√ Increase 4 group cant polished,square pipe brightness improves 10%
√ Polishing machine useful life increased to 10-15 years
√ Machine weight increase,16T, improving the stability of equipment
Passed the IS09001:2000 international standard certification
Technical data | FP-32 | FP-32 (New) | FP-36 | FP-36(New) |
Model(Unit) | 32 | 32 | 36 | 36 |
Working range(mm) | 13*13~100*100 | 13*13~100*100 | 13*13~100*100 | 13*13~100*100 |
Polishing speed | 2~30M/MIN | 2~30M/MIN | 3~30M/MIN | 2~40M/MIN |
Rated power(KW) | 5.5KW=8,4kw=24; | 5.5KW=20, 4KW=12; | 5.5KW=16, 4KW=20; | 5.5KW=24, 4KW=12; |
Motor power(KW) | 5.5kw VFD | 5.5kw VFD | 5.5kw VFD | 5.5kw VFD |
Total power(KW) | 145.5 | 163.5 | 173.5 | 185.5 |
Voltage(V) | 380V/415V/440V 50HZ | 380V/415V/440V 50HZ | 380V/415V/440V 50HZ | 380V/415V/440V 50HZ |
Machine size (L*W*H MM) | 13040×1900×1350 | 13040×1900×1350 | 14500×1900×1350 | 14500×1900×1350 |
The square pipe polishing machine is mainly used fro polishing the surface of square and rectangle pipes.It offers economic solution for mirror polishing,san polishing and matte polishing of tubes,using wheels,cloth wleel,sisal mixed,cloth wheels and polishing wax.
Equipped with 32 grinding heads, corresponding polishing materials can be installed according to different polishing requirements.
Stable operation, fast polishing speed and good polishing effect.
Your order are safer with Alibaba Trade Assurance
* On- Time shipment and per-shipment product quality safeguards
* Refund up the covered amost agree with us
√ Polishing with a rubber wheel, high temperature ,strong wear resistance
We use steel wire and wooden frame to fix the pipe making machine;
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
Offer Services
We can provide pre-sales consultant& On-purchase for everyday
1.Reply Time: Within 1 hours(Not 24 hours)
2.Provide Tube Mill Machine relevant product information
3.Give you technical good suggestion
After Service--Provide service 24 hours*7 days per week
1.Test the tube mill machine before shipment
2.Provide technical guidance relate to use the tube making machine
3.Provide the spare parts at cost price after warranty period
4.Collect the feedback for tube mill machine working
5.Provide long-term technical assistance
6.Offer the professional engineer to help you improve the output ,reduce the waste and decrease the cost.
We can provide pre-sales consultant& On-purchase for everyday
1.Reply Time: Within 1 hours(Not 24 hours)
2.Provide Tube Mill Machine relevant product information
3.Give you technical good suggestion
After Service--Provide service 24 hours*7 days per week
1.Test the tube mill machine before shipment
2.Provide technical guidance relate to use the tube making machine
3.Provide the spare parts at cost price after warranty period
4.Collect the feedback for tube mill machine working
5.Provide long-term technical assistance
6.Offer the professional engineer to help you improve the output ,reduce the waste and decrease the cost.
We are one of the largest stainless steel pipe making machine & pipe polishing machine manufacturers in China. Having imported advanced technology, management system and equipment from abroad, we have established a perfect production system which includes R&D, production, management and service. Our products have obtained ISO9001:2000 International Quality System Certificate.
Please let us know
What's the pipe thickness and diameter you want to polish?
What about the pipe materials?
Q:Are you manufacturer?
A:Yes, We are manufacturer.
Q:What can we provide for you ?
A:(1)stainless steel pipe making machine , stainless steel round and square pipe polishing machine ,Pipe roller set , Polishing Material ,Full Automatic Hydraulic Pipe Cutting Machine, Slitting machine etc
(2)Shaft ,turk head, motors, cutting blade etc
A: YXH products include: coil slitting machine , ss tube mill , pipe polishing machine ,roller set, pipe embossing machine , full automatic cutting machine ,loading and unloading machine ,dust collect system etc. Finally we have 10 years Export experience.
Q:How to tube mill order?
A:Please send us your purchase order by email, whatsapp or we chat. We need to know the following information for your order:
(1)Tube Mill Information: Pipe material (stainless steel , carbon steel , galvanized steel); Pipe Diameter, Pipe Thickness , monthly production
(2)Price Item, Destination Port, Delivery time required
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q:What are the payment terms?
A:For orders, we can accept T/T, D/P, L/C at sight
Q:Whole Process for doing business with us ?
A:(1)Please provide details of the tube mill product you need we quote for you
(2)if you Require order, we will provide Performa invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
A:Yes, We are manufacturer.
Q:What can we provide for you ?
A:(1)stainless steel pipe making machine , stainless steel round and square pipe polishing machine ,Pipe roller set , Polishing Material ,Full Automatic Hydraulic Pipe Cutting Machine, Slitting machine etc
(2)Shaft ,turk head, motors, cutting blade etc
A: YXH products include: coil slitting machine , ss tube mill , pipe polishing machine ,roller set, pipe embossing machine , full automatic cutting machine ,loading and unloading machine ,dust collect system etc. Finally we have 10 years Export experience.
Q:How to tube mill order?
A:Please send us your purchase order by email, whatsapp or we chat. We need to know the following information for your order:
(1)Tube Mill Information: Pipe material (stainless steel , carbon steel , galvanized steel); Pipe Diameter, Pipe Thickness , monthly production
(2)Price Item, Destination Port, Delivery time required
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q:What are the payment terms?
A:For orders, we can accept T/T, D/P, L/C at sight
Q:Whole Process for doing business with us ?
A:(1)Please provide details of the tube mill product you need we quote for you
(2)if you Require order, we will provide Performa invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
More machine We have!
