High radiant power 1w 6363 SMD 310nm 340nm 1w uvc led with PCB
Product Description
Specification
Item
1w 6363 SMD 270-340nm uv led chip
Product name
270-340nm uv led
Power
1w
Model No
HNK-SM001UV-E45
Color
UV
Chip Material
InGaN
Luminous Flux(mW)
10mW
Wavelength
270-340nm
Working temperature
-40 °C-+100 °C
Current(mA)
200mA
Forward Voltage
5-6V
Certification
CE, RoHS
Warranty
2 years
Place of Origin
Dongguan,Guangdong,China

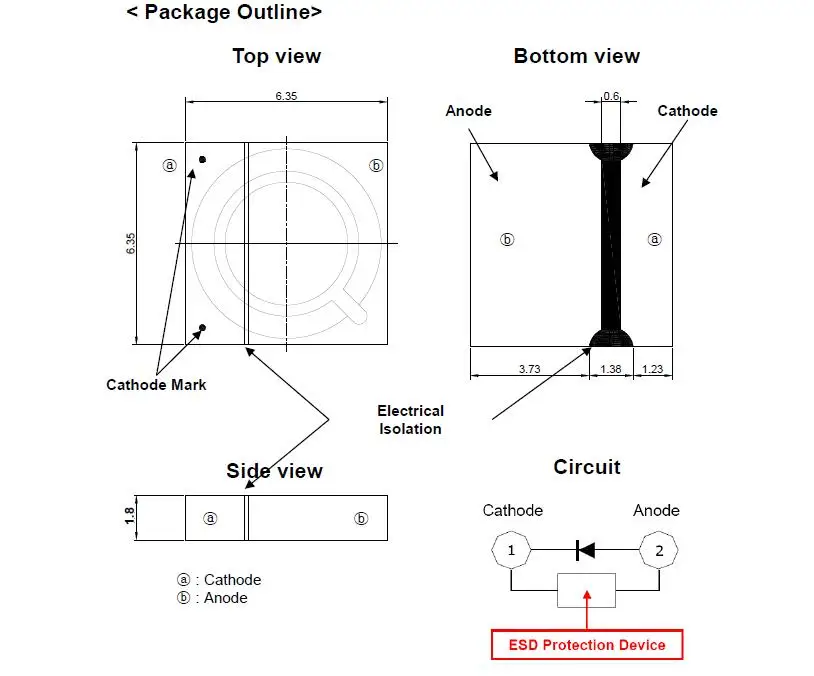

Dimension

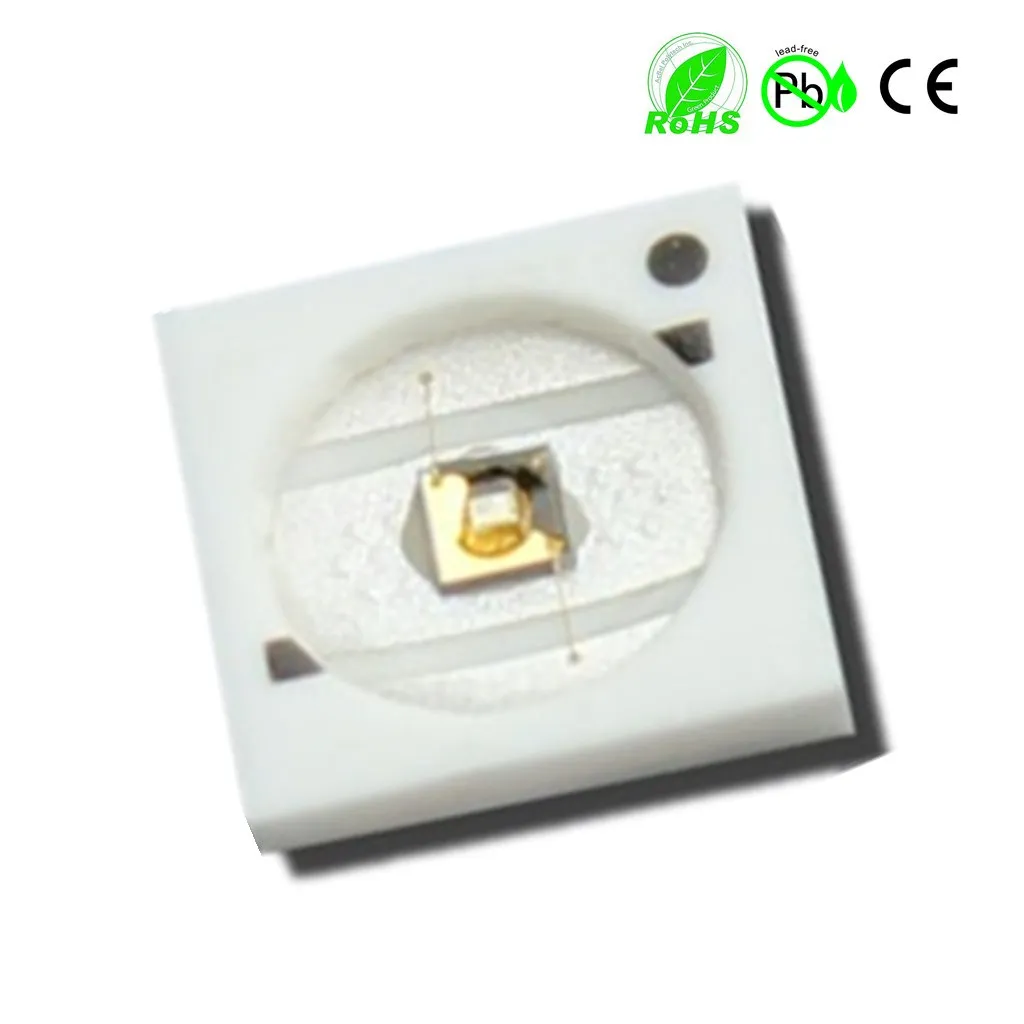

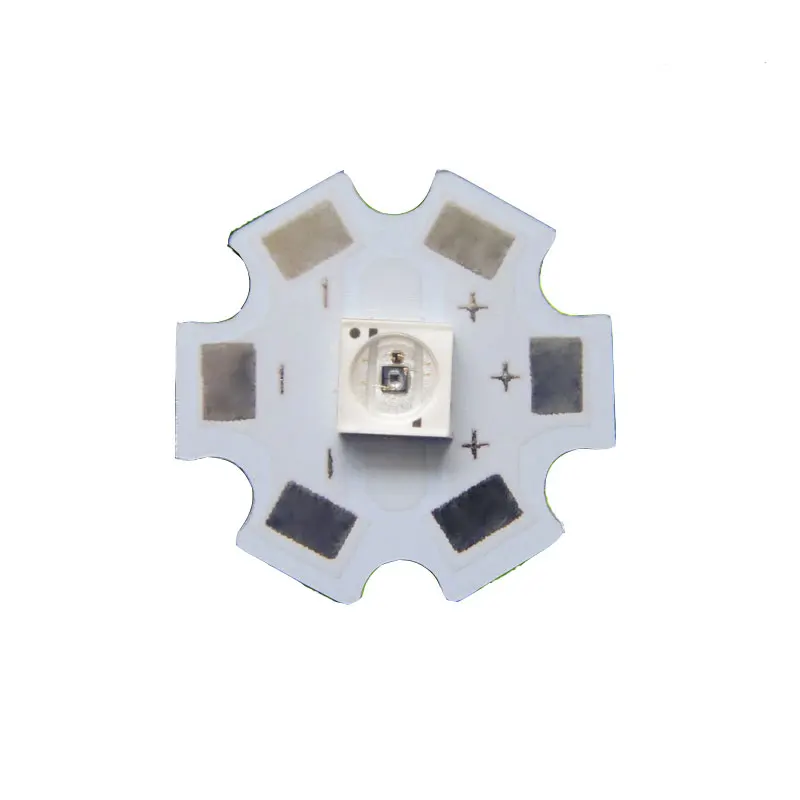

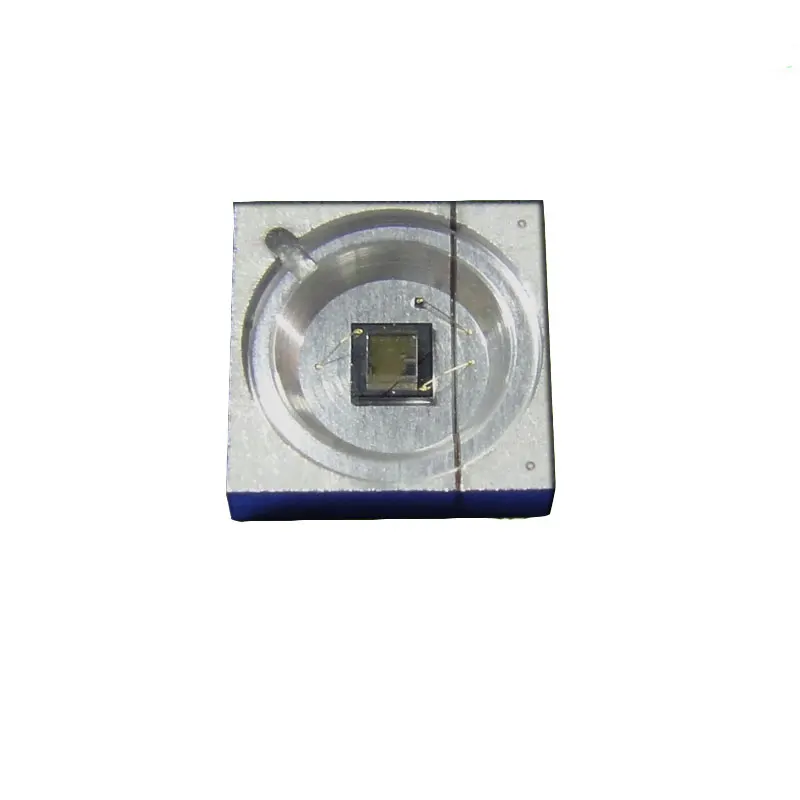

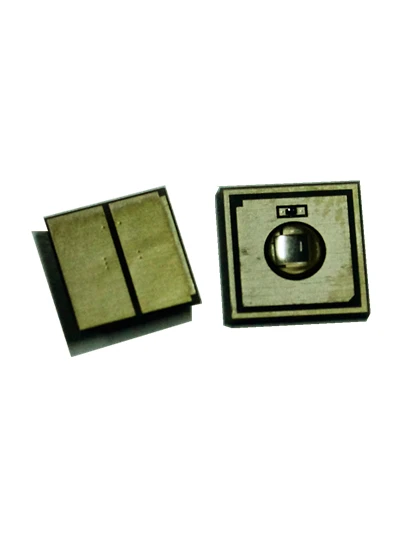

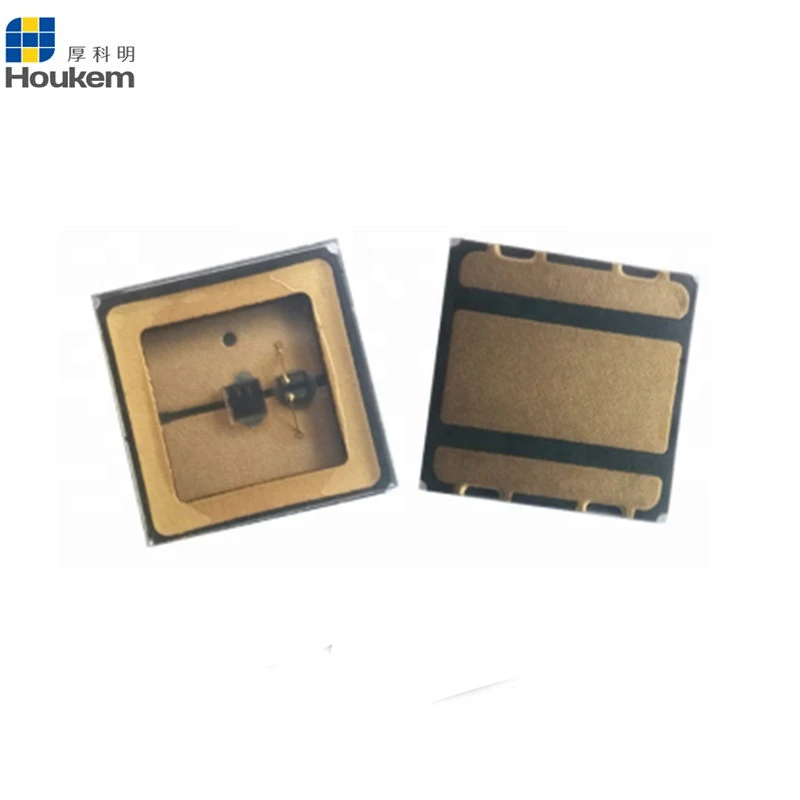

Product photo:
You also can click the Below picture to know more our products.
Application
UVC for Sterilization
Because of the characteristics of low wavelength and high energy, UVC light can damage the molecular structure of DNA(Desoxyribonucleic Acid) and RNA(Ribonucleic Acid)in the cells of microorganism(pathogens such as bacteria, virus, spore) within a short time(3s), thus the cells can’t regeneration, and the bacteria and virus lose the ability of self-reproduction. Therefore, the UVC LEDs can be widely applied in different desinfection products for water, air and surface sterilization.
Company Information
We are the LED professional manufacturer, have over 10 years experience on LEDs. We can offer you, high power LED array(1-500w), COB LED (1-30w), SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light, and all LED lighting application solution.
Veiw our Factory
Certifications
FAQ
1. Prices conditions
Price can be FOB, CIF ,EXW, or With taxes.
2. What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Letter of credit,Western Union.
3. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.
4. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
5. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
If you have any interesting,pls do not hesitate to contact us.
Dimension
