Контроллер с ЧПУ MCU430 шаговый двигатель 3 оси
- Категория: Motor Controllers >>>
- Поставщик: Sumtor,(wuxi),Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 102.63 $* | 107.8 $* |
| Aug-18-2025 | 101.61 $* | 106.97 $* |
| Jul-18-2025 | 85.58 $* | 89.91 $* |
| Jun-18-2025 | 100.58 $* | 105.24 $* |
| May-18-2025 | 87.20 $* | 91.35 $* |
| Apr-18-2025 | 98.30 $* | 103.46 $* |
| Mar-18-2025 | 97.97 $* | 102.30 $* |
| Feb-18-2025 | 96.38 $* | 101.55 $* |
| Jan-18-2025 | 95.24 $* | 100.57 $* |
Характеристики
5% discount on all products
If you follow our shop(Sumtor (Wuxi) Electric CO., Ltd ), we wil give you a 95% discount(all products) as our part of the bargain.
Click the picture above to reach the shop
Click the picture above to reach the shop
\t\t\t\t\t\t\t\t\tTitle \t\t\t\t\t\t\t

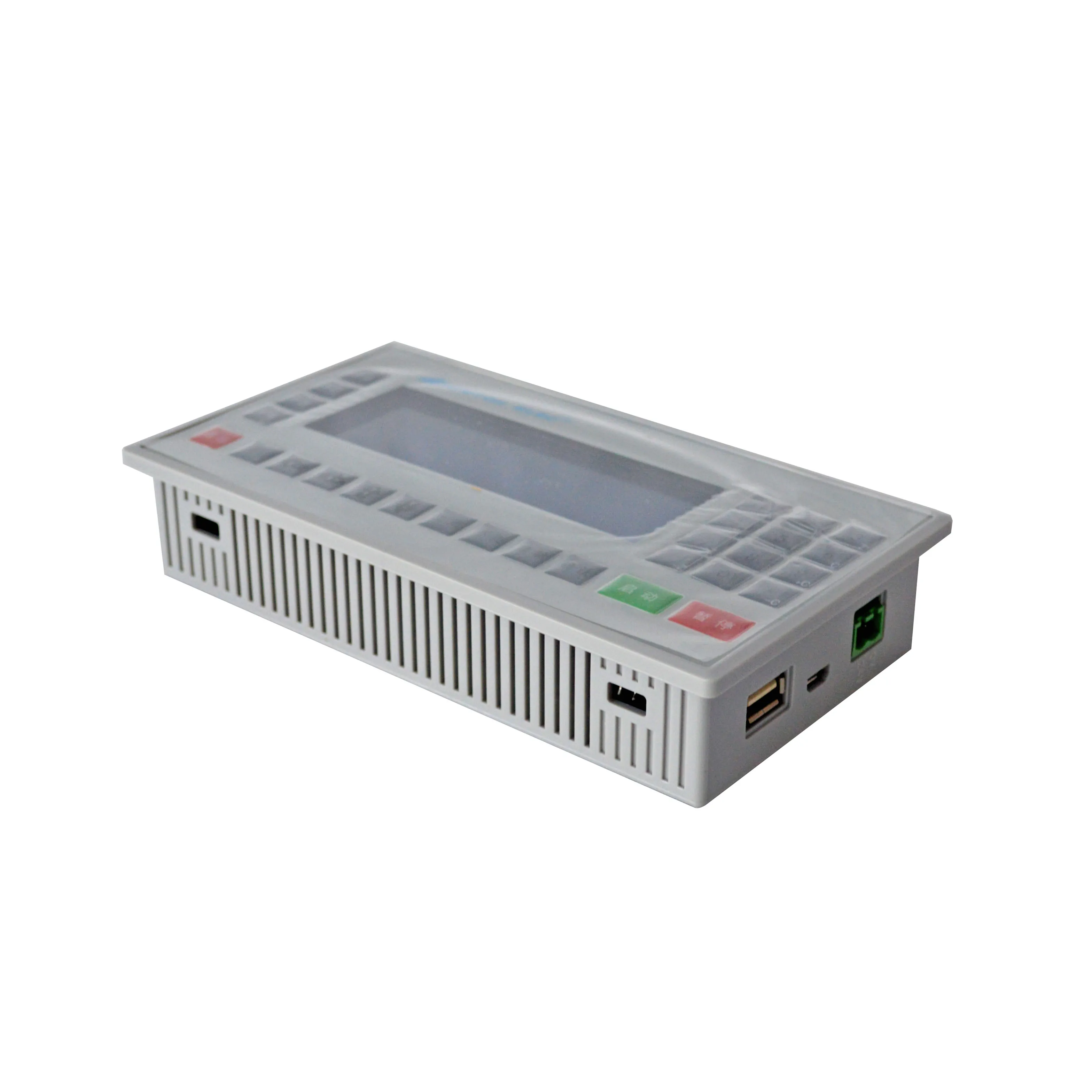

MCU430 CNC controller stepper motor 3 axis single shaft
\t\t\t\t\t\t\t\t\tProduct Categories \t\t\t\t\t\t\t
Details Images
1)The controller with single axis,we also have MCU420,MCU430,MCU440
2)Outlook Dimension
L*W*H:172*94*48mm
SQL Port Dimension
L*W:162.5*85mm height of front panel:5mm
L*W*H:172*94*48mm
SQL Port Dimension
L*W:162.5*85mm height of front panel:5mm
High performance, high speed 32-bit CPU

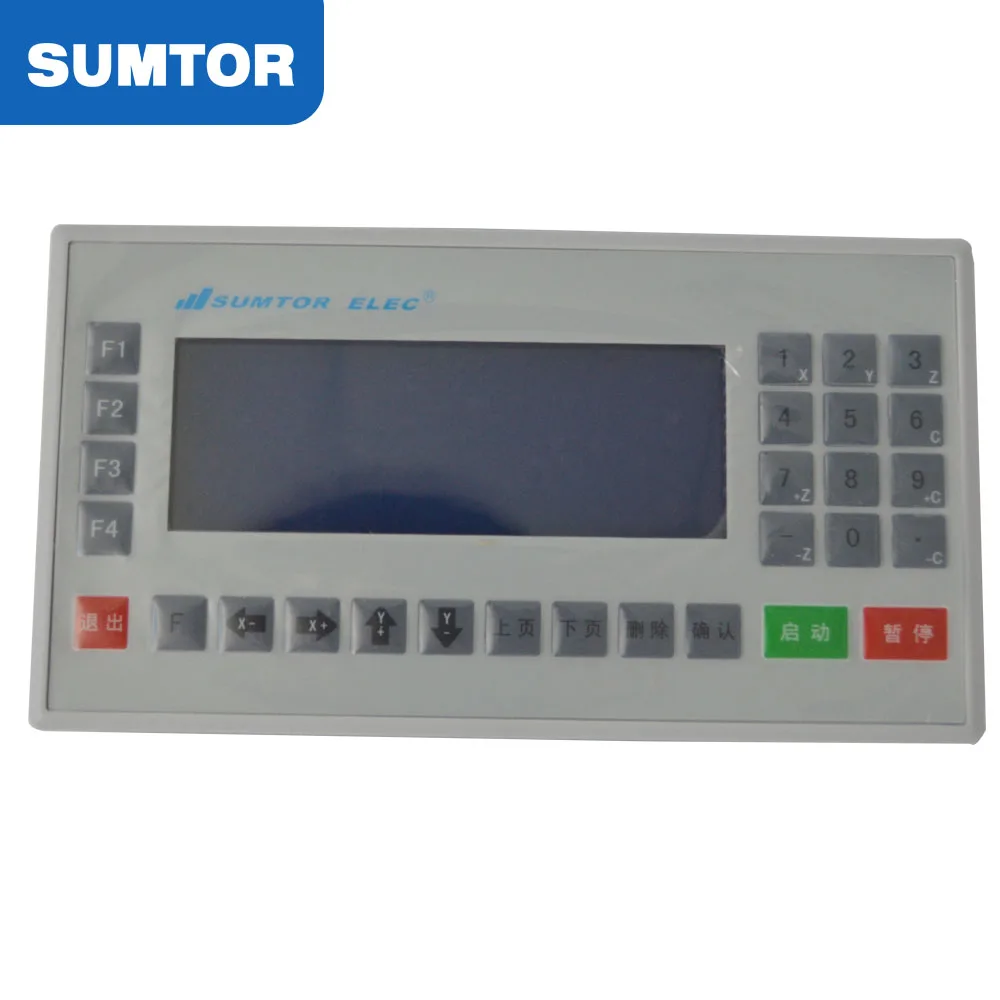

▌ Industrial-scale liquid crystal display (resolution: 192 x 64)
▌ Special motion control chip (signal output: 5V pulse + direction)
▌ Input/output (14 rd photoelectric isolation 24V input, 8 rd isolation 24V output, single-channel rated 750mA)
▌ The maximum procedure is 480 rows

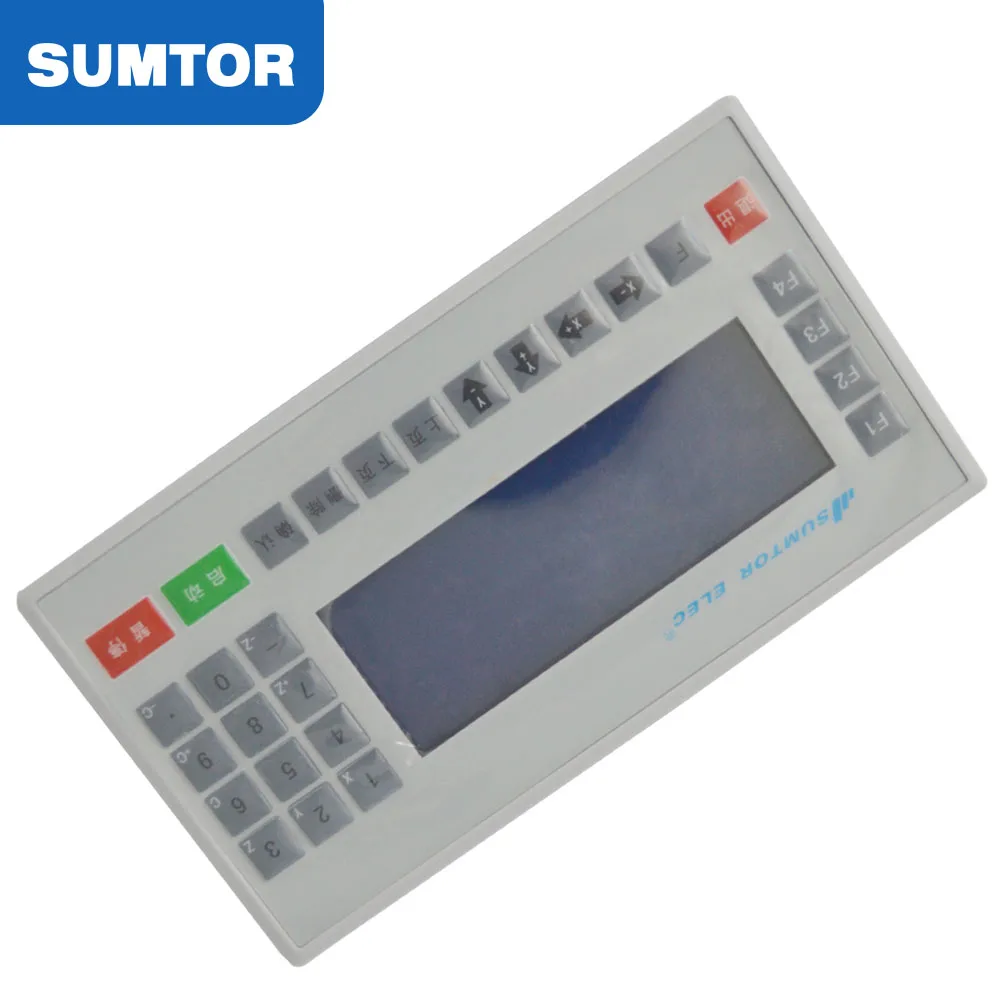

▌ Contact button array (28 keys)
▌ Industrial-scale liquid crystal display (resolution: 192 x 64)
▌ Special motion control chip (signal output: 5V pulse + direction)
▌ Input/output (14 rd photoelectric isolation 24V input, 8 rd isolation 24V output, single-channel rated 750mA)
▌ The maximum procedure is 480 rows
▌ Contact button array (28 keys)

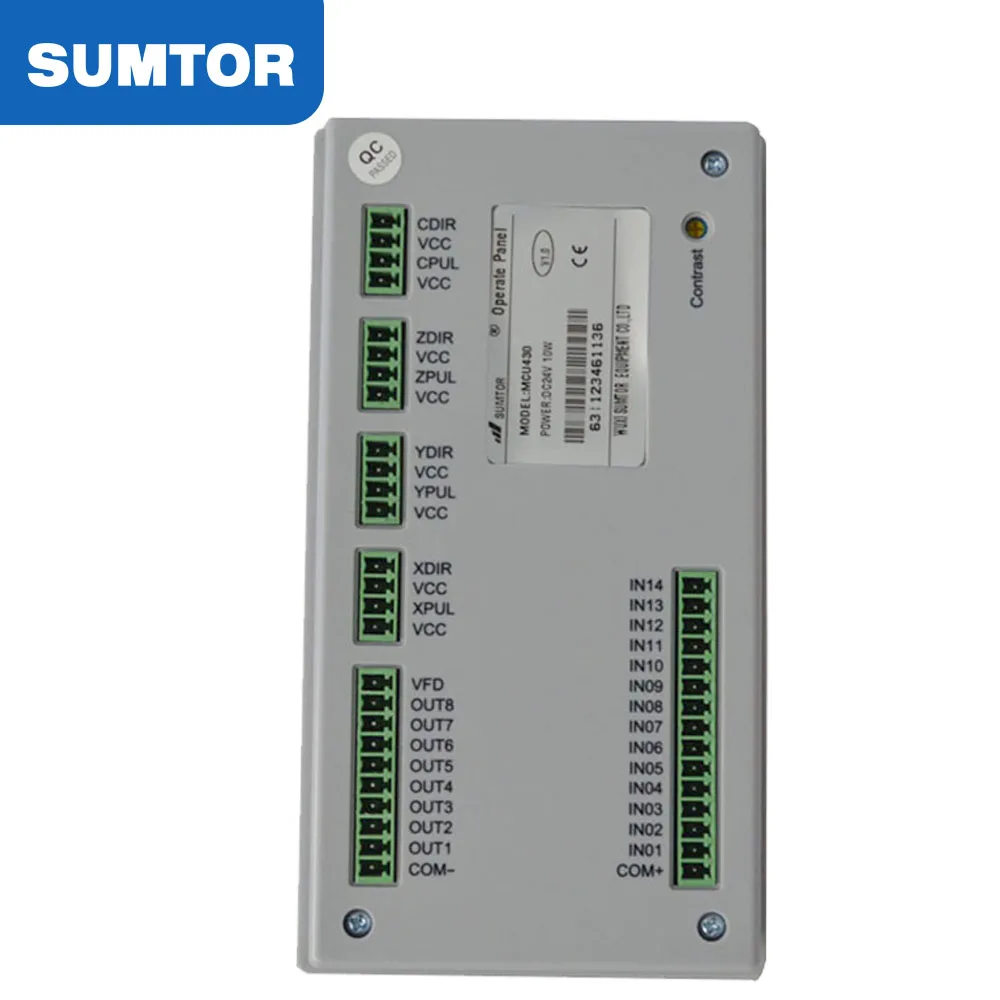

Wiring diagram
Product Paramenters
Minimum Data Unit | 0.001mm |
Maximum Data Size | ±99999.999mm |
Fast Moving Limit | 9000mm/min(when the pulse equivalent is 0.001mm) |
Max Output Frequency | 150KHZ |
Control Axle No. | 1-4 (X,Y,Z,C) |
Couple Axle No. | X,Y,Z,C-axis can be used for linear interpolation, and X,Y-axis can be used for circular interpolation. |
System Main Function | automatic operation, manual operation, program, parameter, self-test, setting, etc. |
Electronic Gear | Numerator is from 1 to 99999 and denominator is from 1 to 99999. |
Manual Operation | motor positive inverse rotation, procedures zeroing, mechanical zeroing. |
Auto-execute Function | continuous executing, single-step executing. |
Parameter Setting | system parameter, automatic system check, I/O setting and users. |
Program Supervision | program edit, read, delete and save. |
Order | 21 control orders |
External Manual | positive inverse rotation, start, pause, alarm, and emergency stop. |
Isolated I/O Port | I/O port isolated from system, the output current is up to 1A. |
Back Terminal Interface | adapter plate not needed and can be wired directly, which is convenient and economized. |
Our Company
Exhibition pictures
Our certification
Application areas
Wide range of applications
Covering everything from high-end robots to household cutting machines for a wide range of automation equipment
Packing & Delivery
Tips:
1.We have ready stepper motor in stock.We are support delivery in 3 days.
2.Choose shipping methods to reduce the shipping cost.
3.If you are not familiar with customs clearance,we can arrange door to door delivery for you.
