Характеристики

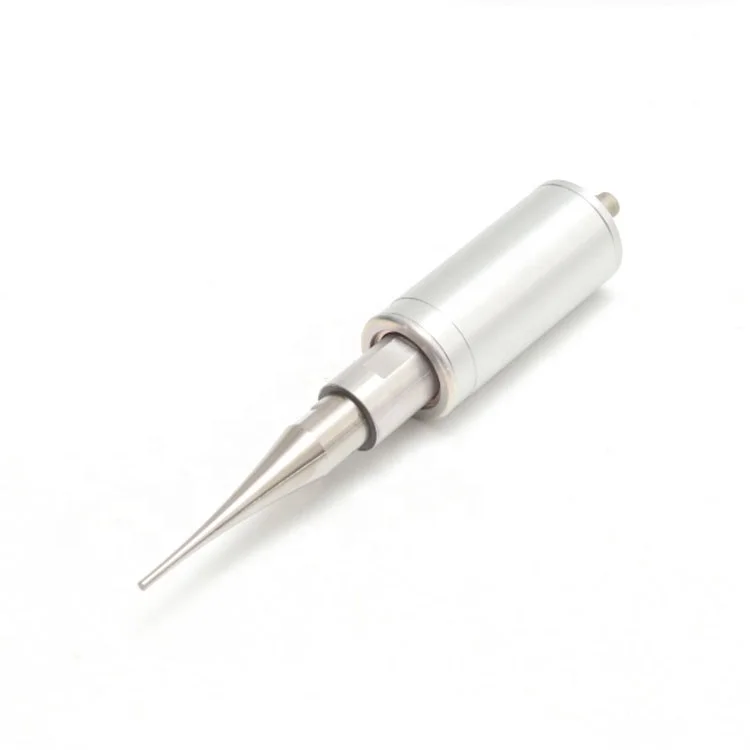

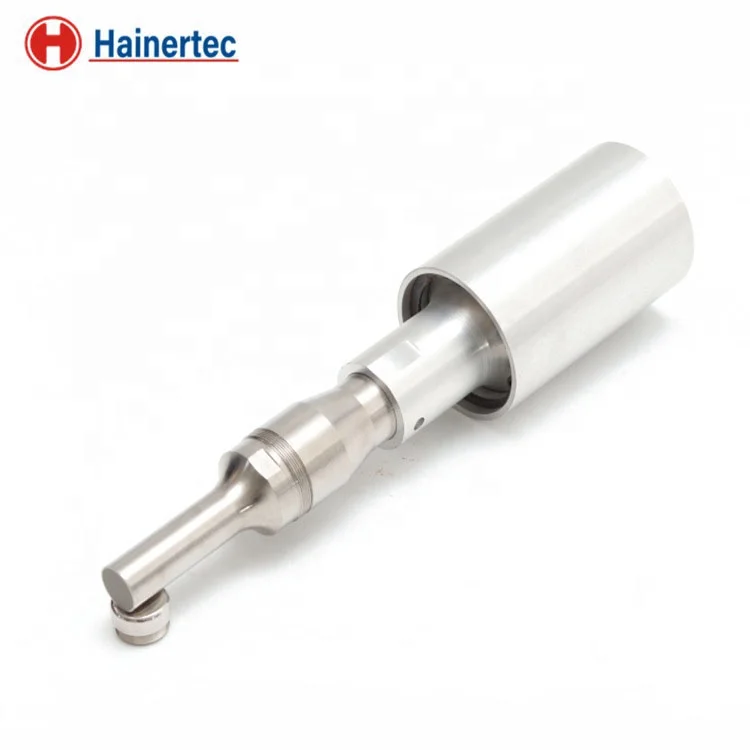

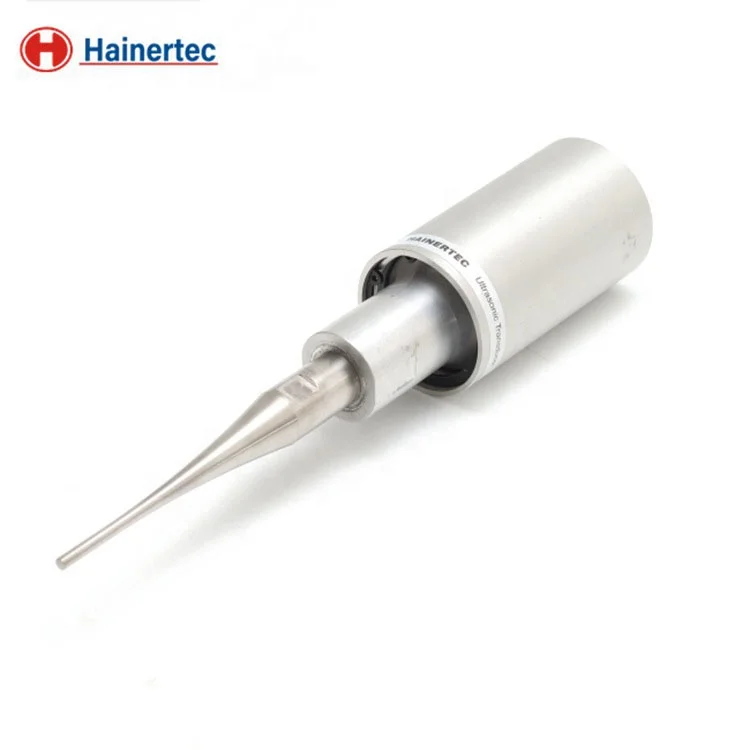

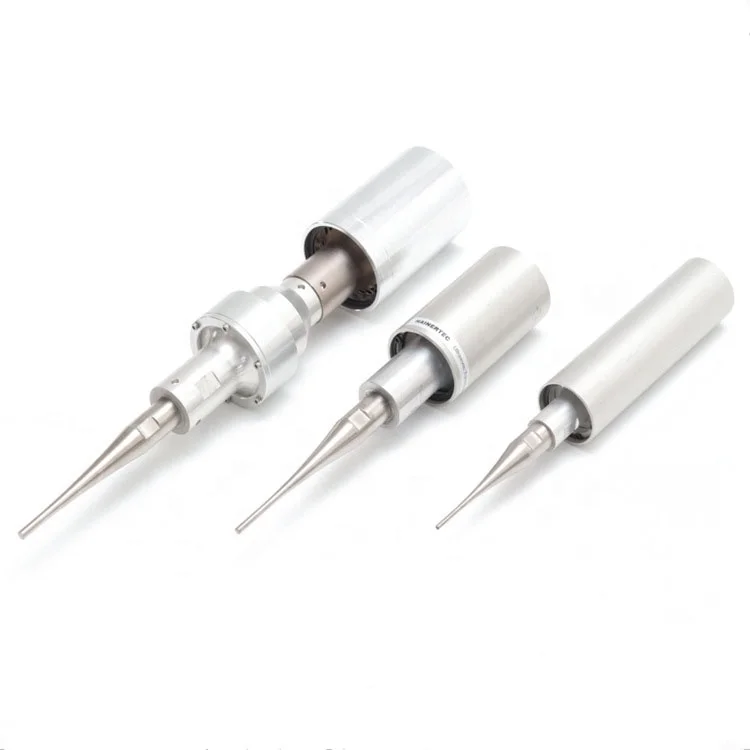

Products Description
    The miniature size of power iltrasonic transducer also could use in insturments and apparatus, for example, precise cleaning of sampling needles, test-tubes, small glasswares, solution degassing, mixing and catalysis, drug guidance, cell-wall disruption, crushing, extraction, homogenization and separation of biological cell drugs, online anti-scaling and catalysis of liquid pipelines, powder screening and suspension of vibrating materials, etc. The industry requires small enough size, low input power and drive voltage. Based on the market demand, our company has developed the transducers for most of the above- mentioned.

    When the high frequency vibration of power ultrasonic acts into water, it will produce different power densities of acoustic cavitation. The value of power density generated by traditional industrial ultrasonic cleaning technology is less than 0.7W/cm². The application of high efficiency ultrasonic cleaning, plant extraction, chemical catalysis, cell disruption, biological treatment, sludge dewatering, oil-water separation, sludge treatment, oil water separation from cuede oil, tailings extraction need the high power density ultrasonic vibration, which the energy-gathering ultraonic technology is used in.

    The vibration energy of energy-gathering ultrasonic transducer is locally concentrated, the models are as follws:
·Technology of multimodal plate ultrasonic transducer: Ultrasonic vibration in multi direction with the power density of 2.0W/cm².
·Technology of multimodal mutil-knot ultrasonic transdcer: Ultrasonic vibration in axial and external dadial direction with the power density of 3W/cm².
·Technology of multimodal hollow ultrasonic transdcuer: Ultrasonic vibration in axial and internal and external radial direction with power density of 5W/cm².
·Ultrasonic processing technology of axial fouusing pipeline: Realizing the energy focusing of cross section inside the pipeline with the power density of 8W/cm².
·Ultrasonic processing technology of axial working face: Realizing the energy focusing in local small area with the max power density of 200W/cm².
Model
Frequency
Capacitance ( nf )
Impedance
Power ( W )
Resistance
HSD-4020-SP
40±0.5
3000±10%
≤40Ω
20
100MΩ
HSD-2050-SP
20±0.5
2700±10%
≤30Ω
50
100MΩ
HSD-20100-SP
20±0.5
3650±10%
≤25Ω
100
100MΩ


HSD-30300-SP
30±0.5
7500±10%
≤20Ω
300
100MΩ


HSD-35200-SP
35±0.5
4500±10%
≤25Ω
200
100MΩ


HSD-40200-SP
40±0.5
4000±10%
≤25Ω
200
100MΩ


HSD-50200-SP
50±0.5
4500±10%
≤25Ω
200
100MΩ


HSD-20350-SP
20±0.5
9500±10%
≤25Ω
350
100MΩ


HSD-20500-SP
20±0.5
13800±10%
≤18Ω
500
100MΩ


HSD-20600-SP
20±0.5
12000±10%
≤22Ω
600
100MΩ


HSD-20800-SP
20±0.5
18000±10%
≤18Ω
800
100MΩ


HSD-301000-SP
30±0.5
9600±10%
≤15Ω
1000
100MΩ


HSD-201000-SP
20±0.4
9000±10%
≤15Ω
1000
100MΩ


Noter: With high power sweep frequency circuit to rea;oze working face vibration.
            We accept design and custom production.
            This is siutble for small capacity and static or low velocity water processing in breakers or test tubes.
Corollary Equipment
Company Profile
    Hainertec (Suzhou) Co.,Ltd. Was founded in 2004, focusing on ultrasonic technology, it is a collection R&D, design manufacture and sales of the technology-based enterprises.

    The company is mainly engaged in the development and manufacture of ultrasonic devices, accessory parts and system equipment. The main products include Piezoelectric Ceramics, Ultrasonic transducers,  Ultrasonic generators and Ultrasonic system equipment. These products are widely used in medical apparatus, biological instruments, precision spraying beauty and health care, biochemical environmental protection, biological extraction, ultrasonic catalysis, industrial screening, jet printer oscillator, ultrasonic cleaning household appliances, military industry and other fields.

    The company has been cooperating with famous enterprises and university at home and abroad, and 60% of our products are exported to more than 60 countries and regions such as Europe, America, Australia, Middle East and southeast Asia.

    The company has passed ISO9001 Quality System Certification. Also, it is a high-tech enterprise but also a postgraduate workstation and industry university research base, having obtained several patent at the same time.
