Беспроводной маршрутизатор wg3926 для использования в помещении с поддержкой сим-карты

Hardware

Main Chipset

MT7620A (600/580MHz)

RAM

DDR2 128MB (MAX DDR2 256MB)

 SPI FLASH

16MB  (MAX 32MB)

Protocol

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,

IEEE 802.3,IEEE 802.3u,IEEE802.11a

RT Power

802.11b   18dBm±2dBm;

802.11g   15dBm±2dBm;

802.11n   15dBm±2dBm;

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

Work Channel

2.4GHz choose :1-13

5GHz choose :149,153,157,161,165

Wireless Rate

Max 1200Mbps(depends on the 11AC mode)

Work Frequency

2.4GHz

Antenna

4* non-removable Omni Directional 5dBi antenna

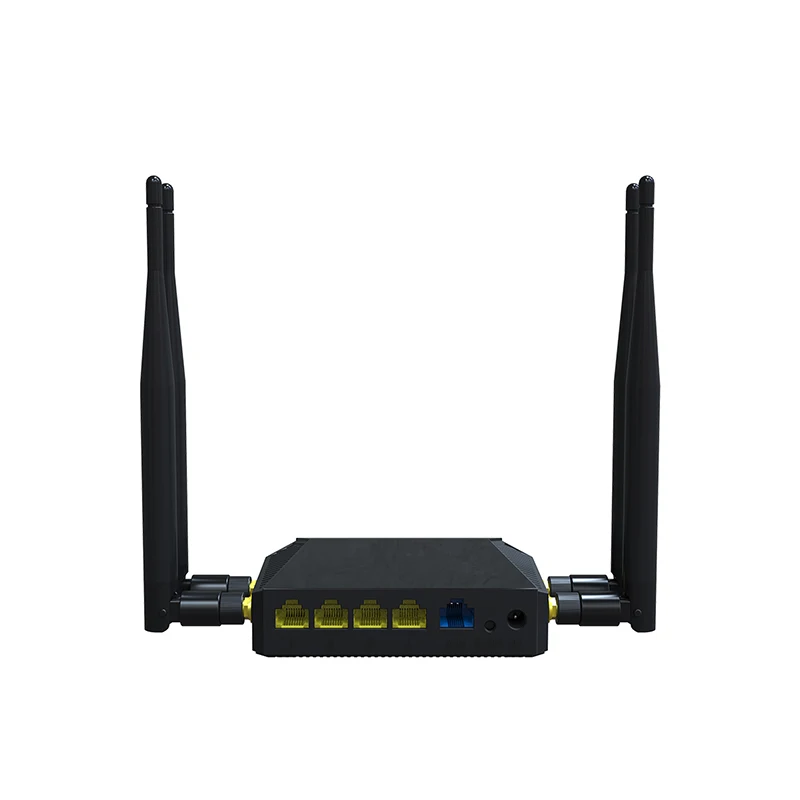

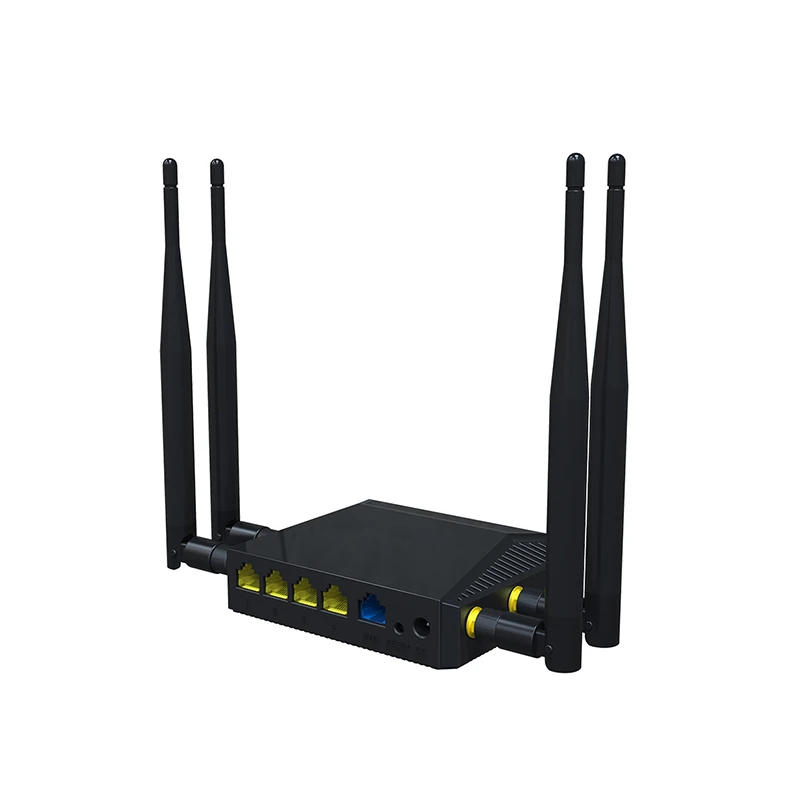

Interface

1* PCI-E slot

1 *SIM card slot

1 *USB 2.0 port

1 *Micro SD card slot

1 *10/100M WAN port(Auto MDI/MDIX)
4 *10/100M LAN port(Auto MDI/MDIX)

LED

Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4

Button

Reset Button

Max Power consumption

< 12W

Dimension(L*W*H)

141*85*26MM

Software

WAN Type

PPPoE,Dynamic IP, Static IP

Work Mode

AP;

Router;

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS

Support

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Band Ctrl

Support

Static Router

Support

System Log

Support

Other Function

Mac clone
NTP Synchronize
Web firmware upgrade

Others

Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Adapter

12V 1A
