4 антенны 4G sim-карта LTE CPE беспроводной маршрутизатор с скоростью Wi-Fi 300
- Категория: Wireless Routers >>>
- Поставщик: Shenzhen,Sunsoont,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.80 $* | 0.31 $* |
| Aug-15-2025 | 0.42 $* | 0.71 $* |
| Jul-15-2025 | 0.77 $* | 0.69 $* |
| Jun-15-2025 | 0.97 $* | 0.55 $* |
| May-15-2025 | 0.5 $* | 0.21 $* |
| Apr-15-2025 | 0.77 $* | 0.67 $* |
| Mar-15-2025 | 0.16 $* | 0.30 $* |
| Feb-15-2025 | 0.8 $* | 0.36 $* |
| Jan-15-2025 | 0.67 $* | 0.39 $* |
Характеристики
Product Description
Product Features:
1, 300Mbps Indoor CPE
2, LTE CAT 4 1T2R 2X2MIMO
3, LTE FDD & TDD,WCDMA band support
4, 1WAN+2LAN+802.11b/g/n
5, Sim card slot: Standard 6 PIN SIM card interface
6, Chipset:MTK7628NN
2, LTE CAT 4 1T2R 2X2MIMO
3, LTE FDD & TDD,WCDMA band support
4, 1WAN+2LAN+802.11b/g/n
5, Sim card slot: Standard 6 PIN SIM card interface
6, Chipset:MTK7628NN
Specification
Technical parameter | ||||
Interface | Network | 4*Lan | ||
SIM | 2FF sim | |||
Button | reset | |||
DC adapter | Input voltage: 12V-1A | |||
Solution | Routing and WiFi chipset supplier | MTK | ||
Base | Routing and WiFi chipset model | MT7628N | ||
Routing and WiFi processor info | IEEE 80 2.11 /b/g/n | |||
DDR/SPI | 64MBytes/16MBytes | |||
RF | Main antenna | Internal antenna | ||
Receive diversity antenna | Internal antenna | |||
WiFi band | 2400MHz-2483.5MHz | |||
MIMO for WiFi | 5dbi X 2 | |||
Max. transmitter power for WiFi | 802.11b 24dBm±2dBm; 802.11g 16dBm±2dBm; 802.11n 15dBm±2dBm; | |||
Software | Language | Chinese&English | ||
APN Setting | Supported | |||
Device Settings | Supported | |||
WIFI Settings | Supported | |||
Routing Settings | Supported | |||
Firewall Settings | Supported | |||
LED | Supported | |||
Technical standard | WiFi standard | 802.11b/g/n(2*2 11n features) | ||
WiFi security | WPA/WPA2 | |||
System | Linux | |||
Browser | IE (8.0 and later) | |||
Firefox (3.0 and later) | ||||
Safari (4.0 and later) | ||||
Opera (10.0 and later) | ||||
Chrome (10.0 and later) | ||||
Environment | Operating temperature | 0 to 55° C | ||
Storage temperature | -40 to 70° C | |||
Humidity | 5% to 95% | |||
4G module information | ||||
ID | Interface | LCC | ||
SIZE | 29.0mm × 32.0mm × 2.4mm | |||
Solution | Wireless chipset supplier | QUALCOMM | ||
Base | Wireless chipset model | MDM9607 | ||
Wireless processor info | CAT4 | |||
USIM/SIM slot | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card | |||
RF | GSM band | Band 3/8 | ||
TDS band | Band 34/39 | |||
CDMA | BC0 | |||
WCDMA band | Band 1/8 | |||
LTE TDD band | Band B38/B39/B40/B41 | |||
LTE FDD band | Band B1/B3/B5/B7/B8 /B20 | |||
MIMO for wireless | 2 × 2 DL SU-MIMO for LTE and HSPA | |||
Max. transmitter power for wireless | LTE: +23dBm WCDMA: +24dBm EVDO:+24dBm TD -SCDMA 2GHz ：+24dBm GSM 900MHz: +33dBm GSM 1800MHz/1900MHz: +30dBm EDGE 900MHz: +27dBm EDGE 1800MHz/1900MHz: +26dBm | |||
Technical standard | GSM/EDGE/EVDO/TD-SCDMA/WCDMA/LTE | GPRS:UL 85.6Kbps DL 107Kbps EDGE： UL 236.8kbps DL 296Kbps TD-HSPA： UL 2.2Mbps；DL 2.8Mbps WCDMA: UL 384Kbps DL 384Kbps EVDO:UL 1.8Mbps DL 3.1Mbps TD LTE ： UL 35Mbps；DL 130Mbps FDD LTE ：UL 50Mbps；DL150Mbps | ||
Environment | Operating temperature | -20 to 60° C | ||
Storage temperature | -40 to 85° C | |||
Humidity | 5% to 95% | |||

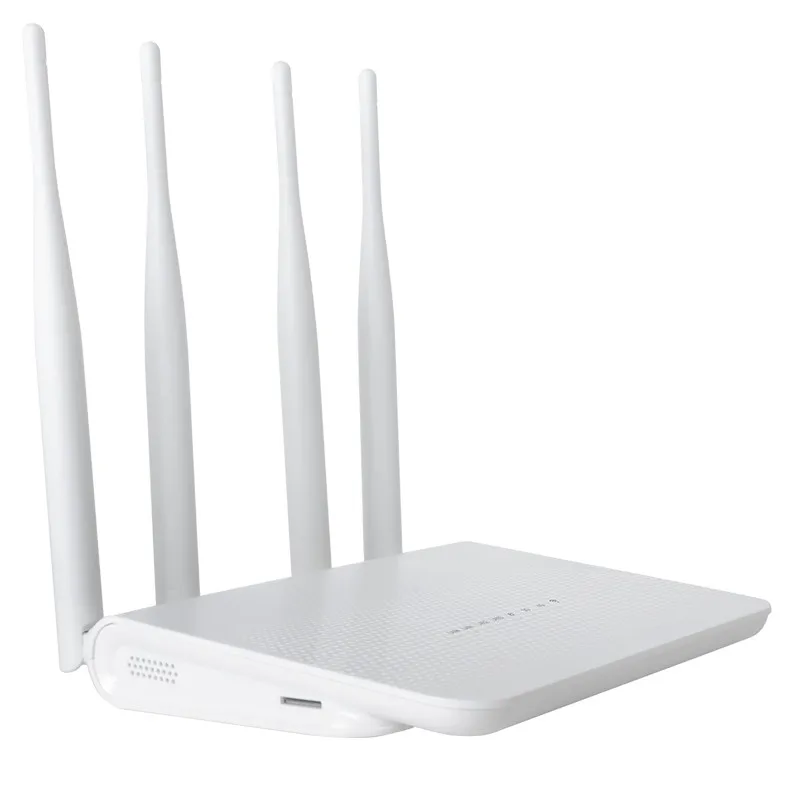

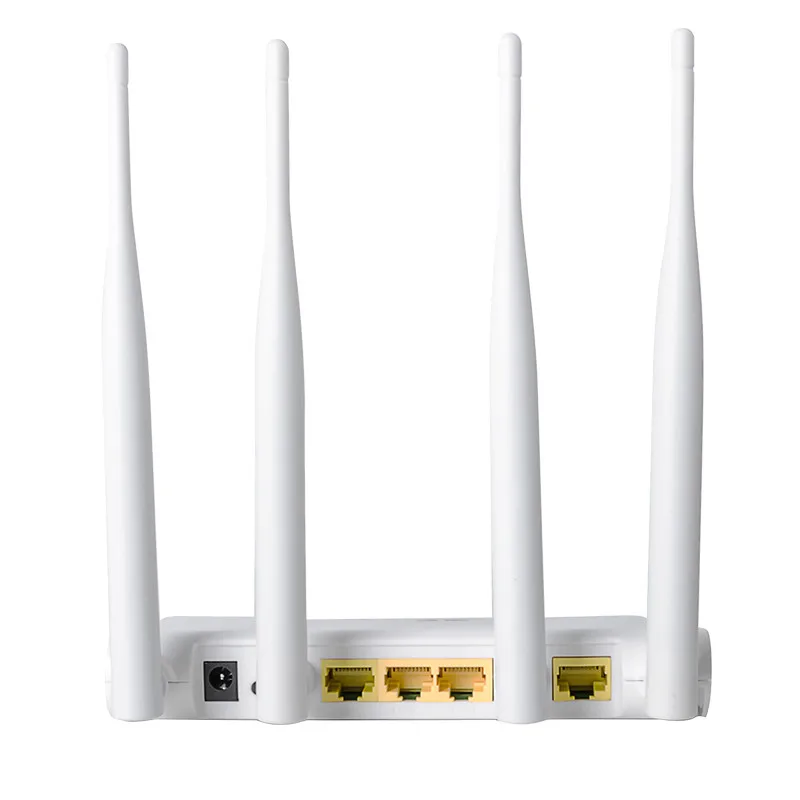

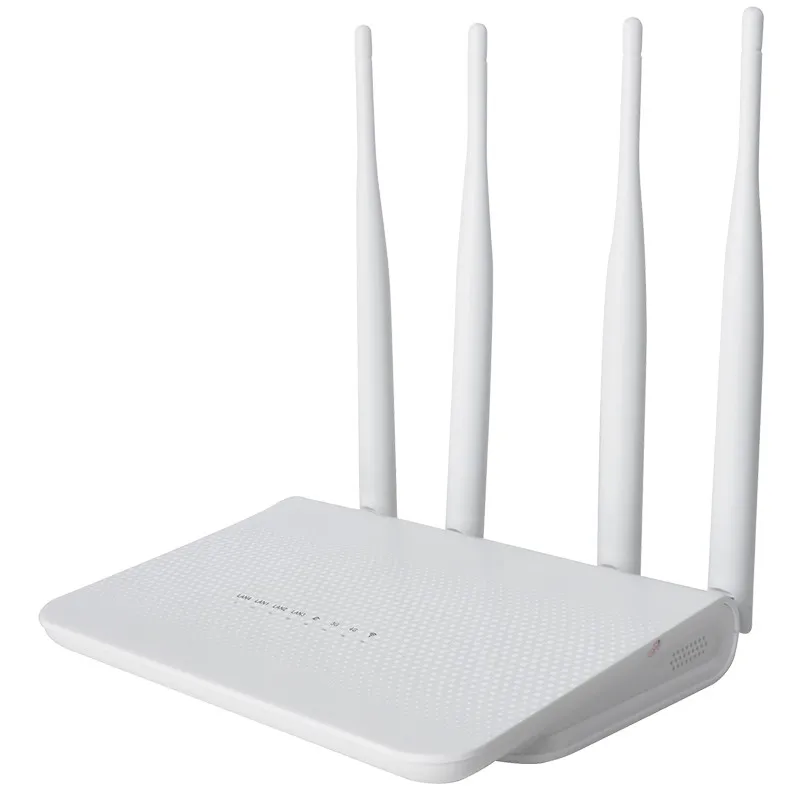

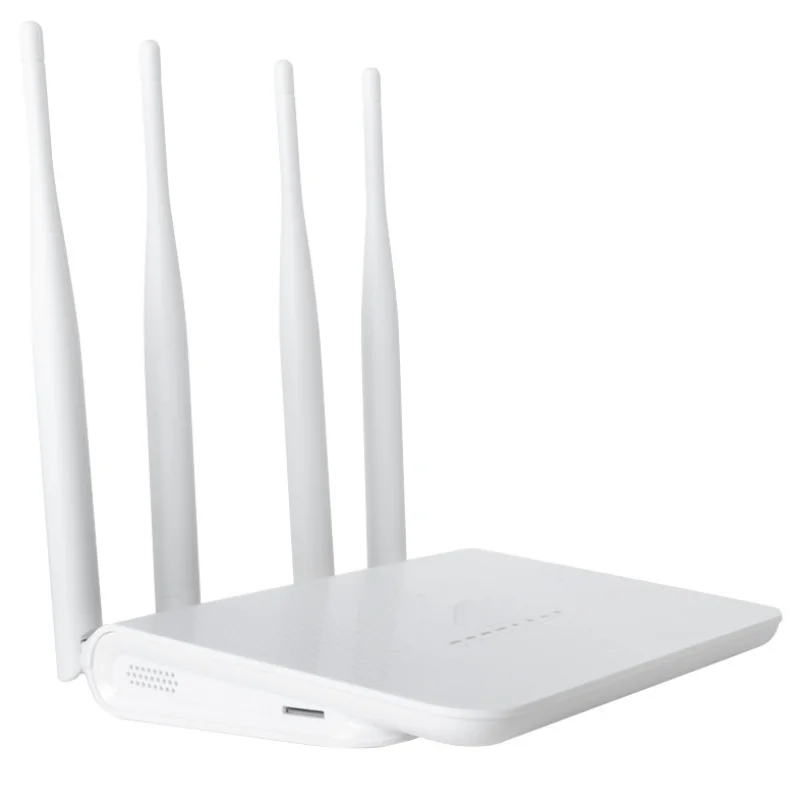

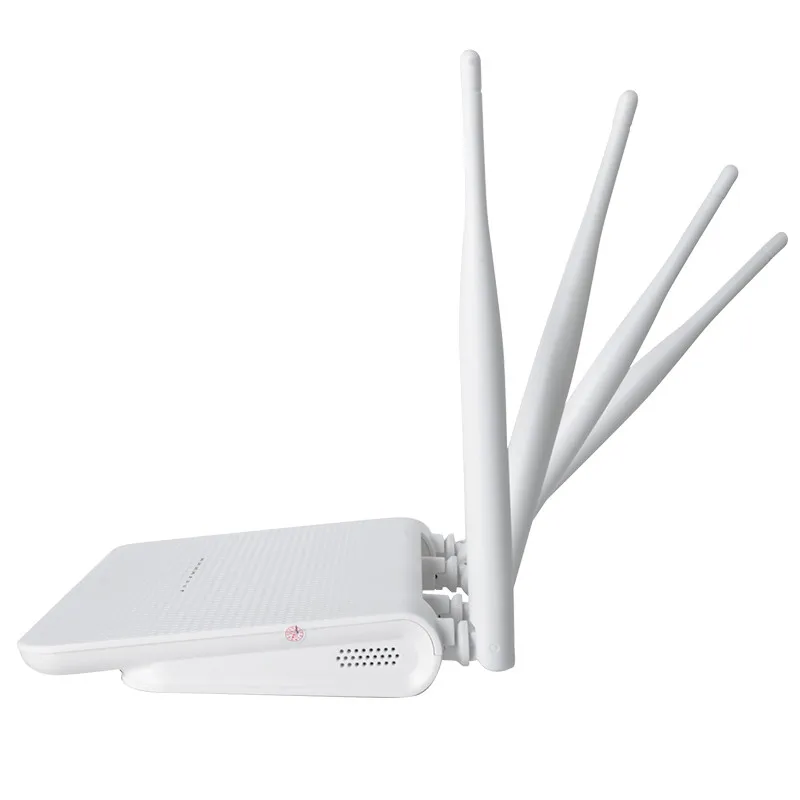

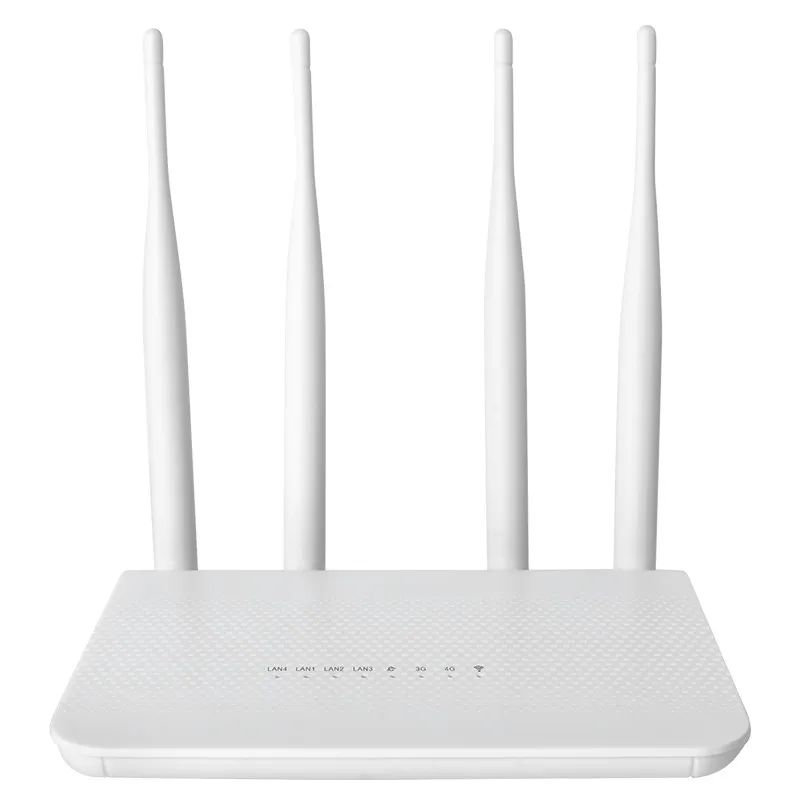

Details Images
Packing & Delivery
Company Profile
Shenzhen Sunsoont Technology Co, . Ltd. was established in Shenzhen, China, is a professional optical fiber network communications equipment production, R&D and sales in one of the manufacturers, our main products include POE switches, industrial Ethernet switches, fiber switches, fiber media converter, wireless network devices and other communication products.
As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and a sufficient inventory, to ensure the product reliability and rapid market response.
The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international demand, and providing cost-effective products and services!
As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and a sufficient inventory, to ensure the product reliability and rapid market response.
The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international demand, and providing cost-effective products and services!
