360 градусов объектив подземный колодец камера 300 м глубокий воды сканер скважин инспекционное
- Категория: Другие инструменты для испытаний >>>
- Поставщик: Shenyang,ABT,Drilling,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.97 $* | 0.31 $* |
| Aug-20-2025 | 0.75 $* | 0.47 $* |
| Jul-20-2025 | 0.76 $* | 0.0 $* |
| Jun-20-2025 | 0.9 $* | 0.96 $* |
| May-20-2025 | 0.5 $* | 0.75 $* |
| Apr-20-2025 | 0.93 $* | 0.83 $* |
| Mar-20-2025 | 0.99 $* | 0.27 $* |
| Feb-20-2025 | 0.43 $* | 0.84 $* |
| Jan-20-2025 | 0.45 $* | 0.85 $* |
Характеристики
Product Description

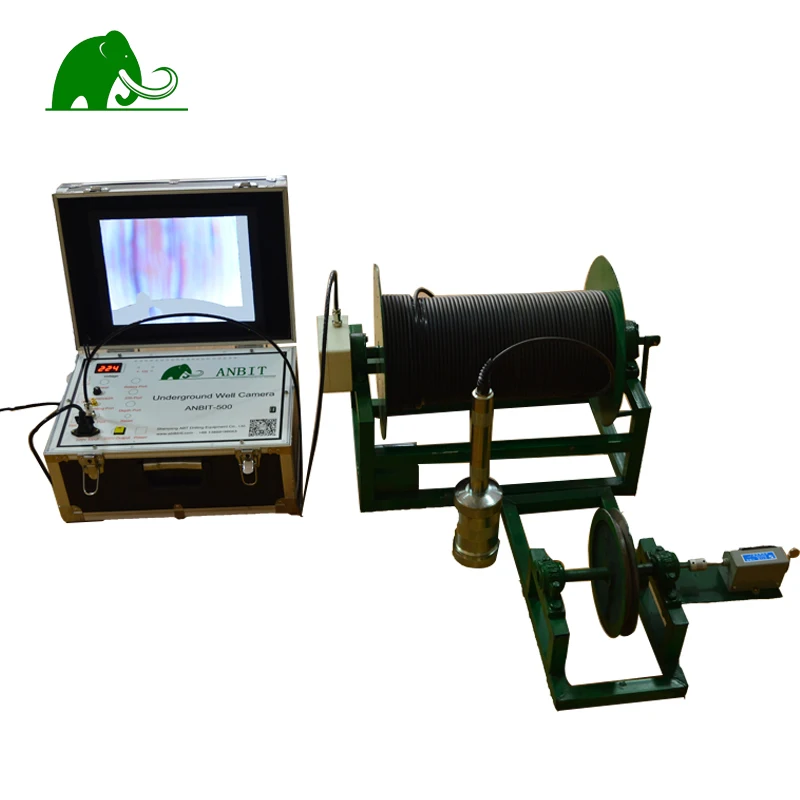

360 degree Lens Underground Well Camera 300m Deep Well Water Scanner Borehole Inspection Equipment
This camera for borehole inspection is a great combination of technology. It is designed to be used in water wells, pipes and other objects. Ideal for monitoring the conditions of welding, fractures, slots conditions and more. It is equipped with a 360° camera to inspect both vertical and horizontally.
This system has a compact controller with an 14” high definition screen, allowing real-time inspection and the capture of images and videos. All files can be stored in a USB(optional).
The interface is very intuitive and simple to use and the system works with steel reinforced cable in lengths from 120-1000m.
Serial number | name | model | Quantity | Remarks |

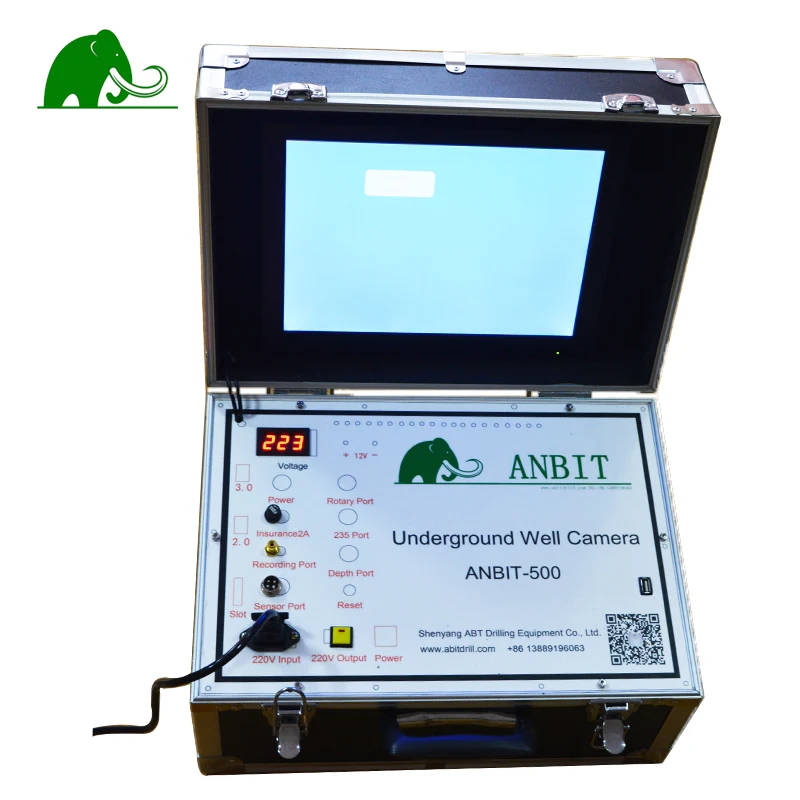

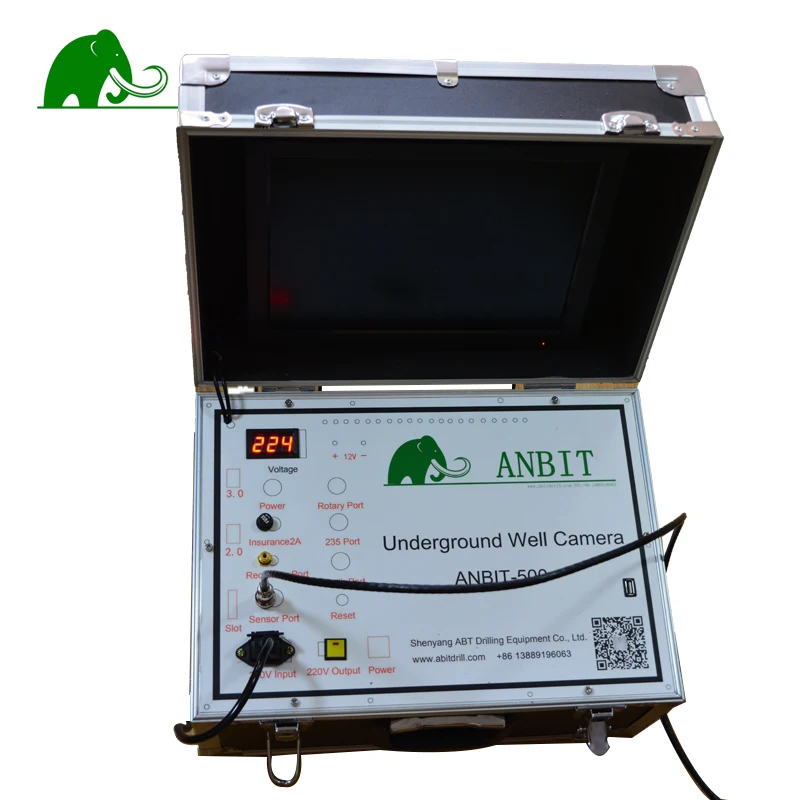

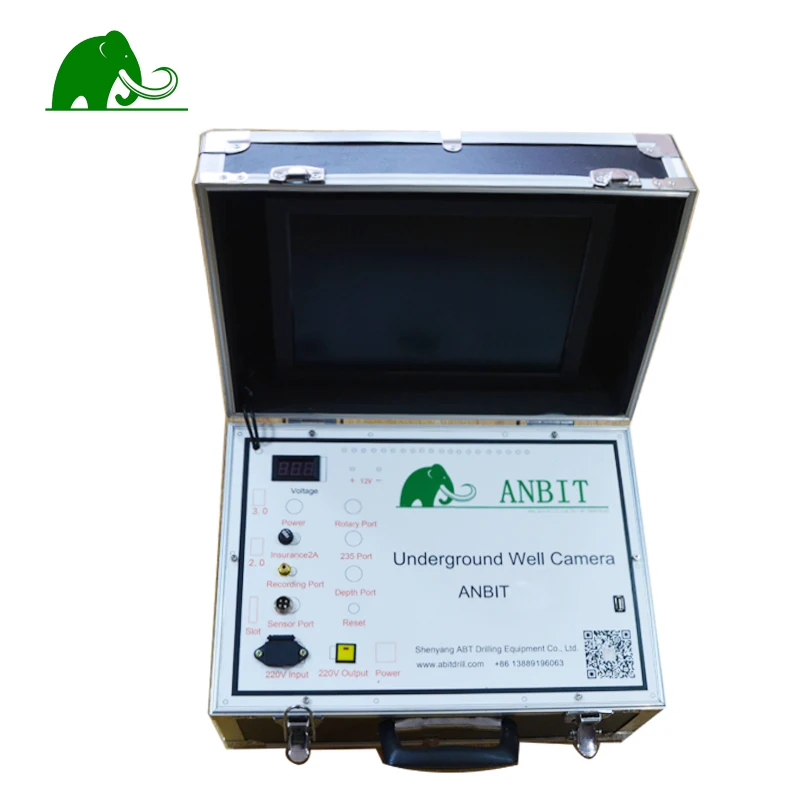

1 | Main control box | ANBIT-300 | 1 set | 220V |
2 | Winder | Electric two-way movement | set |
|
3 | Logging cable |
| 300 meters |
|
4 | Downhole pulley | With depth sensor | 1 |
|
5 | Probe | 360 degrees | 1 |
|
6 | mouse | wired | 1 |
|
7 | 6-port video cable |
| One |
|
8 | 5-port depth sensing line |
| 1 |
|
9 | 2-port power cable |
| 2 pieces |
|
10 | Instruction manual |
| 1 | Optional video recording system |
11 | Configuring List |
| 1 |
Specifications
Line Length: 300 meters
Dimension: 1000mm*550mm*600mm
Working voltage: 380V/220V
Screen: 8 inches
Video definition: 1024*768p
Camera lens: Sony CCD 0.00lXL
Lights: 9 LED lights
Glass cover pressure: 35Mpa
Visibility underwater: 4 meters
Lens diameter: 50mm/80mm
Working temperature: 0℃~70℃
Angle: 360°
Company Information
ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.
