Характеристики


High Quality  Metal  Heat Treatment Industrial Furnace Tempering Chamber Type Resistance Oven



Product Description


 Main application:


This type oven a cycle working type furnace which is used for general metal heating treatment, harening and tempering, drying.




Structural features:

1. Using high temperature resistant, corrosion resistant paint processing appearance.

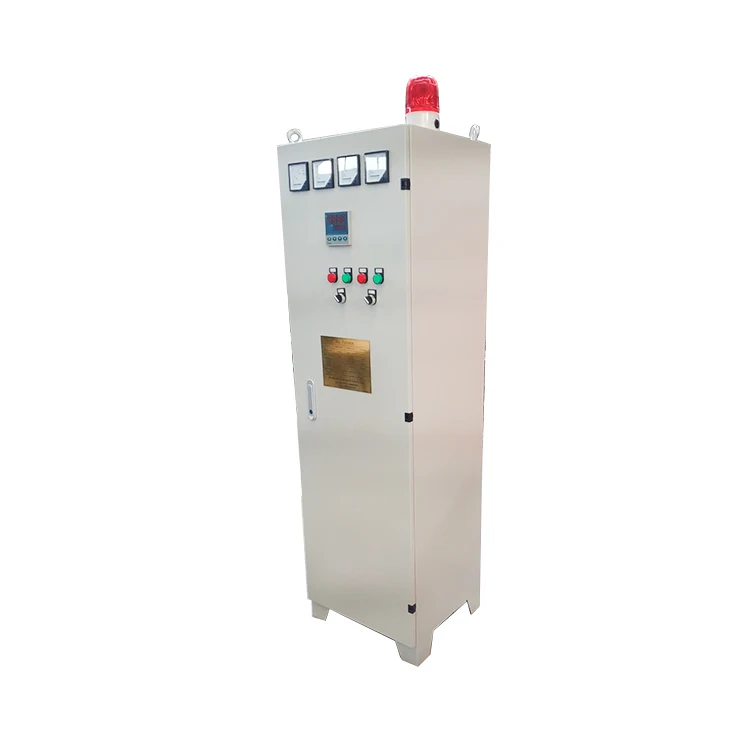

2. The console adopts intelligent PID digital display control instrument, good stability, high precision, equipped with ammeter, novel structure.
3. Oven door adopts with thickening, reinforcement to prevent deformation.

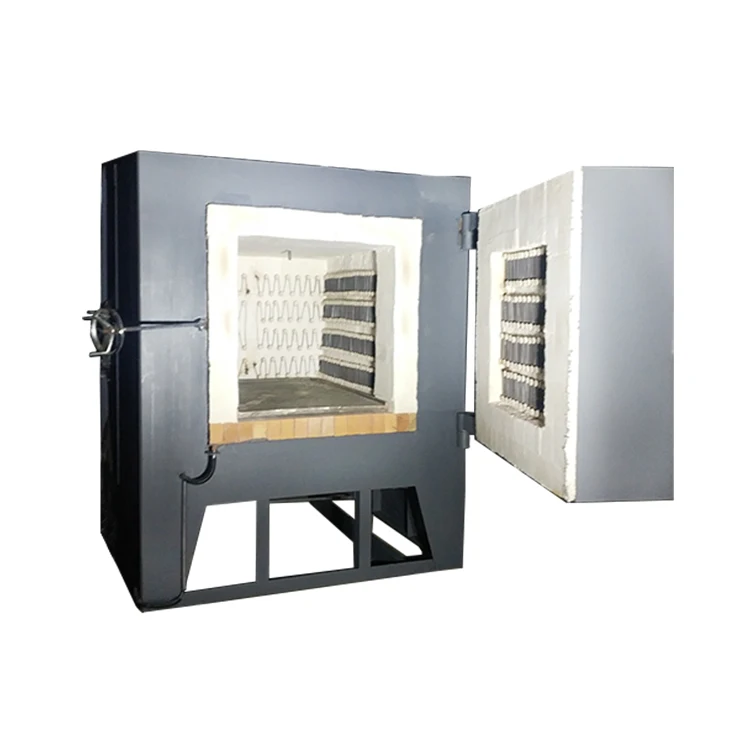

4. Lining is made of high quality refractory brick, heat preservation cotton lining forming, heat preservation effect is good, the heating element in it.
5. Furnace temperature detection
6. With overload protection and short circuit protection
7. Wiring is simple, easy to operate


High Quality  Metal  Heat Treatment Industrial Furnace Tempering Chamber Type Resistance Oven




Technical Parameter














































































Effective size:



500 × 450 × 350mm



Rated temperature:



 1100 ° C



Rated power:



30KW



Working voltage:



 380V



Number of temperature control zones:



 1



Heater:



 left/right/bottom



Furnace temperature uniformity:



 ±15 °C



Empty furnace loss:



 ≤15KW



Heating element connection:



 star three-phase three-wire system



Heating element:



high temperature electric furnace wire



Furnace structure:



 mullite, first grade high alumina brick refractory layer, fiber insulation layer



Refractory layer thickness:



 115mm



Insulation thickness:



 230mm



Bottom structure form:



 first grade high alumina refractory brick



Shell temperature at maximum temperature:



 ≤30°C (winter), ≤50°C (summer)



Furnace door type:



 Open from the left



Dimensions:



 1480 × 1400 × 1759mm



Furnace weight:



 1300Kg






High Quality  Metal  Heat Treatment Industrial Furnace Tempering Chamber Type Resistance Oven


High Quality  Metal  Heat Treatment Industrial Furnace Tempering Chamber Type Resistance Oven


High Quality  Metal  Heat Treatment Industrial Furnace Tempering Chamber Type Resistance Oven


High Quality  Metal  Heat Treatment Industrial Furnace Tempering Chamber Type Resistance Oven





Company Information


Our company has more than 10 years experience of research and development in heat treatment equipment.and more than 5 years export experience.We have the patents of bell type ball annealing furnace, low temperature pit furnace, large pit furnace, ring pit type heat treatment furnace, car type resistance annealing furnace, energy saving carbon fiber baking furnace, aluminum alloy cable heat treatment furnace, recycling efficient quenching and tempering equipment, the atmosphere protective cover movable station furnace, variable capacitance of car type resistance furnace. At the same time, having undertaken the design and manufacture of heat treatment equipment nearly ten thousand sets, our products exported to Germany, Thailand, North Korea, Pakistan, Vietnam, Malaysia, Indonesia, Singapore, Nigeria, more than 10 countries, and have customers all over the world. We provide customers with a wide range of advisory services. According to product material, size, quality standards, and yield, the corresponding heat treatment process and furnace is made.


High Quality  Metal  Heat Treatment Industrial Furnace Tempering Chamber Type Resistance Oven





FAQ





1. Are you a manufacturer or trade company ?
We are 100% manufacturer with more than 10 years experiences in production about all kinds of furnaces. All the proc edures will be finished by us, that is good to control the quality and production process.





2. How to get exact price from you ?
Our price is based on furnace working or max temperature and furnace working zone(chamber) sizes(inner Length*Width*Height), structure, chamber material, quantity you need. Each request above is necessary.





3. How to ship the goods ?
A If you have own forwarder in China, we can just provide you EXW price.
B:If you need us to make shipment for you, we can provide you FOB, CFR, CIF etc.In general, shipping by sea is the best choice due to the furnace is big and heavy.





4. Why are you choose us ?
We have a professional R&D team, and rich production experience of 10 years point service,customer brand, multiple selections, and customers all over the muddle East, Europe and America, Southeast Asia and other regions.We provide technical support forever
