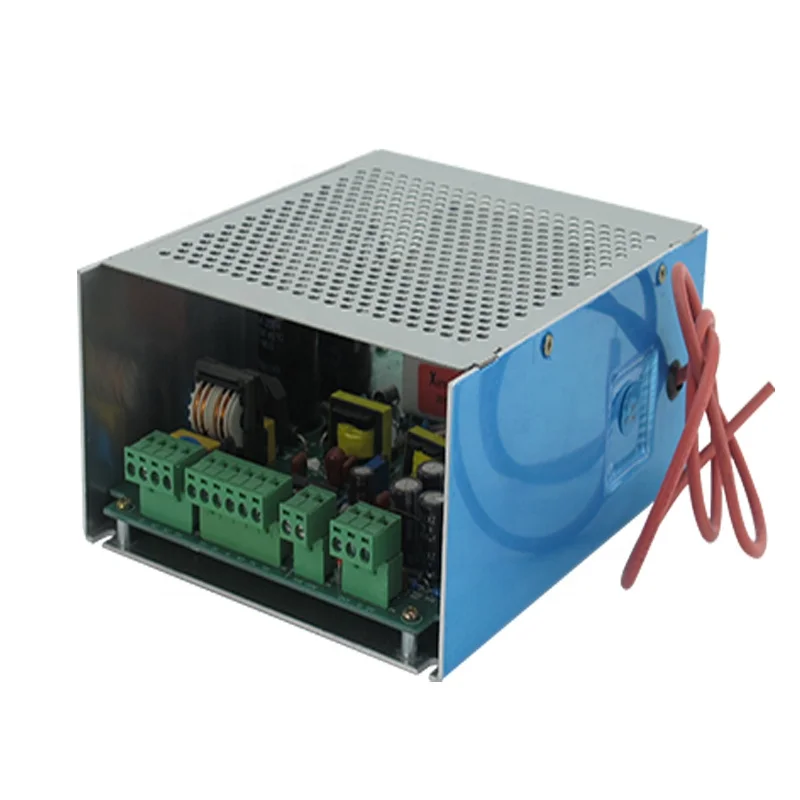

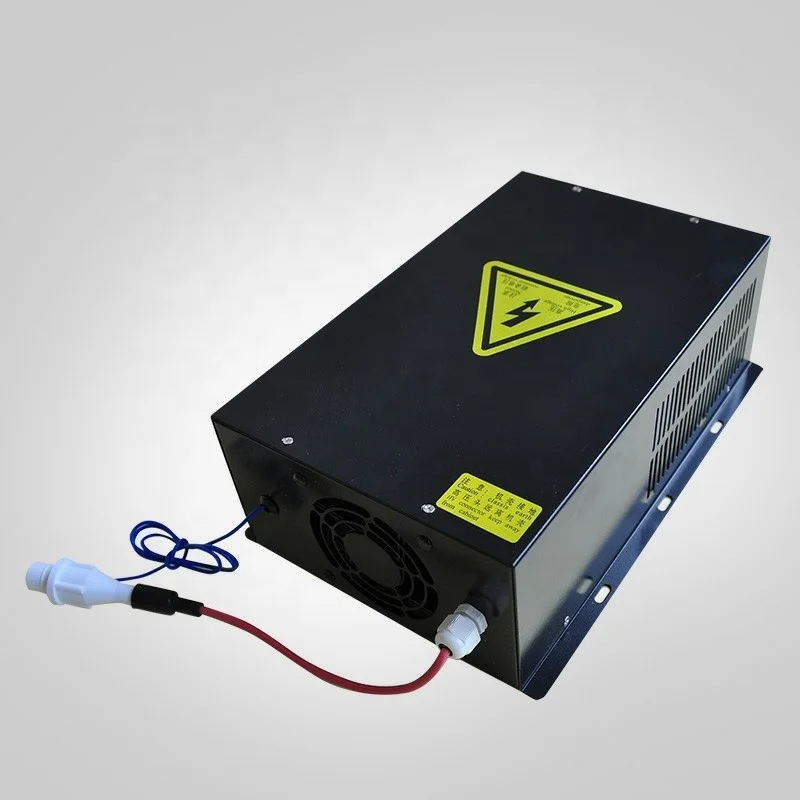

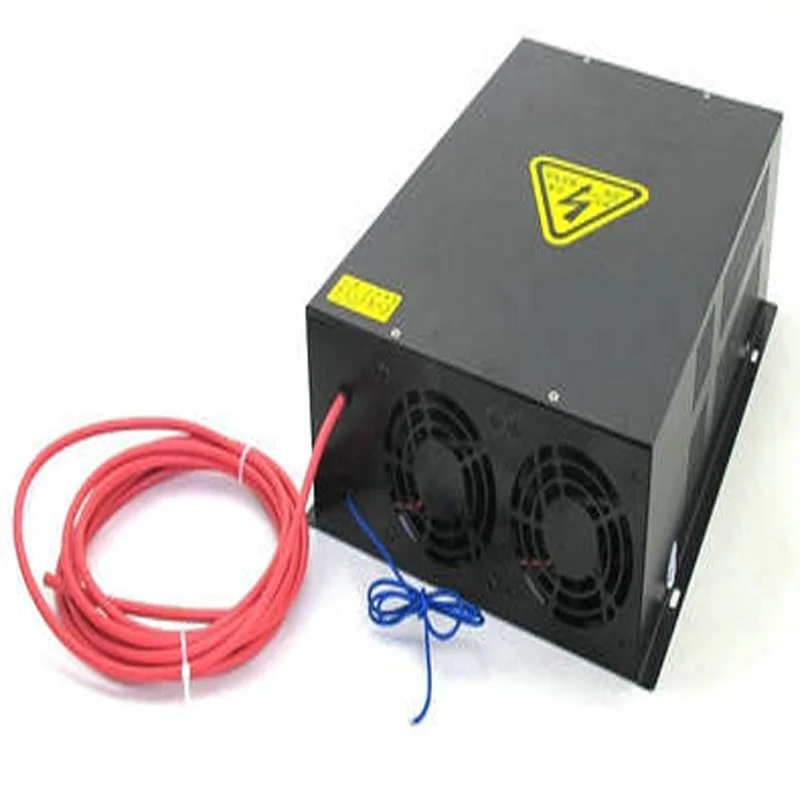

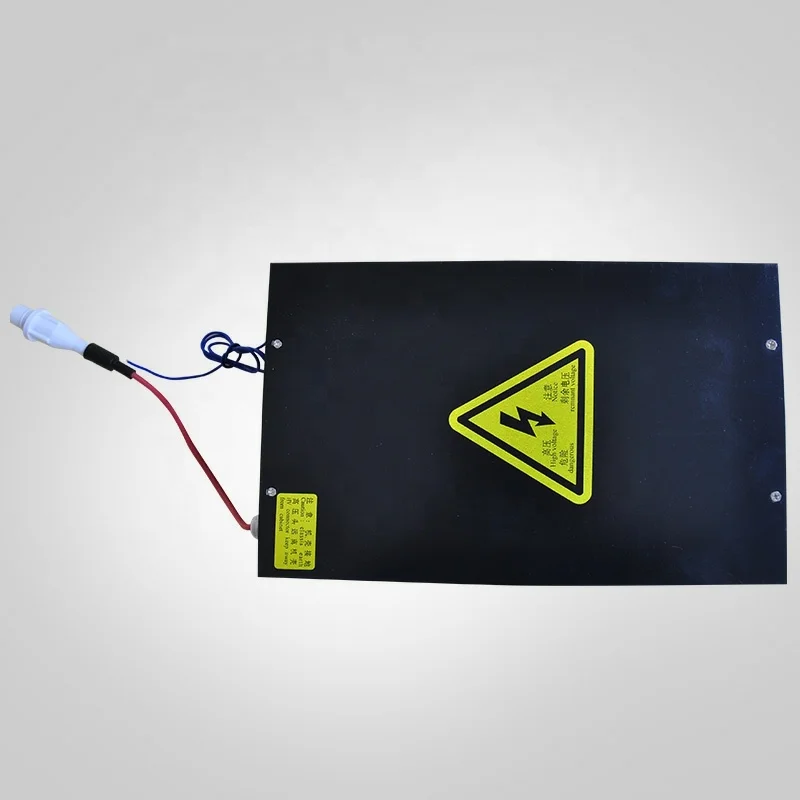

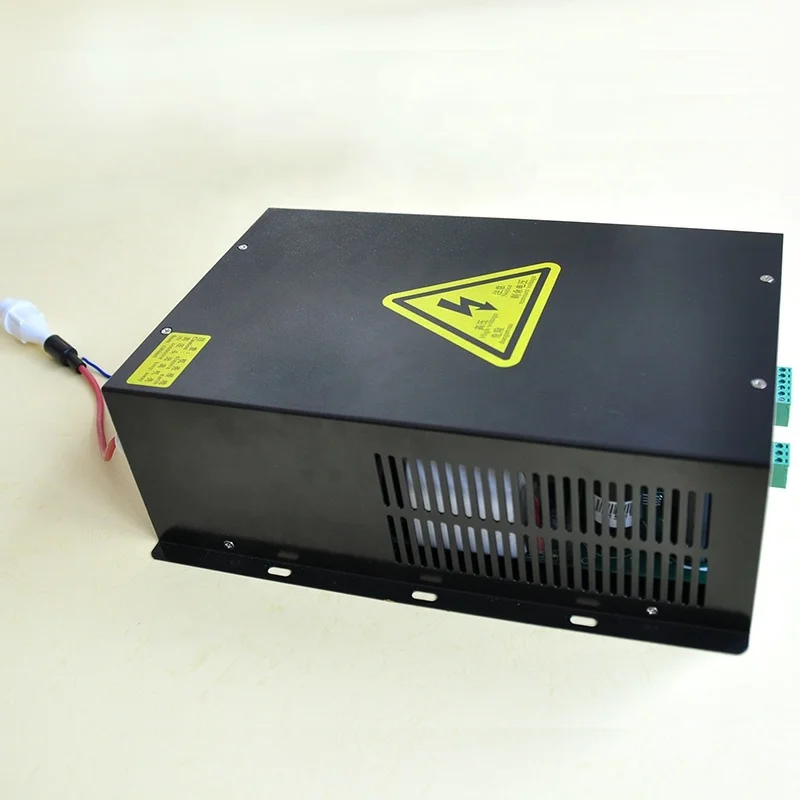

JOYLASER хорошее качество 60 Вт 80 100 120 150 300 400 CO2 лазерный блок питания для лазерной

Описание и отзывы

Трекер стоимости

Характеристики

Features:

1, Adopt the modularization design and it can automatically detect the laser power signal and water protection.

2,Adopt the zero-current semi-bridge soft switch circuit to ensure high efficiency and fast response.

3,The port control is simple and it’s suitable for high/low level signal.The TTL level can control the start and stop of the laser and the abnormal protection switch is added to check whether the external water and air is expedite.

4,It can be adjusted the laser power though the 0 to 5V analog signal,but also to input PWM signal to control the laser power.

5,The power supply has the function of open circuit protection. In the case of good grounding, the power supply can work in the open state for  a short time to avoid the damage caused by the burst of the laser tube.

6,Each power supply must be tested in 60 ℃ in a full load condition and switched 500 times in 7 second.



Technical Parameters:

Model		Z50 (50W)	Z60 (60W)	Z80 (80W)	Z100 (100W)	Z120 (120W)	Z150 (150W)
Input	Input  Voltage	AC110V/220V
	AC frequency	47-440HZ
Output	Max. Output Voltage	22KV	24KV	26KV	28KV	30KV	34KV
	Max.Output Current	22mA	25mA	28mA	30mA	35mA	38mA
Efficiency	≥91%
Protection	Overcurrent protection	130% * Max.current
	Open circuit protection	Yes(in a short time)
Electric Level Comtrol Area	High level	≥3V
	Low level	≤0.7V
Response Speed	input-output,output-cover:AC1500V  10mA  60s;the output cathode is connected to the cover.
Temperature	20-85%RH(no dew point)
Cooling	≥50mΩ (DC500V)
Leakage current to the ground	Amplitude 0.5mm,frequency 10-55HZ,3 dimesion 2 hours
Teste time in 60 ℃in a full load condition	500 times
Dimension	L*W*H(mm)	171*161*91	197*161*91	230*161*91	230*161*91	305*161*91	305*161*91
N.Weight	Kg	1.5	2.1	2.8	2.8	3.6	3.6
Colour	Colour	black	black	black	black	black	black
