Прямая продажа с завода в Гуанчжоу дизельный генератор CDC300KVA 300 кВА
- Категория: Diesel Generators >>>
- Поставщик: Guangzhou,Jiuan,Mechanical,And,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.28 $* | 0.18 $* |
| Aug-19-2025 | 0.98 $* | 0.78 $* |
| Jul-19-2025 | 0.46 $* | 0.12 $* |
| Jun-19-2025 | 0.2 $* | 0.64 $* |
| May-19-2025 | 0.7 $* | 0.78 $* |
| Apr-19-2025 | 0.43 $* | 0.51 $* |
| Mar-19-2025 | 0.43 $* | 0.67 $* |
| Feb-19-2025 | 0.54 $* | 0.31 $* |
| Jan-19-2025 | 0.29 $* | 0.14 $* |
Характеристики
CDC300KVA Guangzhou Factory direct sale diesel generator 300KVA generator price Guangzhou factory

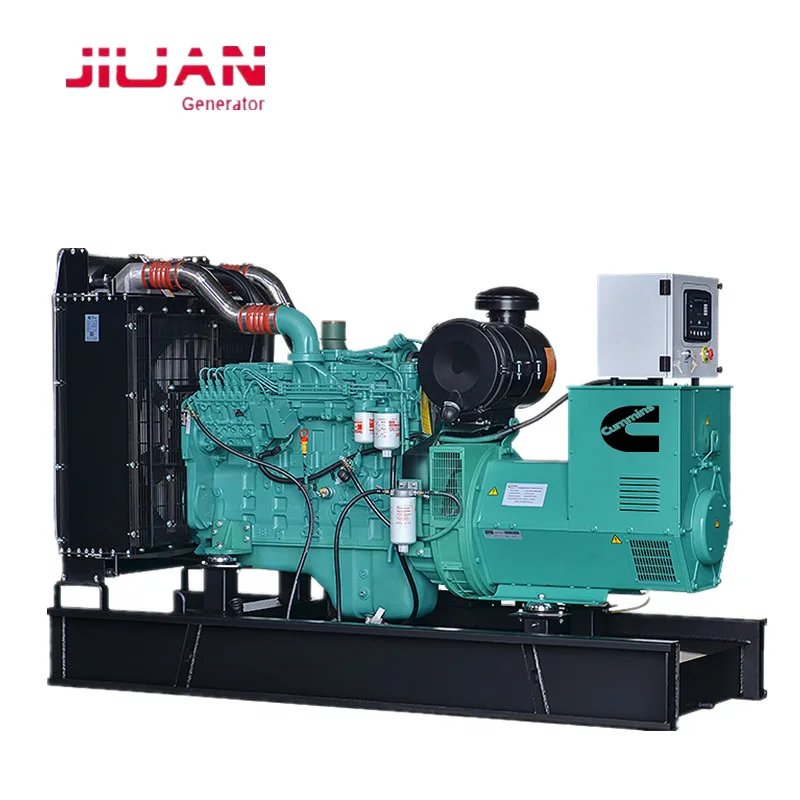

Cummins Diesel Generating Set - Model CD-C240KW/300KVA
MODEL | CD-C240KW/300kva |
Powered by Cummins Engine | |
Prime Power (50HZ) | 240KW/300KVA |
Standby Power (50HZ) | 250kw/315KVA |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | CCEC Cummins NTA855-G1B 4-Cycle |
Cylinders | 6 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 140X 152 |
Compression Ratio | 14.0:1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 76 |
Engine Displacement (L) | 14 |
Inspiration (L) | Turbocharged Intercooler |
Lube Volume (L) | 38.6 |
Coolant Volume (L) | 62 |
Noise (Db) | ≤ 80 |
Alternator Model | Newage Stamford Copy UCI444D or Leadtech LTG314EA |
Alternator Power | 240KW/300KVA Brushles with AVR |
Voltage | 380/220V,400/230V,415/240V,220/127V |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 3380 |
Dimensions (L x W x H) mm | 3400*1500*1900 (S) |
Controller | Smartgen 6110 or Deepsea 6020 |
Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS |
Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) |
Other Generator Mode
JIUAN Other Models Generator:
15KVA Diesel Generator CDY15KVA
30KVA Diesel Generator CDY30KVA
60KVA Diesel Generator CDC60KVA
100KVA Diesel Generator CDC100KVA
150KVA Diesel Generator CDC150KVA
200KVA Diesel Generator CDC200KVA
250KVA Diesel Generator CDC250KVA
300KVA Diesel Generator CDC300KVA
500KVA Diesel Generator CDC500KVA
1000KVA Diesel Generator CDC1000KVA
Professional OEM diesel generator factory in Guangzhou
*Diesel Generator open type or silent type (soundproof type)
*Generator Diesel Engine: Cummins,UK Perkin,Deutz,Mitsubishi,DooSan,WeiChai, Yangdong, Kubota, etc.
*Generator with alternator: Stamford, Leroy Somer,Marathon, MECC,etc.
*Diesel Generator Rated output: 5kVA - 2000kVA
*Rated frequency 50/60 Hz
*Rated voltage 230/400, 220/380, according to customers
*Power factor: 0.8(lag)
*Super Silent type Noise level at 7m ≤ 65DB
*Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
*Starting system: Electric start 12V/24V
*Protection System: High water temperature protection, Engine oil alarm, Over load Protection
*Overfrequency protection, Emergency stop
*Control System: Digital Control Panel; Meter Panel
JIUAN Diesel Generator Set Advantage
*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel
*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)
All ratings are at sea level!!!
After-sales Service
*1 year or 1800 running hours subject to the earlier one.
Our Diesel Generator Set Production Range is as follows
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkin (UK) 8kVA - 2000kVA
4. 1SUZU (Japanese) 20kVA - 40kVA
5. Mitsubishi (China) 750kVA - 2200kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. SDEC Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
11.DooSan Engine 60KVA-800KVA
12.Baudouin Engine 500KVA-2500KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
Terms of Payment
T/T ,Western Union,Cash
