Carrier tape forming machine for SMD packaging
US $8000-$8500

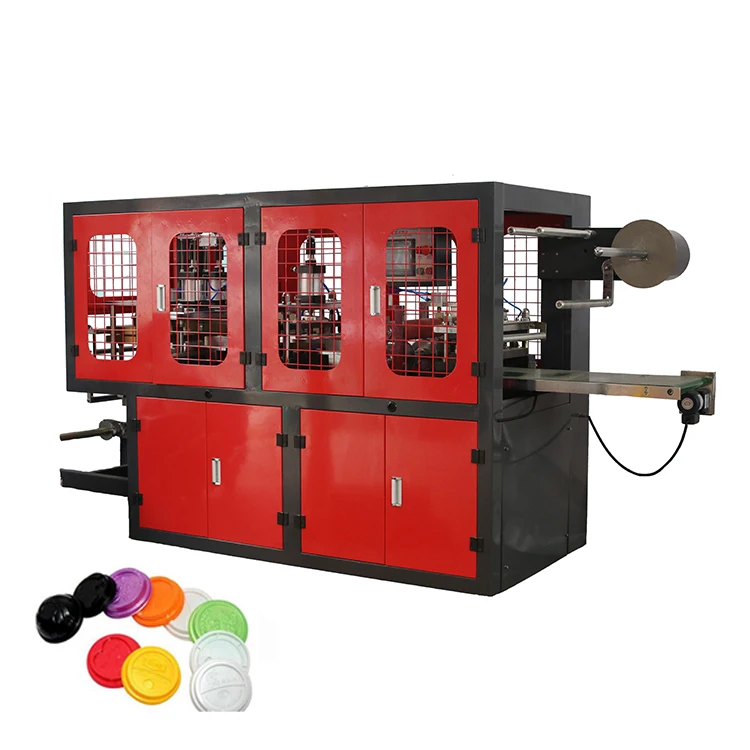

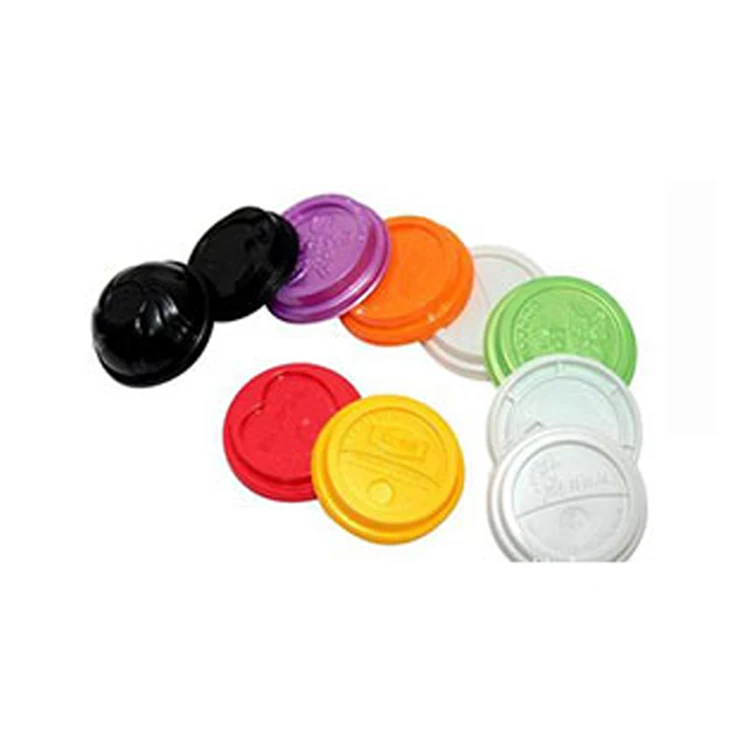

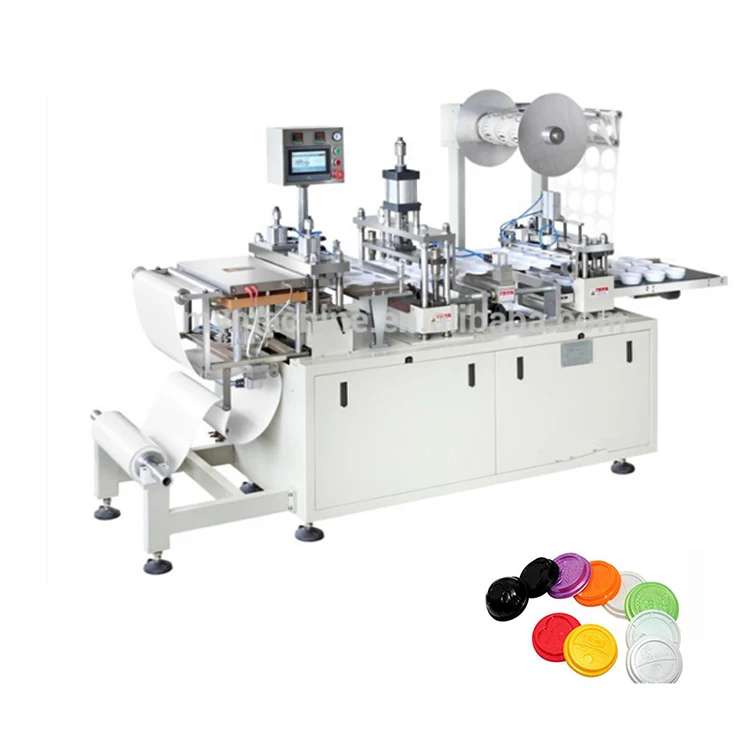

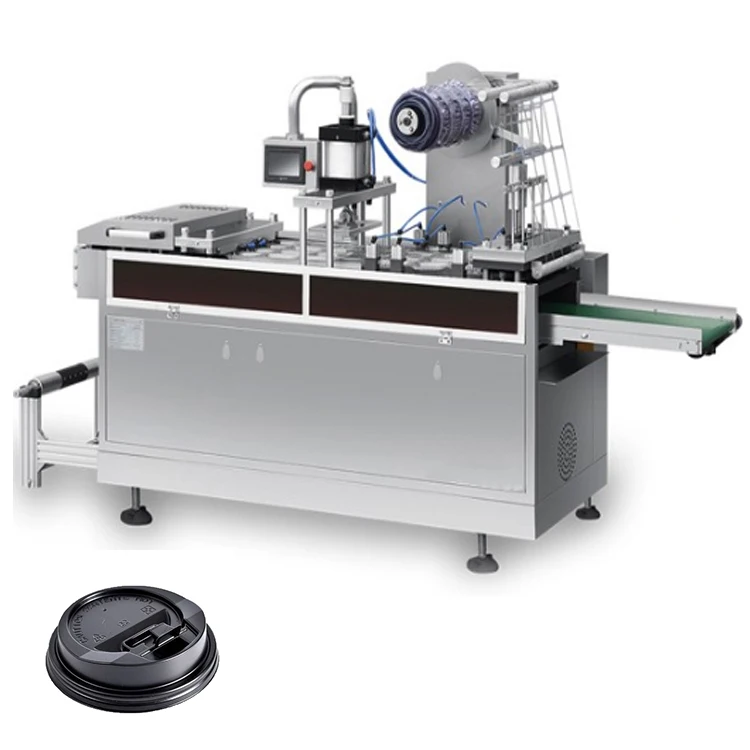

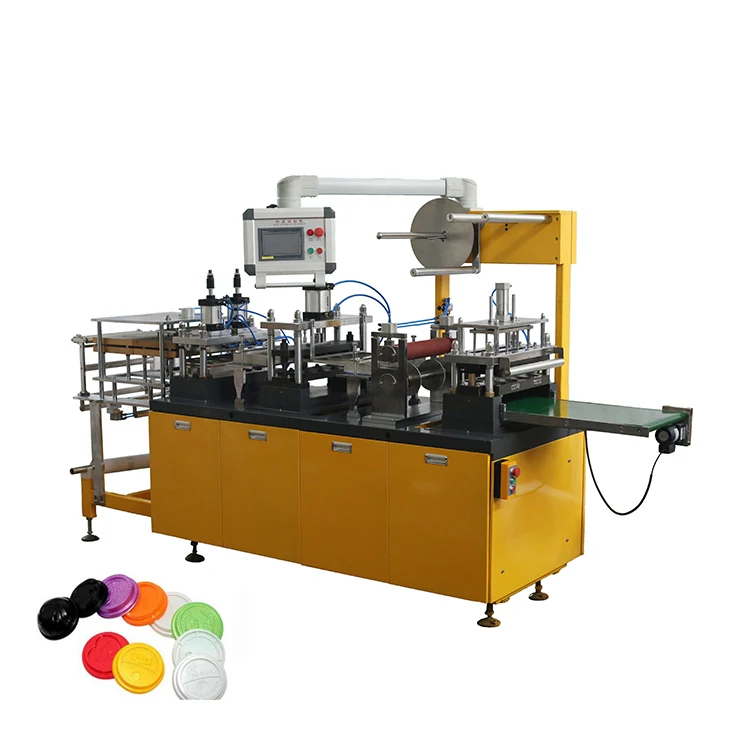

Термоформовочная Машина для пластиковых крышек полностью автоматическая формовочная машина
- Категория: Оборудование для производства пластиковых изделий >>>
- Поставщик: Ruian,Mingyuan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.99 $* | 0.82 $* |
| Aug-16-2025 | 0.21 $* | 0.54 $* |
| Jul-16-2025 | 0.77 $* | 0.52 $* |
| Jun-16-2025 | 0.50 $* | 0.6 $* |
| May-16-2025 | 0.53 $* | 0.17 $* |
| Apr-16-2025 | 0.44 $* | 0.72 $* |
| Mar-16-2025 | 0.22 $* | 0.69 $* |
| Feb-16-2025 | 0.26 $* | 0.15 $* |
| Jan-16-2025 | 0.98 $* | 0.28 $* |
Характеристики
Product Description
Main Features
1. All processing steps be done automatically , which saves labor and high efficiency .
2. This machine operation is convenient and stable performance .
3. One machine can make different products, just change the mould, It has multifunction .
4. Machine can be customized according to customer requirement .
5.Controlled by Touch Screen with Siemens PLC.
items |
|
Punch speed | 15-40 punch/min |
Max. Forming size | 330*160mm |
Max. Forming depth | 46mm |
Max. Material width | 340mm |
stoke | 65-165mm |
Compressed air | 0.6-0.8Mpa |
Mold cooling | 60L/H tap water /recycle water |
Total power | 4.5KW |
Material thickness | 0.15-0.5*340mm |
Overall dimension | 1900*790*1700mm |
Weight | 900 KG |

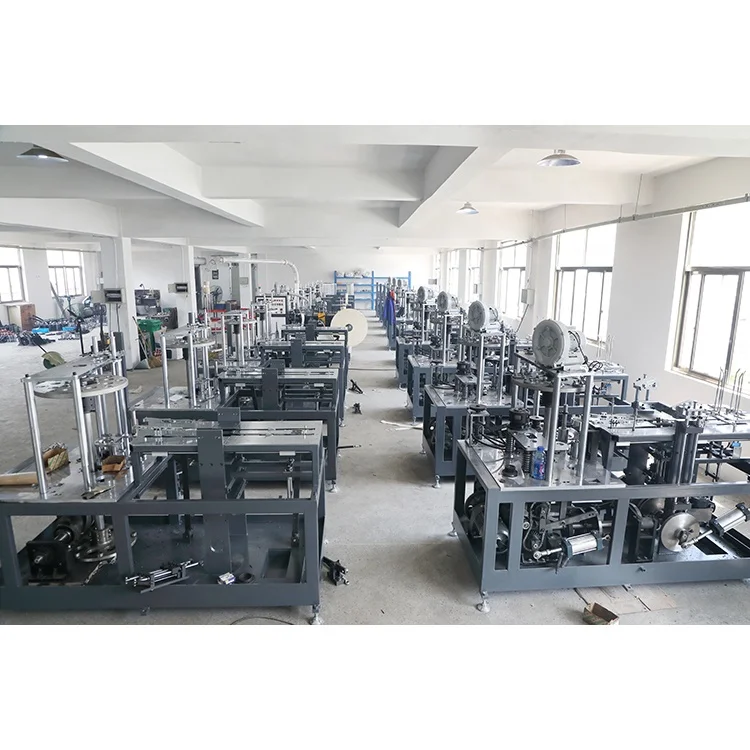

Company Information
