750 подача гофрированного кровельного листа, формовочная машина
US $14500-$15000
HQJ легкая сборная машина для производства бетонной стеновой
- Категория: Board Making Machinery >>>
- Поставщик: Shandong,Xingyu,Mechanical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11900.84 $* | 12495.25 $* |
| Aug-19-2025 | 11800.3 $* | 12390.29 $* |
| Jul-19-2025 | 9900.2 $* | 10395.35 $* |
| Jun-19-2025 | 11600.63 $* | 12180.3 $* |
| May-19-2025 | 10100.53 $* | 10605.85 $* |
| Apr-19-2025 | 11400.33 $* | 11970.38 $* |
| Mar-19-2025 | 11300.72 $* | 11865.27 $* |
| Feb-19-2025 | 11200.54 $* | 11760.14 $* |
| Jan-19-2025 | 11100.89 $* | 11655.72 $* |
Характеристики
Product Introduction

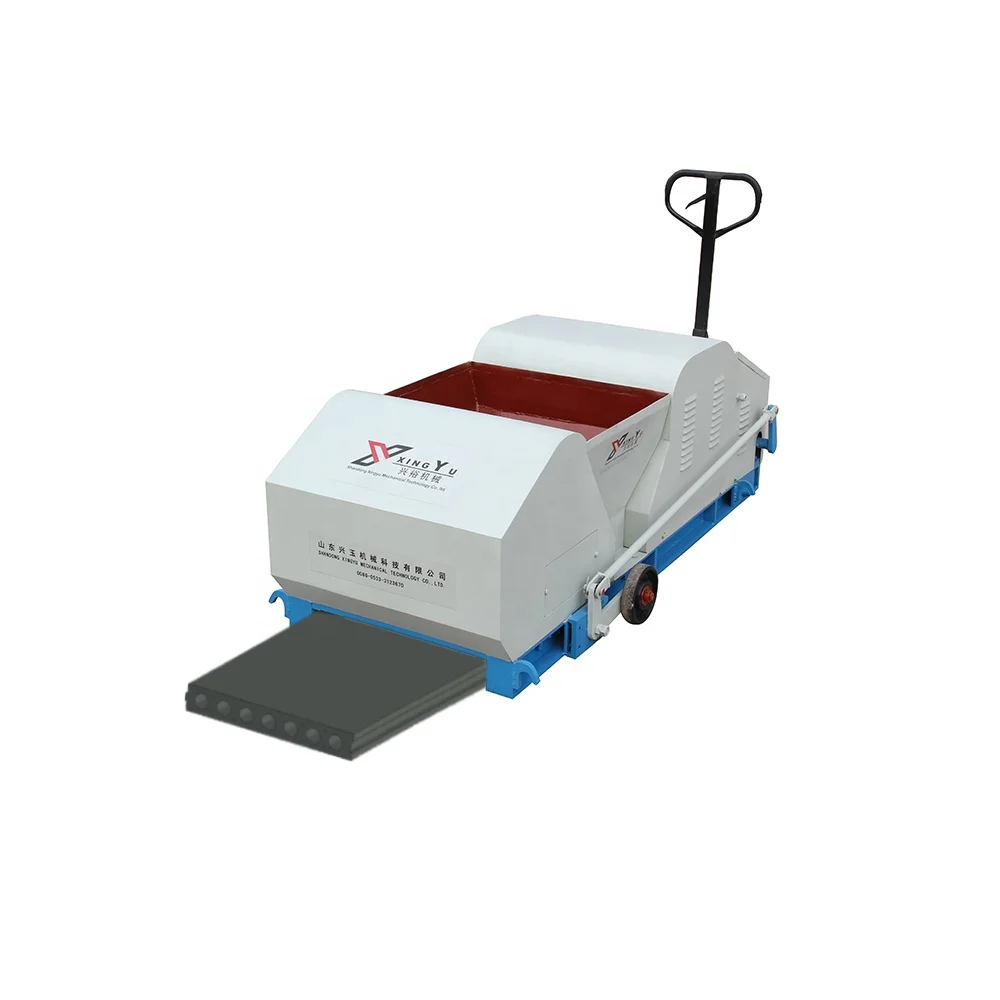

HQJ Lightweight Precast Concrete Wall Panel Making Machine
Following the road of construction industrialization,form standardization,generalization,seriation products;wall products gradually to the diversification,composite,assemble,waste utilization,light weight and decorative direction.
Form a flexible mode of production guide by the market,wall production and integration mainly completed in the factory.Building construction site mainly depends on site operation and site installation.Provide whole process service for customers including production,sales,installation and maintenance.
Product Parameters
HQJ Lightweight Precast Concrete Wall Panel Making Machine
The machine uses hydraulic lifting system, easy to revolve. It can reduce labor intensity and improve production efficiency. Machine body adopts anti-rust technology. Key parts, like hopper are welded by stainless steel. Wearing parts like reamers, side form, vibration board, stock guide and other parts are all welded with alloy. Both sides of the wall panels can put reinforcement wires, diameter can reach 6mm.Panel materials, According to the specialty of the local materials, we provide matching method to insure customer produce standard panels.General materials: fly ash, slag, ceramsite and so on.
Model | Panel thickness(mm) | Panel width(mm) | No.of holes | Dia of hole(mm) | Electric motor power(kw) | Vibrator motor power(kw) | Total power(kw) | Max span(m) | Molding speed(m/min |
HQJ90-600 | 90 | 600 | 7 | 58 | 5.5 | 0.8 | 6.3 | 3 | 1.5-1.8 |
HQJ120-600 | 120 | 600 | 5 | 80 | 5.5 | 3 | 8.5 | 3 | 1.5-1.8 |
HQJ150-600 | 150 | 600 | 4 | 102 | 5.5 | 1.1 | 6.6 | 3 | 1.5-1.8 |
Product application
1.\tExtrusion method, smooth surface
2.\tOne machine can make one slab, low investment
3.\tSimple structure, easy operate
4.\tLong working-life with easy wear spare parts
5.\tNon-loading bearing partition wall board and exterior wall board
6.\tSound insulation, heat insulation
Product Packing
We use tarpaulin packing machine
We fixed the machine in the container by wire rope
Why Choose Us
Shandong Xingyu Mechanical Technology Co.,Ltd,was located in Zibo, Shandong Province and founded in 1996,specialized in Precast concrete machine,manufacture with a name brand of"Xingyu".We were authorized ISO9001:2000 quality system certificate and also nominated as'Hi-New Technology Enterprise'by Shandong Science and Techenology Administration in 2006.We also founded"Zibo Precast Concrete Machinery Research Institute"with Shandong Science and Technology University in 2007,and have successfully developed the non-circular hole slab forming machine and the Prestressed concrete slab extrusion machine.Now we can manufacture all kinds of slabs which allowed by our country,and so can completely satisfy on large national and civil architecture project.
We supply the technical supporting all the time.
We supply one year warranty for whole machine.
We supply free quick wear parts.
We supply low charge continue maintenance when warrenty is expired.
Our Service
Since from founded,we have gotten more than 10 patents and sold to over 20 provinces in China as well as exported to more than 30 countries like Russia,Uzbekistan,Thailand,Bangladesh,India,Nigeria,Philippines,Malaysia,Indonesia,Bhutan,Libya,Uruguay,Saudi arabia etc.We have gained trust from all customers because of innovating,stable quality,easily handled,long working life and easily maintained.
Welcome to our company!
