EV 2 in 1 Charger+Converter 8000W 600V Onboard battery charger

more products

Product Description

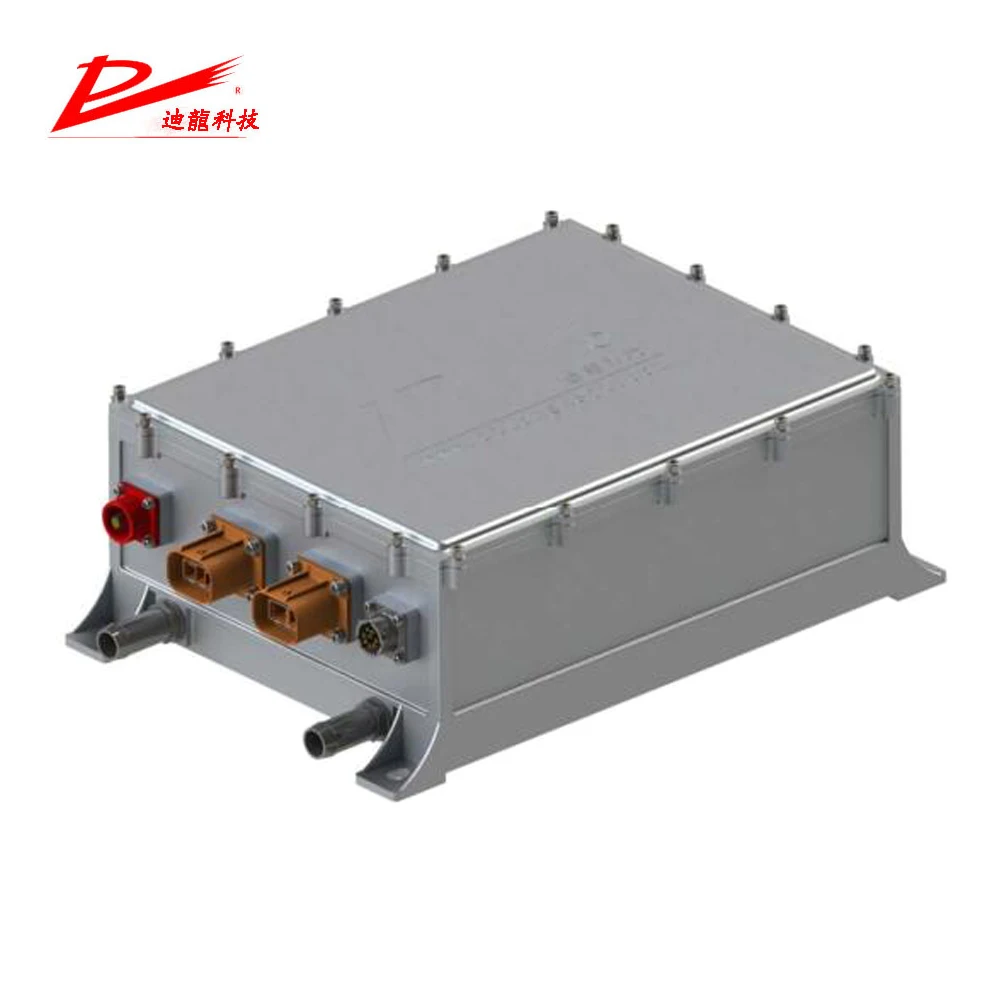

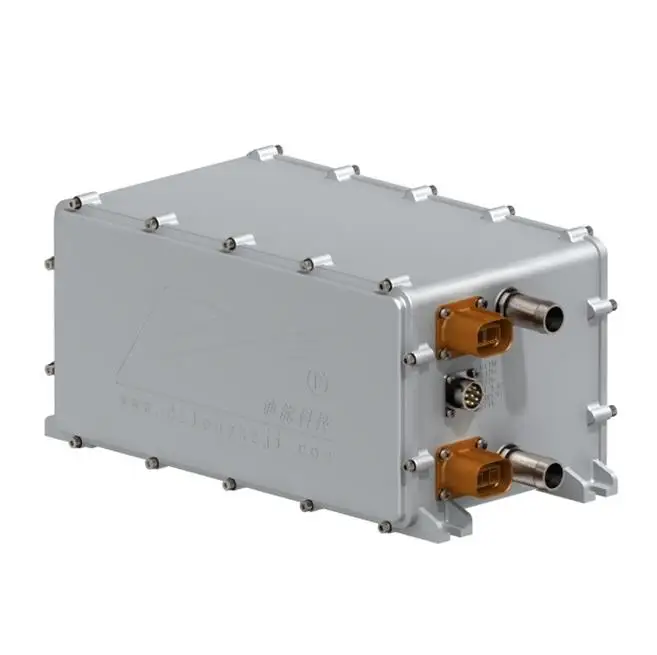

DA8KM22A-604C-28C is a liquid-cooled, specifically designed for pure electric

vehicles, AC-DC chargers and DC-DC converters integrated digital power supply. Charger

adopts advanced resonance technology, high efficiency, high power, small size, reliable work,

charging mode using constant power and constant voltage automatic state transition,

effectively saving the charging time. Wide input and output voltage range with active power

factor correction, zero pollution to the grid. Using CAN2.0B communication protocol, with

intelligent charging function, intelligent monitoring fault alarm, protection, with remote

detection, programming, fault inquiry and other functions. Built-in 14V battery management

system wake-up signal power. DC-DC high and low voltage converter using advanced

substrate technology, modular design, high power density, small size, reliable, with constant

current and constant pressure automatic state conversion. Using CAN2.0B communication

protocol (CAN communication function optional), with intelligent charging function, with

intelligent monitoring fault alarm, protection (with CAN communication function).

Installation Guide

M22A(C+D) OBC(On-board charger) Specification
Rated Voltage	Vac	220
Voltage Range	Vac	85~264(85~175 the power dropped to 1200W)
FREQ RANGE	HZ	47~63
Efficiency(MAX)	%	≥95
Power Factor		≥0.99@220Vac,rated power
Current	A	≤23A@230Vac
Rated output voltage	Vdc	600
Constant voltage output range	Vdc	250~420 (According to customer battery decision)
Maximum current	A	20 (Constant power output characteristics)
Maximum power	W	6600
Output voltage accuracy	V	≤±1%Vo input 176Vac-264Vac,output 10%-100% load
Line regulation	%	≤±0.2%Vo input 176Vac-264Vac,output 100% load
Load regulation	%	≤±0.5%Vo input 220Vac,output 10%-100% load
Ripple and noise	mV	≤±3%Vo 20M oscilloscope,Twisted-pair cable test.

M22A(C+D) DC/DC(DC/DC Converter) Specification
Project	Specifications	Note
Rated input voltage/current	DC:360V
Input voltage range	DC:230V~410V
Output rating	DC:14V	(The shell is DC14V output negative)
Output current	71A(rated), 85A(max/6mins)
Output power	1000W(rated), 1200W(max/6mins)
Output voltage accuracy	≤±1%
Line regulation	<±0.2%	Input, output full range
Load regulation	<±0.5%	Input, output full range
Output Over-current protection	86-88A
Input over-voltage protection	Normal	Hardware limits≥145V shutdown
Input under-voltage protection	Normal	Hardware limits≤60V shutdown
Output Over-voltage protection	yes	Hardware 15V-18V
Control Method	CAN or Enable control	CAN has precedence over enablers Enable control: high level is effective
