DF7-10 гидравлический штамповочный пресс глины блокируя кирпич делая машину/перегонная установка пресс-форма для


Поделиться:


Цена:14 500,00 $ - 15 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 17255.74 $* 18118.69 $*
Aug-19-2025 17110.67 $* 17966.79 $*
Jul-19-2025 14355.63 $* 15073.62 $*
Jun-19-2025 16820.42 $* 17661.30 $*
May-19-2025 14645.36 $* 15377.75 $*
Apr-19-2025 16530.10 $* 17357.1 $*
Mar-19-2025 16385.96 $* 17204.0 $*
Feb-19-2025 16240.9 $* 17052.26 $*
Jan-19-2025 16095.52 $* 16900.77 $*

Характеристики



Product Description


DF7-10 Hydraulic Press clay interlocking brick making machine / interlocking brick mold




DF7-10 is our hot sell automatic interlocking clay soil concrete brick making machine, it suitable for making clay bricks, soil bricks, cement bricks and interlocking bricks.

1. DF7-10 can make 7pcs bricks per mould,  can make more than 20000pcs in 8hours, so the production capacity is very high, suitable for the customers who want a big capacity.

2. DF7-10 is an automatic hydraulic brick machine which is controlled by PLC, so the machine can be easily operated by only one person.
3. DF7-10 uses a electric motor to drag the CBT-E400 gear pump, doubile oil cylinders, the hydraulic pressure can reach 35Mpa, which can can ensure the brick density very high and brick quality very strong.
4. Mould can be changed according to cusmer's requirements.

5. High productivity.20160 bricks per 8hours.



Technical Specifications
Model
DF7-10 interlocking brick machine
Forming cycle
10s
Pcs/mould
7 pcs
Capacity
20160pcs/8hour
Power
22KW
Hydraulic pressure
35Mpa
Dimension
2260x1800x2380mm
Weight
3000kg
Brick material
Clay, soil, cement, concrete, fly ash and so on.

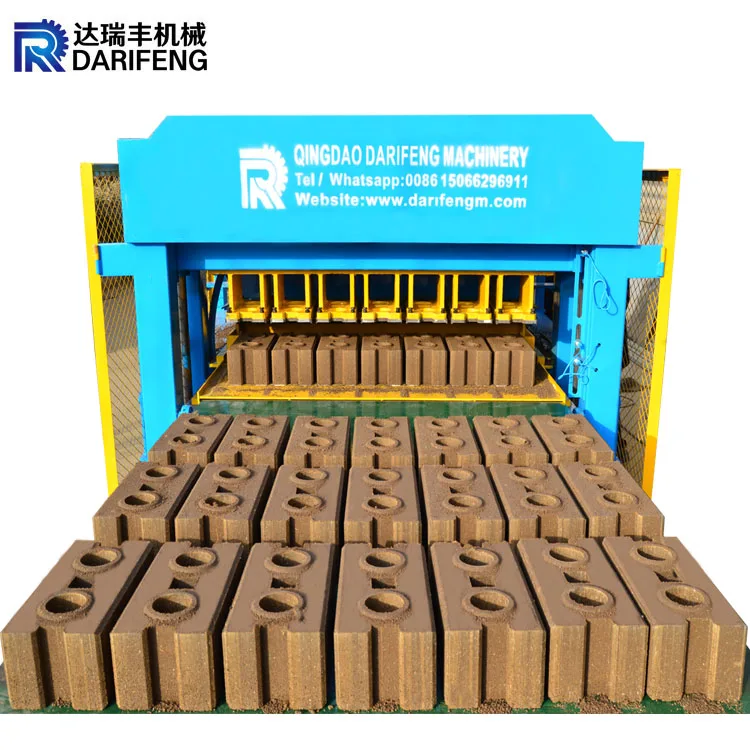

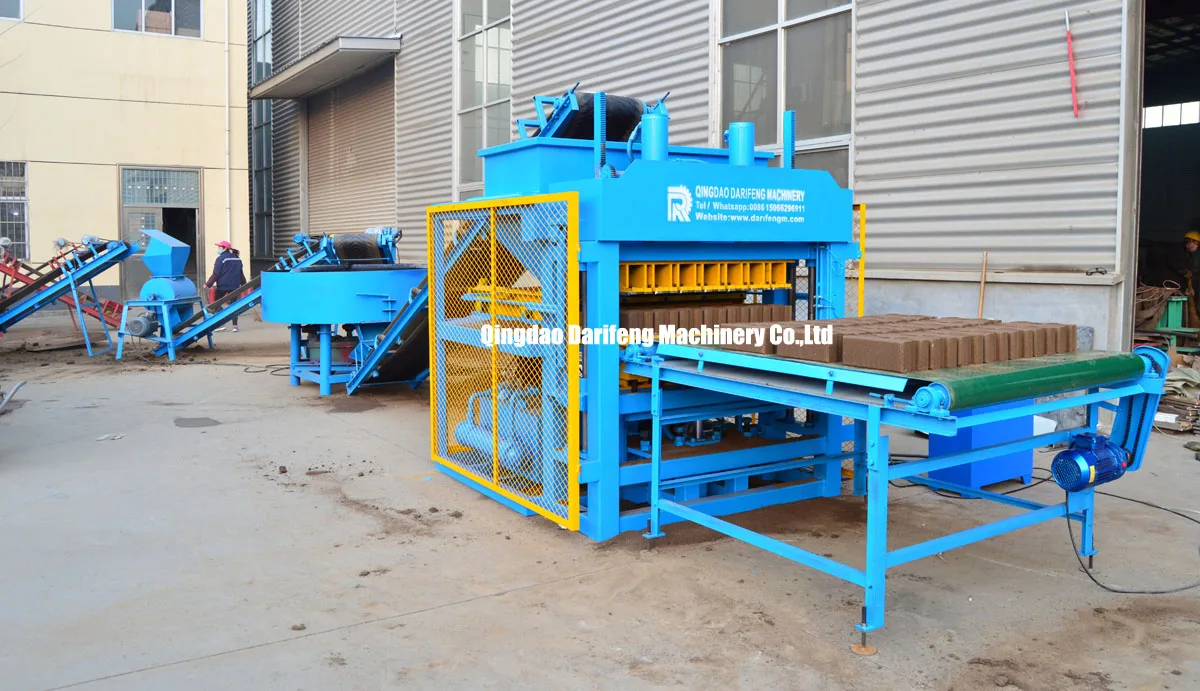

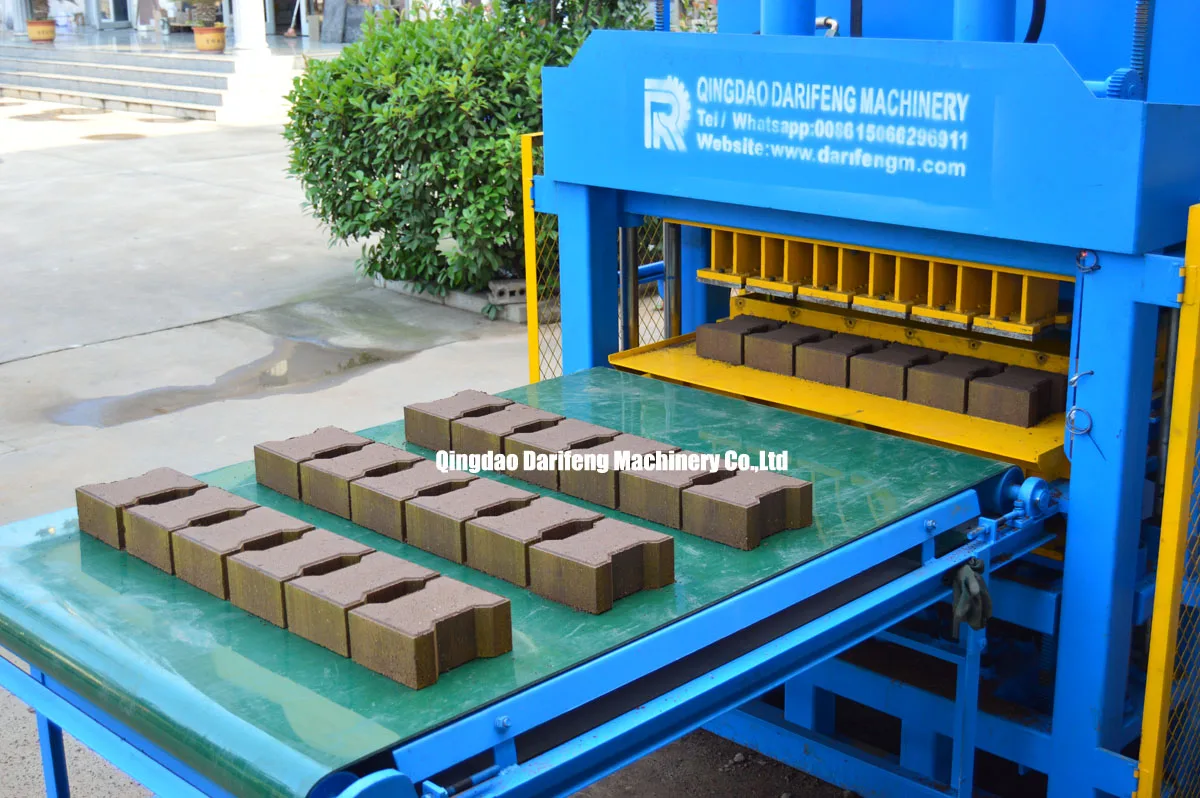

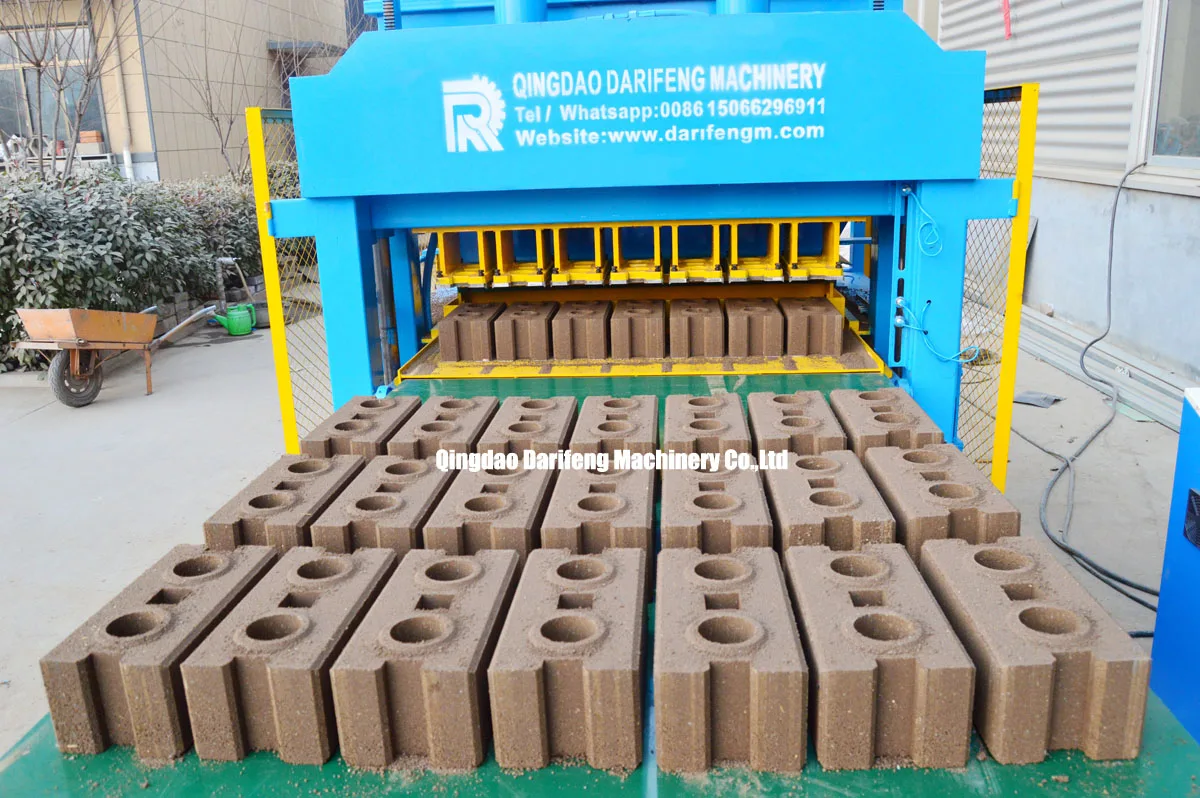

Machine display






























Accessories


JQ750 Mixer
Input capacity:1200L
Output capacity:750L
Power:11KW
Size:1.8x1.8x1.5m
Weight:1000KGS


5m & 3m Belt conveyor
Power: 0.75KW
 Weight: 250 KGS
Size: 5x0.85x0.4m


Crusher
Max. Feeding size: 300x400
Capacity(t/day): 5-10T
Power: 5.5KW
Weight: 380 KGS
Size:11.3x0.78x1.4m


Screening machine
Diameter of hole : 1-3 mm
Capacity(t/day): 5-10T
Power: 1.1KW
Weight: 150 KGS
Size: 1.32x0.82x0.7m


Brick transfer
Speed : 50CM/3S
Capacity: 80-100 pcs/ min
Power: 0.75KW
Weight: 200 KGS

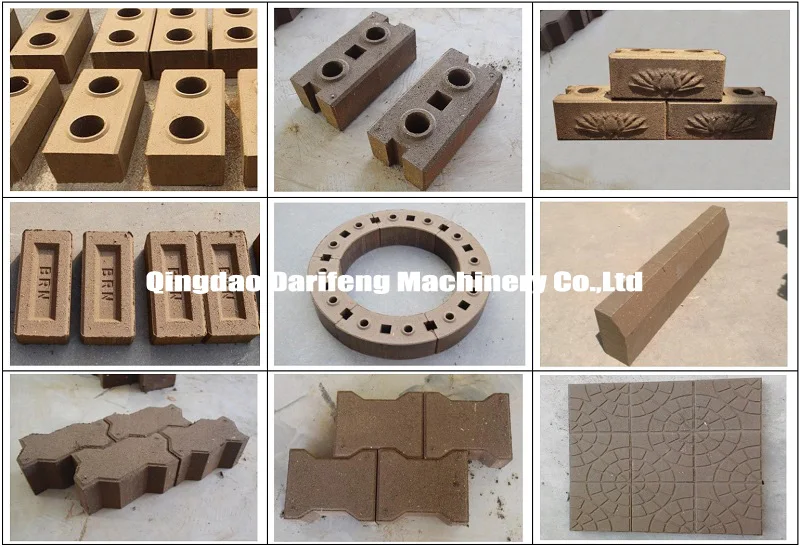

Brick use












Company introduction


Darifeng\tMachinery- Profession achieves success

Qingdao Darifeng Machinery Co.,Ltd founded in 1985, is one of the biggest block & brick machine manufacturer in China, our company located in Qingdao City and Linyi City, Shandong Province, covers an area of 126,000 square meters, with 400 staffs, including medium and high-level professionals 100 staffs.


We are a high-tech enterprise, integrating science, industry and export for block & brick machine with our brand more than 30 varieties. Now we have built more than 20000 block production line in China and we also have exported block & brick machine to more than 100 countries, like Philippines, India, Bangladesh, Indonesia, Kazakhstan, Uzbekistan, Nepal, Yemen, Oman, Palestine, Armenia, Sudan, South Africa, Uganda, Mozambique, Tanzania, Ghana, Zimbabwe, Congo, Peru, Colombia, Chile, Paraguay, Bolivia Mexico etc, and have won great fame and popularity.


Our company not only provides customers with various brick and block making machine, but also provides services including process design, workshop design and factory design. In addition, we have a professional engineer team to offer the best after-sales services, such as training workers, imparting technical instruction and fixing problems, we provide all ofour customers 2 year's warranty. We always want to be the best in our industry because we clearly know that only the completely perfect quality and service are the best. Anyway, choosing to cooperate with us is really your wise choice. We are looking forward to cooperating with you.





Our service


1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within two year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to you.
