Sinri оптовая продажа M12 светодиодное освещение пластиковый клапан баланса давления воздушный водостойкий
- Категория: Сантехника >>>
- Поставщик: Huizhou,Sinri,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.69 $* | 0.64 $* |
| Aug-18-2025 | 0.45 $* | 0.82 $* |
| Jul-18-2025 | 0.34 $* | 0.80 $* |
| Jun-18-2025 | 0.55 $* | 0.15 $* |
| May-18-2025 | 0.13 $* | 0.7 $* |
| Apr-18-2025 | 0.40 $* | 0.70 $* |
| Mar-18-2025 | 0.96 $* | 0.25 $* |
| Feb-18-2025 | 0.31 $* | 0.76 $* |
| Jan-18-2025 | 0.75 $* | 0.37 $* |
Характеристики
Welcome to our store!
If you want to get the Free Sample and know more detail information,
Recommend Products
Product Description
Sinri Wholesale M12 LED lighting Plastic Pressure Balance Valve Air Water Resistant Vent Plug
ePTFE membrane and integrated membrane are treated with special technological , have good features like water/oil repellent,moisture- and vapor-permeable , chemically inert, non-shedding ,UV-resistant ,temperature-resistant .
Plastic Pressure waterproof screw vent plug M12 has been widely used in protective automotive electronics unit or control module.
m12 air vent plug can rapidly exchange of air in response to pressure changes — in other
words, they allow the enclosure to breathe. By keeping the pressure differentials low, seal fatigue and housing stresses are minimized. The result — improved reliability and extended product life.
Product Name | Sinri m12 air vent plug |
Membrane | E-ptfe |
Inner Material | pc |
Airflow | ≥160ml/min p=10Kpa |
Color | Dark Grey |
Water entry pressure | 12Kpa(>1m) |
Temperature range | 40℃—125℃ |
Waterproof Rate | IP67 |
Products Show

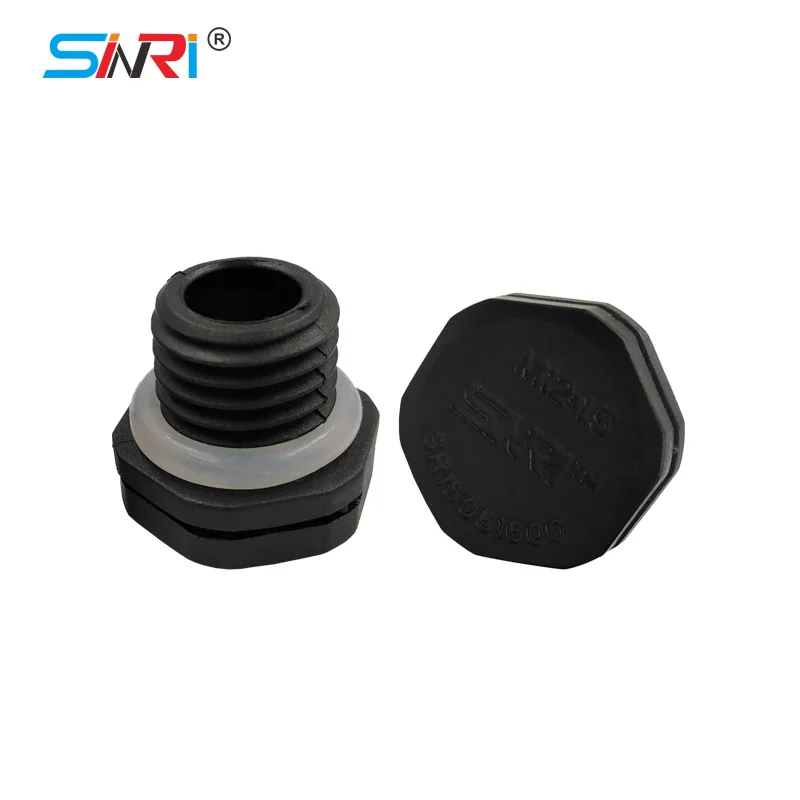

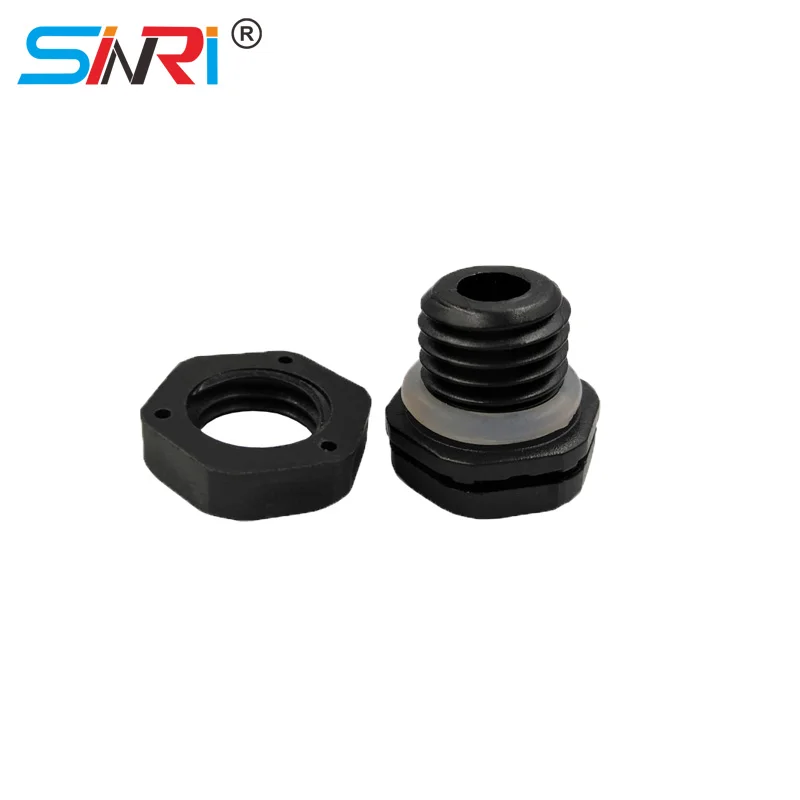

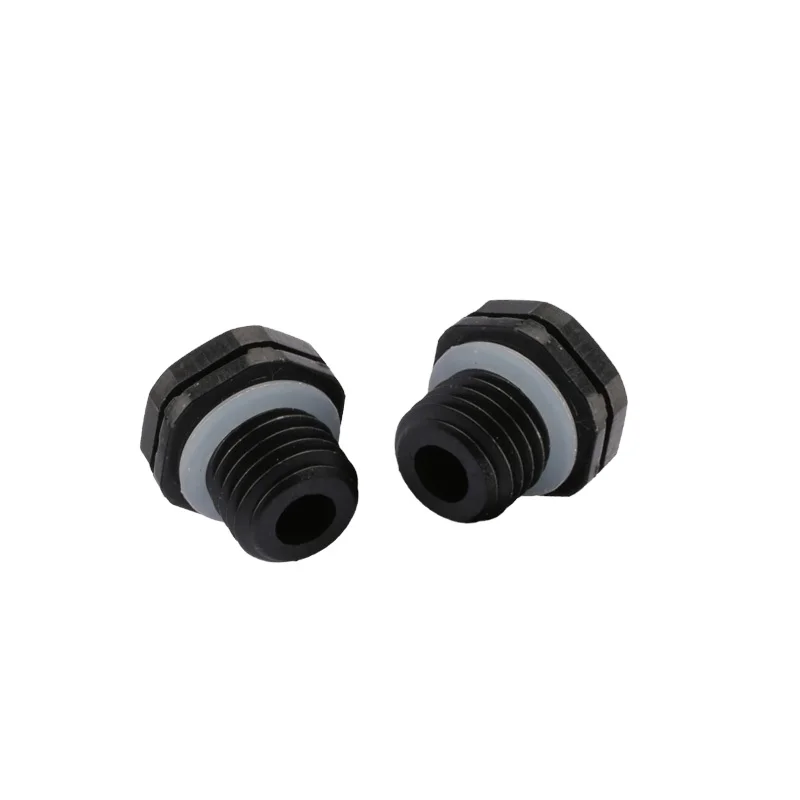

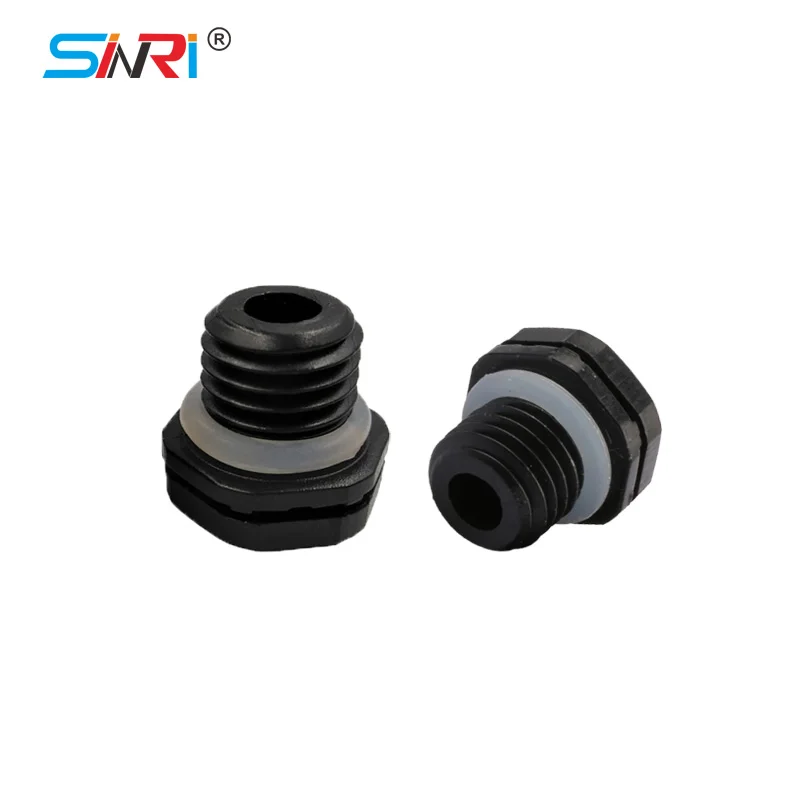

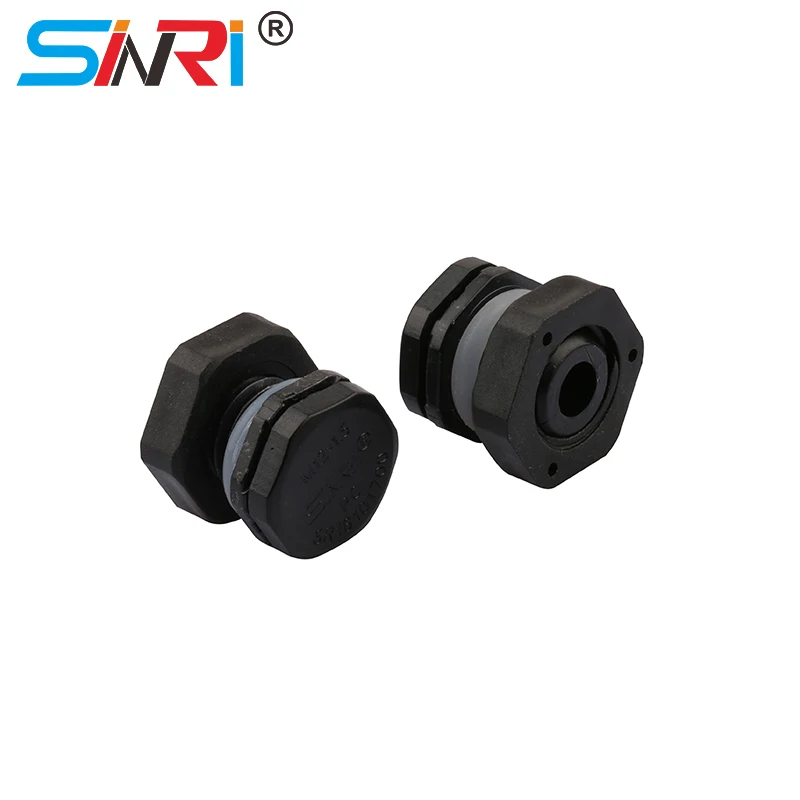

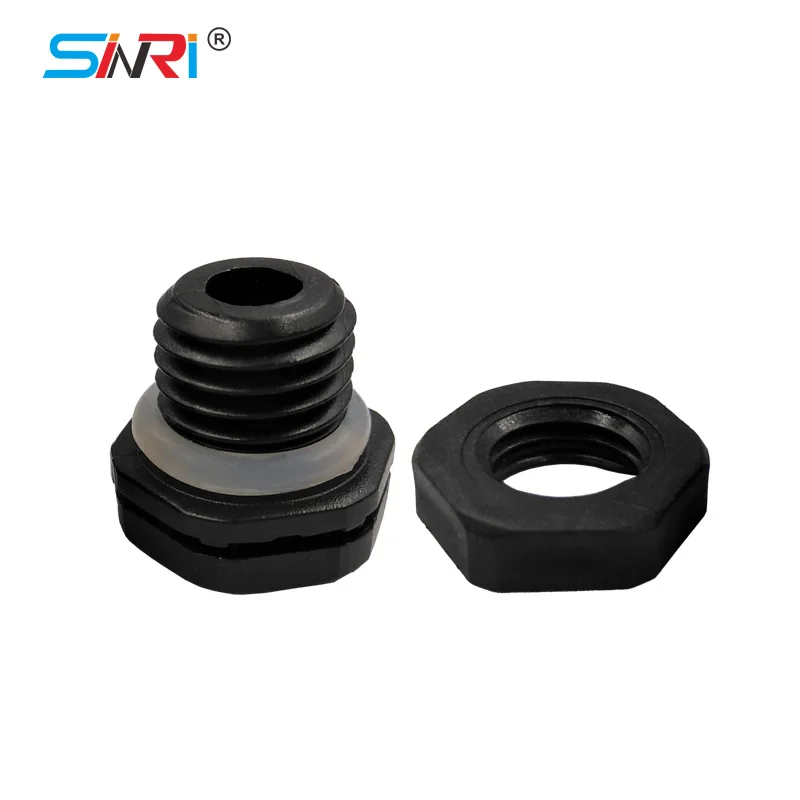

Detail pictures of Sinri M12 Pressure Balance waterproof screw vent plug
SINRI PRESSURE RELEASE M12 VENT WATERPROOF waterproof breather vent plug BENEFITS :
Sinri® Pressure Balance vent plug can Equalize Pressure
Sinri® Plastic Pressure waterproof screw vent plug can Prevent Contamination
Sinri® M12 air vent plug can Reduce Condensation
Sinri® E-PTFE membrane IP68 Pressure Balance vent can Extend service life
Sinri® Pressure Balance vent plug can Equalize Pressure
Sinri® Plastic Pressure waterproof screw vent plug can Prevent Contamination
Sinri® M12 air vent plug can Reduce Condensation
Sinri® E-PTFE membrane IP68 Pressure Balance vent can Extend service life
Installation Suggestions
1.Install on a vertical surface which no water or other contaminants;
2.When the housing thickness is ＞3mm,
it is suggested punching M12*1.5mm
threaded hole and use silicone O-ring to
seal the entrance;
When the housing thickness is ≤3mm, it is suggested punching ø12.2± 0.1mm straight hole and lock with nut. Flat silicone ring
would seal the entrance.
3.Mounting torque：0.7N.m(The recommended compression ratio of O-ring is 50%)
�k]��(�
1.Install on a vertical surface which no water or other contaminants;
2.When the housing thickness is ＞3mm,
it is suggested punching M12*1.5mm
threaded hole and use silicone O-ring to
seal the entrance;
When the housing thickness is ≤3mm, it is suggested punching ø12.2± 0.1mm straight hole and lock with nut. Flat silicone ring
would seal the entrance.
3.Mounting torque：0.7N.m(The recommended compression ratio of O-ring is 50%)
�k]��(�
Packaging&Shipping
Packing Details :
1）Each piece m12 air vent valve packing in PE bags and cartons for the outer packing.
2）Cartons size :Customized or based on actual weight and volume.
1）Each piece m12 air vent valve packing in PE bags and cartons for the outer packing.
2）Cartons size :Customized or based on actual weight and volume.
Shipping Details:
1）By express （3-5 working days）Within 3-7 days upon receipt of the payment.
2）Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your budget and meet your need !
1）By express （3-5 working days）Within 3-7 days upon receipt of the payment.
2）Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your budget and meet your need !
Product Application
Sinri Top standard best quality M12 self repair waterproof and explosion-proof automatic ventilation air valve Typical Application:
•LED light
• Sensors
• Auto components
• Electronic control unit (ECU)
• Electronics & Electrical Appliances •Telecommunication equipment
• Solar equipment
• Protective cases
• All kinds of outdoor enclosures need to be waterproof and venting.
• Sensors
• Auto components
• Electronic control unit (ECU)
• Electronics & Electrical Appliances •Telecommunication equipment
• Solar equipment
• Protective cases
• All kinds of outdoor enclosures need to be waterproof and venting.
Our advantage
About Sinri
Development history :
Huizhou Sinri Technology Company Limited （ grew out of the factory named “De Xiang”, which has more than 10 years experience in producing molds and protective vent）is manufacturer focused on protective vent development, production and sales.
Products:
With professional e-PTFE technology, we have designed and manufactured a large number of products which are waterproof, air permeable, oil-resistant and anti-explosion.
Equipment and qualification:
Since founded in 2015, Sinri continuously introducing advanced production technology, realize the automatic production, testing assembly line.And through the ISO90001/ TS16949 system certification.
Now,we have our own test equipments (including Salt spray testing equipment, IP Rating testing equipment, Flow testing equipment ,High-low temperature test equipment and Explosion-proof testing equipment）and Automatic production equipment（ including injection molding machine, fuse machine, ultrasonic and other automated production equipment).
Product Applications:
Sinri protective vents have been widely used in LED lighting, automotive components, portable electronics, solar photovoltaic, outdoor cabinets, heavy machinery, Chemical packaging, new energy battery pack and other kinds of outdoor enclosures that need to be waterproof and venting.
Our certificate
FAQ
1. Who are we?
We are manufacturer and started our business from 2010,welcome to visit our factory any time !
2.Can I print our logo on the products and change the color of products?
Yes,we can offer both OEM and ODM service according to customers' request.
3. Can I get a sample?
Of course, but you may need to pay a sample charge which will be returned after any order signed. Some stock samples will be free for you!
4. What certificates your products have?
Most of our products have CE, RoHS, ISO90001,TS16949, etc. Don't worry about the quality!
5.What is your accepted payment method?
We can accept T/T, L/C, D/A, D/P, MoneyGram, Credit Card, PayPal, Western Union.
6.What is your terms of delivery?
Fedex/DHL/UPS/TNT/EMS for sample.
By air/sea/train for batch goods.
Airport/port/station receiving.
Dropship & FBA. Customers specifying freight forwarders or negotiable shipping methods.
2.Can I print our logo on the products and change the color of products?
Yes,we can offer both OEM and ODM service according to customers' request.
3. Can I get a sample?
Of course, but you may need to pay a sample charge which will be returned after any order signed. Some stock samples will be free for you!
4. What certificates your products have?
Most of our products have CE, RoHS, ISO90001,TS16949, etc. Don't worry about the quality!
5.What is your accepted payment method?
We can accept T/T, L/C, D/A, D/P, MoneyGram, Credit Card, PayPal, Western Union.
6.What is your terms of delivery?
Fedex/DHL/UPS/TNT/EMS for sample.
By air/sea/train for batch goods.
Airport/port/station receiving.
Dropship & FBA. Customers specifying freight forwarders or negotiable shipping methods.
Don't hesitate to contact us at anytime, no matter inquiry, TM message, via email or skype. If we are online,we will reply you at
once. Even if sometime we are not online because of time difference, we promise you will be replied within 8 hours.
