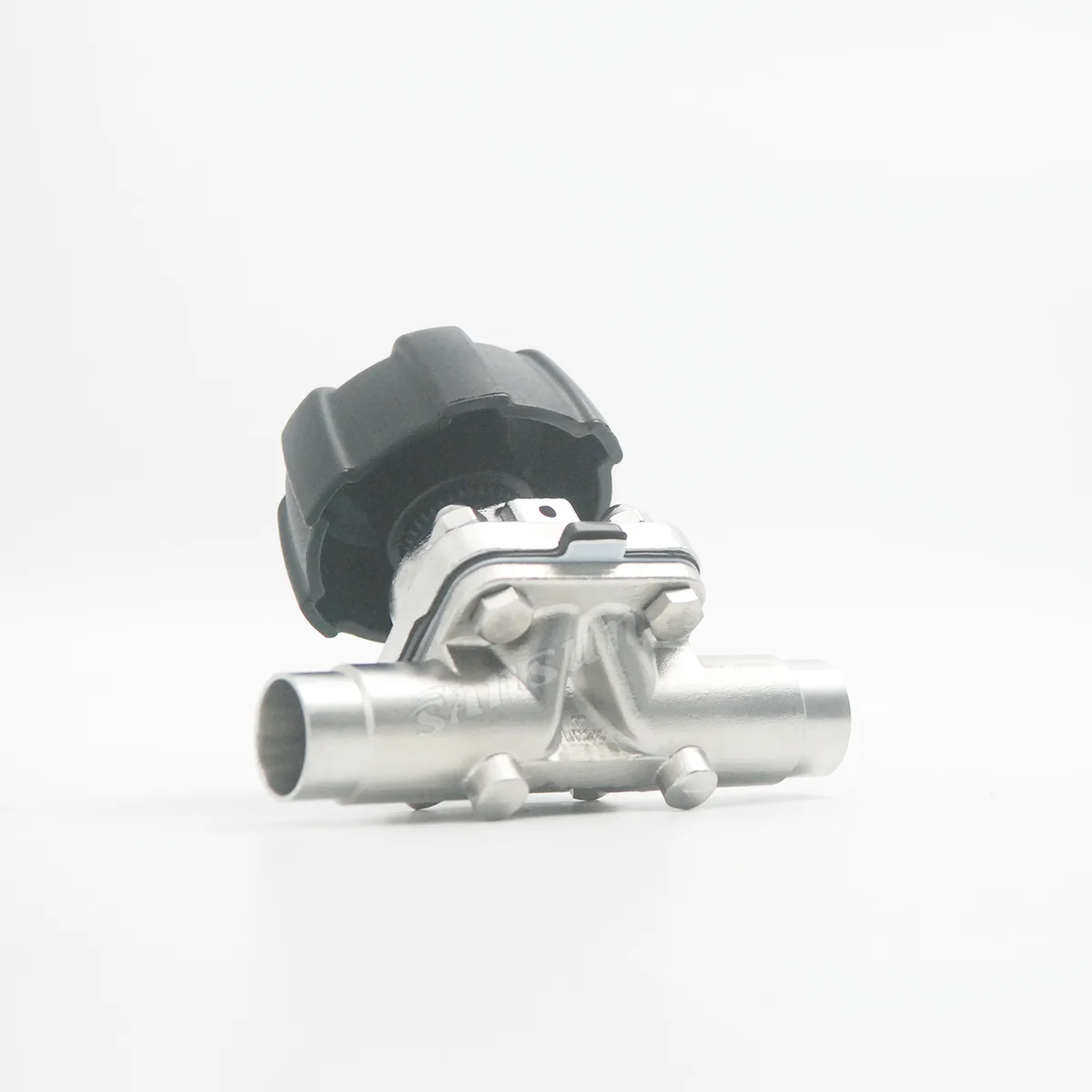

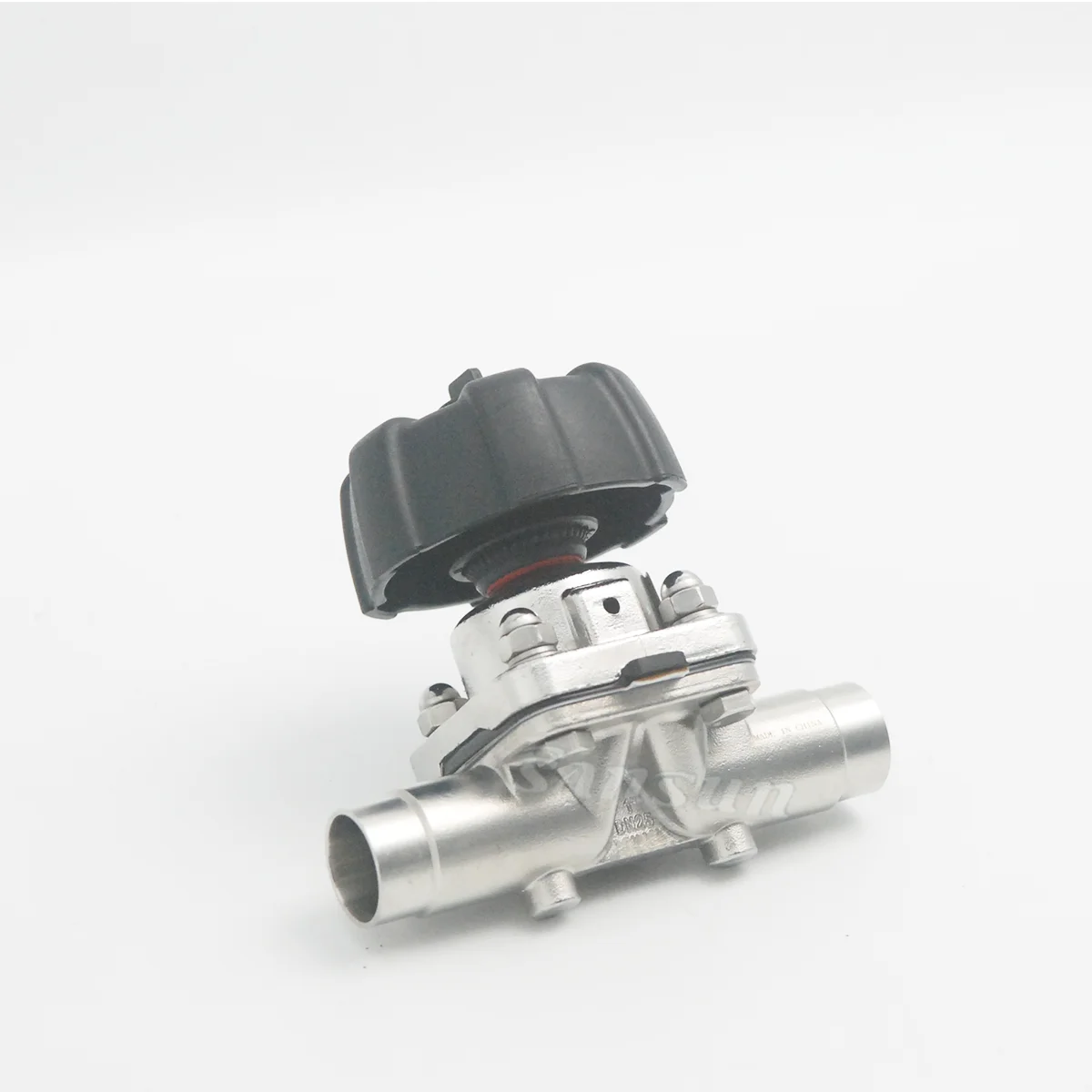

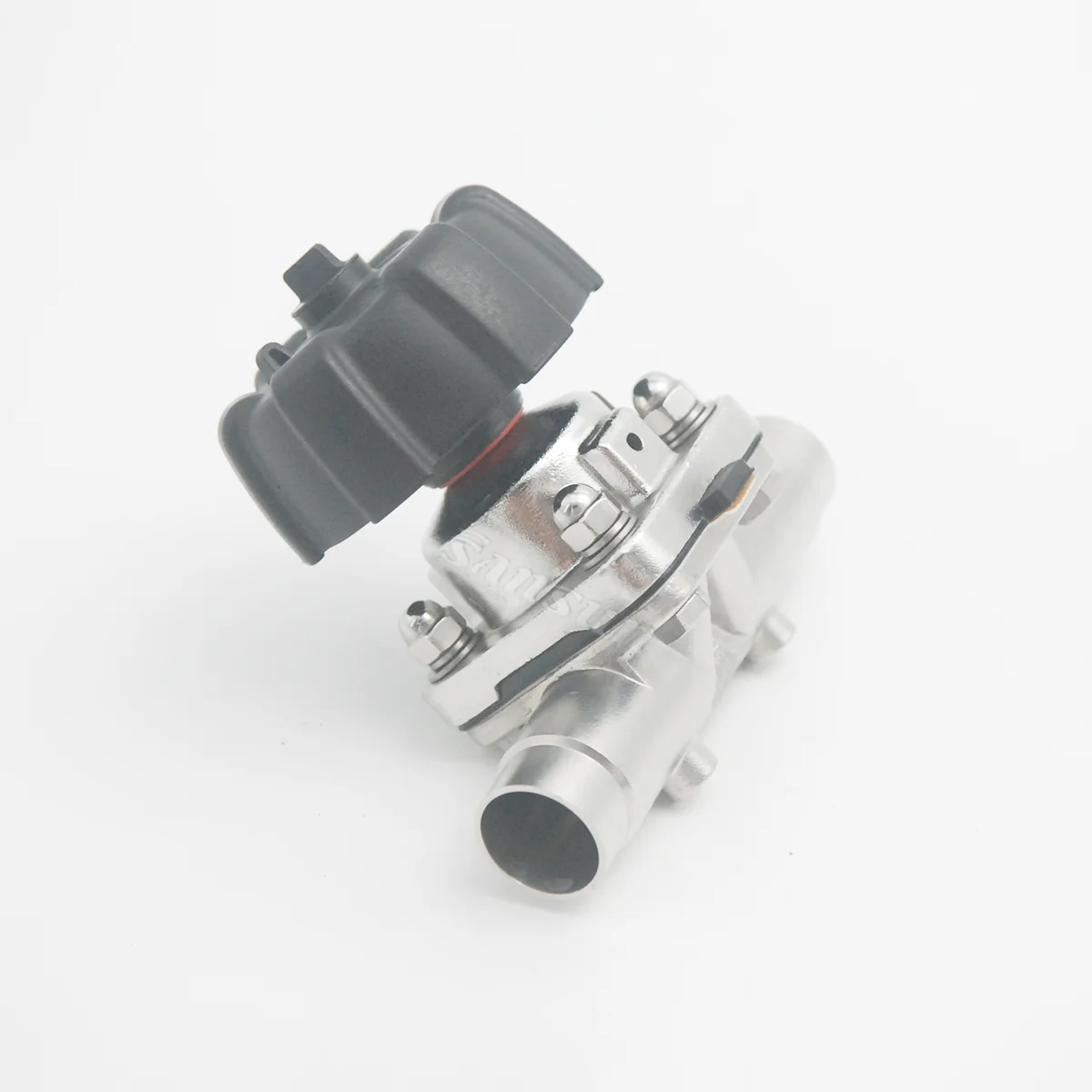

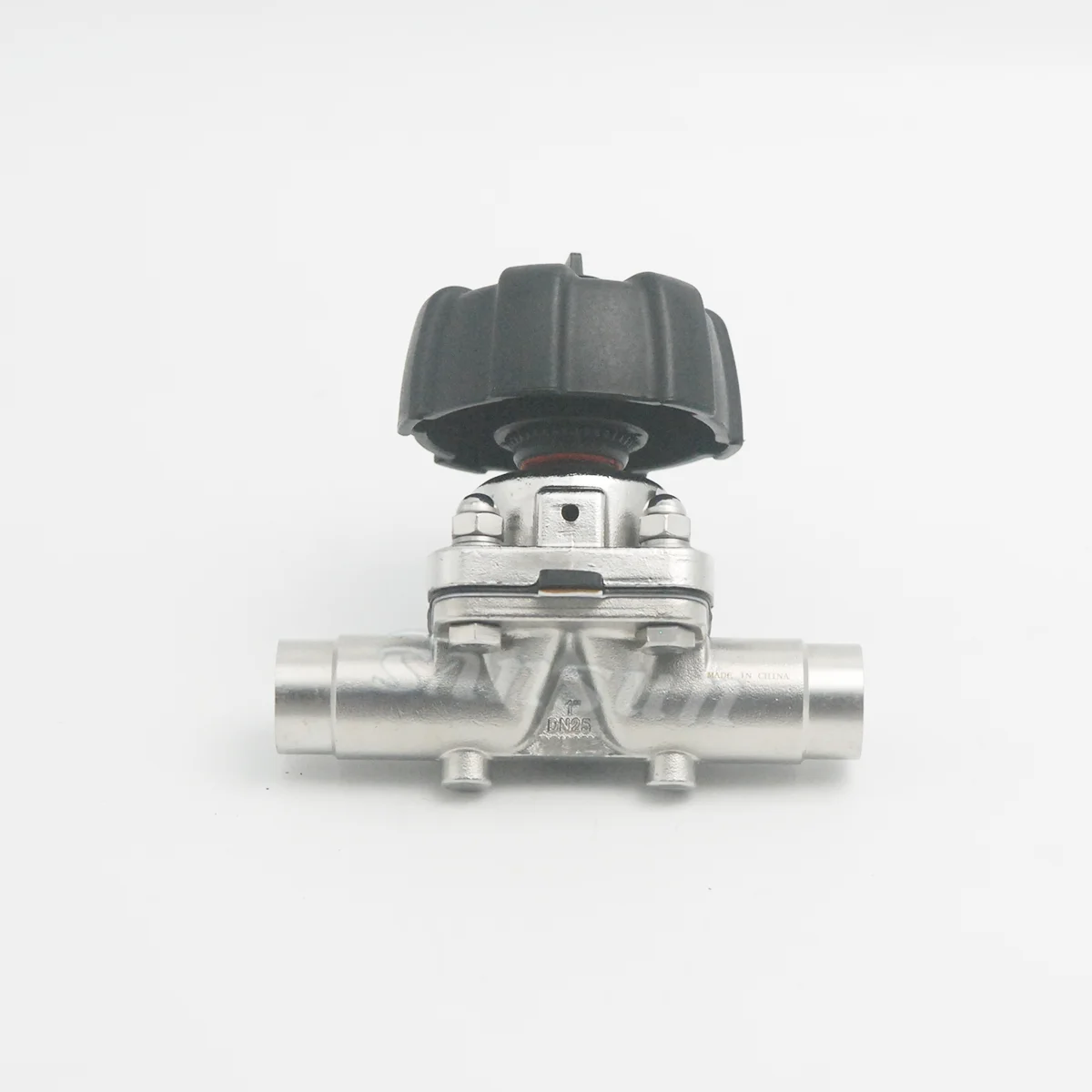

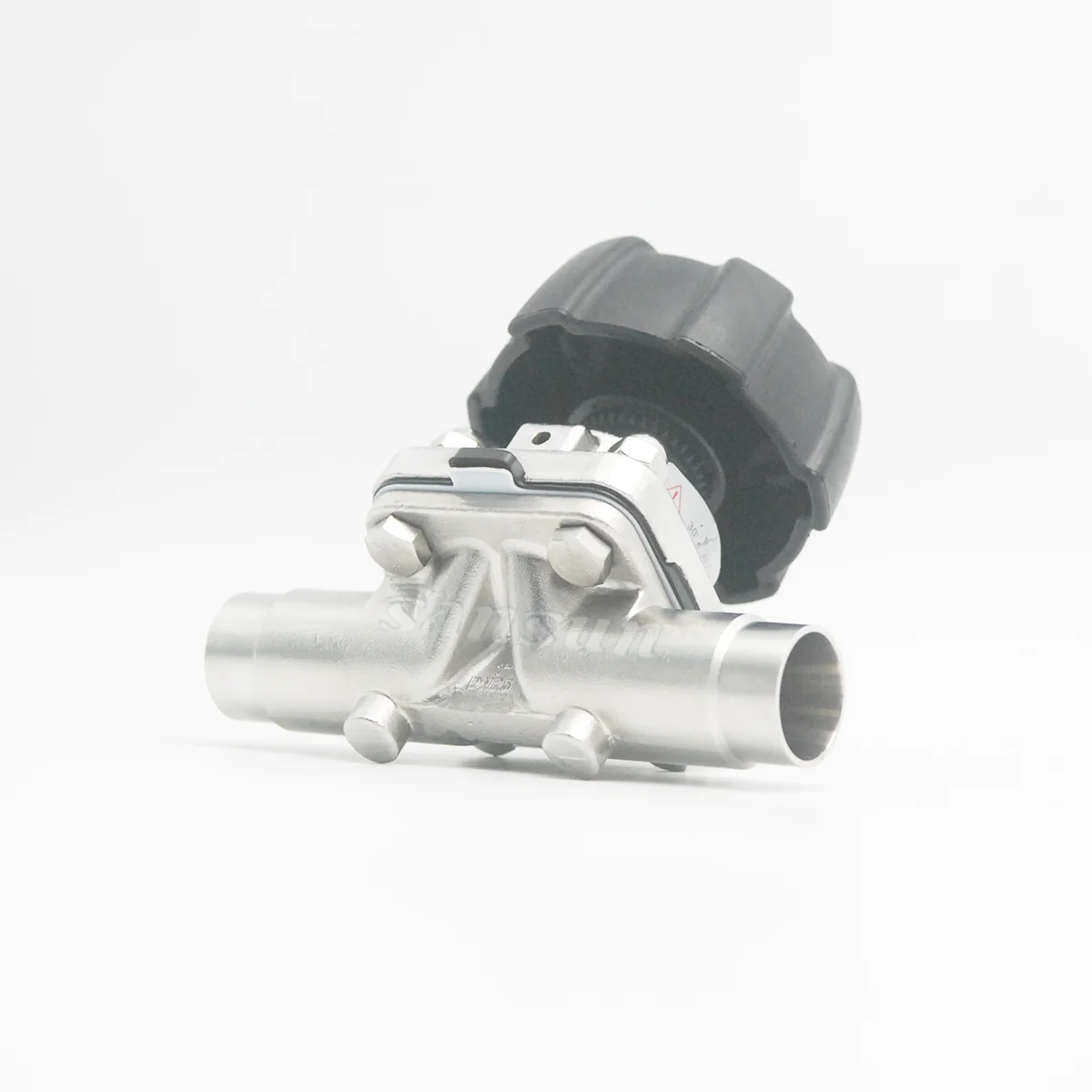

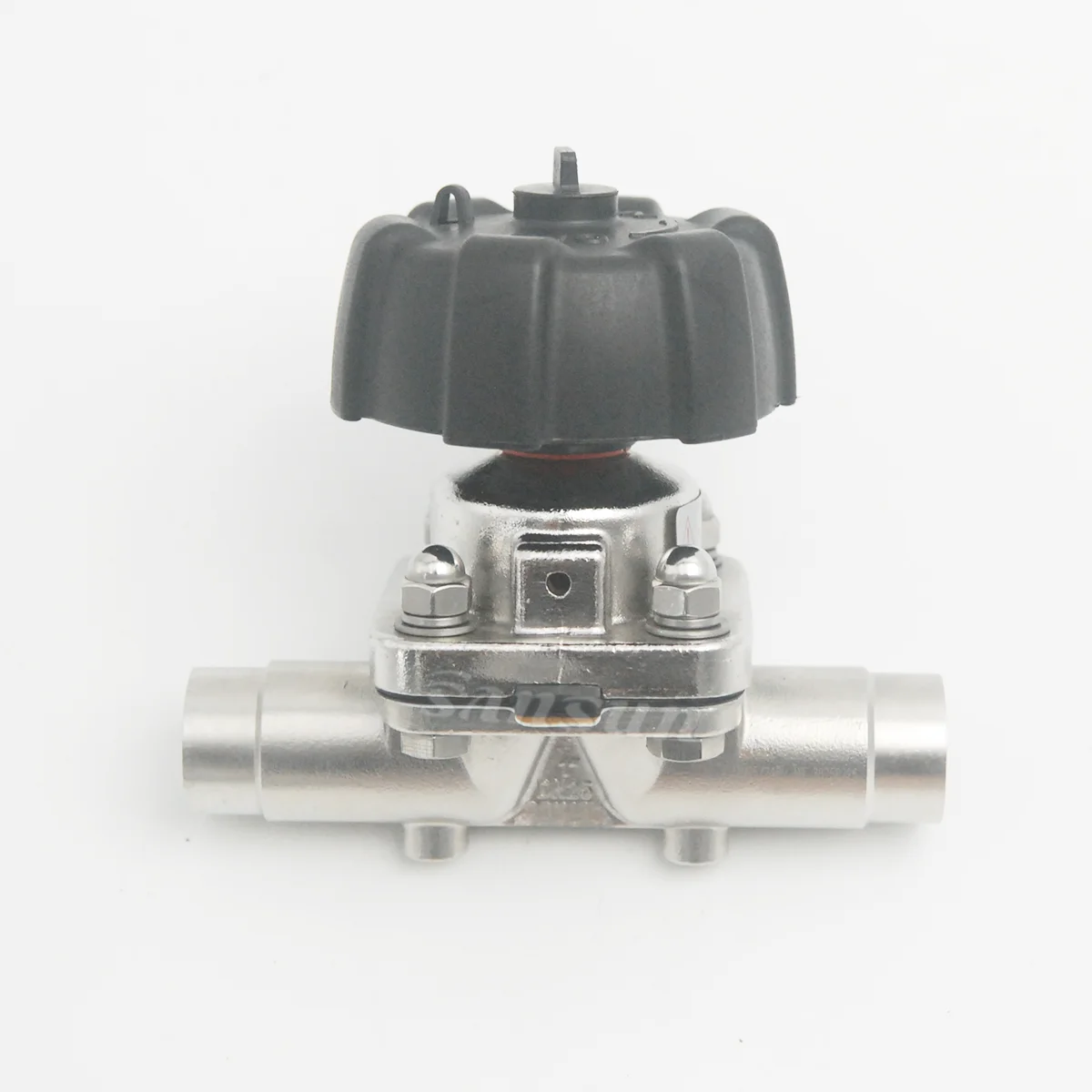

Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим
Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим
Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим
Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим
Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим
Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим
Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим

Санитарно сварной мембранный клапан из нержавеющей стали с пластиковым пневматическим


Поделиться:


Цена:55,00 $ - 60,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 70.89 $* 71.53 $*
Jul-15-2025 57.70 $* 58.49 $*
Jun-15-2025 69.60 $* 70.86 $*
May-15-2025 68.34 $* 69.69 $*
Apr-15-2025 54.73 $* 55.49 $*
Mar-15-2025 67.70 $* 68.56 $*
Feb-15-2025 67.35 $* 68.46 $*
Jan-15-2025 66.45 $* 67.80 $*

Характеристики





Product Description


Product Name:
Stainless Steel Sanitary Welded Diaphragm Valve with Plastic Pneumatic Actuator
Valve Body Material:
1.4435/1.4301, SS304/SS316L(Forged)
Seal Material:
EPDM (standard)
Surface Finishing
Mechanically polishing(SF1-SF2-SF3), Electropolished(SF4-SF5-SF6)
Operating Principles:
The diaphragm seal the body and seat, can't touch the outside environment, so diaphragm valve is suitbale for aseptic process.When Valve closed, the pressure press the valve to seal, then the pressure board moves down to the centre of the body.
Max Working Pressure:
10Bar/145 PSI
Max. Working Tem.:
150 degree C
Availably Size:
DN20-DN100,1"-4"
Features
EN10204-3.1 B Mill cert is offered
PED 2014/68/EU
The valve body can be changeable with any kind of connection
Availably standard:
DIN/SMS/RJT/ISO/IDF
Operated:
Manual
Options
Gasket: EPDM, silicone or Viton, PTFE+EPDM
Connection:weld,clamp,thread,
Control:
Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)
Certificate:
PED 2014/68/EU
Application scope:
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc






Product Show




T Type Three Way Diaphragm valve
SS-V503
Material:SS304/SS316L
Gasket:EPDM, silicone or Viton, PTFE+EPDM
Size:1/2"-2 1/2",DN20-DN100
Operate:Manual Pneumatic Electric
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)


Clamped Straight Diaphragm valve
SS-V502
Material:SS304/SS316L
Gasket:EPDM, silicone or Viton, PTFE+EPDM
Size:1"-4",DN20-DN100
Operate:Manual Pneumatic Electric
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)


U Type Three Way Diaphragm valve
SS-V504
Material:SS304/SS316L
Gasket:EPDM, silicone or Viton, PTFE+EPDM
Size:1"×1/2"-2"×1 1/2",DN25×DN15-DN50×DN40
Operate:Manual Pneumatic Electric
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)


Clamp Pneumatic Diaphragm Valve
SS-V505
Material:SS304/SS316L
Gasket:EPDM, silicone or Viton, PTFE+EPDM
Size:1"-4",DN20-DN100
Operate:Manual Pneumatic Electric
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)


Clamp Diaphragm Valve with Plastic Pneumatic Actuator
SS-V506
Material:SS304/SS316L
Gasket:EPDM, silicone or Viton, PTFE+EPDM
Size:1"-4",DN20-DN100
Operate:Manual Pneumatic Electric
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)


Mini Type Pneumatic Diaphragm Valve
12031601
Material:SS304/SS316L
Gasket:EPDM, silicone or Viton, PTFE+EPDM
Size:1/4"-3/4",DN6-DN15
Operate:Manual Pneumatic Electric
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)


Weld Diaphragm Valve with Plastic Pneumatic Actuator
SS-V507
Material:SS304/SS316L
Gasket:EPDM, silicone or Viton, PTFE+EPDM
Size:1"-4",DN20-DN100
Operate:Manual Pneumatic Electric
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)


FAQ


Q: DO YOU HAVE MILL TEST CERTIFICATE?
Yes, Each order is traceable by Material certificate EN10204 3.1, and we also can offer pressure testing report, roughness test
report if Client need.
Q: DO YOU HAVE PRODUCT WARRANTY
Yes,12 months warranty. 100% inspection on finished products before dispatch. Inferior products can be returned or replaced.
Repair parts is supplied for replacement.
Q: WHAT'S THE MOQ?
No MOQ for standard products. Customized products can be discussed.
Q: MAY I HAVE FREE SAMPLES?
Free samples can be provided for starting cooperation, Freight is collected by Client.
Q: HOW LONG IS THE DELIVERY TIME?
Standard item are in stocked--Normally 3-5 days. Bulk order usually takes about 20-25 days.
Q: WHY WOULD I CHOOSE YOU?
1.Hard-working labor worker and advanced machine ensure large production capacity. It will give our clients fast delivery time.
2. Professional engineer and designer ensure the product parameter is well manufatcured and every month, we will have new products
to help our client's enlarge market.
3. 100% inspection on finished products before dispatch, give our clients good quality products
4. High effective sales team quick response to any quote and complaint.
