Заводская машина для вытаскивания пены по лучшей
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Longkou,Shuangji,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.12 $* | 0.95 $* |
| Aug-16-2025 | 0.69 $* | 0.36 $* |
| Jul-16-2025 | 0.43 $* | 0.31 $* |
| Jun-16-2025 | 0.79 $* | 0.2 $* |
| May-16-2025 | 0.76 $* | 0.39 $* |
| Apr-16-2025 | 0.60 $* | 0.8 $* |
| Mar-16-2025 | 0.76 $* | 0.17 $* |
| Feb-16-2025 | 0.17 $* | 0.25 $* |
| Jan-16-2025 | 0.3 $* | 0.78 $* |
Характеристики
Product Description

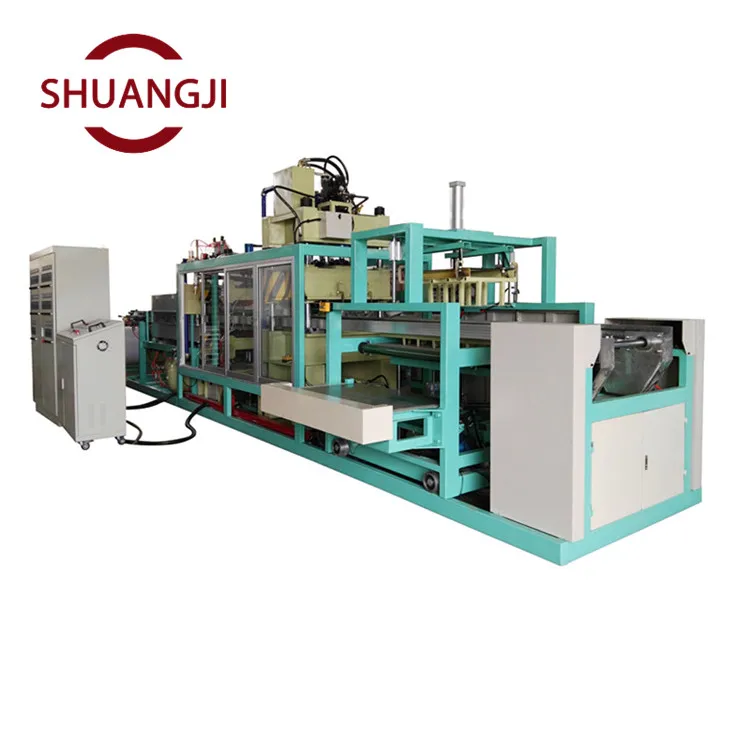

factory take away foam food machine with best price
Forming cutting, stacking are done in the same machine, saving labor, improving efficiency, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part. Two workers are enough for the whole production line. It can be used to produce many kinds of products. Product can be used in the food, medicine, electronic parts, tourism,toys,etc.
Main Features
1. It is an all-powerful thermal forming machine with integration of vacuum
forming and cutting.

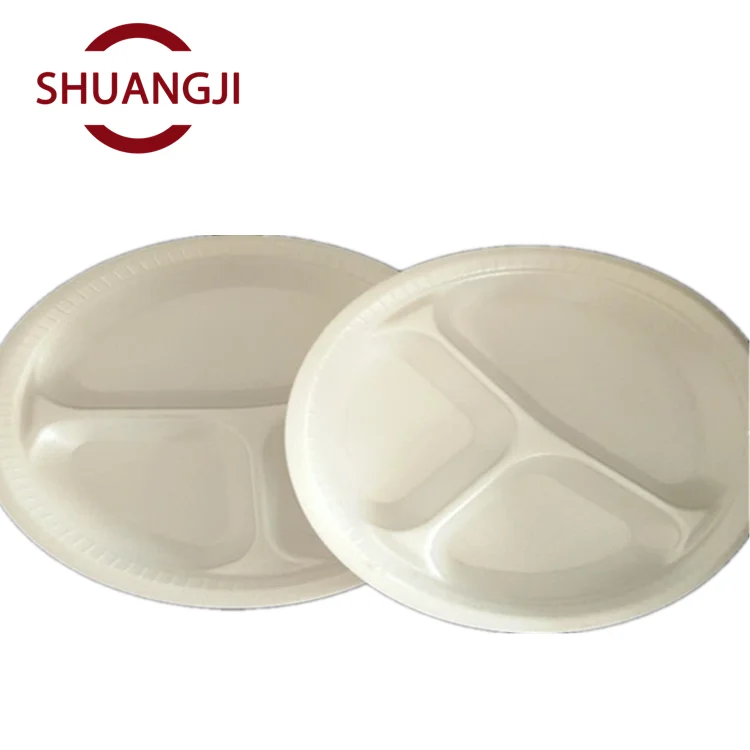

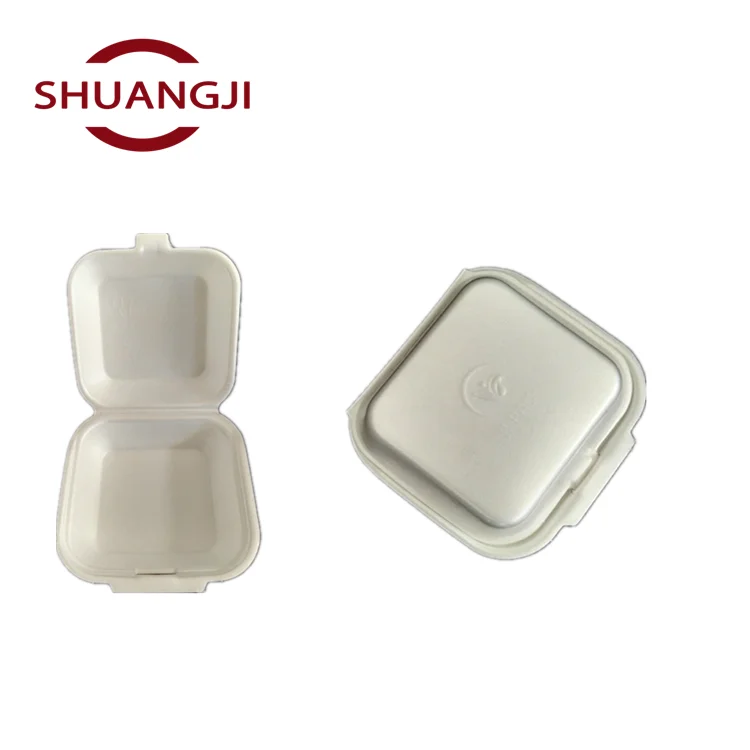

2. It can produce PS foam food box/container, foam (egg/meat) tray, hamburger box, foam
plates/bowl, fruit tray, etc. The foam container has feature of shock
resistance, crush- resistance, heat insulation, etc. It is widely used to pack the heat and
frozen food in supermarket, store and etc.
3. It adopts remote infrared ceramic heater in heating zone, with which the machine get the
most stable and even temperature.
4. It adopts temperature digital system, which is convenient for the workers to know the
temperature of each heating zone quickly. Also it is easily operate and make more efficiency.
5. It adopts servo motor & drive, PLC mechanical and electronic integration control, touch
screen for operating.
6. It features reliable stability, large forming area and fast speed,as well as highly degree of
automation & economic on manpower.
7. It adopts automatic pneumatic device in feeding area, which reduces the labor force.
Certifications
Detailed Images
Machine Parts
Name: Unwinding unit
Brand: Shuangji
Original: China
Unformed PSP placing unit, the feeding of PSP sheet is automatically
driven by cylinder, rubber covered roller is used to unroll the sheet.
Photoelectric control, and put two rollers sheets for one time. Cycle use.
Machine Parts
Name: Heating portion(ceramic tile radiation)
Brand: Shuangji
Original: China
1. Heating box can be moved left and right,convenient maintenance and remove the mold.
2. Heating box full use of heat insulation material,heat preservation effect is good,power saving.
3. Temperature control:intelligent temperature controller
Machine Parts
Name: Vacuum Forming unit
Brand: Shuangji
Original: China
1. Forming type: Vacuum forming, press forming, mould forming,
comprehensive forming.
2. Movement of mould table is driven by hydraulic pressure. Four pillar (Ф70) steering mould table.
3. Two-row chain used to transmission sheet, width of chain is adjustable. driven by 5.5kw servo motor to makes sure high speed and precise transmission. Upper and down baffle plate is movable and cooled by water.
Machine Parts
Name: Cutting portion
Brand: Shuangji
Original: China
1.Punching mode:hydraulic automatic control
2.Punching machine, double vane pump with oil,motor power:5.5Kw
3.Working table stroke:using photoelectric switch automatic control
4.Cutting area can move: driven by the motor,it is beneficial for changing the moulds and can save the time of changing moulds.
Machine Parts
Name: Stacking collection system
Brand: Shuangji
Original: China
1.Control method:controlled by PLC
2.Stacking quantity:arbitrary,automatic stacking
3.Control mode:pneumatic control
4.Transmit power:0.55kw cycloid speed reducer
Scroll winding unit:
photoelectricity switch auto-control, motor power: 0.75KW
Our Service
1. when we make the order, I will follow your order, update machine information and send to you
2. when finish the machine, we will pack the machine well and arrange ship send to you. when the machine got your factory we will send our rich experience engineers to your country
install machine and train your worker till you satisfied with them
3. when you run the machine, if you have any problem our after-sales service person will solve your problem at first time.
4. our machine have 1 year guarantee and lifetime maintenance.
5. if you need any parts, we will supply them as a cost price.
Packing & Delivery
Packaging | ||
Size | 6m*2m*2.6m | |
Weight | 7T | |
Packaging Details | we will use pe film for packing or pack it according to customers special request. Easy to damage parts package is wooden box | |
