SKILT автоматическая наклейка с защитой от взлома машина для Маркировки коробок и
- Категория: Машины для этикеток >>>
- Поставщик: Shanghai,Skilt,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.57 $* |
| Aug-16-2025 | 0.60 $* | 0.86 $* |
| Jul-16-2025 | 0.46 $* | 0.13 $* |
| Jun-16-2025 | 0.67 $* | 0.12 $* |
| May-16-2025 | 0.92 $* | 0.96 $* |
| Apr-16-2025 | 0.65 $* | 0.94 $* |
| Mar-16-2025 | 0.76 $* | 0.78 $* |
| Feb-16-2025 | 0.92 $* | 0.50 $* |
| Jan-16-2025 | 0.82 $* | 0.60 $* |
Характеристики
Contact
Rebecca
Skype: rebecca890314
Phone/Wechat/whatsapp:0086-18917387699
www.skiltpack.com
www.skiltmachine.com
SKILT Customer
Product Description
1. The Scope of Application
The model DPM-A top surface labeling machine suit for different kinds products, such as bag, box ,carton, cap, container and so on ;
(P.S. our labeling machine can be designed according to your needs)

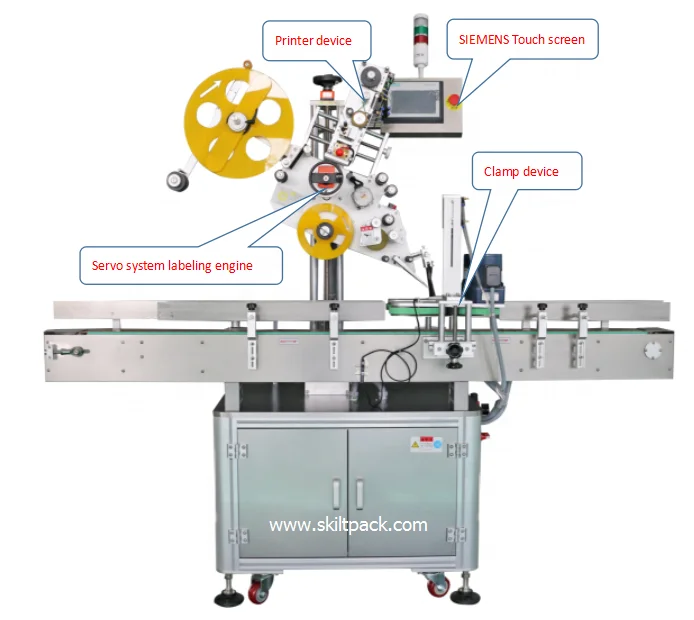

2. Device Characteristic
1.Control system: use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate;
2. Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, rich with the help function and fault disply function ;
3. Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker
4. Send label system: servo moor control system, stable with high speed;
5. Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6. Machine Material: machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
7. Low voltage circuit all use the German Schneider brand;
Technical Parameter
Model | DPM-A |
Capacity (pcs/min) | 20-230 |
Driving Mode | servo motor control system |
Labeling accuracy | ±1mm |
Labeling Speed(m/min) | ≤35 |
Label Specification | adhesive sticker, transparent or opaque |
Suit bottle size | Can customized |
Suit label size | Height 20-160mm Length 25-300mm |
The inner diameter or label roll | 76mm(min) |
The outer diameter of label roll | 350mm(max) |
Power | 550w |
Voltage | can customized, 110V/220V/380V |
Machine size | 1800x80x1500mm |
No | Name | Model | Unit | Brand |
1 | PLC control system | 6ES7212-1A | 1 set | SIEMENS |
2 | Touch screen | 6AV6648-01A | 1 set | SIEMENS |
3 | Photoelectric sensor (checklabel object) | FS-N18N | 1Set | Japan KEYENCE |
4 | Photoelectricsensor (Check opaque label) | GS61 | 1 Set | German Leuze |
5 | Drive | 2003-CSD3-08BX2 | 1 Set | America AB |
6 | Main transport motor | 90W1:30 | 1 set | German JSCC |
7 | Speed Controller | 40-90W | 1 set | German JSCC |

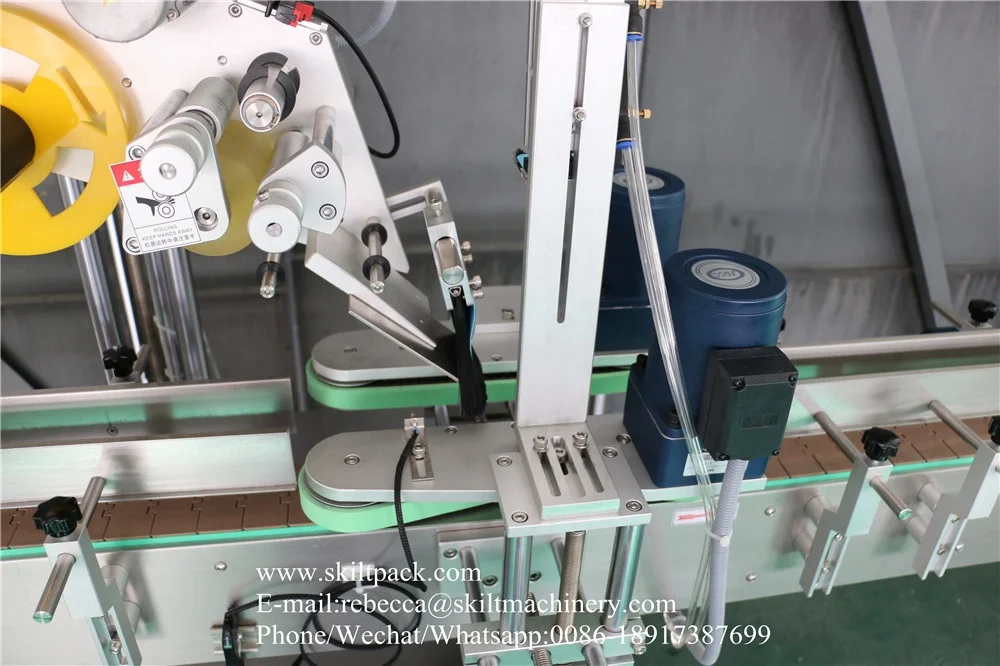

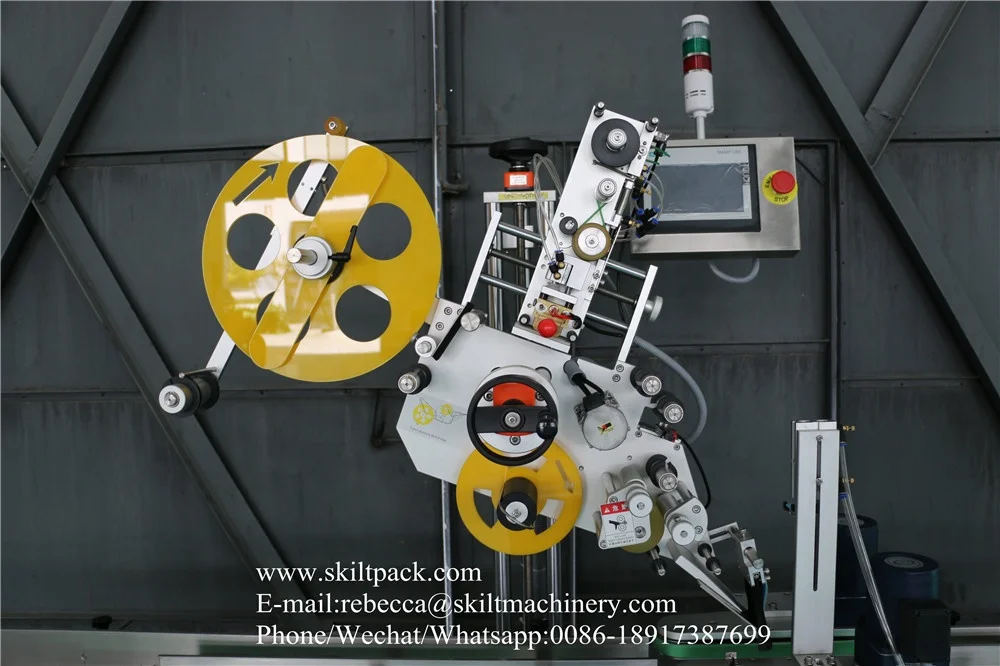

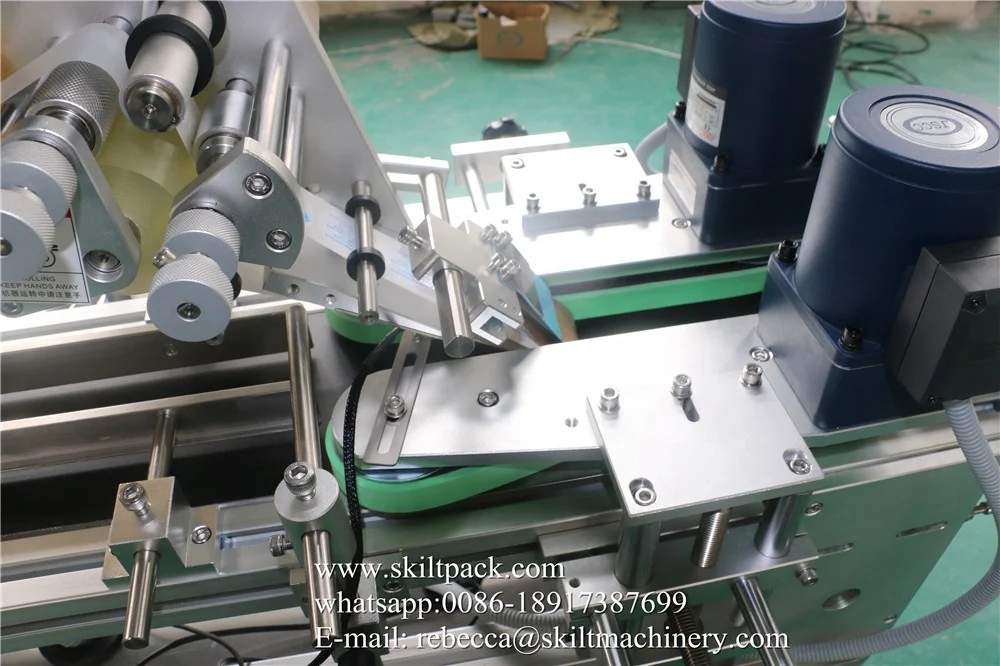

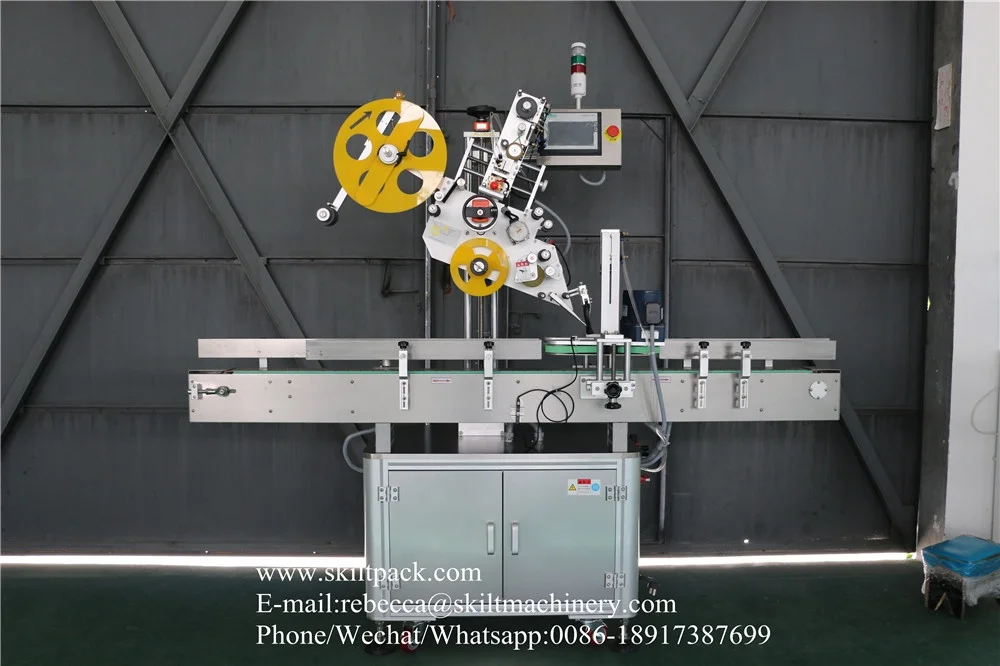

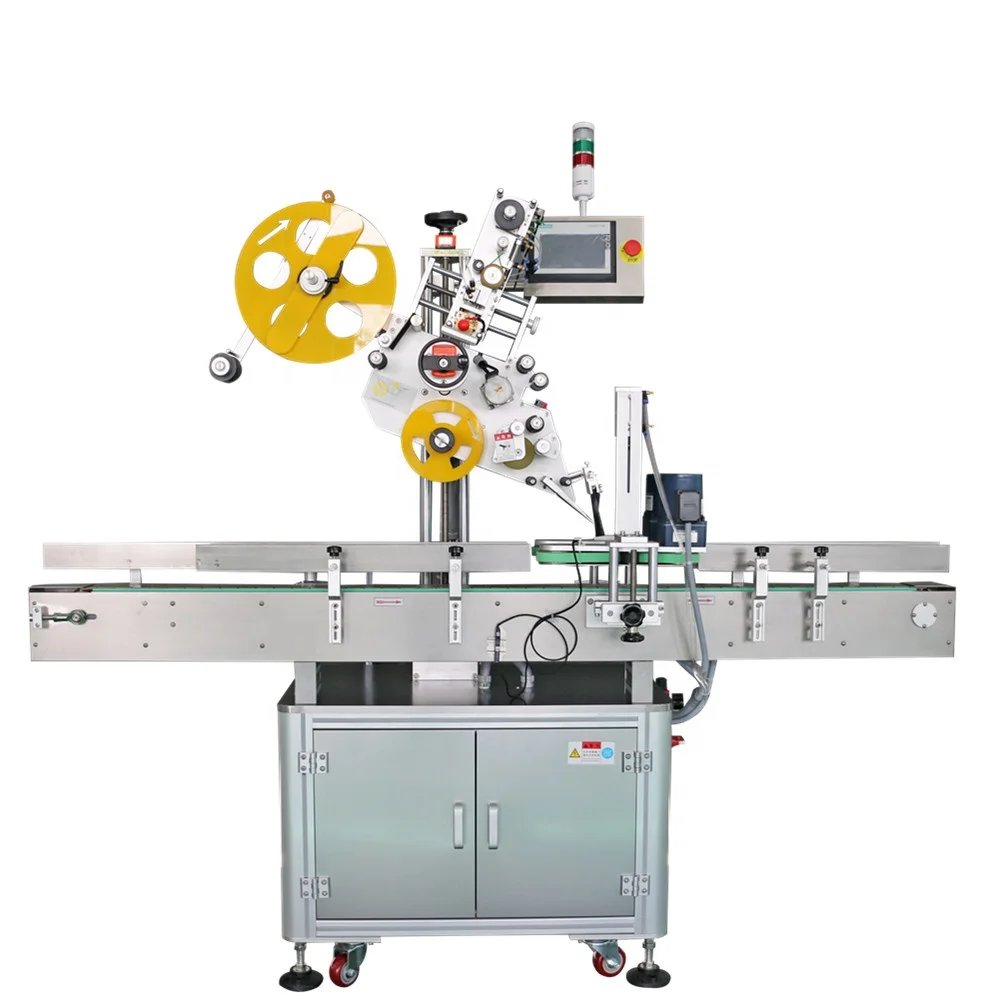

Detailed Images
Machine Processing
SKILT TEAM
FAQ
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size ( product picture with label on it is rather helpful), then we can suggest suitable machine for ref.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
