Автоматическая машина для нанесения этикеток на бутылки
- Категория: >>>
- Поставщик: Zhangjiagang,King,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 6902.50 $* | 7247.57 $* |
| Aug-15-2025 | 6844.62 $* | 7186.70 $* |
| Jul-15-2025 | 5742.55 $* | 6029.8 $* |
| Jun-15-2025 | 6728.20 $* | 7064.32 $* |
| May-15-2025 | 5858.18 $* | 6151.15 $* |
| Apr-15-2025 | 6612.57 $* | 6943.22 $* |
| Mar-15-2025 | 6554.5 $* | 6882.74 $* |
| Feb-15-2025 | 6496.2 $* | 6821.95 $* |
| Jan-15-2025 | 6438.81 $* | 6760.91 $* |
Характеристики
King Machine Factory
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
OPP Hot Glue Labeling Machine.
1/Body is built with stainless steel, aluminum alloy and square steel tubes.
2/welded tubes ensure stable and smooth operations at high speed performance.
3/Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness.
4/Round plate type suction label.
5/Automatically detect and adjust the production speed
6/Emergency Stop Safety Device disables the machine when senses an abnormality.
7/Automatic tension control.
8/Automated label proofreading and Cutting System.
9/Automatic warning system and alarm will be activated when it is out of label.
2/welded tubes ensure stable and smooth operations at high speed performance.
3/Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness.
4/Round plate type suction label.
5/Automatically detect and adjust the production speed
6/Emergency Stop Safety Device disables the machine when senses an abnormality.
7/Automatic tension control.
8/Automated label proofreading and Cutting System.
9/Automatic warning system and alarm will be activated when it is out of label.
Specification | |
Speed | 50~180 bottles/minutes according to the specification of bottle and label |
Packaging Details | Label size (L: 20-150mm W: 10-250mm) Bottle Size (D: 10-150mm H: 30-350mm) |
Power | 500W 220V 1Ph 50-60Hz |
Overall Size | 1800*1000*1500 mm |
Weight | 420 Kg |
Label Position | Single label / Front and back double sides / Front back neck three sides |
Automatic Cold Glue Labeling Machine.

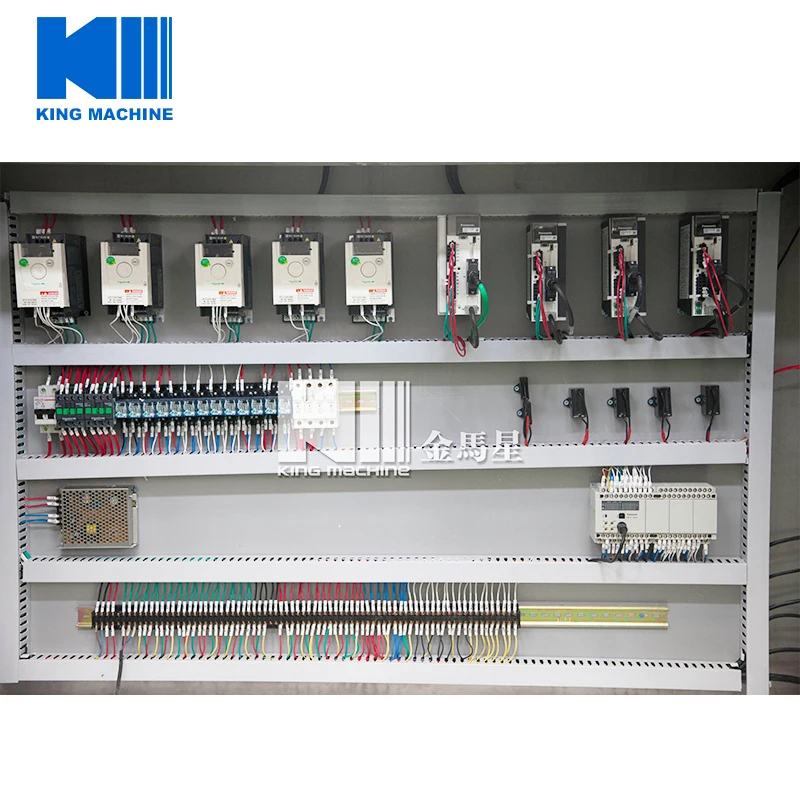

1 / This equipment used PLC micro-computer software control system, which has powerful memory function, and able to pre-setting 50 group of labeling parameters.
2 / It is simple and quick operation. The label controlled by mutual inductance stepper motor. It ensures that the speed of sending label is sames as the imported inverter, to ensure that the machine's stability and reliability.
3 / Stainless steel frame construction and components are standard;
4 / Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling
Basic purpose:
It can be used for a variety of cylindrical objects, small taper round bottle full roll or half roll, front and back double-standard labeling, such as food cans, cosmetics round bottles, medicine bottles; Can match with ribbon coder, therefore it can print production date.
2 / It is simple and quick operation. The label controlled by mutual inductance stepper motor. It ensures that the speed of sending label is sames as the imported inverter, to ensure that the machine's stability and reliability.
3 / Stainless steel frame construction and components are standard;
4 / Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling
Basic purpose:
It can be used for a variety of cylindrical objects, small taper round bottle full roll or half roll, front and back double-standard labeling, such as food cans, cosmetics round bottles, medicine bottles; Can match with ribbon coder, therefore it can print production date.
Specification | ||
Range of output capacity | 3000-12000 b/h | |
Label Width | 50-130 mm | |
Capacity of Label Box | 7000 pieces | |
Main Motor Power | 3 KW | |
Air Pressure | 0.35-0.5 Mpa | |
Air Flow | 0.9 m3/min | |
Weight | 2000 kg | |
Overall Dimension | <L*W*H> 1800 * 1400 * 2000 mm | |
Technical Parameter | ||||
Model | SPC-150B | SPC-250B | ||
Capacity （on the base label length ：500ml） | 3000BPH-6000BPH | 6000BPH-10000BPH | ||
Label size | Diameter 50-110mm | Diameter 30-125mm | ||
Bottle heights | heights 50-200mm | |||
Bottle diameter | Diameter 40-120mm | Diameter 28-125mm | ||
Label sleeve length | 40-150mm | 30-250mm | ||
Thickness | > 0.035mm | |||
Label material | PVC/ PET | |||
Electrical power | 2.5KW （380V 50HZ） | |||
Overall diameter | 2440*890*2200mm | |||
Weight | Approximate 750KG | Approximate 950KG | ||

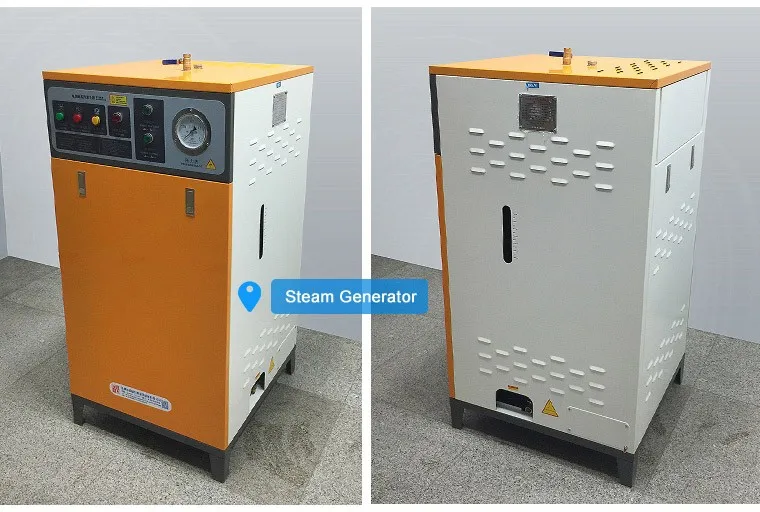

Steam generator for Shrink Sleeve Label Machine.
The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.
Model | SPC - 1200 |
Input Power Supply | 3PHASES 380V |
Input Power | 18KW/36KW |
Steam Pressure | 0.25-0.4Mpa |
Vapor Generation | 24kg/h; 48kg/h |
External Dimension | L600*W550*H1200mm |
Weight | 96Kg |

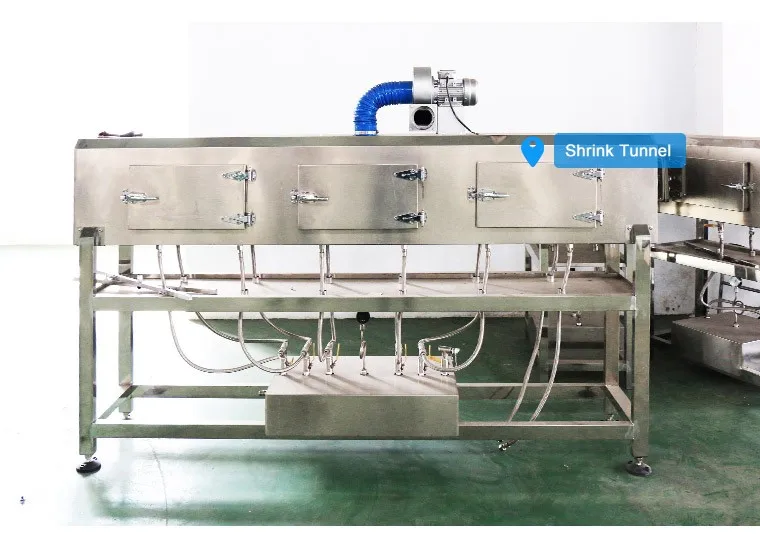

ShrinK Tunnel for Shrink Sleeve Label Machine.
In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
Flat conveyor for Shrink Sleeve Label Machine.
1.Side panel: 304 stainless steel wire-drawing sheet, thickness is 2.5mm.
2.Motor: Hangzhou Jie brand
3.Supporting leg: 304 stainless steel pressing structure
4.Trunking and cover: 304 stainless steel, thickness is 1mm.
5.Chain plate: Domestic high-quality plastic chain plate, polyoxymethylene (POM).
6.Bearing housing: 304 stainless steel cage
2.Motor: Hangzhou Jie brand
3.Supporting leg: 304 stainless steel pressing structure
4.Trunking and cover: 304 stainless steel, thickness is 1mm.
5.Chain plate: Domestic high-quality plastic chain plate, polyoxymethylene (POM).
6.Bearing housing: 304 stainless steel cage
Different Labels for Different Labeling Machine.
1/PVC/PET shrink film label.
Widely used in food, beverages, mineral water and daily products.
Material: PVC heat shrinkable film, PET heat shrinkable film.
PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;
PVC/PET heat-shrinkable labels printed flattened folding diameter: not more than 270mm;
Height: according to customer requirements;
Thickness: 3 wire to 5.5 wire, according to customer requirements, roll or cut sheet can be;
Color: Up to 9 colors
2/Sticker label.
Material: Coated paper, Synthetic paper, BOPP.
Color: Up to 9 colors.
3/OPP label.
Material: PVC heat shrinkable film PET heat shrinkable film;
PVC shrinkage: longitudinal shrinkage 1%-4% lateral shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1%-3% lateral shrinkage 70%
Widely used in food, beverages, mineral water and daily products.
Material: PVC heat shrinkable film, PET heat shrinkable film.
PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;
PVC/PET heat-shrinkable labels printed flattened folding diameter: not more than 270mm;
Height: according to customer requirements;
Thickness: 3 wire to 5.5 wire, according to customer requirements, roll or cut sheet can be;
Color: Up to 9 colors
2/Sticker label.
Material: Coated paper, Synthetic paper, BOPP.
Color: Up to 9 colors.
3/OPP label.
Material: PVC heat shrinkable film PET heat shrinkable film;
PVC shrinkage: longitudinal shrinkage 1%-4% lateral shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1%-3% lateral shrinkage 70%
Certificate & Patent
About King Machine
<1> Standardized workshop of total 12,000 square meters.
<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
King Service
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
Packing & Delivery
Delivery.
Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.
Transport : By sea. By train. By aircraft.
FAQ & Feedback
FAQ-See King Machine How to ensure the Quality !
FAQ-How to guarantee your money safe and delivery on time?
