T8370 Тормозная барабанная тормозная колодка большого диаметра Расточная резка токарная
- Категория: Boring Machines >>>
- Поставщик: Xuzhou,Elsen,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.83 $* | 0.31 $* |
| Aug-16-2025 | 0.90 $* | 0.13 $* |
| Jul-16-2025 | 0.41 $* | 0.37 $* |
| Jun-16-2025 | 0.55 $* | 0.77 $* |
| May-16-2025 | 0.14 $* | 0.60 $* |
| Apr-16-2025 | 0.32 $* | 0.47 $* |
| Mar-16-2025 | 0.40 $* | 0.14 $* |
| Feb-16-2025 | 0.18 $* | 0.89 $* |
| Jan-16-2025 | 0.30 $* | 0.88 $* |
Характеристики

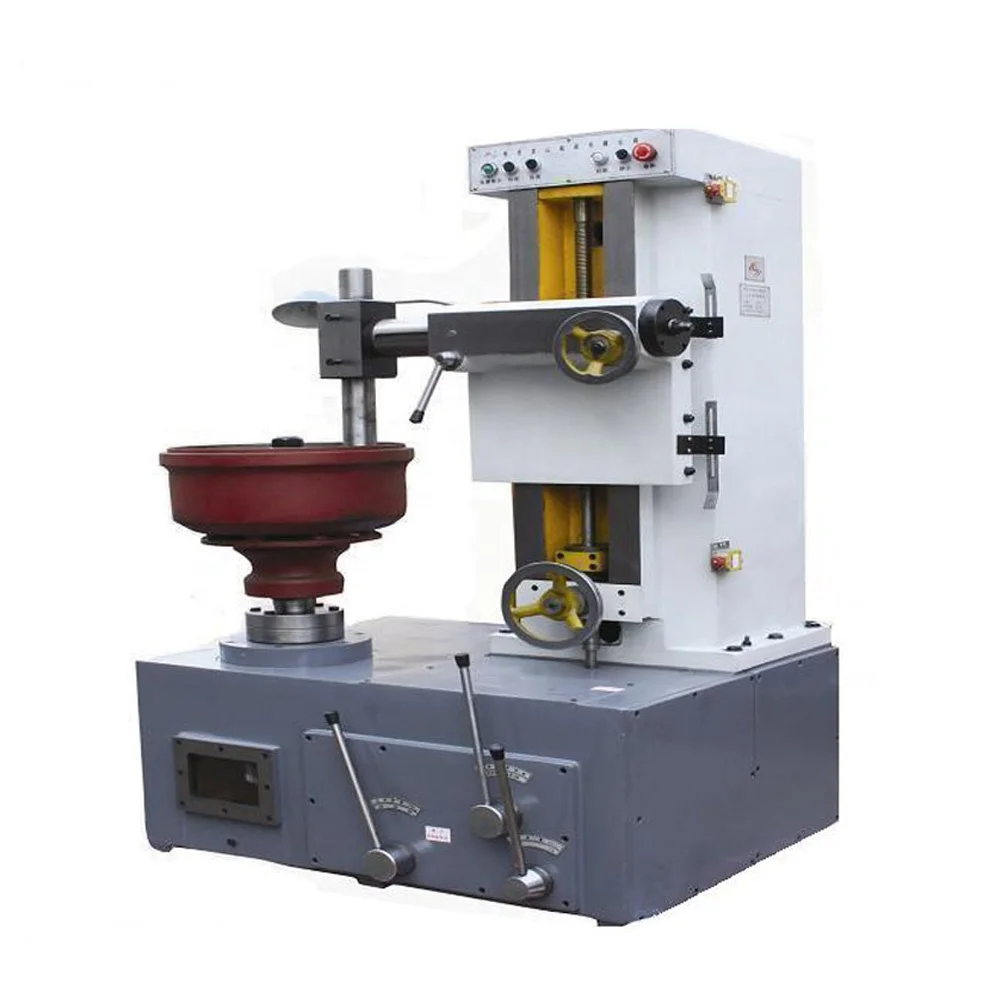

T8370 big diameter processing brake drum brake shoe boring cutting turning machine
Product Description
Product Description for T8370 big diameter processing brake drum brake shoe boring cutting turning machine
Machine specification:
This machine is applicable for boring, repairing, machining, producing brake drum of vehicles & tractors, it is with features as below:
1. High rigidity. The thickness of chassis is 450mm, which is integrated with transmission system & stand, so the rigidity is strengthened.
2. Wide machining range. This model is with very big machining diameter among all the brake drum boring machines in china. Max processing diameter will be 800mm.
3.Perfect operation system. The quick up/down & positive/negative feed increases the working efficiency and the integrated button station achieves convenient operatin.
4.Applicable for widel car types. It can machine not only brake drums of Jiefang, Dongfeng, Yellow River, Yuejin, Beijing130, Steyr, Hongyan etc.,but also the followings: Zhongmei Axle, York Axle, Kuanfu Axle, Fuhua Axle, Anhui Axle.
5.New design structure,the vertical column will move from the left to right.It will increase the processing diameter.
Main Specifications | Unit | T8362 | TC8365A | T8370 | T8380 |
Range of Processing Diameter | mm | 180-620 | 200-650 | 180-700 | 180-800 |
Rotating Speed of Workpiece | r/min | 36/48 | 25/45/80 | 24/45/80 | 38/62 |
Working Travel of Slideboard | mm | 450 | 350 | 450 | 450 |
Main Motor Power | kw | 1.1 | 1.5/0.55 | 2.2 | 0.75/0.55 |
Overall Dimensions (L x W x H) | mm | 960 x 940 x 1400 | 1000 x 900 x 1415 | 1040 x 900 x 1720 | 1150x580x1658 |
PackingDimensions (L x W x H) | mm | 1060 x 1040 x 1500 | 1200 x 1040 x 1630 | 1150x 1000 x 1820 | 1250x680x1758 |
N.W/G.W | kg | 900/1050 | 850/960 | 1200/1350 | 1000/1150 |

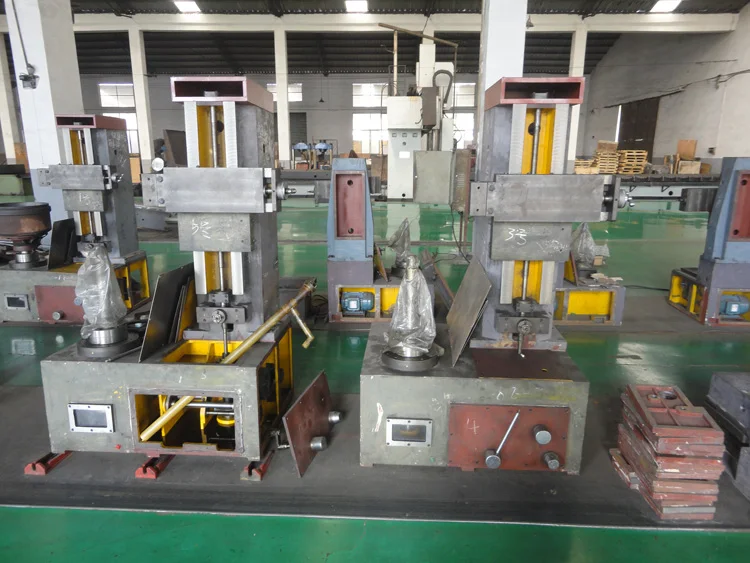

Production&Workshop
Production&Workshop for T8370 big diameter processing brake drum brake shoe boring cutting turning machine

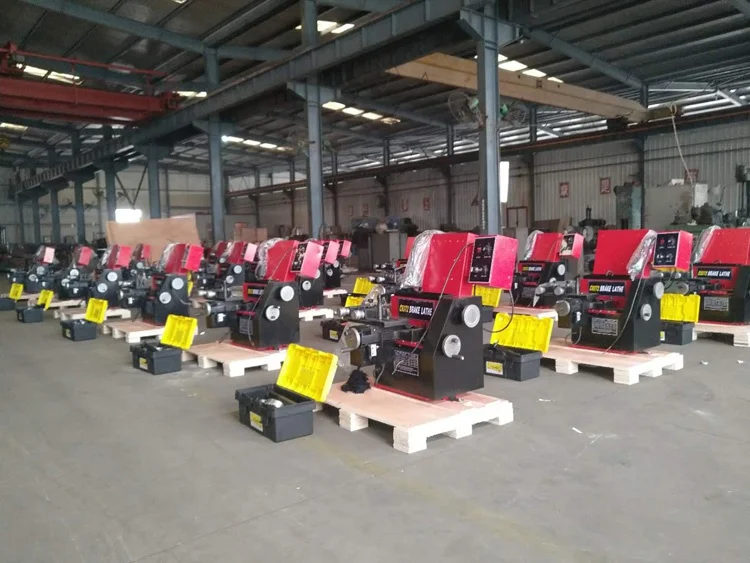

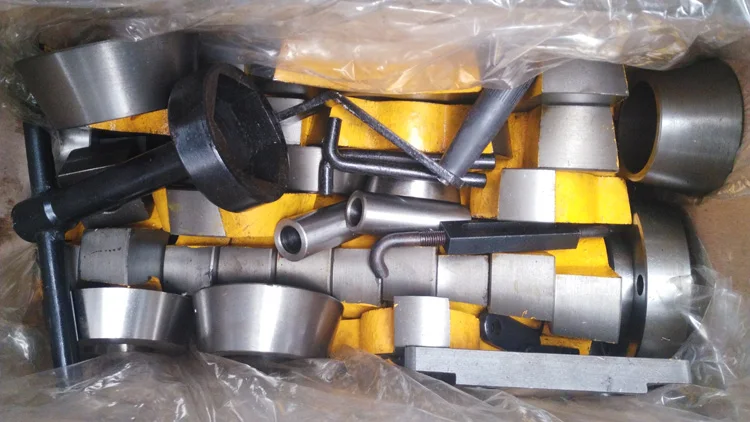

Packaging & Shipping
Packaging&Shipping for T8370 big diameter processing brake drum brake shoe boring cutting turning machine
Customer&Expo
Customer&Expo for T8370 big diameter processing brake drum brake shoe boring cutting turning machine
Company Information
Companny information for T8370 big diameter processing brake drum brake shoe boring cutting turning machine
FAQ
1:Are you a manufacture?
A:Yes,we are a real manufacture.Welcome to visit our factory!
2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.
3: Can you offer customized service ?
A : Machines listed on our website are just part of our conventional models,we can also provide customized service accoding to customer's requirements.
4. How can I choose the most suitable machines ?
A :Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5: Can you offer the traning ?
A : Yes,we can provide a cost-free traning,Teach you how to operate our machine,some common problems,and how manintain the machine etc. It would be great honor to us.
6: Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for more than 18 years. Our machines have been already exported to Germany,Belarus,UK,Poland,Finland,Czech,Ukraine,Italy,Netherland,Egypt,Turkey,Russia,South Korea,India,
Vietnam,Thailand,Indonesia,Spain,USA,Peru,Chile,Argentina,etc.
You can get higher quality machine tools and better professional service from our company.
7.How about your after-sales service ?
A:Machines overall warranty is one year.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas!
