Product Description

Product Application

Drill for Water well, Geological exploration/investigation, Soil sample taking,Soil test,  SPT Test, Mining project, etc.

\t
SPECIFICATIONS FOR boring machine drilling rig
\t
\t





Main parametr
\t
Model
\t
YT-130Y
\t
YT-180Y
\t
YT-200Y
\t
Drill depth
\t
130m
\t
180m
\t
220m
\t
Drill diameter
\t
75-225mm
\t
75-225mm
\t
75-325mm
\t
Drill pipe size
\t
55mm*4.2m
\t
Drill angle
\t
90-75 degree
\t
Power
\t
13.2kw
\t
13.2kw
\t
14.7kw
\t
Weight
\t
740kg
\t
750kg
\t
970kg
\t
Size.m
\t
2.4x0.8x1.4
\t
2.4x0.8x1.4
\t
2.7x0.9x1.5
\t

Spindle
\t
Speed(r/min)
\t
142/285/570
\t
130/300/480/730/830/1045
\t
64/128/287/557
\t
Stroke(mm)
\t
                                    450
\t


Winch
\t
Max pull capacity(kg)
\t
2000
\t
2100
\t
2500
\t
pull speed(m/s)
\t
0.41-1.64
\t
0.35-2.23
\t
0.12-0.95
\t
Rope diameter(mm)
\t
9.3
\t
9.3
\t
12.5
\t
Rope capacity(m)
\t
27
\t
27
\t
35
\t

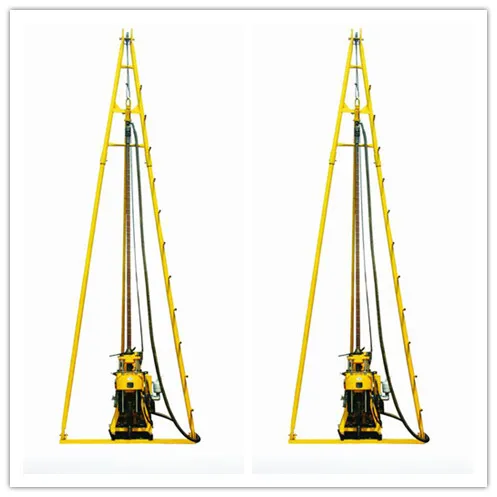

Drill mast
\t
Height(m)
\t
                                        6.5
\t
Rated Load(T)
\t
                                         18
\t
Mud pump
\t
Flow(L/Min)
\t
95
\t
95
\t
145
\t
Max pressure(MPa)
\t
1.2
\t
1.2
\t
2
\t
Times/min
\t
93
\t
93
\t
93
\t
Inlet hose dia(mm)
\t
51
\t
51
\t
51
\t
Outlet hose dia(mm)
\t
32
\t
32
\t
38

Main Features

1.Drills up to 250m deep, 75-300mm diameter , trailer mounted.
2. Hydraulic control, diesel engine/electric engine , trailer mounted.
3. Drill on soil, sand, gravel, thick\\hard rocks, marble, Quartz, and any other hard ground, etc.
4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.
5. It is a full set of machine with all 200m accessory can be used upon arrival.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Detailed Images

Machine Parts

Name: Diesel engine

Brand: changchai

Original: China

Domestic famous engines, strong driving force, low fuel consumption, 14.7KW

Main Features

Name: Mud pump
Brand: YT
Original:China
Flow: 145L/min

Max pressure: 2MPa

Times/min: 93

Inlet hose dia:51mm

Outlet hose dia: 38mm

Machine parts

Name: Drilling pipe/rod.

Brand: YT

50mm /60mm diameter

4.2m length


Main Features

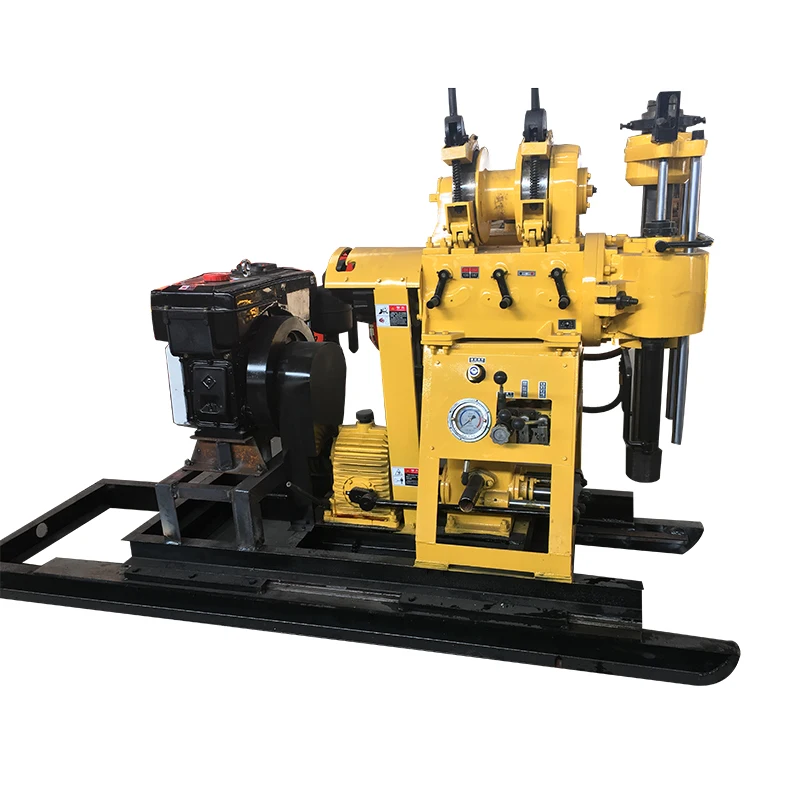

Name: Skid mounted
Brand:YT
Original: China
Skid mounted and trailer mounted

Main parts

Alloy bit: for sand, soil drilling

Diamond bit: rock, hard rock, quarry, marble , gold ground drilling

3 wing bit: Hole opening drilling

Drilling site
Packing & Delivery
\t
Packaging
\t
Size
\t
460mm (L) *30mm (W) * 40mm(D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The machine package is wooden
it contains drilling machine with accessory..
\t
Packaging
\t
Size
\t
251mm (L) *97mm (W) * 170 (D)
\t
Weight
\t
1.2T
\t



Packaging Details
\t
The drilling pipe and drilling mast package is PVC
pipe (Size: 251mm*97mm*170mm).
Mast(Size: 262mm*90mm*40mm)
