Новый переменного тока выключатель ac сертификатом от сертификационной класса 63a 125a автоматического включения резерва (ce 4p 3 фазы Двойная сила atse
- Категория: Другие переключатели >>>
- Поставщик: Siqi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 70.64 $* | 71.28 $* |
| Jul-19-2025 | 57.98 $* | 58.19 $* |
| Jun-19-2025 | 69.19 $* | 70.64 $* |
| May-19-2025 | 68.42 $* | 69.46 $* |
| Apr-19-2025 | 54.74 $* | 55.58 $* |
| Mar-19-2025 | 67.19 $* | 68.4 $* |
| Feb-19-2025 | 67.79 $* | 68.58 $* |
| Jan-19-2025 | 66.65 $* | 67.51 $* |
Характеристики
Products Description

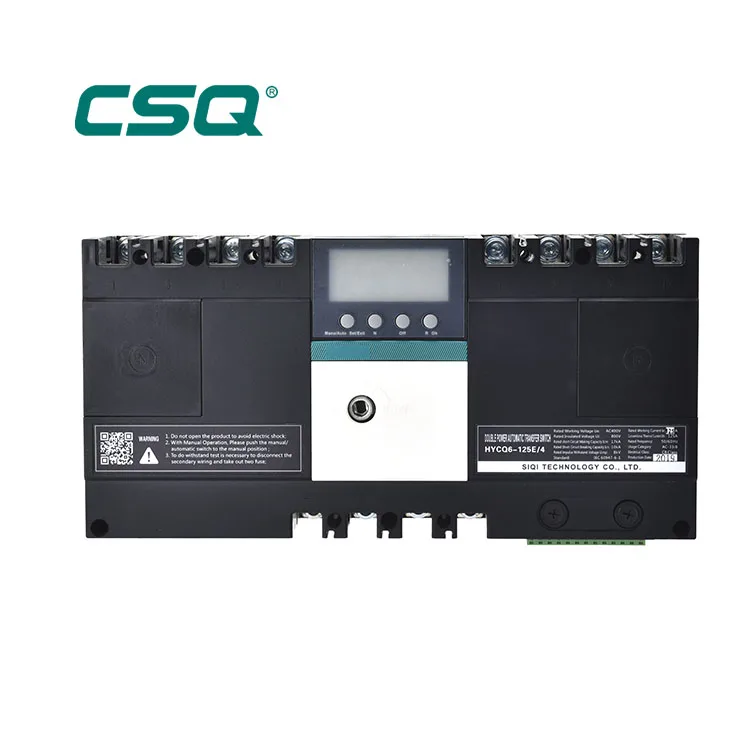

HYCQ6-125 is used in rated voltage below 690V two power supply system. It can make a automatic transfer between the Normal Power and Reserve Power but without manual operation. This switch accords with the following terms of national GB/T14048.11 <
transfer switch>> standards:
§ Operating mechanism should bave reliable electrical and mechanical interlocking, in order to prevent the Normal Power and Reserve Power from cannecting at the same time.
§ HYCQ6-125, when the voltage of detected A phase and all phases of the Normal Power interrupt in a scheduled time, will switch to connect the load from Normal Power to Reserve Power, and when the Normal Power gose back to Normal, it will automatically connect the load to the Normal Power (with phase failure protection function).
transfer switch>> standards:
§ Operating mechanism should bave reliable electrical and mechanical interlocking, in order to prevent the Normal Power and Reserve Power from cannecting at the same time.
§ HYCQ6-125, when the voltage of detected A phase and all phases of the Normal Power interrupt in a scheduled time, will switch to connect the load from Normal Power to Reserve Power, and when the Normal Power gose back to Normal, it will automatically connect the load to the Normal Power (with phase failure protection function).
Product Paramenters
Current | 100A | 125A | 160A | 200A | 250A | ||||
Rated insulation voltage Ui | 690V | ||||||||
Rated impaction withstand voltage Uimp | 8KV | ||||||||
Rated working voltage Ue | AC380V | ||||||||
Rated working current Ie | 100A | 125A | 160A | 200A | 250A | ||||
Load character | AC33iB | ||||||||
Rated making capacity | 10Ie | ||||||||
Rated breaking capacity | 8Ie | ||||||||
Rated limting short-circuit current | 50KA | ||||||||
Rated short time withstand current Ie | 7KA | ||||||||
Change-over time | 4S | ||||||||
Voltage of control power supply | AC220V | ||||||||
Energy consumption of the motor | 40W | ||||||||
Weight Kg | 7 | 7 | 10 | 10 | 10 | ||||
Company Profile
About Siqi
Siqi Technology Co.,Ltd is a high-tech enterprise specializing in research and development, production, sales and services of automatic transfer switch, miniature circuit breaker, molded case circuit breaker and switch disconnector, load break switch, power meter, contactor, which is located in Yueqing city, the global capital of low-voltage electrical appliances.
Recommend Products
Factory introduction
Exhibition
Certifications
FAQ
1. How long is your products warranty?
A1: The warranty period of our products is 24 months.
2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.
3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.
4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.
5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.
6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
A1: The warranty period of our products is 24 months.
2. How about inspection?
A2: We have the whole inspection system from raw material to end products including temperature rise test, salt spraying test conductor type test, mechanical life test and so on.
3. What do you have for certificates?
A3: CE&CB. Our products are passed through IEC60947-3 and IEC60269-2 standards.
4. What is payment terms?
A4: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance is all acceptable.
5. What is the service offered by company?
A5: We have the professional R&D team which can design and develop the mould to achieve all kinds of customer’s requirements. We also have the sales team to offer good services from sales and after-sale.
6. How to become the agents for CSQ?
A6: We will depends on the sales turn over and do research on your market. We can discuss it if you are interested.
