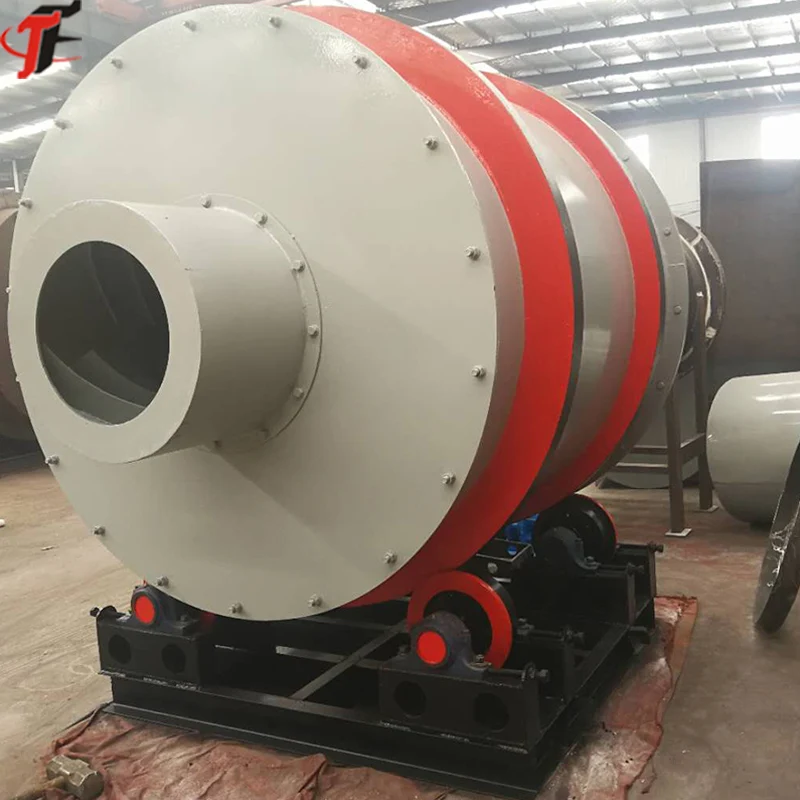

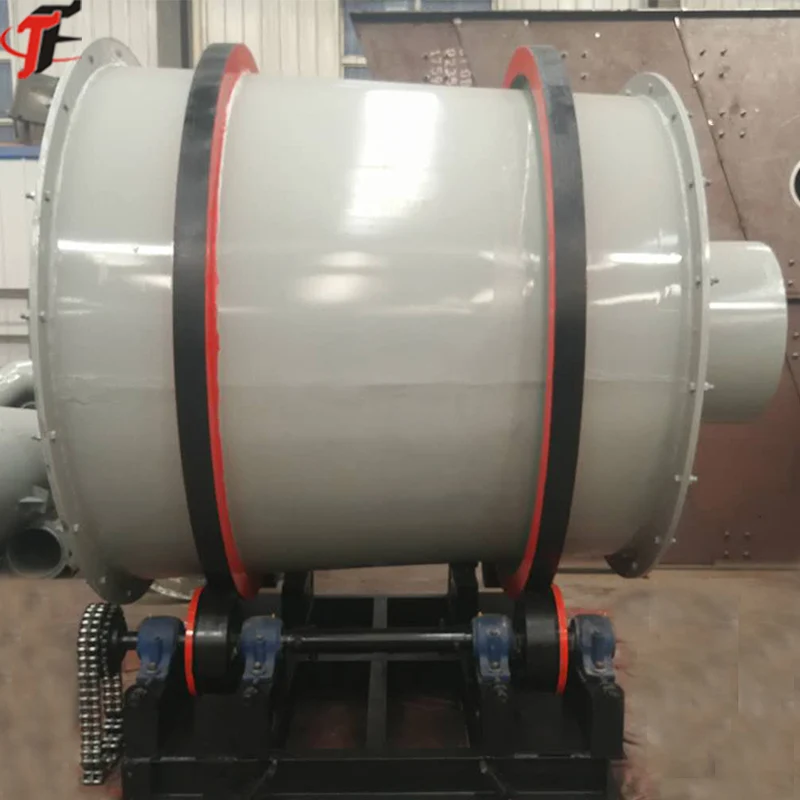

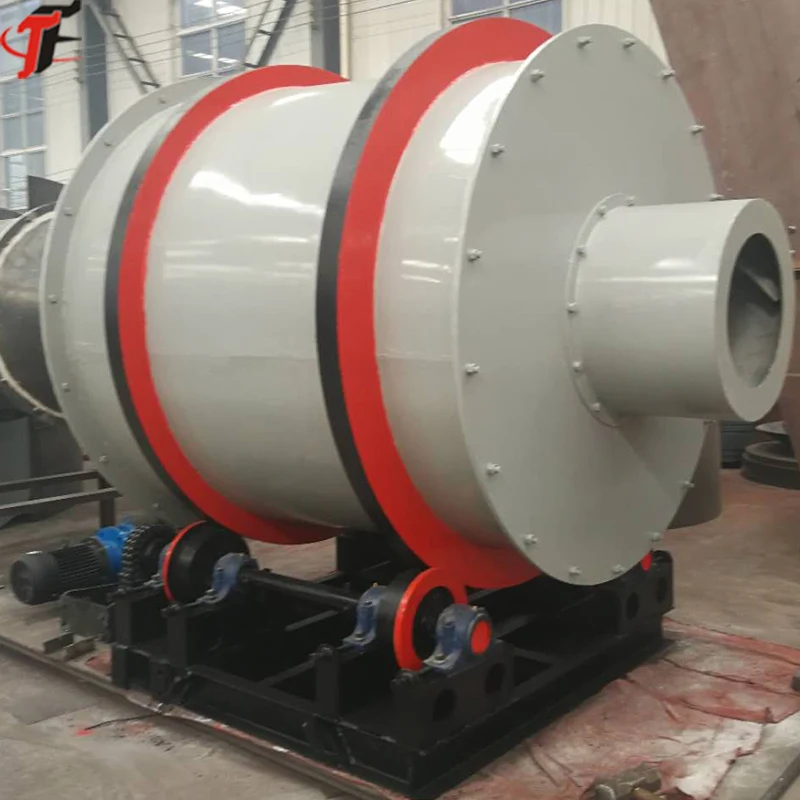

3 Cylinder Triple Pass Sand Rotary Drum Dryer

1. Features of 3 pass rotary drum dryer

1).High technical content, self insulation cylinder body, 80% thermal efficiency (single- cylinder dryer is only 35%), coal saving is 68% than single-cylinder dryer and output increases 100%

2). The length is good for technical layout, 60% shorter than single-cylinder dryer. Also it’s about 20m³area, reducing plant area and saving 40% investment

3).Adopt heat resistant and wear resistant steel plate, 4 times wear resistant than the general steel plate, long service time and convenient to maintain.

4).Outside cylinder body temperature is below 60°(single cylinder temperature is up to 150°), with low outlet temperature.

5).Low outlet temperature is good for keeping long service life.



2. Features of 3 pass rotary drum dryer

Raw material: river sand, yellow sand, coal powder, cement clinker and clay in

Cement Industry, Metallurgy Industry, Chemical Industry and Building Material Industry.



3. Parameter of 3 pass rotary drum dryer



Three Pass Dryer	3 pass rotary drum dryer
Drying capacity	6-8t/h
Diameter of drum	2200mm
Length	2500mm
Motor power	5.5kw
Reducer model	XWD-5
Speed of drum rotation	4-10 r/min
Moisture of end products	<1%
Max. temperature inside	700-750℃
Outlet temperature	60-80℃
Hot-blast Stove dimensions	2.3m×2m×2.7m
Furnace door	450*550 mm
Quicksand tube	φ273×1800 mm
Coal consumption	7-10 kg/ per ton sand

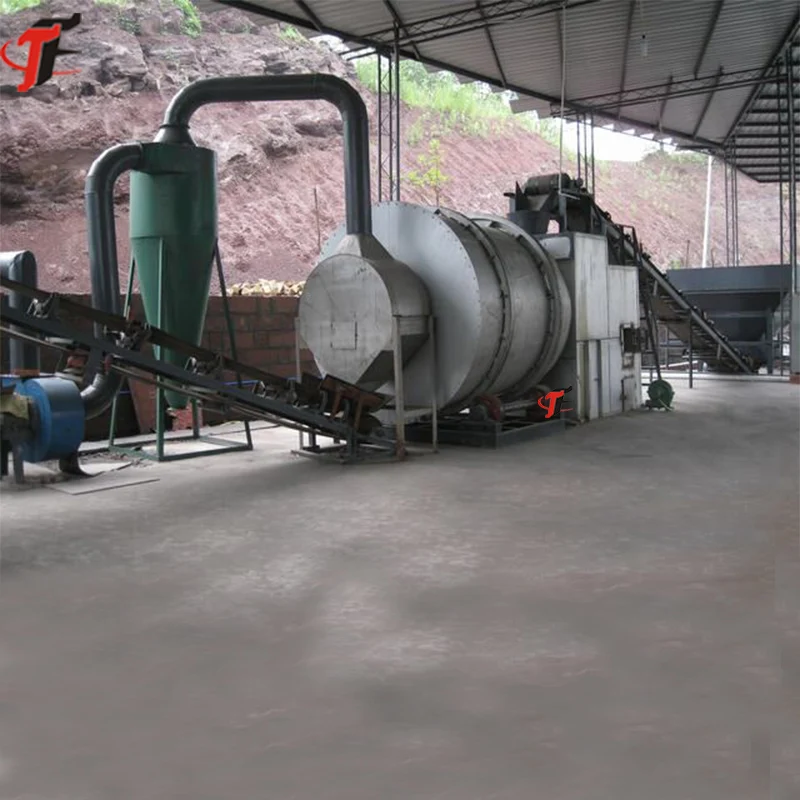

1	Moist-material silo	7	Dedusting system
2	Feeding machine	8	Air blow
3	Belt conveyor	9	Electric closet
4	Hot-blast stove	10	Vibrating screen
5	Dryer
6	Discharging silo

















Main parts of dryer

Hot-blast stove

Linear screener

Storage Hopper

Diesel Burner
