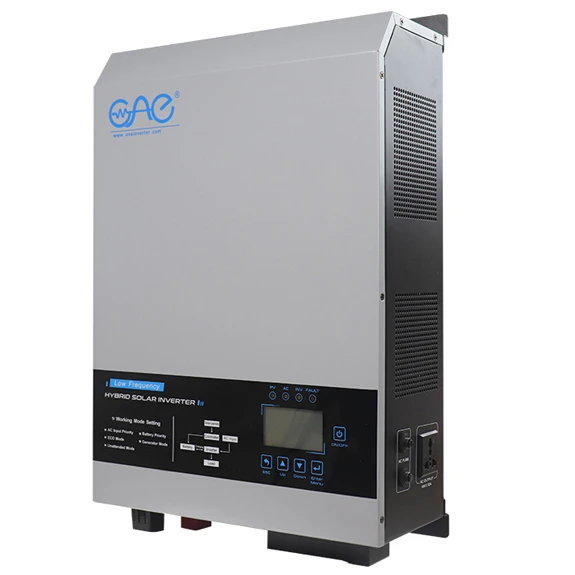

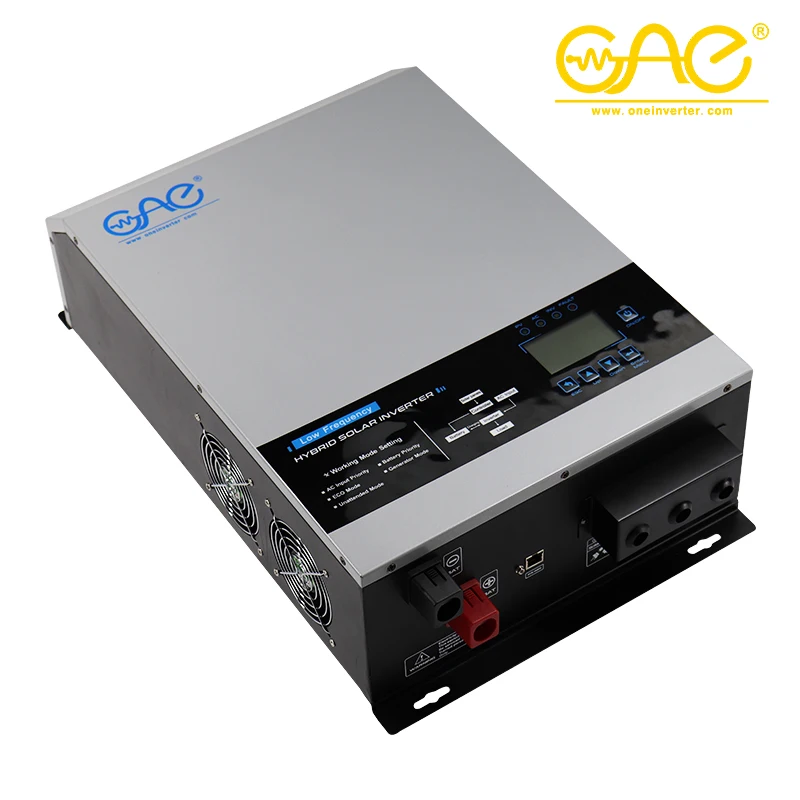

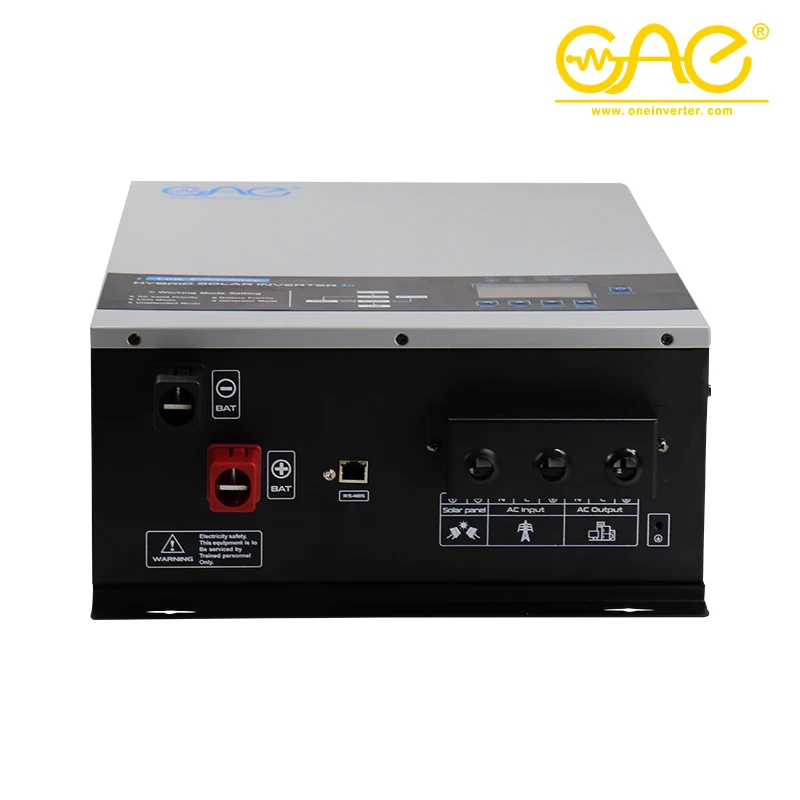

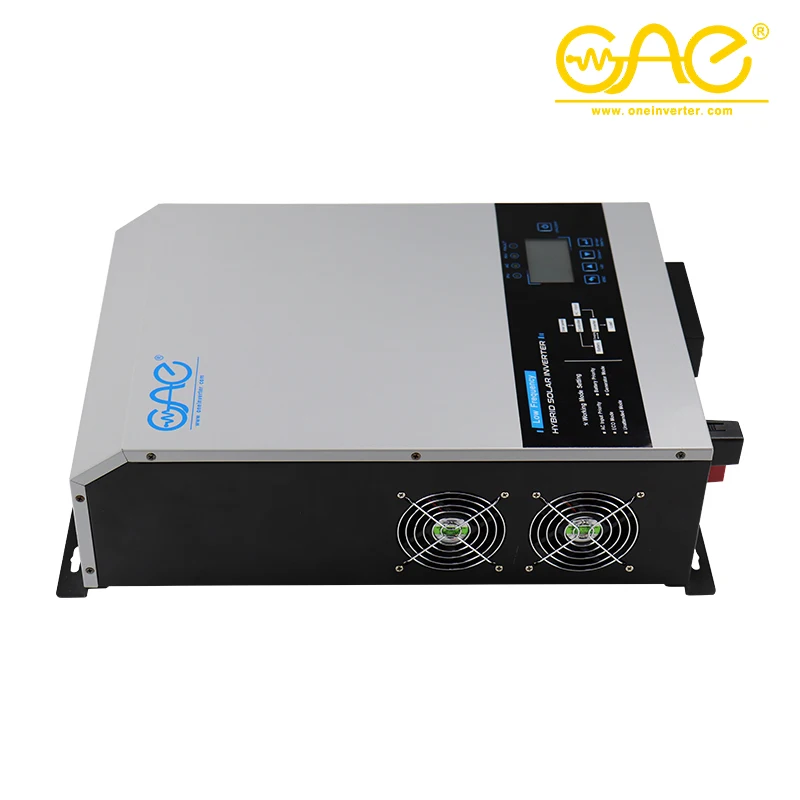

5 кВт автономный солнечный инвертор mppt контроллер солнечного заряда 180 в 12 В 24
- Категория: Солнечные инверторы >>>
- Поставщик: Foshan,Top,One,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 595.74 $* | 625.6 $* |
| Aug-17-2025 | 590.46 $* | 620.87 $* |
| Jul-17-2025 | 495.43 $* | 520.45 $* |
| Jun-17-2025 | 580.82 $* | 609.77 $* |
| May-17-2025 | 505.83 $* | 530.67 $* |
| Apr-17-2025 | 570.62 $* | 599.76 $* |
| Mar-17-2025 | 565.74 $* | 593.25 $* |
| Feb-17-2025 | 560.72 $* | 588.77 $* |
| Jan-17-2025 | 555.19 $* | 583.80 $* |
Характеристики
5kw off grid solar inverter mppt solar charge controller 180v 12v 24v 48vsolar inverter
Product Description
Details data sheet
| MODEL | TG-152 | TG-202 | TG-302 | TG402 | TG-502 | TG-602 |
| RATED POWER | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| SURGE POWER | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW |
| INPUT | ||||||
| VOLTAGE | 220VAC | |||||
| SELECTABLE VOLTAGE RANGE | 145-265VAC | 170-265VAC | ||||
| FREQUENCY RANGE | 50HZ/60HZ±5HZ | |||||
| OUTPUT | ||||||
| AC VOLTAGE REGULATION(BATT. MODE) | (DC BATT.MODE)220VAC±3% | |||||
| TANSFER TIME | ≤5ms | |||||
| WAVE FORM | PURE SINE WAVE | |||||
| BATTERY | ||||||
| BATTERY VOLTAGE | 12V/24V | 24V/48V | ||||
| FLOATING CHARGE VOLTAGE | 13.8V(12V)/27.6V(24V)/55.2V(48V) | |||||
| OVERCHARGE PROTECTION | 17V(12V)/34V(24V)/68V(48V) | |||||
| SOLAR CHARGE & AC CHARGER | ||||||
| MAXIMUM PV ARRAY OPEN CIRCUIT VOLTAGE | 150VDC | |||||
| MAXIMUM PV ARRAY POWER | 420W(12V)/840W(24V) | 1400W(12V)/2800W(48V) | ||||
| STANDBY POWER COMSUMPTION | 15W | |||||
| MAXIMUM AC CHARGE CURRENT | 35A | |||||
| MAXIMUM SOLAR CHARGE CURRENT | 30/50A(OPTIONAL) | 30-60A(OPTIONAL) | ||||
| MAXIMUM CHARGING CURRENT | 85A | 95A | ||||
| PHYSICAL | ||||||
| DIMENSION,D*W*H(MM) | 560*445*195 | 560*445*215 | 610*445*215 | |||
| G.W. | 18 | 18.3 | 22.1 | 24.4 | 27.3 | 38 |
| ENVIRONMENT | ||||||
| HUMIDITY | 0~95%(NO CONDESNSATION) | |||||
| OPERATING TEMPERATURE | 0~60℃ | |||||
| STORAGE TEMPERATURE | 0~60℃ | |||||
| *PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE | ||||||
