Низкочастотный немодулированный синусоидальный инвертор бренда MUST солнечный с раздельной фазой 2 кВт 3 4 5 6 120 В/240 в серии EP3300
- Категория: Solar Inverter >>>
- Поставщик: Must,Energy,(guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 367.81 $* | 374.71 $* |
| Jul-16-2025 | 298.99 $* | 304.58 $* |
| Jun-16-2025 | 361.92 $* | 368.28 $* |
| May-16-2025 | 358.27 $* | 365.97 $* |
| Apr-16-2025 | 286.37 $* | 292.52 $* |
| Mar-16-2025 | 353.1 $* | 360.25 $* |
| Feb-16-2025 | 350.58 $* | 357.96 $* |
| Jan-16-2025 | 347.36 $* | 354.30 $* |
Характеристики

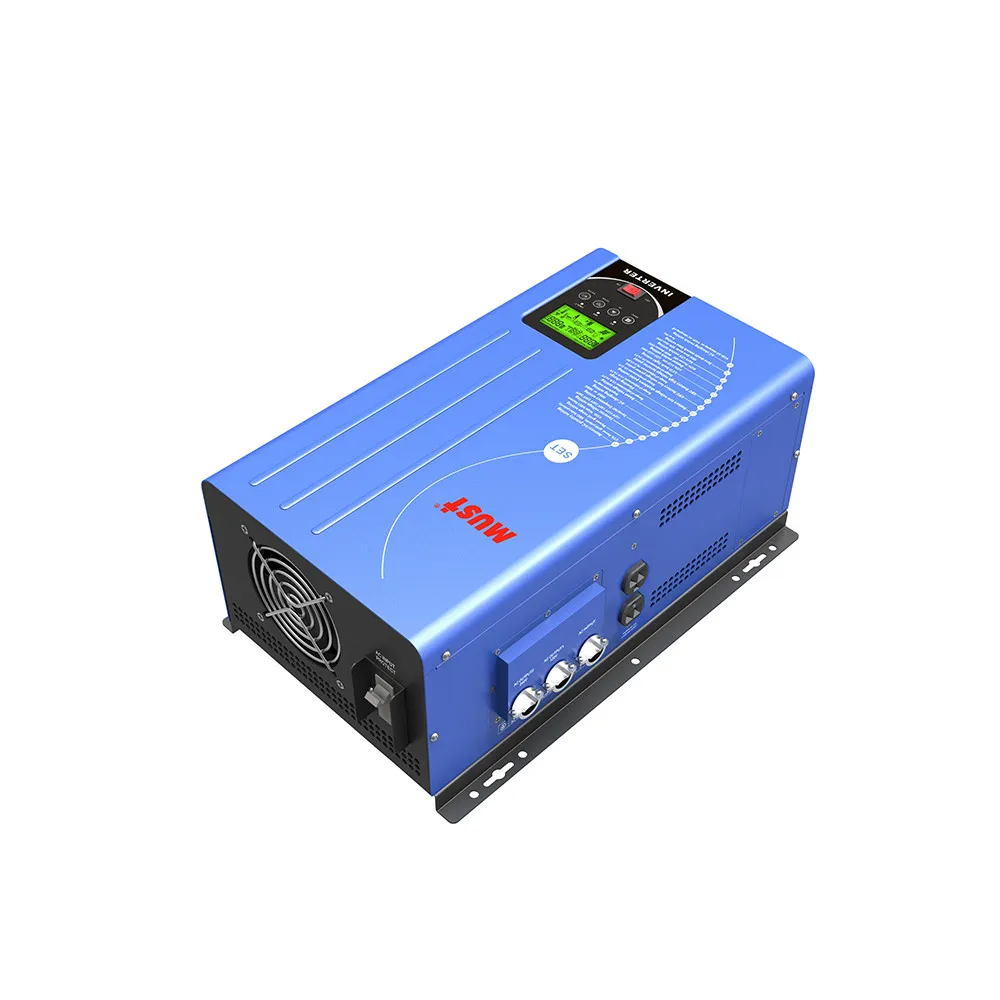

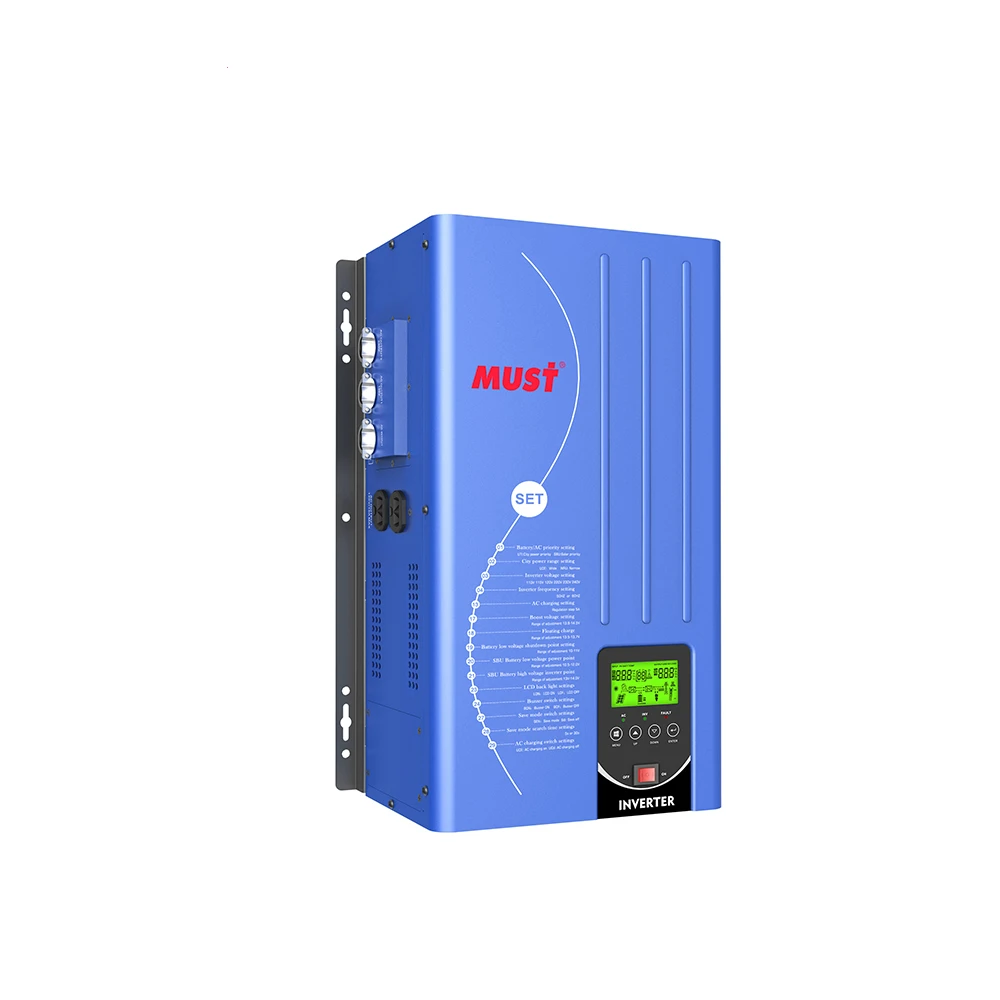

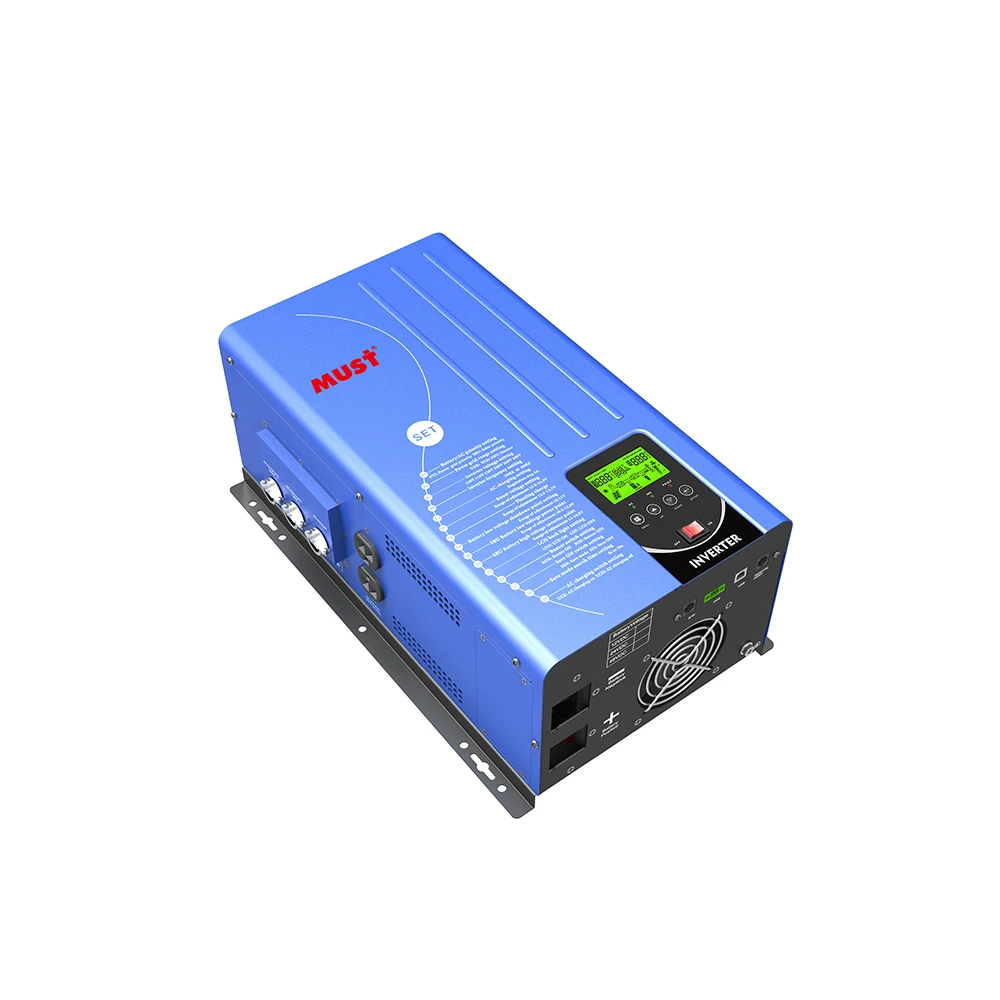

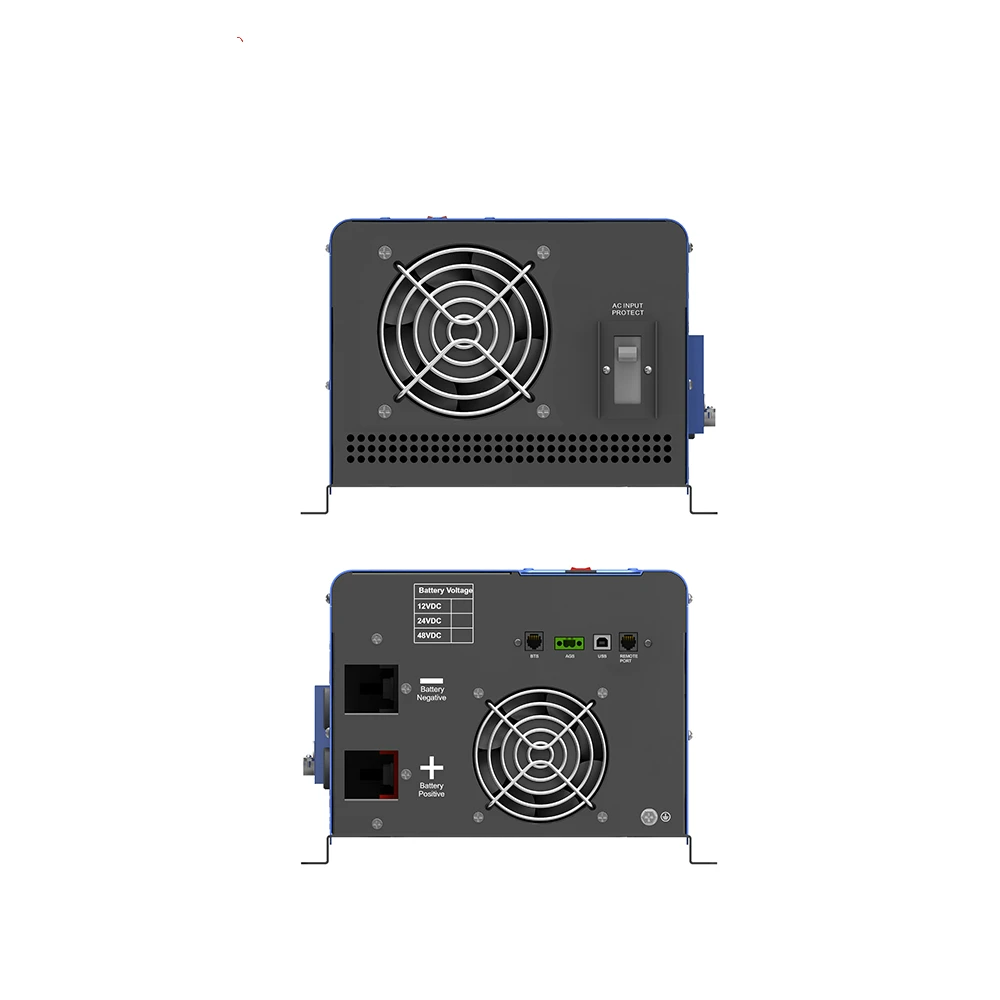

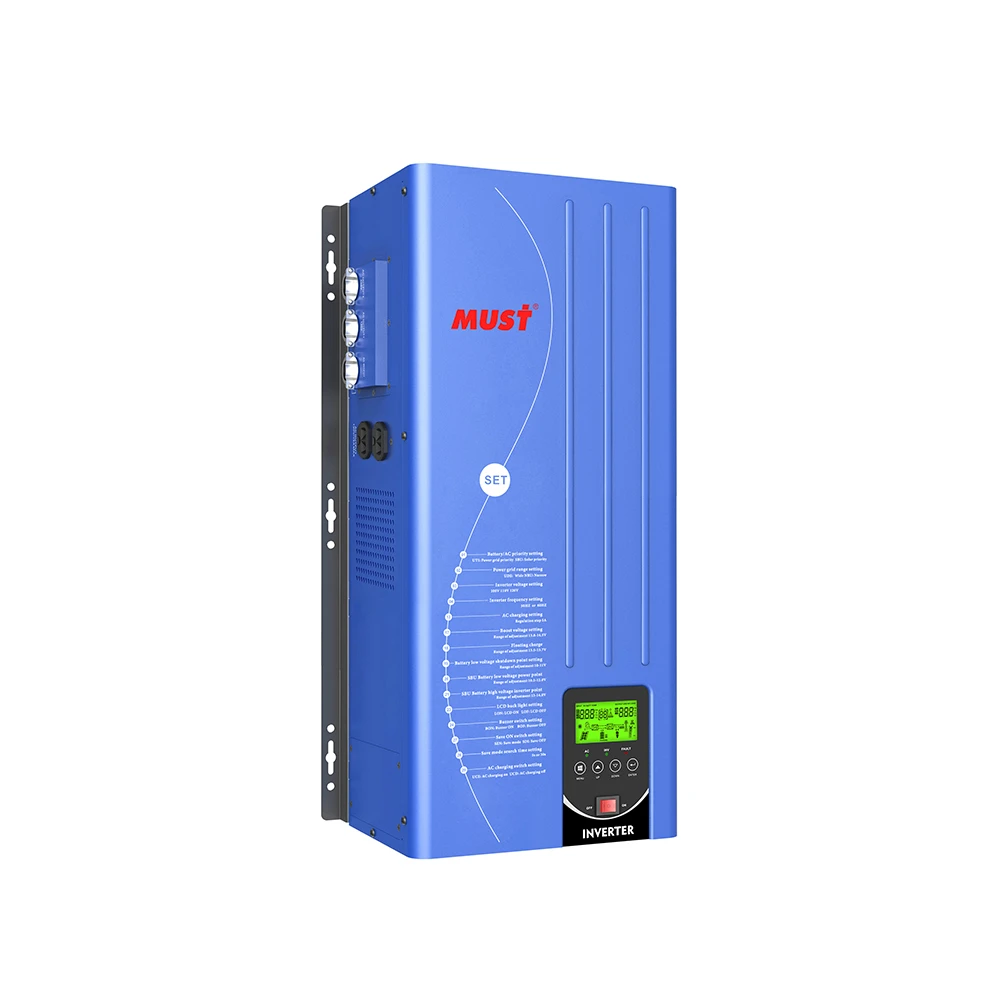

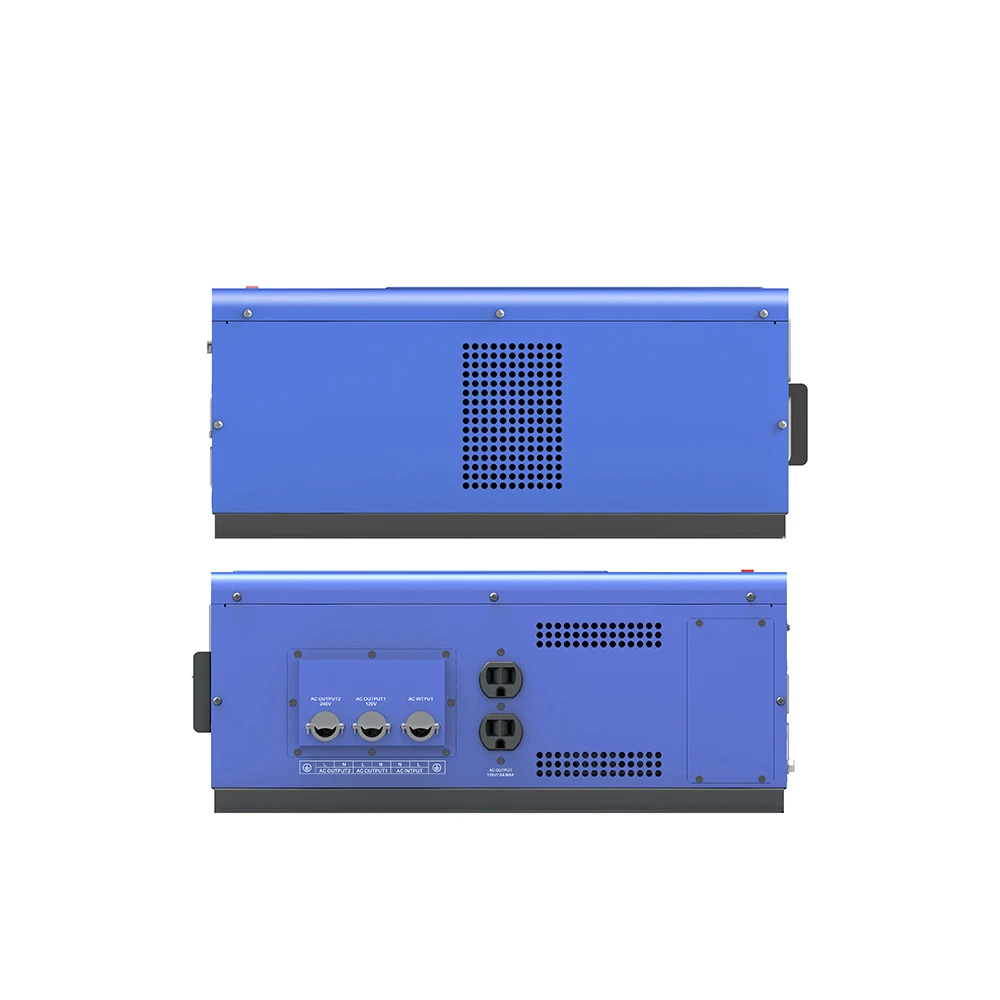

MUST Brand Off grid Low Frequency Pure Sine Wave Solar Inverter split phase 1kw 2KW 3kw 4kw 5kw 6kw 120V/240V EP3300 LV Series
Specifications
| MODEL | EP33-1012 LV | EP33-1512 LV | EP33-1524 LV | EP33-2012 LV | EP33-2024 LV | EP33-3024 LV | EP33-3048 LV | EP33-4024 LV | EP33-4048 LV | EP33-5048 LV | EP33-6048 LV |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 12VDC | 12VDC | 24VDC | 12VDC | 24VDC | 24VDC | 48VDC | 24VDC | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | |||||||||||
| Reted Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||||
| Surge Rating (20ms) | 3KVA | 4.5KVA | 6KVA | 9KVA | 12KVA | 15KVA | 18KVA | ||||
| Capable Of Starting Electric Motor | 1HP | 1.5HP | 2HP | 3HP | |||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | ||||||||||
| Nominal Output Voltage RMS | 110V/115V/120VAC(220V/230V/240VAC)±10% | ||||||||||
| Output Frequency | 50Hz/60Hz±0.3 Hz | ||||||||||
| Inverter Efficiency(Peak) | >80% | ||||||||||
| Line Mode Efficiency | >95% | ||||||||||
| Power Factor | 1.0 | ||||||||||
| Typical Transfer Time | 15ms(max) | ||||||||||
| AC INPUT | |||||||||||
| Output Breaker Rating | 30A | 30A | 40A | 50A | 63A | ||||||
| Voltage | 120/230Vac (±3%) | ||||||||||
| Selectable Voltage Range | 96~132VAC 155~280VAC(For Personal Computers) | ||||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40~80Hz | ||||||||||
| BATTERY | |||||||||||
| AC Input Breaker Rrating | 30A | 30A | 40A | 50A | 63A | ||||||
| Minimum Start Voltage | 11VDC/22VDC/44VDC | ||||||||||
| Low Battery Cut off | (low voltage fault code04) 10/10.5/11V for 12V model 20/21/22V for 24V model 40/42/44V for 48v model | ||||||||||
| Low Battery Alarm | Add 0.5V/battery: (low battery alarm one second one time) (10/10.5/11V) +0.5Vdc for 12V model; (20/21/22V) +1Vdc for 24v model (40/42/44V) +2Vdc for 48v model | ||||||||||
| High Voltage Alarm | Add +1V/battery: (high voltage one second one time/after 30s fault 03); (13.8-14.5V) + 1V for 12V model (27.6-29V) + 2V for 24v model (55.2-58) + 4V for 48v model | ||||||||||
| Idle Consumption-Search Mode | Load≤40W(110V)/80W(220V) | ||||||||||
| CHARGER | |||||||||||
| Output Voltage | Depends on battery type | ||||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) | ||||||||||
| Maximum Charge Current | 30A | 45A | 25A | 60A | 30A | 40A | 20A | 60A | 30A | 35A | 40A |
| BYPASS&PROTECTION | |||||||||||
| Input Voltage Waveform | Sine wave (grid or generator) | ||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | ||||||||||
| Output Short Circuit Protection | Circuit breaker | ||||||||||
| Max Bypass Current | 30Amp | ||||||||||
| MECHANICAL SPECIFICATIONS | |||||||||||
| Mounting | Wall Mount | ||||||||||
| Dimensions (W*H*D) | 441.7*259.3*195.9 mm | 597*259.3*185.9mm | |||||||||
| Net Weight (Solar CHG) kg | 16.5 | 17 | 21.1 | 20 | 26 | 24.5 | 24.8 | 38.2 | 35.8 | 45.2 | 45 |
| Shipping Dimensions(W*H*D) | 592*376*306mm | 747*376*296mm | |||||||||
| Shipping Weight (Solar CHG) kg | 19.3 | 20 | 24.1 | 22.8 | 29.1 | 27.5 | 27.5 | 42.3 | 40 | 49.5 | 49.3 |
| OTHER | |||||||||||
| Operation Temperature Range | 0°C to 40°C | ||||||||||
| Storage Temperature | -15°C to 60°C | ||||||||||
| Audible Noise | 60dB MAX | ||||||||||
| Display | LED+LCD | ||||||||||
| Standard Warranty | 1 year | ||||||||||
Product Description
Company Information
1. MUST Factory located in Huanan Chuanggu Science and Technology Park, Chancheng District, Foshan City. We are a high-tech manufacturer specializing in R&D, production, sales and service of industrial automation, new energy and power electronics related products.
2. MUST main products include: (UPS), Inverter, Photovoltaic Controller, Photovoltaic Inverter, Photovoltaic control inverter integrated machine, photovoltaic energy storage inverter, photovoltaic grid-connected inverter, Photovoltaic power generation system, photovoltaic pump system, microcomputer room system, dedicated loss converter, servo drive, servo motor, servo system
3. MUST's products have passed CE, SAA, SONCAP, SGS, Tell certification and other safety certifications, ISO: 9001, ISO: 14000 and other quality management system certification,
4. MUST products are exported to Spain, Italy, Russia, Australia, the Middle East, Ukraine, South Africa, Nigeria, Pakistan and other countries to provide customers with quality and efficient services.
