Product Description
Fuchuan High speed Extruder Cable Extruder PVC PE PP Extruder insulated wire extruder wire Sheathing extrusion line
Fuchuan High Speed Extruder Cable extruder PVC HFFR compound Extruder insulated wire extrusion line machine
Kunshan Fuchuan High Speed Cable extruder tin machine PVC HFFR insulation enamel copper wire machine cable making machine
1. Characters:
1)Newly design expert for low-smoke non-halogen screw,barrel,capacity is 50% higher than normal extruder;
2)Round type cooling water tank,and through one by one,heating quickly,warm disappear quickly;
3)Make sure the material(low smoke,non-halogen)working long time in the temperature of 5 degree,reach the industry level;
4)Main machine adopt electric-magnetic sensor heater ring,heating quickly,save energy 45%.
This machine contains:lut barrel pay off machine,straighten,main machine,injection machine,control case,tank,double wheel capstan,accumulator,double shaft take up and other equipments.The chosen equipments:copper wire preheater,printer,OD measuring instrument,spark tester and PLC control.
Kunshan Fuchuan High Speed Cable extruder tin machine PVC HFFR insulation enamel copper wire machine cable making machine
2. Usage:
Kunshan Fuchuan High Speed Cable extruder tin machine PVC HFFR insulation enamel copper wire machine cable making machine
2. Usage:
It is applied for low-smoke non-halogen and PVC plastic extruder for core wire.
It is mainly used to produce the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed and electrical wire,power wire,insulated sheathing and other wire&cable and PU,NYLON jacket,low smoking non-halogen flameresistant environmental building line. Fuchuan High Speed Extruder Cable extruder PVC HFFR insulation copper wire cable making machine
3. Parameters:| Equipment type | 60+35 | 70+35 | 80+35 |
| Pay off type | 500-630active pay off or lut barrel pay off | ||
| Screw dia(mm) | 60 | 70 | 80 |
| screw ratio | 26:1 | 26:1 | 26:1 |
| extrusion output(kg/h) | 120 | 170 | 240 |
| main machine power(kw) | 22 | 30 | 45 |
| wire specification(mm) | Φ0.8-5.0 | Φ1.0-6.0 | Φ1.5-8 |
| Cooling device | Double layer U Type | ||
| Max wire accumulator length(m) | 300 | 300 | 300 |
| Hauling power(kw) | 3.7 | 5.5 | 5.5 |
| Outlet speed(m/min) | 0-800 | 0-800 | 0-1000 |
| Take up type | 1246automatic coiling machine,The plum blossom falls barrel machine, Double Pintle shaft take up | ||
Electrical wire,power wire extruder line
| Model | 40 | 50 | 60 | 70 | 80 | 90 |
| Screw dia | φ40 | φ50 | φ60 | φ70 | φ80 | φ90 |
| Screw L/D ratio | 26:1 | 26:1 | 26:1 | 26:1 | 25:1 | 25:1 |
Extrusion output (kg/h) | 40 | 60 | 100 | 140 | 200 | 250 |
| Main machine power(kw) | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Wire Dia. (mm) | Φ0.5~3.0 | Φ0.6~4.0 | Φ0.8~8.0 | Φ1.5-12 | Φ5.0-20 | Φ6.0-25 |
| Wire feed type | active pay off or passive pay off | |||||
| Max linear speed(m/min) | 600 | 600 | 500 | 400 | 200 | 200 |
| Cooling water tank | folding W type/U type | |||||
| Capstan Dia. (mm) | Φ340 | Φ410 | Φ410 | Φ510 | double wheel capstan or caterpillar capstan | |
| Capstan power | 2.2KW | 3.7KW | 3.7KW | 5.5KW | 5.5KW | 7.5KW |
| Wire accumulator rack | horizontal wire accumulator | |||||
| Max accumulator length | 220m | |||||
| Take up | double shaft take up machine | shaftless take up | ||||
| Take up power | 2.2KW | 3.7KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
| Model | 50 | 60 | 70 | 80 | 90 | 120 |
| Screw dia | φ50 | φ60 | φ70 | φ80 | φ90 | φ120 |
| Screw L/D ratio | 26:1 | 26:1 | 26:1 | 25:1 | 25:1 | 28:1 |
| Extrusion output(kg/h) | 85 | 145 | 180 | 300 | 450 | 750 |
| Main machine power (kw) | 15 | 22 | 37 | 45 | 55 | 90 |
| Wire Dia.(mm) | Φ0.6~4.0 | Φ0.8~8.0 | Φ1.5-12 | Φ5.0-20 | Φ6.0-25 | Φ10.0-60 |
| Wire feed type | Active pay off or passive pay off | |||||
| Max speed(m/min) | 400 | 400 | 300 | 200 | 200 | 80 |
| Cooling water tank | folding type W/U type | |||||
| Capstan Dia. | Φ410mm | Φ410mm | Φ510mm | Φ610mm | Φ610mm | 1250caterpillar hauling machine |
| Capstan power | 5HP | 5HP | 7.5HP | 7.5HP | 10HP | 10HP |
| Wire accumulator rack | horizontal wire accumulator | |||||
| Take up machine | 500-800double shaft take up | 800-1250shaftless take up | 1250-2500 | |||
| Take up power | 3.7KW | 5.5KW | 5.5KW | 11KW | Z4-7.5KW with OuLu590control | |
Company Information

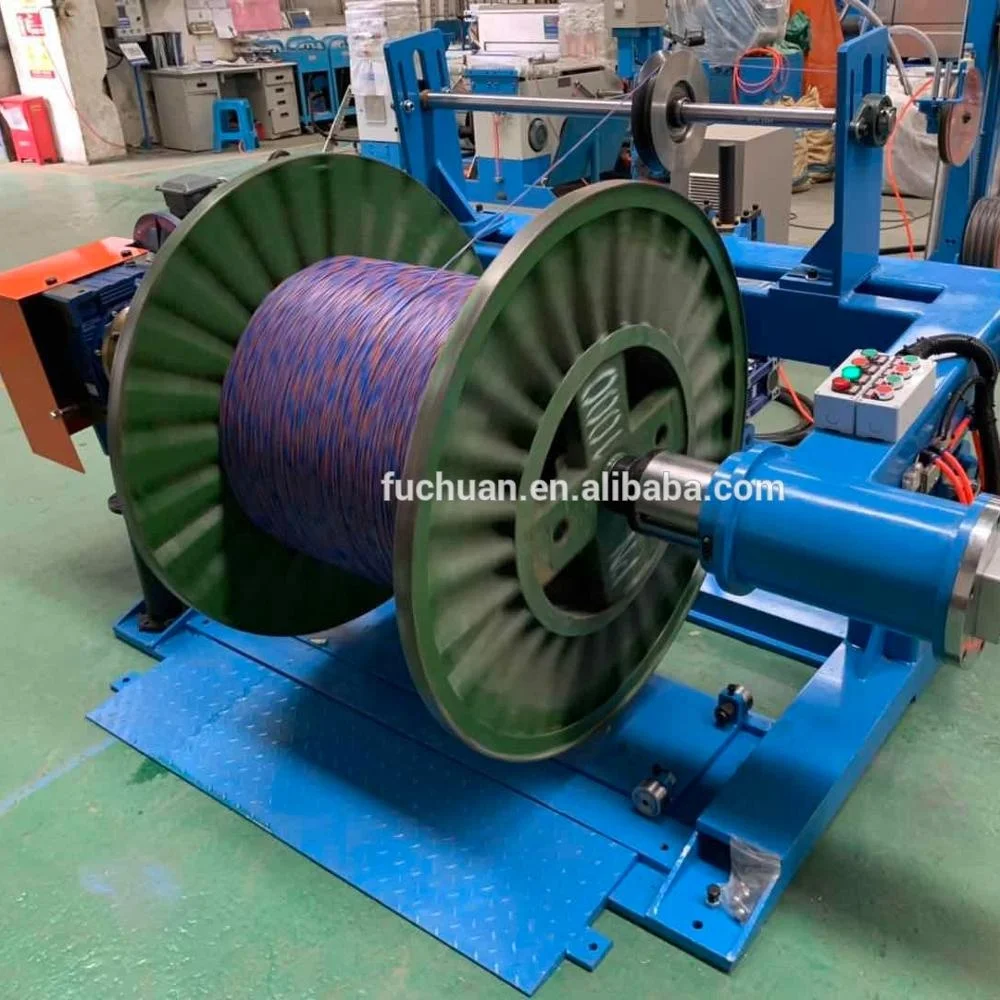

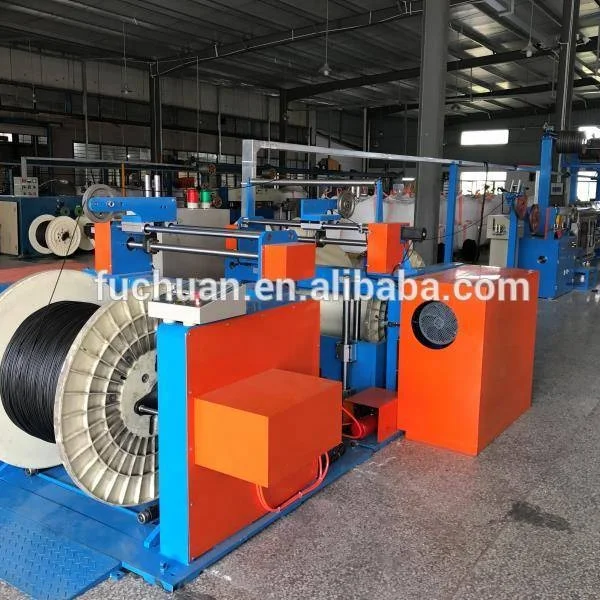

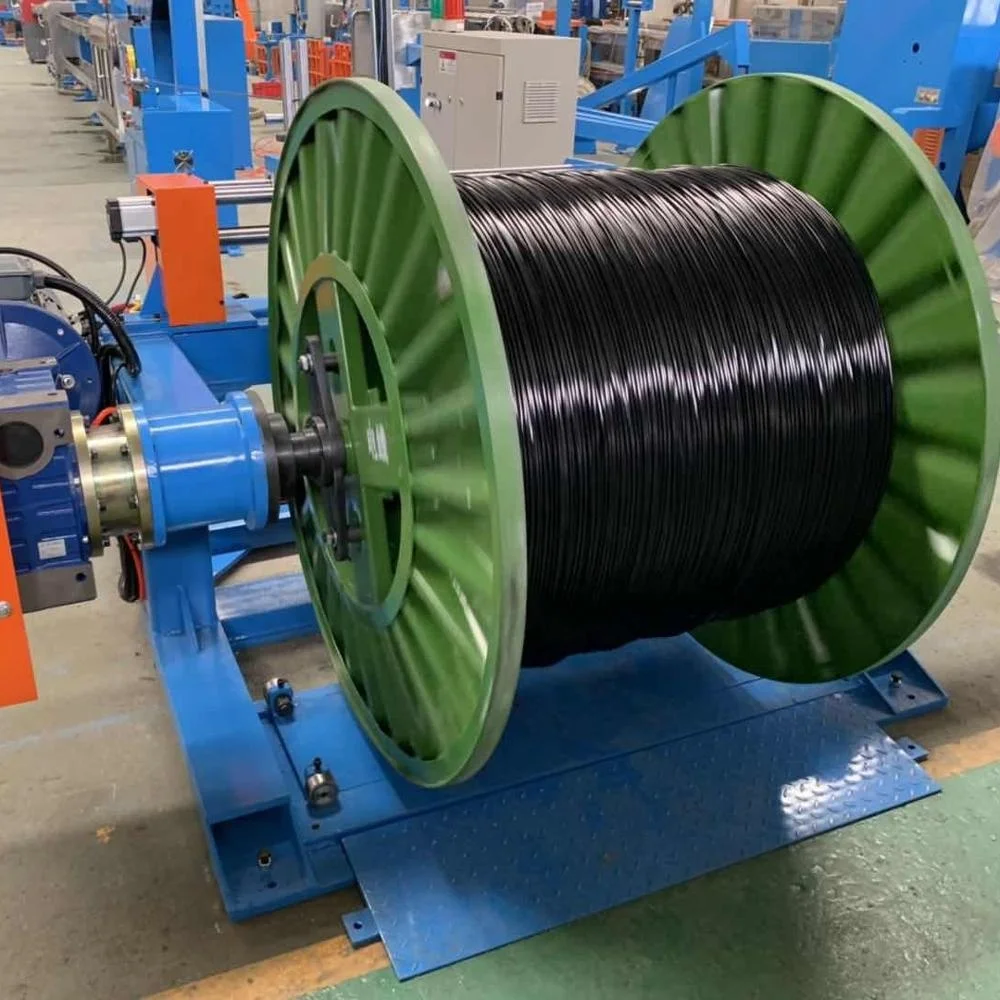

4. Machine Show

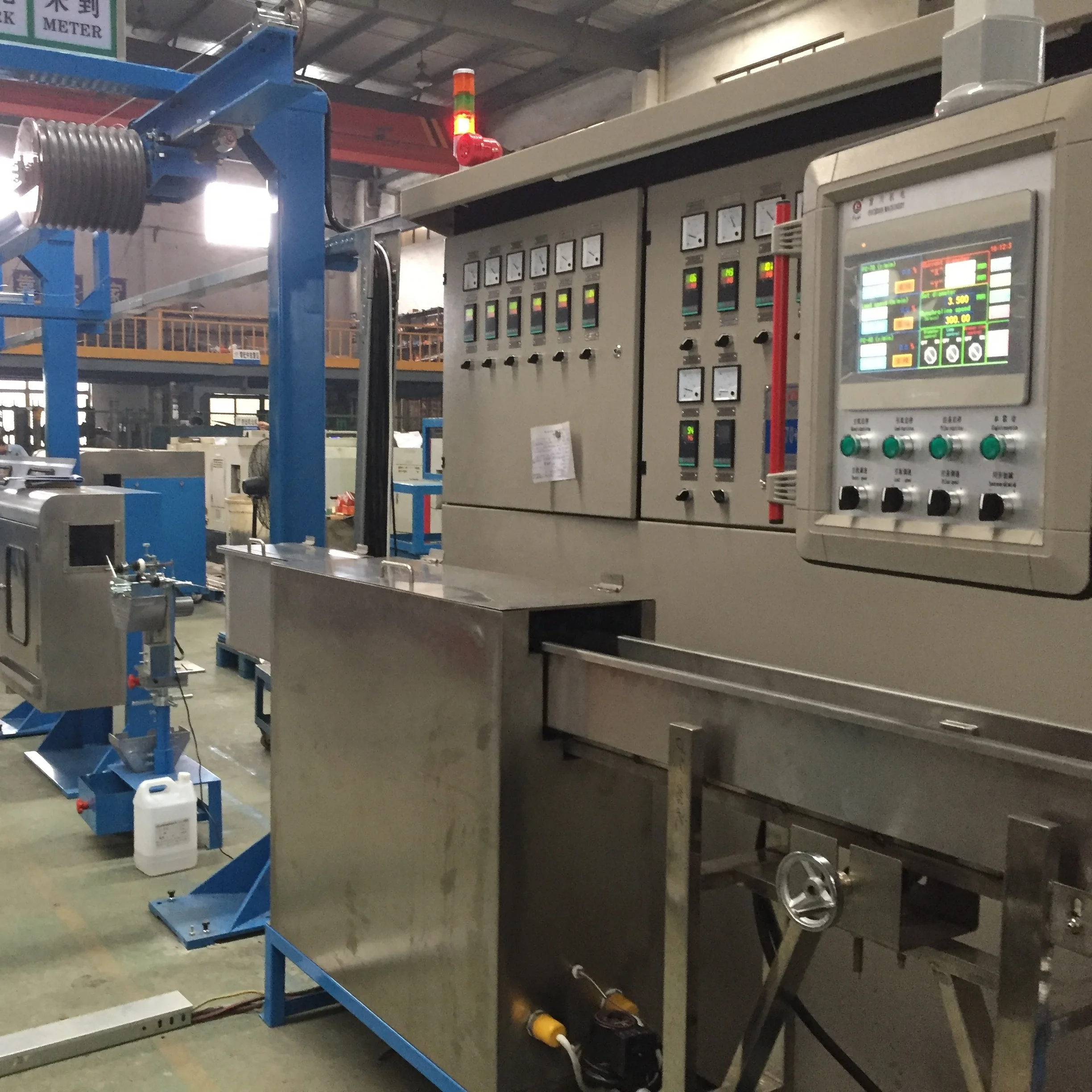

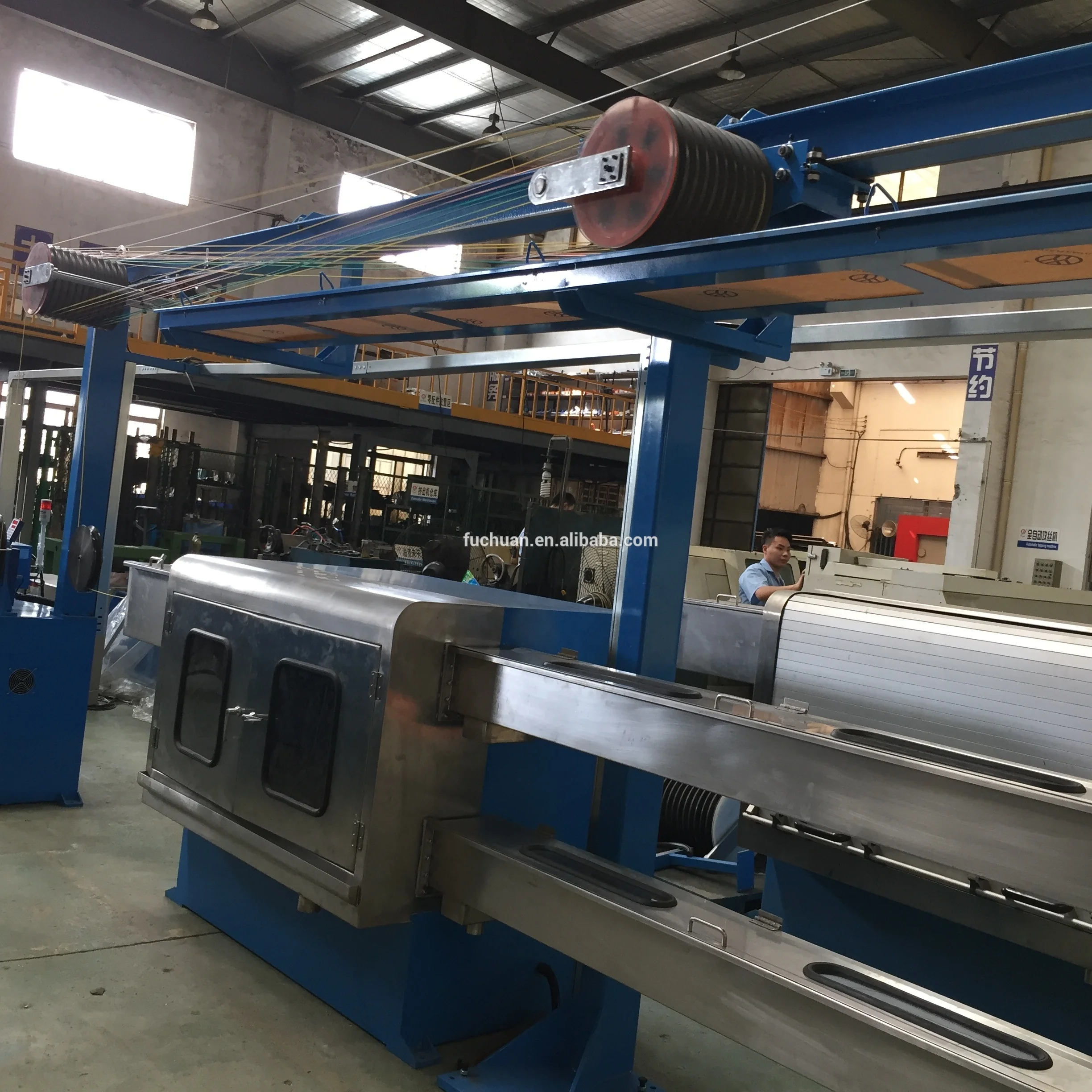

5. Cornor of Workshop
