Характеристики


Product Description
Features
HALL angle: 120°/240°
Compact and powerful
Excellent velocity control
Wide speed control range of 150-20000rpm
Speed regulation:0.5%max(with respect to load)
Easy operation with on board potentiometer
Speed setting via external analog or digital signals
Strong protection
Driver Paramters
Minimum value
Rated value
Maximum value
unit
Output current

-

8

16

A
Input voltage

12

24

30

VDC
Hall drive current

-

20

-

mA
Hall signal voltage

-

5

5

V
Applicable motor speed

-

-

20000

RPM
Electrical indexes
Environmental factors
Environmental indexes
Use occasion
Avoid dust, oil stain and corrosive gas
Operating temperature
10℃~+50℃
Environment humidity
40-90%RH (no condensation)
Vibration
5.9m/s2 Max
Storage temperature
-20℃~+125℃
Cooling mode
Natural cooling or forced cooling

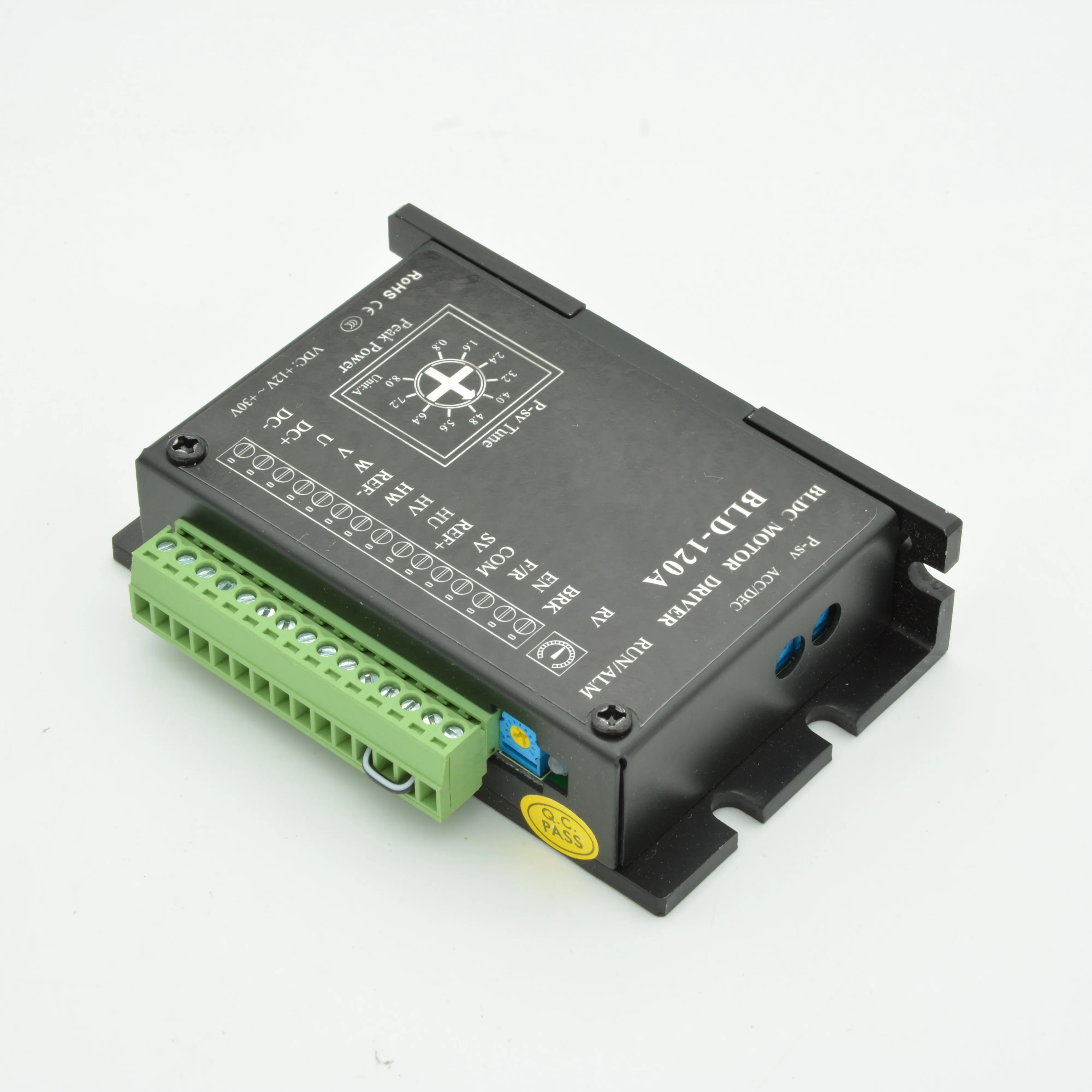

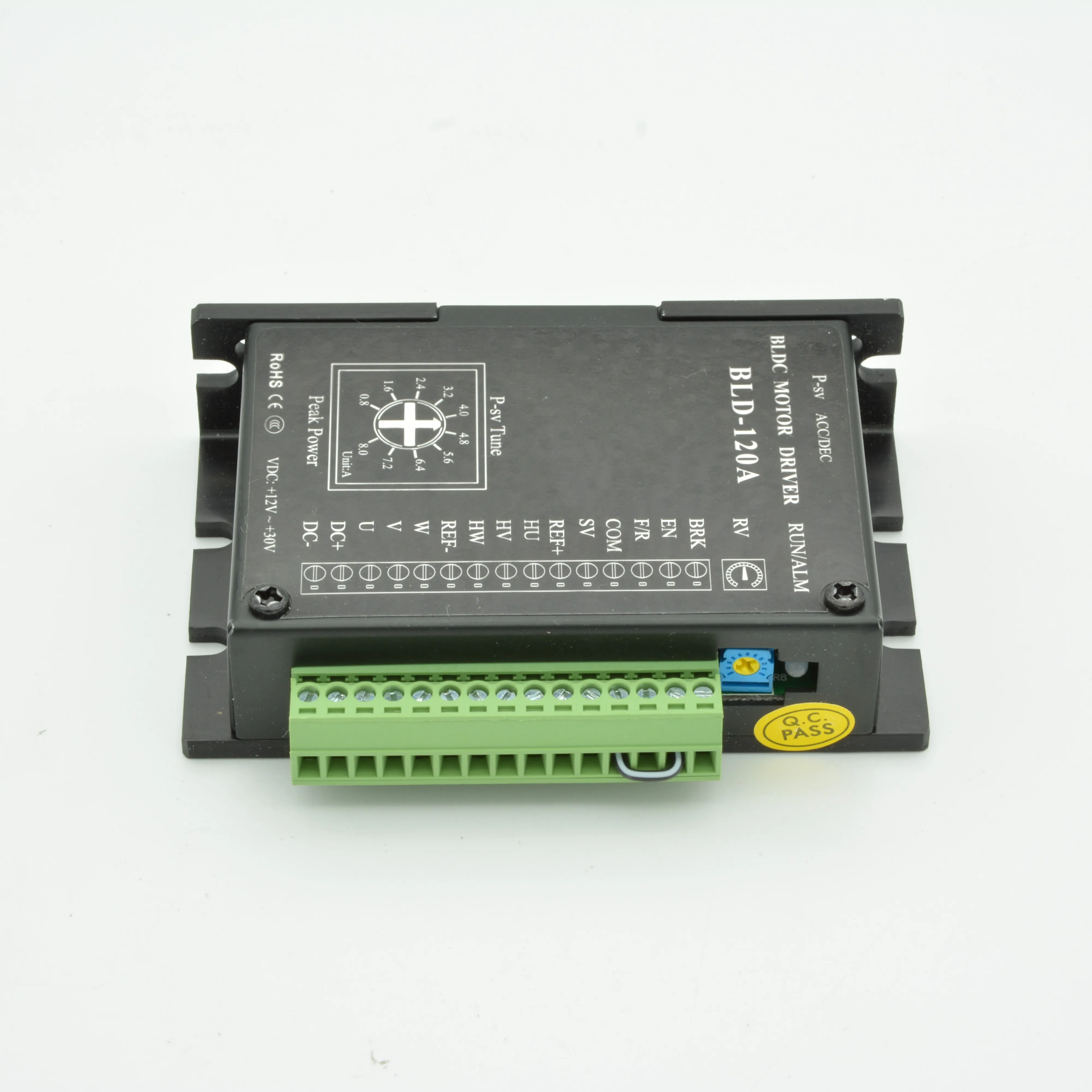

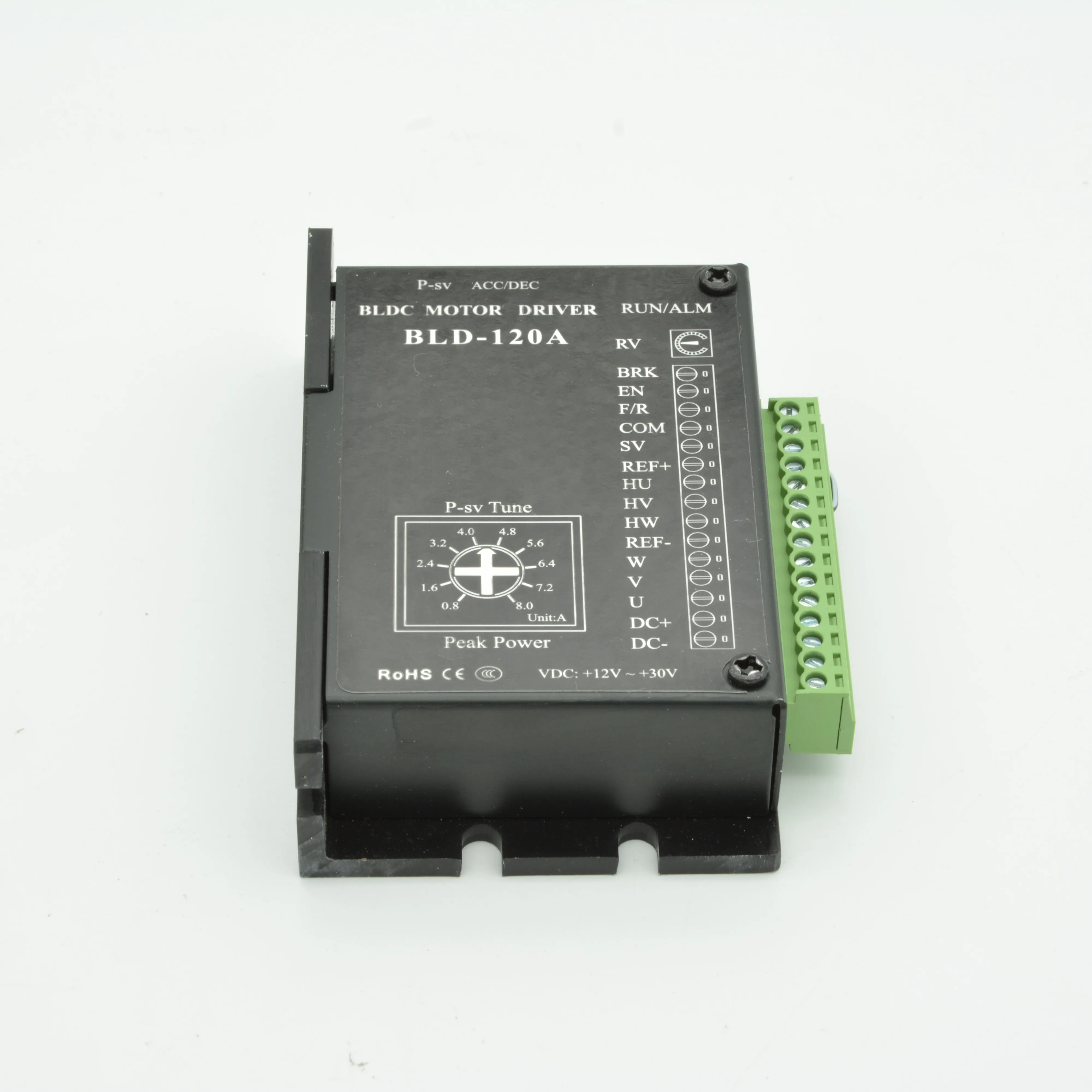

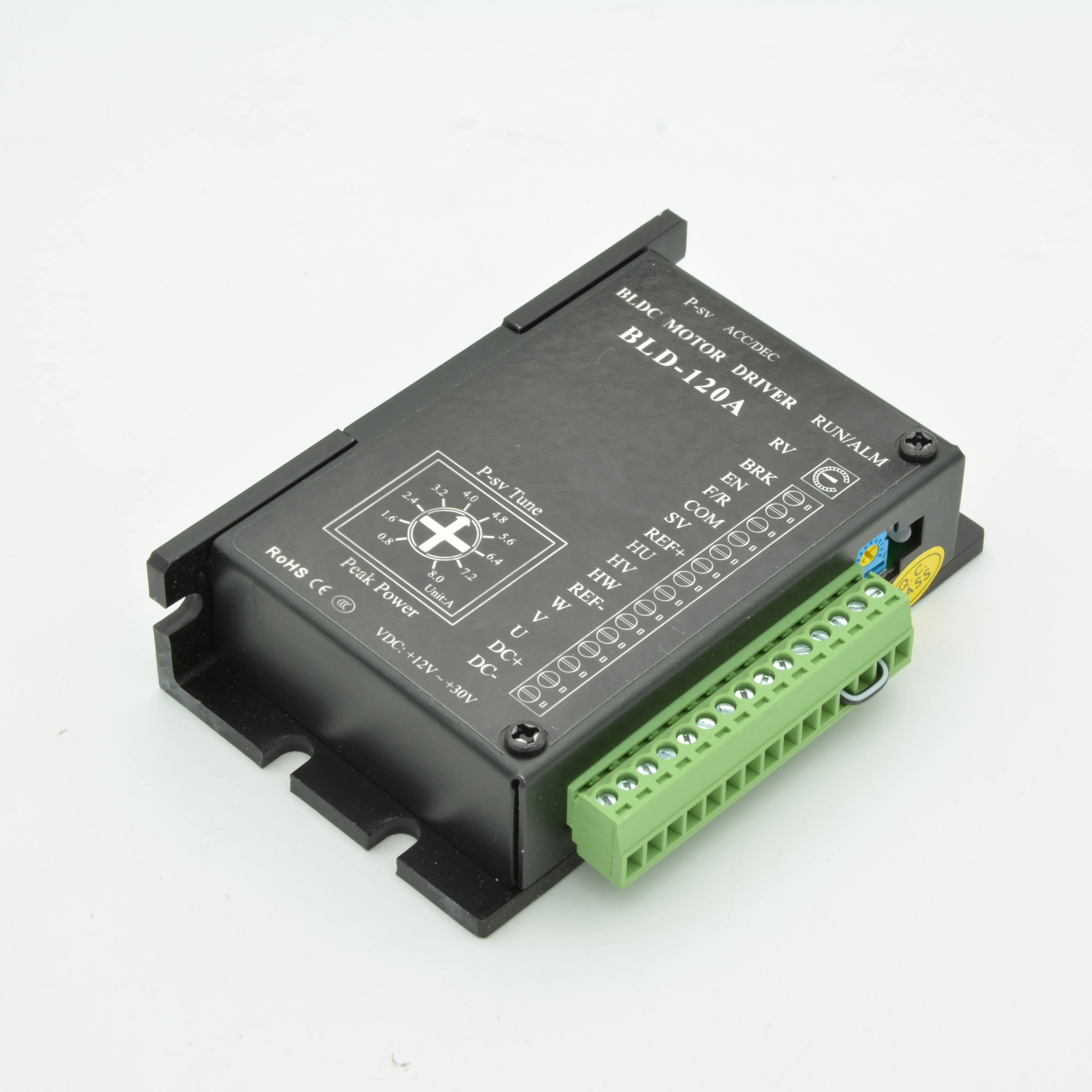

Driver interface and motor connection
 Signal
Terminals
Function




Input
SV
1.External potentiometer; 2.Input analog signal; 3.PWM pulse width.
COM
Common port (0V reference level)
F/R
High level input the motor will rotates clockwise, low level input or when F/R and COM are connected, the motor will rotate anticlockwise
EN
High level input the motor will slowly stops, low level input or when EN and COM are connected, the motor runs
BRK
The motor brake stops when a high level is added or port suspension; the motor runs when the low level is added or EN and BRK are connected

Output
ALM
The fault output signal of the motor or drive is 5V under normal circumstances; the level is 0V when a fault occurs.
SPEED
The output of speed is pulse frequency corresponding to the motor running. The terminal can be connected to upper computer
Four speed regulation modes
Build-in potentiometer RV

Rotate the RV knobs clockwise until a “click” sound, the motor starts to run. Rotate the RV knobs clockwise, the motor will
accelerate. Rotate the RV knobs anticlockwise, motor speed will decrease, and the motor will stop until a "click" sound.
External potentiometer

Use a suitable potentiometer with a resistance value of 10KΩ, connect middle terminal with SV terminal, and the other two
terminals are respectively connected with VCC terminal and COM terminal.
Input analog signal (0-5V)

Voltage and motor speed relational diagram(unloaded)
Pulse Width Modulation

Duty radio and motor speed relatoinal diagram (unloaded)
Quick brake
BRK and COM are connected in default, the motor will be quick brake, When BRK and COM are disconnected, the motor will rotate.
CW/CCW rotation

Connect F/R and COM, the motor will rotate clockwise, disconnect it, the motor will rotate anticlockwise.
Peaking current setting

Equipped with a motor protection function, the driver provides options to set desired current number in the P-sv ,knob to avoid
over-current for motor. Please note that the random error is ±10% . The setting should be matched with motor rated current.
Mechanical Dimension
