30 т/ч машина для производства

BH Automatic dry mortar plant on the basis of semi-auto dry mortar plant, increases the raw material storage system, automatic weighing system and premix tank, that no need manual weighing, and improves the efficiency. Depending on the configuration, capacity at 10-35T/H, with an annual output of 30-100,000 tons per year. Occupation area: 60-100m² , Height: 8-13 m, Worker required: 3-5 person.

Main configuration
Electric control cabinet;  Cement silo, Weighing system;  Feeding hopper;  Impulse dust collector;  Bucket elevator; Premix tank; Twin shaft agravic mixer;  Finished product holding tank;  Automatic packaging machine;  Air compresser.

It can be equipped with grinding machine and drying machine according to requirement.

If your capacity is above 35t/h,you can choose our Station type dry mortar plant

Model	Simple dry mortar plant	Improved Simple dry mortar plant	Semi automatic dry mortar plant	Full automatic dry mortar plant
Out put	1-3t/h	4-5t/h	5-8t/h	10-30t/h
Components	screw conveyor,  horizontal ribbon mixer, storage tank, packing machine, control cabinet, air compressor	screw conveyor, twin shaft mixer, storage tank, packing machine, control cabinet, air compressor	bucket elevator, twin shaft mixer, holding tank, packing machine, control cabinet, air compressor	cement silo, screw conveyor, automatic weighing system, bucket elevator, premix tank, twin shaft mixer, holding tank, packing machine, automatic control cabinet, air compressor
Occupied area	20m²	20m²	50-60m²	60-100m²
Total power	5.5-7.5kw	6-11kw	24-28kw	60-120kw
Mixer volume	3300*1050*2100(mm)	2m³	2m³	2m³, 3m³, 4m³
Equipment height	3-4m	3-4m	6-8m	8-13m
Man power	2-3person	2-3person	3-4person	3-4person
Batching and packaging	Manual batching & Automatic packaging	Manual batching & Automatic packaging	Manual batching & Automatic packaging	Automatic batching & Automatic packaging

BH Twin Shaft Paddle Mixer 1. High mixing homogeneity at 99.9% 2. High efficiency at 90~120 seconds per batch 3. No dead corner for mixing. No residual for discharging 4. Adopting advanced world famous brand components with long service life.

Modular steel structure Our dry mortar plant's steel platform design in modular structure which born for export market. It can reduce the packing space, save the transportation cost, and it is more convenient to install when it arrives at the site, saving the installation time and the installation cost.

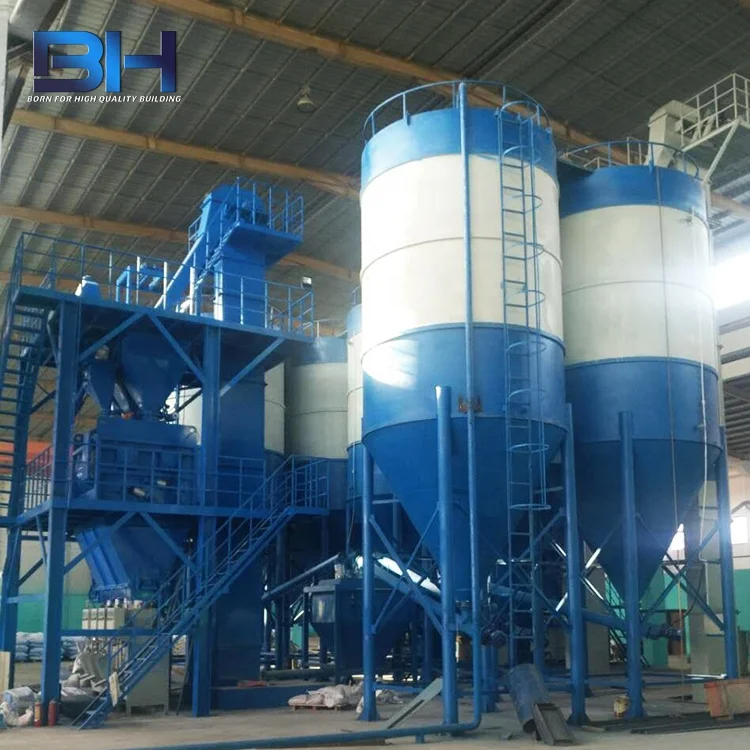

Raw Material Storage Tank Our bolted cement silo is also born for export market,  not only has excellent quality,reliable sealing structure.but also easy for transportation, easy for assembling, easy for disassembling, save shipping space, reduced transportation cost.

PACKAGING & DELIVERY

Packaging

1, HS code can be supplied to you for checking importing tax in your country.
2, Standard export packaging by container, which should be applicable to international requirement.
3, Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
4, Standard configuration: 2X40HQ container for 1 set 10t/h dry mortar plant.
Shipping
Usually by sea, sometimes by land, air.
Delivery time: 15-30 days after deposit arrived

The reason you choose us:

» The structure we designed is advanced and compact. According to your site and capacity, we can provide you reasonable design with factory price.

» Cooperated with Shanghai WEIPU Institute (www.weipuchem.com),then we supply advanced construction materials formula and top rank additives together to ensure the end products good quality you produce.

» Our professional installation team has rich experience to complete the installation, commissioning fast, and also to train workers how to operate, maintain the equipment.

»  As a professional and highly experienced manufacturer of dry mortar mixing equipment in China for more than 20 years. We are in the leading position in this scopes.

Q: For providing you the suitable quotation we need to know the following information:

1. What capacity do you need?
2. How many raw materials you use? What's the estimate ratio?
3. Is sand dryer required in this system? What is the fuel you use, coal? gas or diesel?
4. Regards packing, how many kg per bag do you need?

Q:What equipment and services you can provide?
We can provide you turnkey solution of dry mortar manufacturing machine from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc .

Q: What about Warranty of the products?
The BH Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.

If you want to know more of our dry mortar manufacturing machine, please send us inquiry or contact us directly.
