Характеристики
Product Description
Temperature Touch Controller
Summarization
Color Tempreture touch controller is a high-end touch controller which adopts latest capacitive trigger and wireless technology.
The controller has features such as large current, low power consumption; remote control adopts high precision capacitance touch
control chip, has color ring and buttons function, increases the touch sensitivity, reduces trigger which caused by mistake. You
can use remote control to adjust the color temperature and the brightness of the strips. It has advantages such as far control
distance, high touch sensitivity, strong driving ability, stablility snd so on. The product can control a variety of lamp whose
source of light is LED. For instance, point source of light, flexible light strip, panel light etc.
Technical Parameters
Color Tempreture touch controller is a high-end touch controller which adopts latest capacitive trigger and wireless technology.
The controller has features such as large current, low power consumption; remote control adopts high precision capacitance touch
control chip, has color ring and buttons function, increases the touch sensitivity, reduces trigger which caused by mistake. You
can use remote control to adjust the color temperature and the brightness of the strips. It has advantages such as far control
distance, high touch sensitivity, strong driving ability, stablility snd so on. The product can control a variety of lamp whose
source of light is LED. For instance, point source of light, flexible light strip, panel light etc.
Technical Parameters
SPEICIFICATION | ||
Controller | ||
Supply voltage | DC12-24V | |
Working current | <=8A/CH | |
Connection method | Common anode | |
External dimension | L83*W79*H33 mm | |
Static power consumption | <1W | |
Output power | DC12V: <288W, DC24V: <576W(with short circuit protection function) | |
Output frequency | 300Hz | |
Remote Control | ||
Working temperature | -20-60℃ | |
Power supply mode | AAA * 3 | |
Supply voltage | 1.5V * 3 | |
Standby power consumption | 0.025Mw | |
Static current | 85Ua | |
Working current | 26mA | |
Remote distance | > 20m | |
Standby time | >6 months | |
“1“ “2“ : Power input interface, input voltage range is DC12-24V, “1“ is positive electrode, “2“ is negative electrode;
“3“ “4“ “5“ “6“: Power output interface, output voltage is 12-24V, max. output current is 8A,
“3“ is positive electrode,
“4“ “5“ “6“ are output channels.

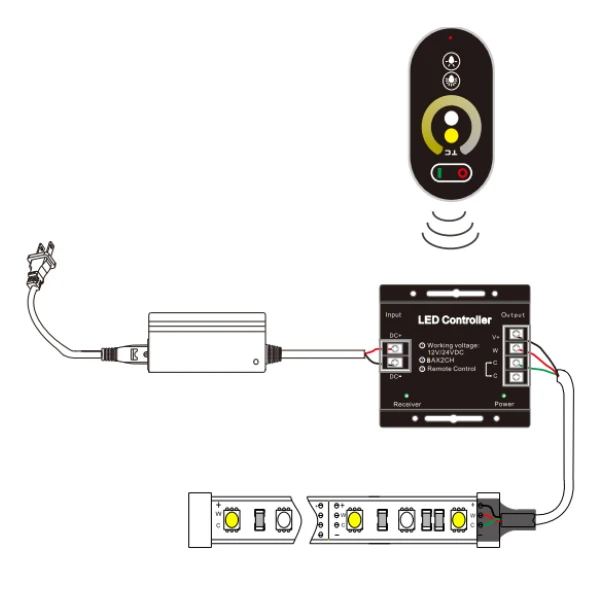

Typical Application
