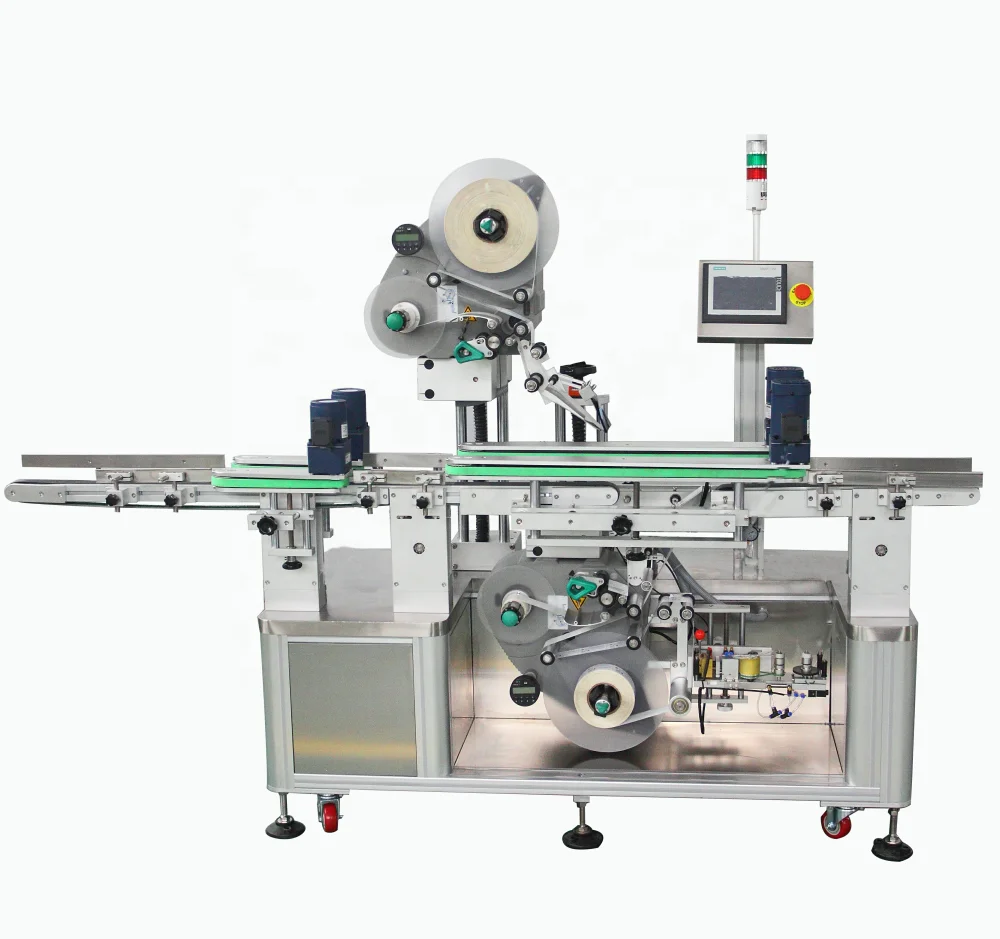

Автоматический верхний и нижний с двух сторон Этикетировочная машина для производства
- Категория: Машины для этикеток >>>
- Поставщик: Shanghai,Skilt,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 16660.96 $* | 17493.67 $* |
| Aug-19-2025 | 16520.59 $* | 17346.23 $* |
| Jul-19-2025 | 13860.88 $* | 14553.63 $* |
| Jun-19-2025 | 16240.62 $* | 17052.35 $* |
| May-19-2025 | 14140.83 $* | 14847.84 $* |
| Apr-19-2025 | 15960.46 $* | 16758.93 $* |
| Mar-19-2025 | 15820.16 $* | 16611.17 $* |
| Feb-19-2025 | 15680.88 $* | 16464.77 $* |
| Jan-19-2025 | 15540.19 $* | 16317.49 $* |
Характеристики
SKILT PARTNER
Product Description
1.The Scope of Application
Labeling on the top and bottom sides of different objects, like box,carton, bottle, cans, tapes, CD and so on.
(note: our machine can be customized depends on your needs)
2.Device Characteristic
1) Control system: SIEMENS PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: SIEMENS touch screen, ,with Chinese and English two kinds language, also rich with the help and fault display function.
3) Check system: German LEUZE check label sensor, stable and convenient don't have much higher requirement for worker.
4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Low voltage circuit all use the German Schneider brand.
Technical Parameter
Model | UDPM-A |
Capacity (pcs/min) | 20-150 |
Driving Mode | Servo motor control system |
Labeling accuracy | ±1mm |
Labeling Speed(m/min) | ≤35 |
Label Specification | adhesive sticker, transparent or opaque |
Suit bottle size | Can customized |
Suit label size | Height 20-160mm Length 25-300mm |
The inner diameter or label roll | 76mm(min) |
The outer diameter of label roll | 350mm(max) |
Power | 1000w |
Voltage | can customized, 110V/220V/380V |
Machine size | 2000x1350x1500mm |
No | Name | Model | Unit | Brand |
1 | PLC control system | 288-1ST20-OAAO | 1 set | SIEMENS |
2 | Touch-screen | 648-OCC11-3AXO | 1 piece | SIEMENS |
3 | Inverter | 22F-A2P5N103 | 1 piece | Delta |
4 | Photoelectric sensor (Check opaque label) | GS61/6.2 | 2 sets | German Leuze |
Photoelectric sensor (Check opaque and transparent label) | GSU 14B/66.3-S12 | 2 sets | German Leuze | |
5 | Photoelectric sensor (check label object) | FS-N18N | 1Set | Japan KEYENCE |
6 | servo motor | 1FL6 034-2AF21-1AA1 | 2 sets | America AB |
7 | Driving Mode | 6SL3 210-5FB10-4UA1 | 2 sets | America AB |
8 | Main transport motor | M2BAX-0.55KW-4P-B14 | 2 sets | German JSCC |

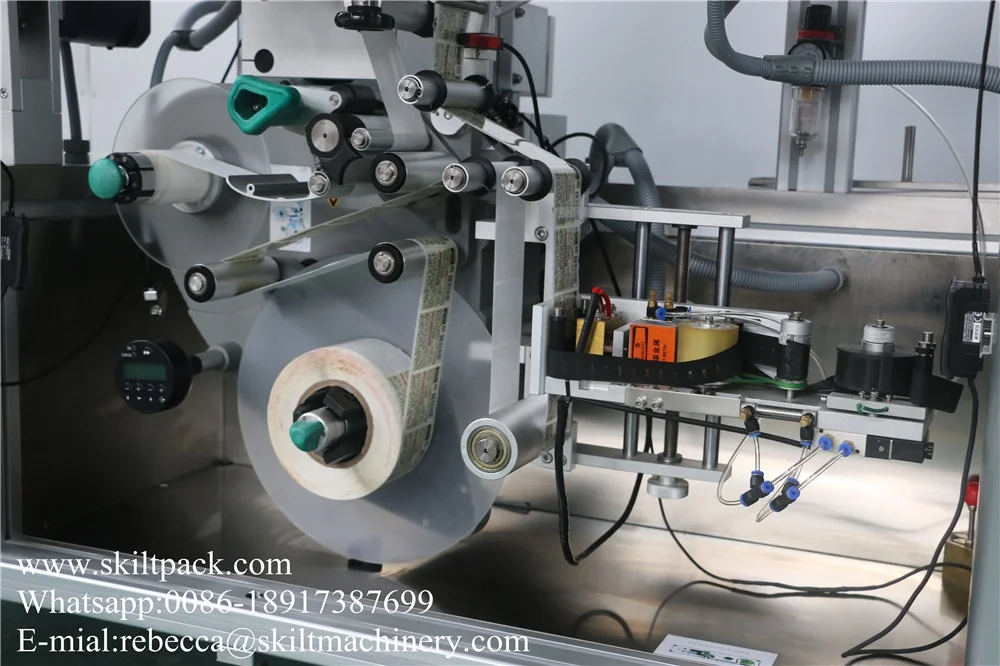

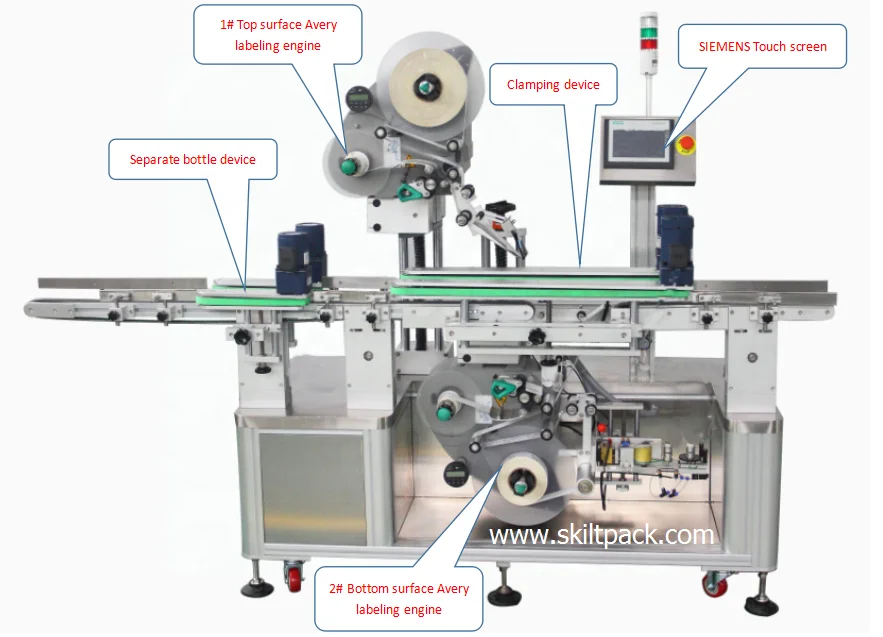

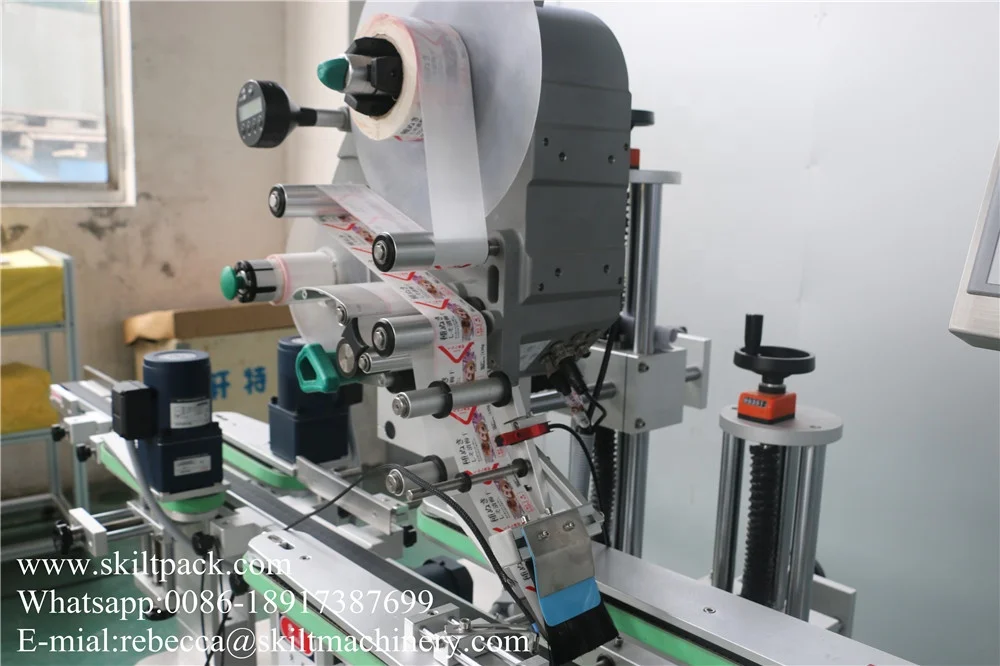

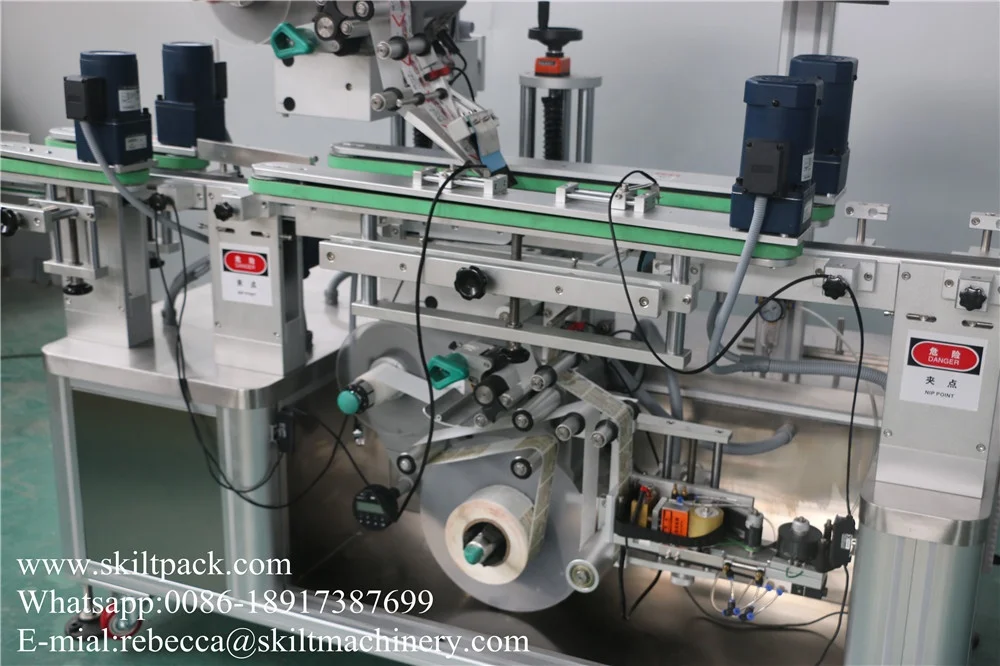

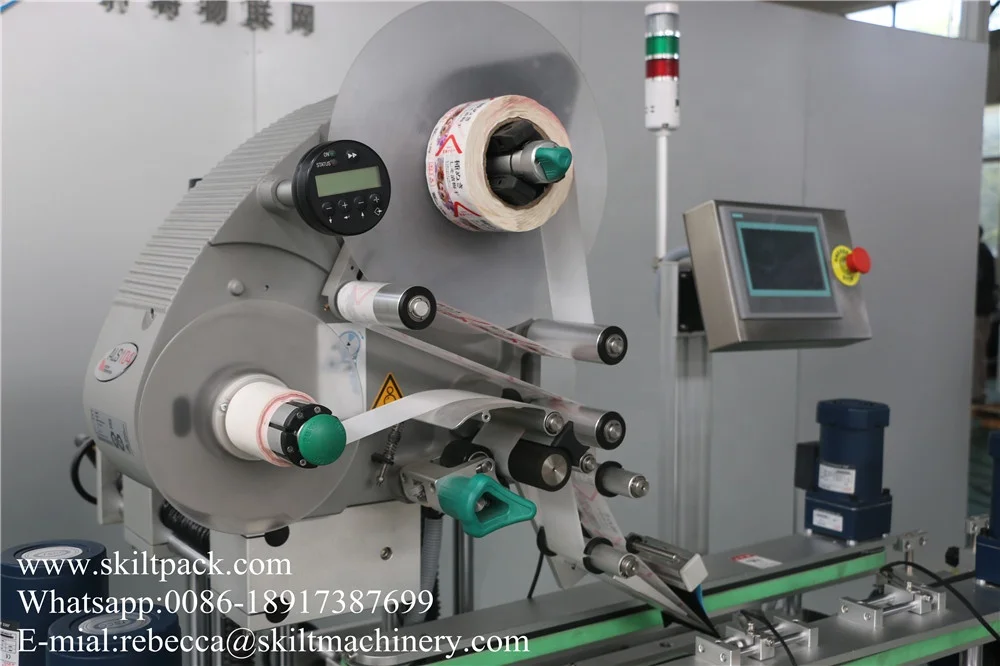

Detailed Images
Machine Processing
SKILT TEAM
FAQ
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
