4 аппарат не привязан к оператору сотовой связи усилитель сигнала для мобильных телефонов с функцией домашний мобильного
- Категория: Repeater >>>
- Поставщик: Quanzhou,Kingtone,Optics,&,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.92 $* | 0.69 $* |
| Aug-19-2025 | 0.10 $* | 0.74 $* |
| Jul-19-2025 | 0.38 $* | 0.70 $* |
| Jun-19-2025 | 0.67 $* | 0.18 $* |
| May-19-2025 | 0.42 $* | 0.40 $* |
| Apr-19-2025 | 0.66 $* | 0.99 $* |
| Mar-19-2025 | 0.18 $* | 0.18 $* |
| Feb-19-2025 | 0.4 $* | 0.11 $* |
| Jan-19-2025 | 0.41 $* | 0.83 $* |
Характеристики
KINGTONE Photos details of TRIPLE BAND 2g 3g 4g signal booster :
KINGTONE Photos details of TRIPLE BAND 2g 3g 4g signal booster : Feature:
1. cover: 200-500 square meters without obstacles
2. improve Gsm 900 Lte 1800 and Wcdma 2100 at the same time
3. led light indicates the state of the signal.
4. if can meet 900 1800 2100 frequency band , it can support different oprators.
5. easy to install. This signal amplifier kit includes everything you need.
6. one year warranty.
Specification:
1. Gain: 70dB (DL); 65dB (UL)
2. power output: 20dBm
3. GSM: up to link 890-915 mhz; down link 935-960 mhz
DCS: up to 1710-1785 mhz; down link 1805-1880 mhz
WCDMA: up to 1920-1980 mhz link; down link 2110-2170 mhz
4. impedance: 50ohm
5. Connector Type: N Female Connector
KINGTONE Photos details of TRIPLE BAND 2g 3g 4g signal booster : packaging:

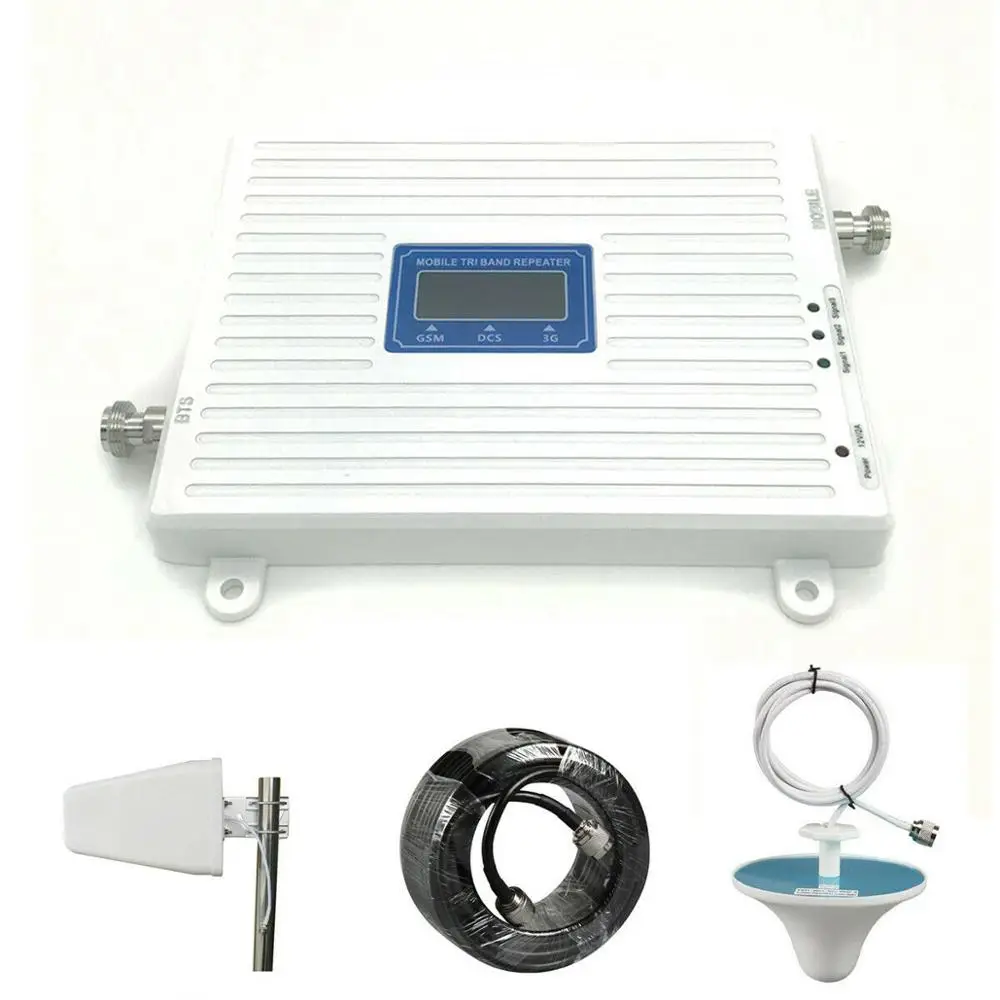

1.Signal Booster
2.outdoor signal antenna
3.indoor signal antenna(with 3M cable)
4.15 m 50 Omega Cable
5.English manual
i KINGTONE Photos details of TRIPLE BAND 2g 3g 4g signal booster : nstallation steps:
1. Fix the reception of the roof outdoor antenna or the high place and the turn signal point.
2. Connect the external antenna to repeater machine '' BTS '' port via cable.
3. Connect indoor antenna to repeater '' MOBILE '' port.
4. AC plug power cord into the power source and finished.
5. TIP: An outdoor antenna should be "isolated" from the internal antenna, that is, it must be constructive obstacles (walls, partitions, etc.) between the antennas.
Note:when outdoor antenna and indoor antenna are separated not enough, then it will be self-oscillation. your phone will not get any signal.
13 Meters Coaxial Cable:
Connector Type: N-male to N-male
Impedance: 50ohm
Cable Color: White
Cable Length: 13 Meters
Cable Type: RG6 Coaxial Cable
How it work:
1). The outdoor antenna received the mobile signal from signal tower.
2). The booster receives the outside signal from the outside antenna.
3). The booster improve the outside signal and send it to the indoor antenna.
4). The indoor antenna broadcasts the boosted signal to devices inside the home.
Easy 4 steps of installation:
1). Find an appropriate position where can getting strong mobile signal to install the outdoor antenna and toward to the cell signal tower. (usually installed it on the roof or balcony and at least 3 bars signal indicated on your phone display).
2). Connect the outdoor antenna to the signal booster via the cable.
3). Connect the indoor antenna to the signal booster.
4). Check all the connectors is tightened then plug in power. Done!
Package list 1,Booster X1 2,Indoor penholder antenna X1 3,Outdoor stick antennaX1 4,20 meters cable X1 5,User manual X1 6,Power adapter X1 Smart functions: 1,Intelligent to guide the installation with LCD
|
Order Service
After- Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
