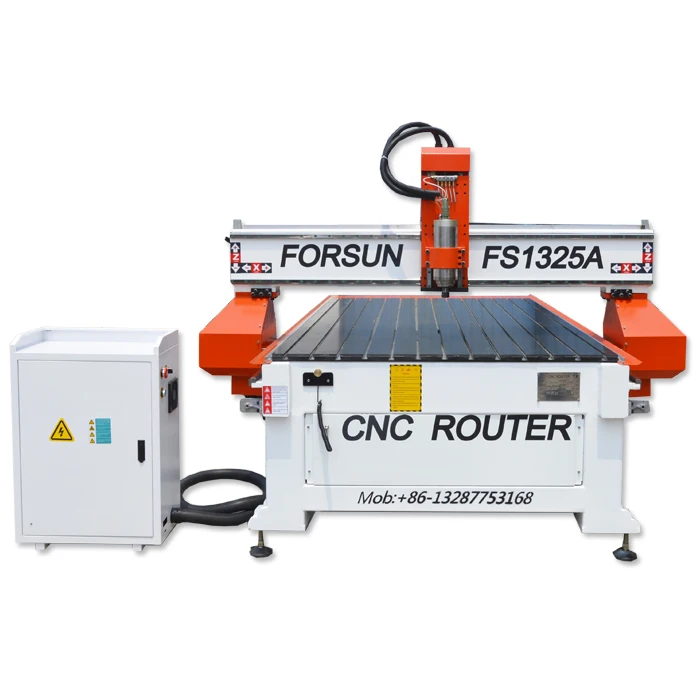

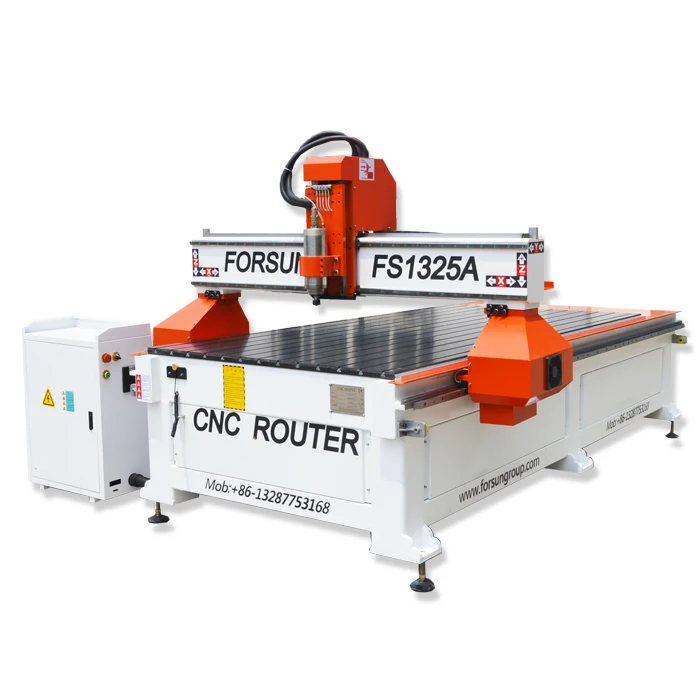

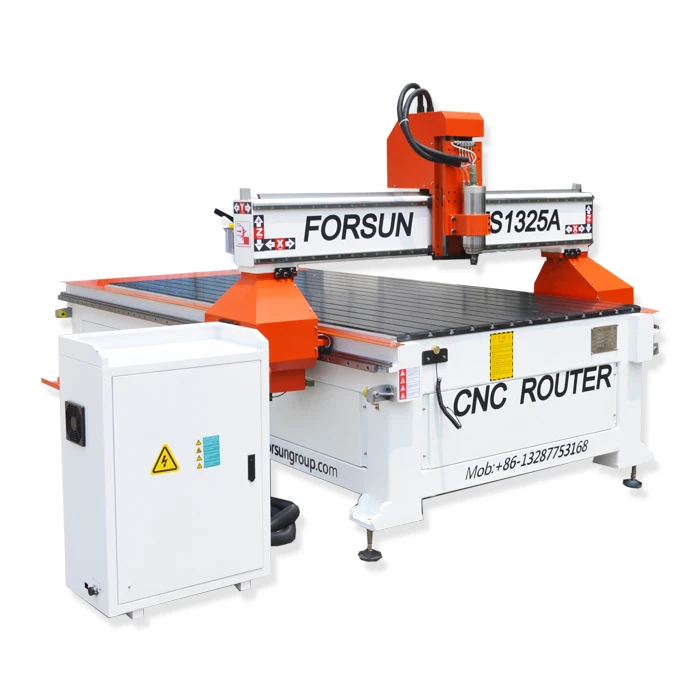

Discount !! FORSUN cnc wood router engraving router 3d  machine for woodworking

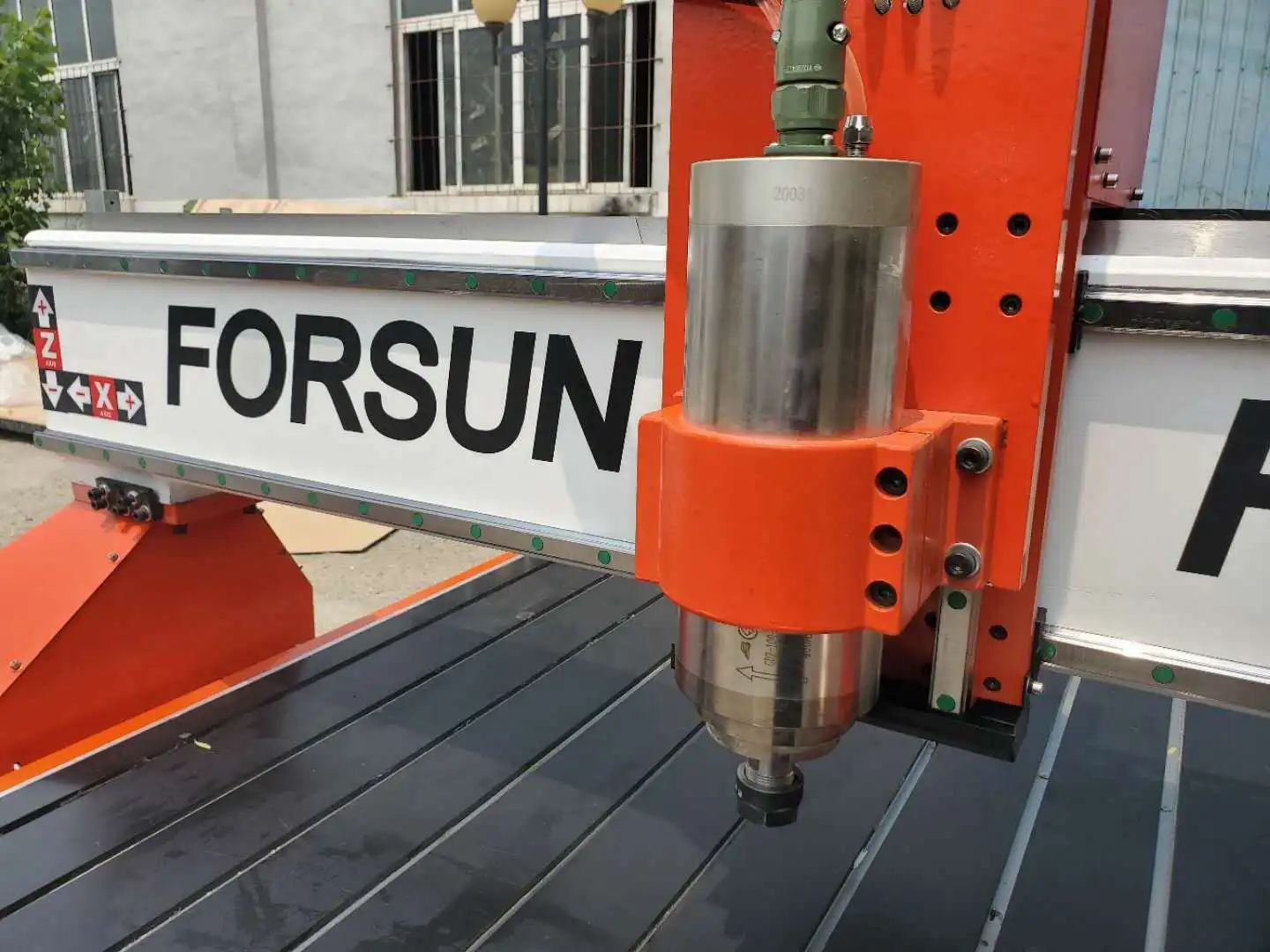

1. Spindle	3.0KW Water Cooling Spindle. Famous brand CS made in china, low noise. Spindle speed: 0-24000rpm Two spindles have higher efficiency
2. Inverter	BETA Inverter, Fuling brand It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
3. Motor	450B stepper motors With high quality & stronger power, ensure machine work very well.
4. Driver	Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time.
5. rotary	200mm diameter rotary Can work on a cylinder, can be processed material diameter 0-300mm
6. Control system	DSP Control System USB connect,can be use without computer.



Name	Specification
Working Area(X*Y*Z)	1300×2500*200mm
Machine Structure	Welded
X Y Z Guide Rail	Taiwan HIWIN Square Rail
X Y Z Transmission	Helical Rack and Pinion for X,Y axis TBI ball screw for Z axis
Motors	Stepper Motor (Optional Servo )
Control System	DSP controller system
spindle	water cooling spindle
Processing precision	±0.03mm/300mm
Max processing speed	45000mm/min
Max travelling speed	25000mm/min
rotary	200mm diameter rotary

1. Furniture industries: cabinet doors, wooden doors, solid woods,  antique furniture

2. Decoration industries: screens, wave boards, advertising boards and sign making

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles

4. Processing material: engraving, milling and cutting processing for acrylic, PVC,

     artificial stonesplastics and soft metal sheets such as copper and aluminum.

5. with rotary can work on a cylinder

 1) This is the first time I use this kind of machine, is it easy operate?

There are guide video that show how to use machine and english instruction book send to you with machine.

If there is still have any question, we will provide free professinal guide for you until you could use machine well.

2) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

3) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
