Product Description

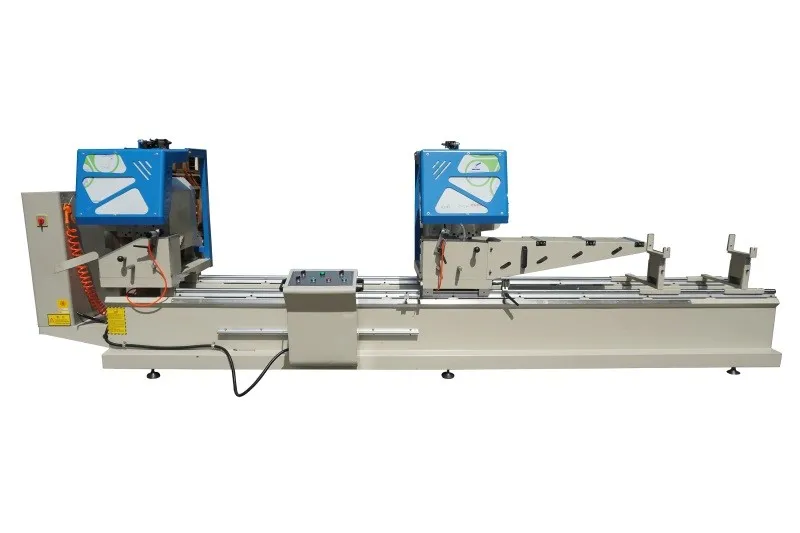

45 degree vertical aluminium window double head cutting machine saw
Name | door and window machinery |
cutting materail | PVC, UPVC, Aluminum |
cutting angle | 45º , 90° and -67.5º |
cutting range | 200mm*90°;135mm*45° |
cutting length | 450~4200mm |
Cutting Precision | ±0.1MM |
Cutting Angle Tolerance | ±0.3º |
Size Information
More models for you: 350#、400#、450#、500#, according to the size of your cutting material.
Model | DS-D500 |
Motor Power | 2×2.2kw |
Power Supply | 380V/50Hz |
Working Pressure | 0.5-0.8MPa |
Motor Speed | 2800r/Min |
Cutting Width*height | 135×200mm |
Cutting Angle | 45º , 90° and -67.5º |
Overall Size | 5700×1650×1520mm |
Cutting Range | 400~4200mm |
Cutting Precision | ±0.1MM |
Cutting Angle Tolerance | ±0.3º |
Features:
- Developed special equipment for the development of aluminum alloy doors and windows and curtain wall processing industry.
2. Simple operation, reliable performance, advanced technology and easy maintenance.
3. The imported digital magnetic grid system can automatically display the cutting length dimension, with high repeated positional precision and easy operation. Matched with Fujiresaw ultra-thin saw blade, it possesses fast cutting speed, high productivity ,high machining precision,and long service life.
4.Two saw heads can work alone or simultaneously.
5. When working at the same time, it can cut the required length and the angle of both ends of the profile.
