1.The Scope of Application:

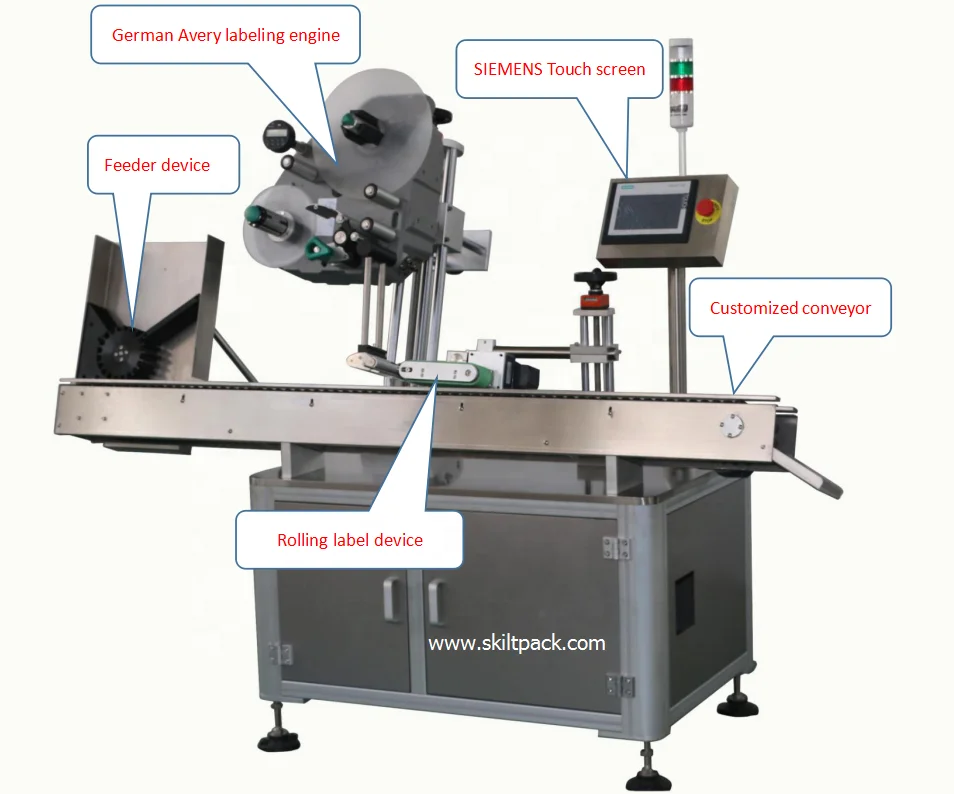

The model PWM-ASL104 Horizontal way labeling machine , suit for round shape products with smaller diameter can not stand when labeling, such as ampoule ,vials,blood collection tube, pen,sausage.
2. Device Characteristics:
1) Control system: SIEMENS PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: SIEMENS 10 inch touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, also rich with the help of the function and fault display function.
3) Check system: German LEUZE check label sensor, stable and convenient don't have much higher requirement for worker.

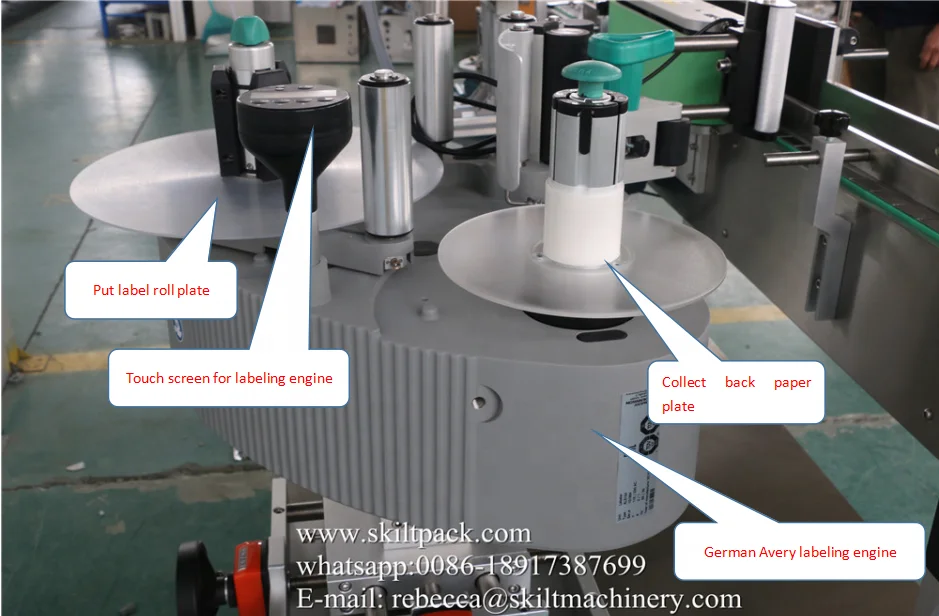

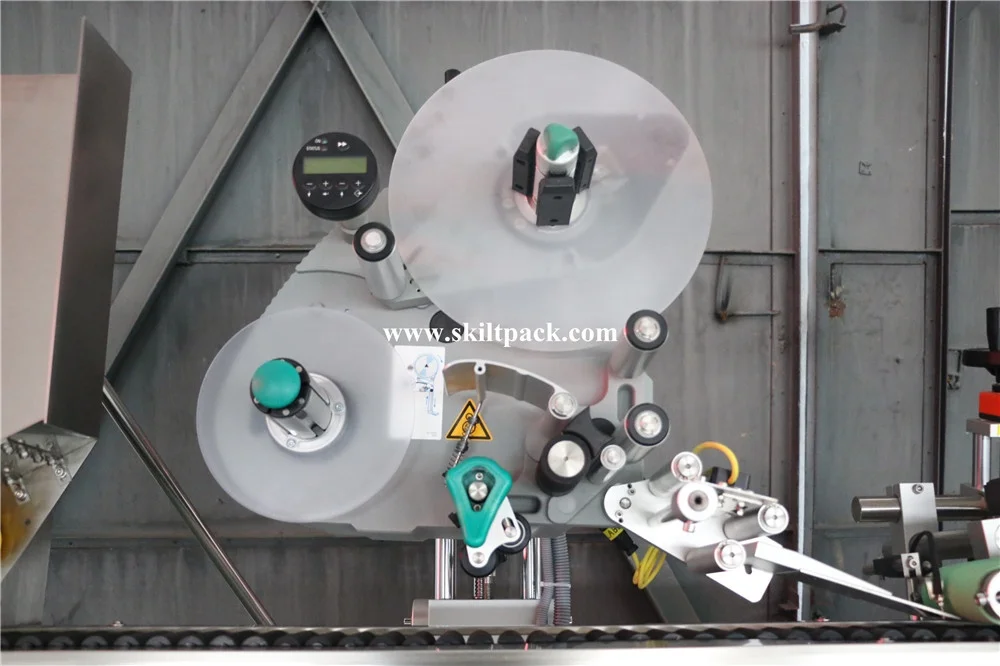

4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Low voltage circuit all use the German Schneider brand.
Model | PWM-ALS104 |
Capacity (pcs/min) | 50-230 |
Driving Mode | German Avery Labeling engine |
Labeling accuracy | ±1mm |
Labeling Speed(m/min) | ≤35 |
Label Specification | adhesive sticker, transparent or opaque |
Suit bottle size | Can customized |
Suit label size | Height 20-160mm Length 25-300mm |
The inner diameter or label roll | 76mm(min) |
The outer diameter of label roll | 350mm(max) |
Power | 600w |
Voltage | can customized, 110V/220V/380V |
Machine size | 1800x800x1500mm |
No. | Name | Model | Unit | Brand |
1 | PLC control system | 288-1ST20-OAAO | 1 Set | SIEMENS |
2 | Touch-screen | 648-OCC11-3AXO | 1 Set | SIEMENS |
3 | photoelectric sensor (check label object) | FS-N18N | 1 Set | Japan KEYENCE |
4 | Photoelectric sensor (Check opaque label) | GS61/6.2 | 1 Set | German Leuze |
5 | Photoelectric sensor (Check transparent and opaque label) | GSU 14B/66.3-S12 | 1 Set | German Leuze |
6 | Drive | 6SL3 210-5FB10-4UA1 | 1 Set | SIEMENS |
7 | Main transport motor | 90W1:30 | 1 Set | German JSCC |
8 | Servo motor | 1FL6 034-2AF21-1AA1 | 1Set | SIEMENS |
9 | Roll label Motor | 40W1:30 | 1 Set | German JSCC |
10 | Speed Controller | 25-90W | 1set | German JSCC |
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
