Гидравлическая буровая установка для бурения скважин с прицепом
- Категория: Mine Drilling Rig >>>
- Поставщик: Beijing,Jincheng,Mining,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 65450.45 $* | 68723.24 $* |
| Aug-19-2025 | 64900.82 $* | 68145.25 $* |
| Jul-19-2025 | 54450.18 $* | 57173.15 $* |
| Jun-19-2025 | 63800.16 $* | 66990.27 $* |
| May-19-2025 | 55550.28 $* | 58328.48 $* |
| Apr-19-2025 | 62700.10 $* | 65835.47 $* |
| Mar-19-2025 | 62150.15 $* | 65258.34 $* |
| Feb-19-2025 | 61600.69 $* | 64680.59 $* |
| Jan-19-2025 | 61050.61 $* | 64103.56 $* |
Характеристики
Product Overview

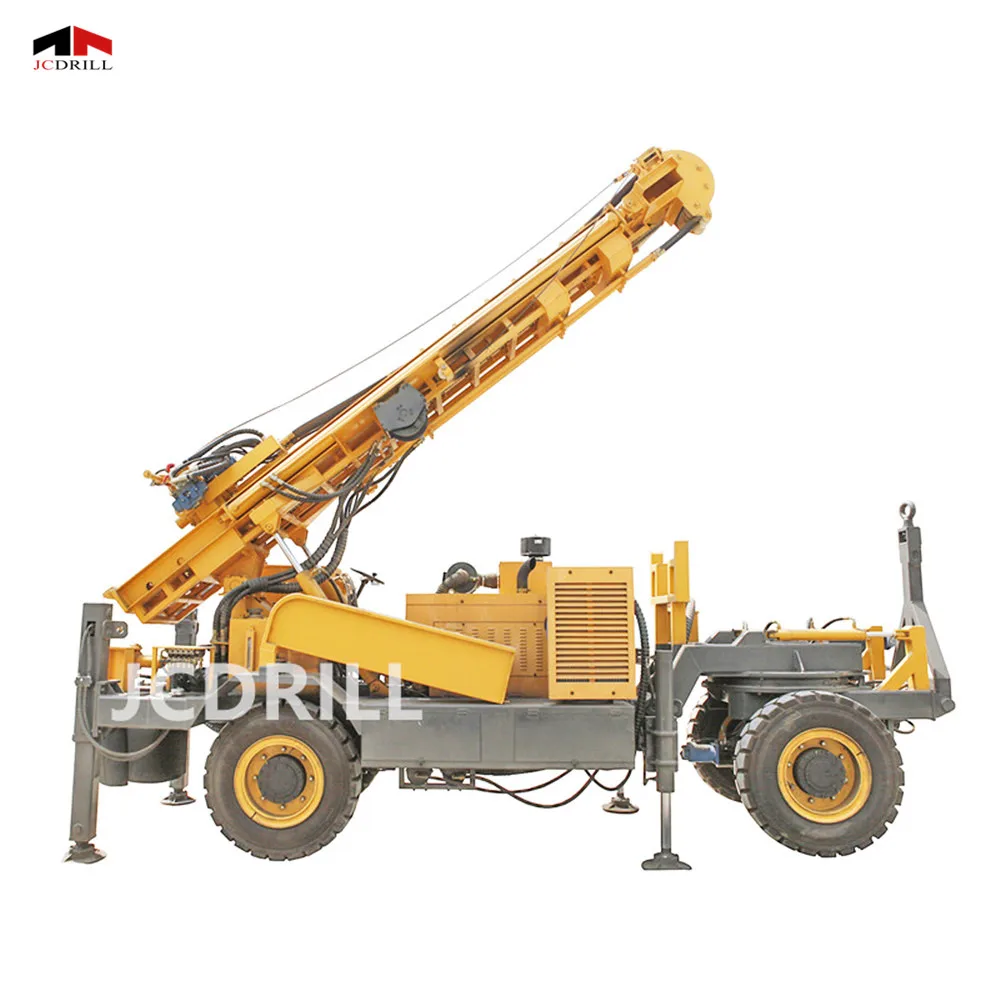

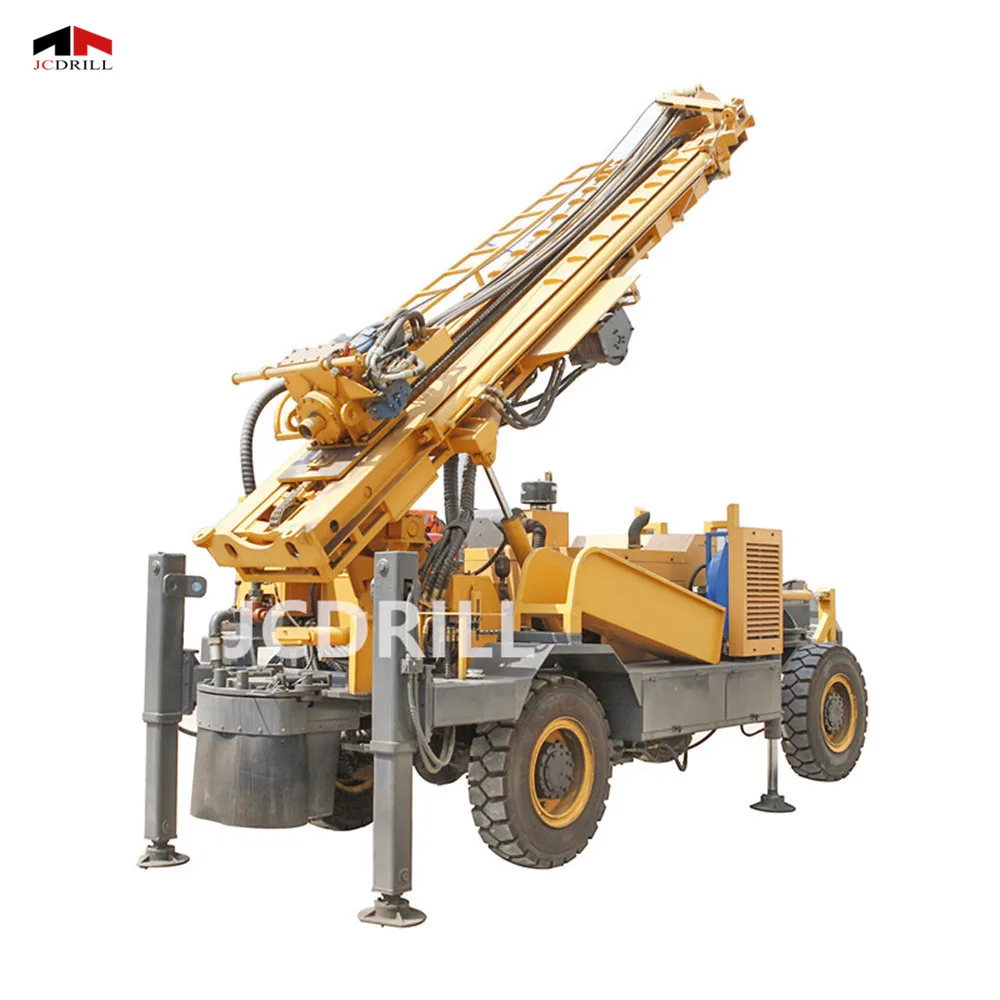

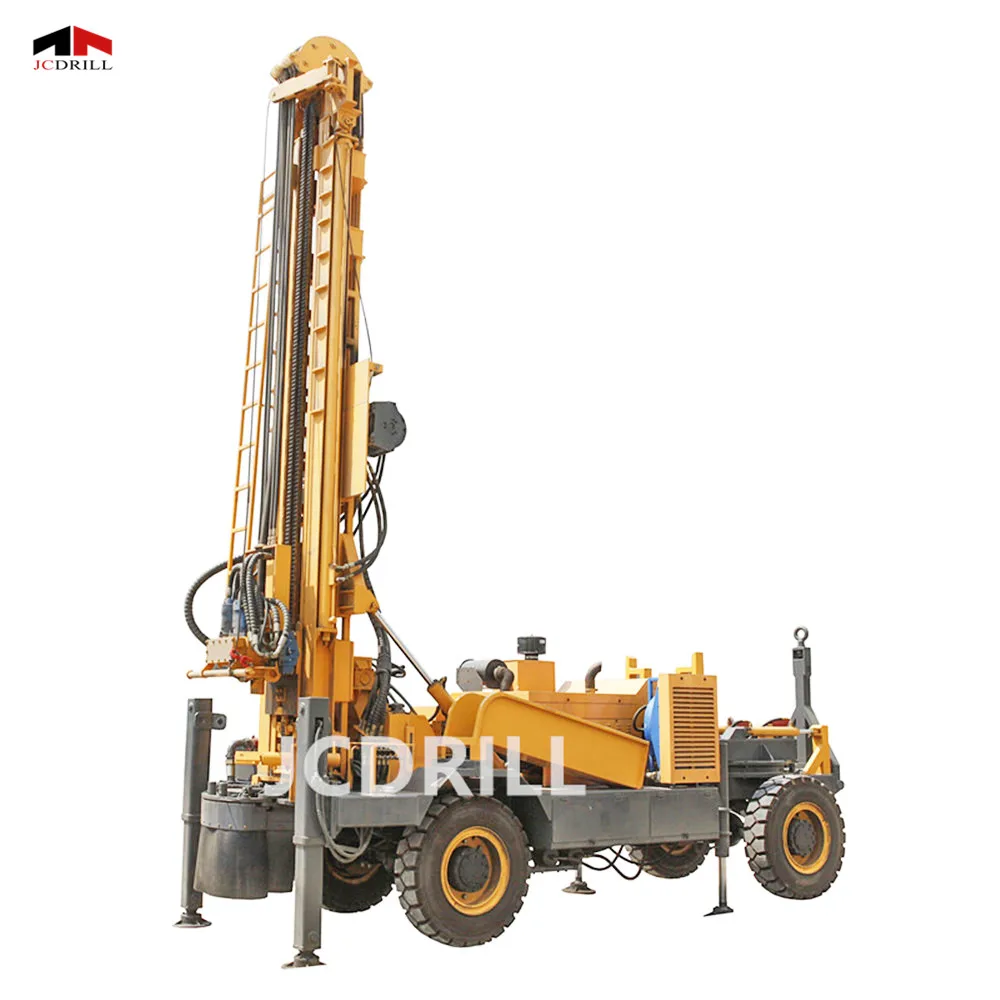

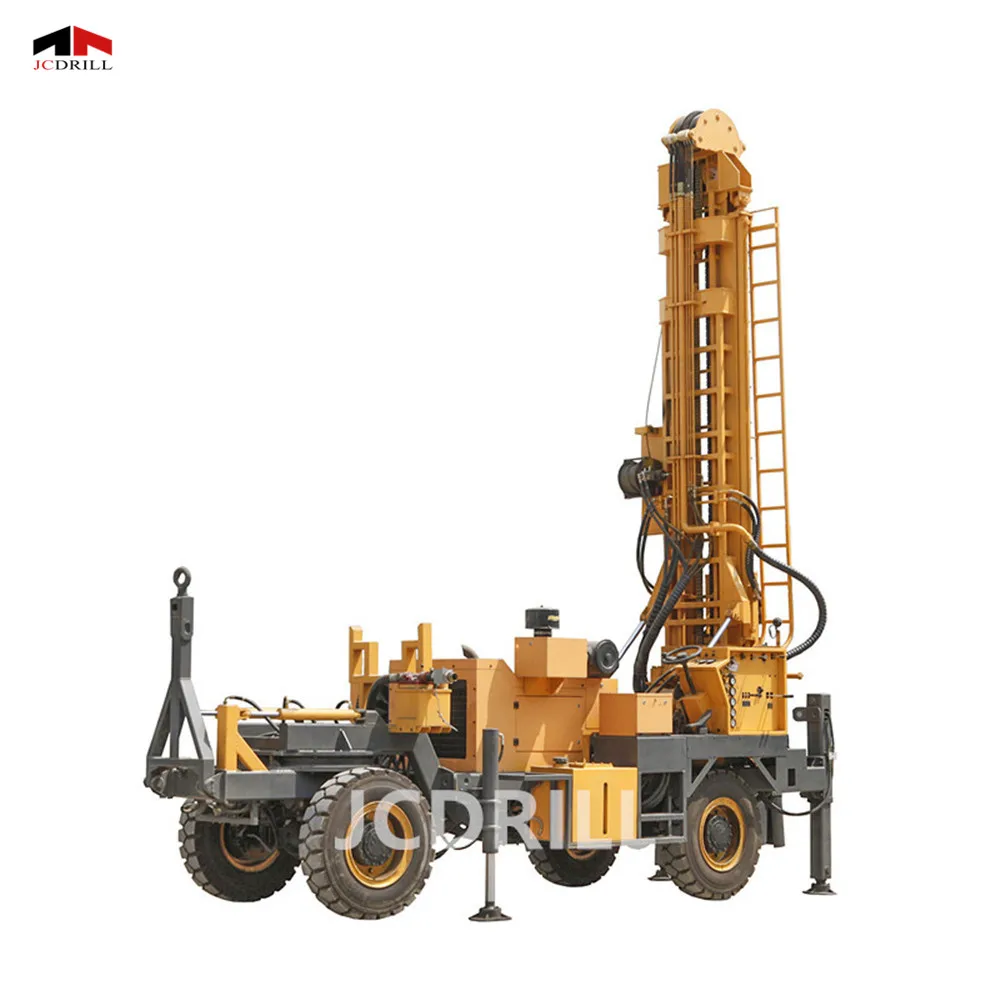

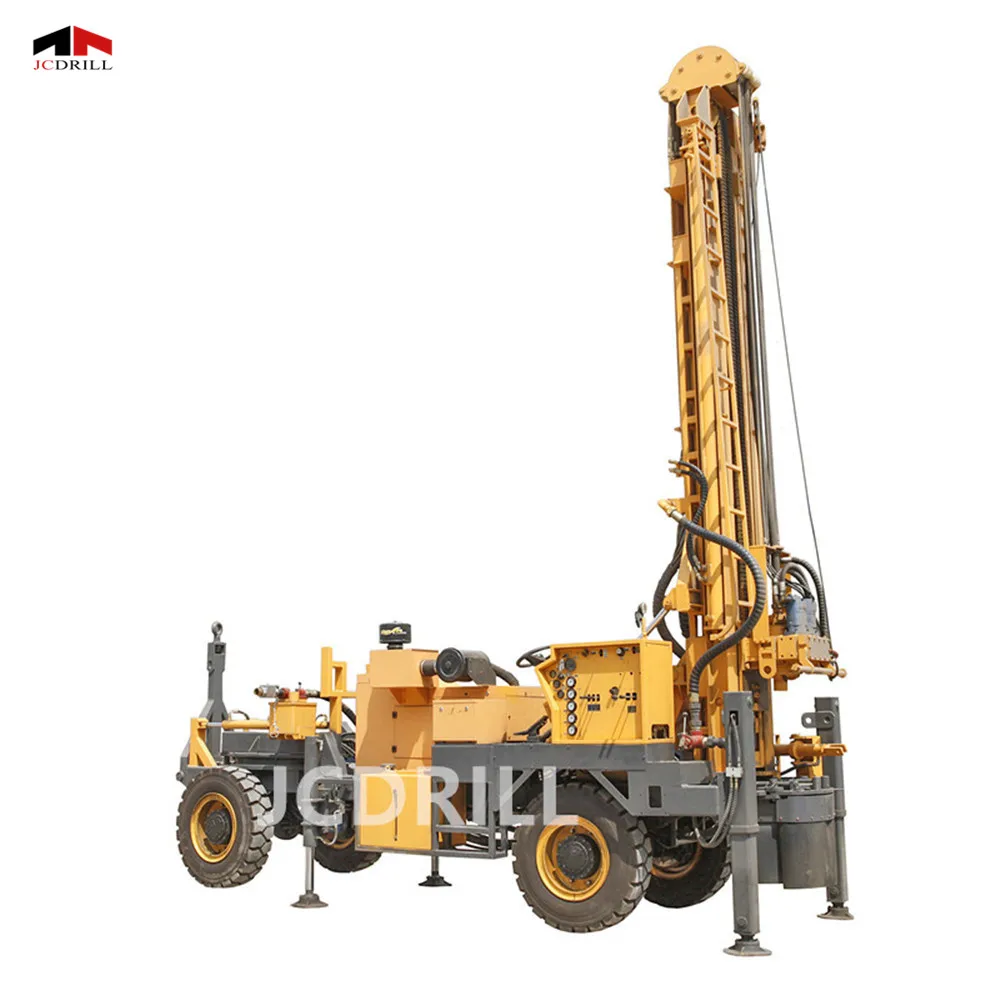

TWD600 Trailer Mounted Water Well Drilling Rig
TWD600 Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water well\\drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
TWD600 trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
TWD600 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Product Paramenters
No. | Item | TWD600 | ||||
1 | Geology Drilled | All Kinds | ||||
2 | Drilling Type | DTH & Mud Rotary | ||||
3 | Drill System and Operation | Hydraulic | ||||
4 | Hole Diameter | mm | 105-450mm | |||
5 | Hole Depth | m | 600 | |||
6 | Rotation Torque | Nm | 6000-12000 | |||
7 | Rotation Speed | rpm | 0-110 | |||
8 | Drill Pipe Diameter | mm | 89/102/114 | |||
9 | Drill Pipe Length | mm | 4500 | |||
10 | Max.Feed Speed | T | 18 | |||
11 | Max. Lifting Speed | M/min | 5-20 | |||
12 | Feed Stroke | mm | 5000 | |||
13 | Max. Pull Back Capacity | T | 30 | |||
14 | Lifting Force of Main Winch(Optional) | T | 4 | |||
15 | Lifting Force of Hoist | T | 1.5 | |||
16 | Lifting Height of Tool Winch | m | 6 | |||
Engine | ||||||
17 | Diesel Engine Type | CUMMINS | ||||
18 | Rated Horse Power | Kw | 132 | |||
19 | Electrical System | Volt | 24 | |||
Compressor Required | ||||||
20 | Compressor Type | Rotary Screw/Movable | ||||
21 | Pressure Required | Mpa | 1.05-2.46 | |||
22 | Air Consumption | M3/min | 16-30 | |||
Mud Pump | ||||||
23 | Power Type | Hydraulic | ||||
24 | Model | BW850 | ||||
25 | Stroke | mm | 100 | |||
26 | Displacement | L/Min | 850 | |||
27 | Discharge Pressure | Mpa | 2-3 | |||
Trailer | ||||||
28 | Type | Heavy Duty | ||||
29 | Wheel Quantity | 4 Wheels | ||||
Dimension | ||||||
30 | Net Weight | T | 12 | |||
31 | Shipping Length | mm | 10500 | |||
32 | Shipping Width | mm | 2100 | |||
33 | Shipping Height | mm | 2850 | |||
Product Configuration
Rotary Head
4-wheel Trailer Chassis
Full Hydraulic Control Panel
Drill Pipe
Mud Pump
Drilling Tower
Product Features
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW850 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a Yuchai engine,132kw CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,have two gear,rotation speed is 0-80 and160rpm step less adjustment and the rotary torque is 6000-12000Nm.
7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.
9.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10.The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
13.Competitive in price, low cost of maintain.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW850 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a Yuchai engine,132kw CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,have two gear,rotation speed is 0-80 and160rpm step less adjustment and the rotary torque is 6000-12000Nm.
7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.
9.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10.The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
13.Competitive in price, low cost of maintain.
Product Loading
FAQ
Q: Are you original manufacturer?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q: Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q: Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
